Smart Junction Box (SJB) C2280h
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

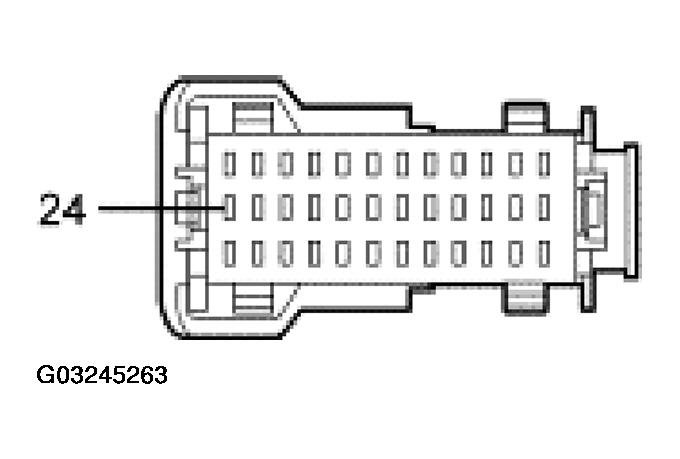

Courtesy of FORD MOTOR CO. C2280H CONNECTOR REFERENCE
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 24 |
601 (LB/PK) B+ power |
Greater than 10 volts with the ignition in the ON position. Greater than 10,000 ohms between the SJB and ground. |
