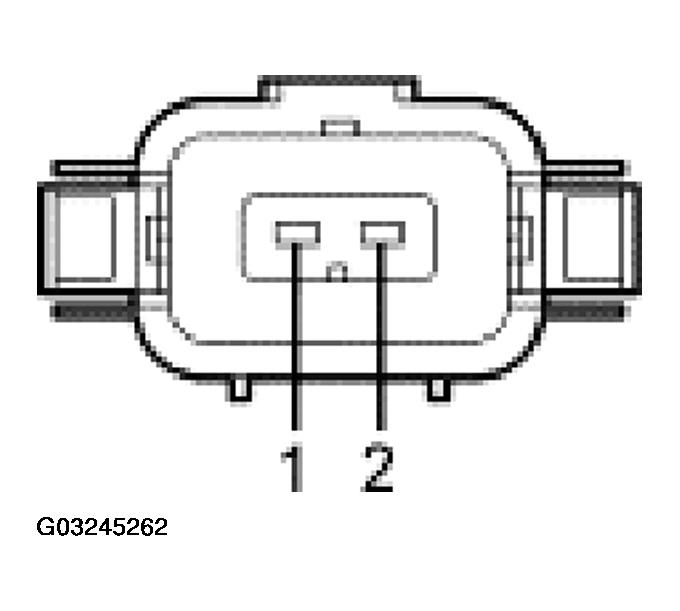

Speed Control Deactivator Switch C1025
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
C1025 CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 535 (LB/RD) brake pressure switch input | 0 volts, less than 5 ohms between the deactivator switch and the speed control actuator. Greater than 10,000 ohms between the deactivator switch and ground. |
| 2 | 601 (LB/PK) B+ power | Greater than 10 volts with ignition switch in the ON position. Greater than 10,000 ohms between the deactivator switch and ground. Less than 5 ohms between the speed control deactivator switch and the SJB. |
