In-Vehicle Temperature Sensor - EATC

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

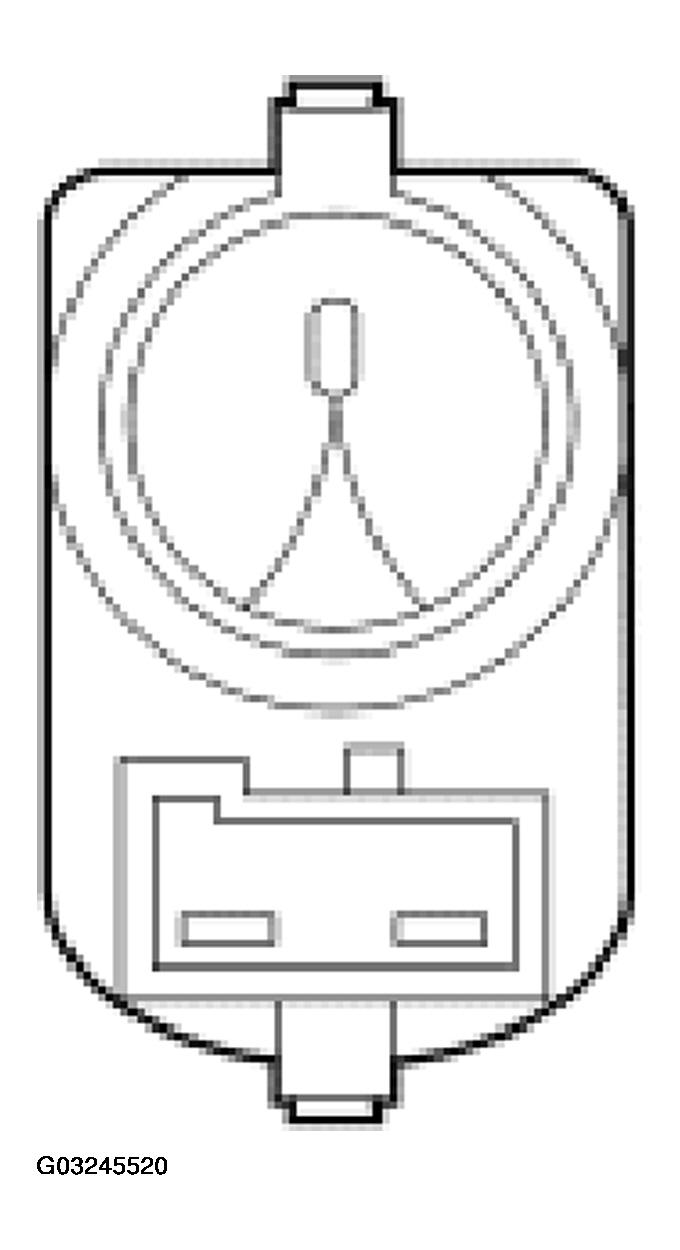

Fig 1: Identifying In-Vehicle Temperature Sensor - EATC

Courtesy of FORD MOTOR CO.

IN-VEHICLE TEMPERATURE SENSOR RESISTANCE

Temperature	Resistance
10-20 °C (50-68 °F)	37,000-58,000 ohms
20-30°C(68-86°F)	24,000-37,000 ohms
30-40 °C(86-104 °F)	16,000-24,000 ohms
