A/C Compressor Clutch Field Coil C100
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

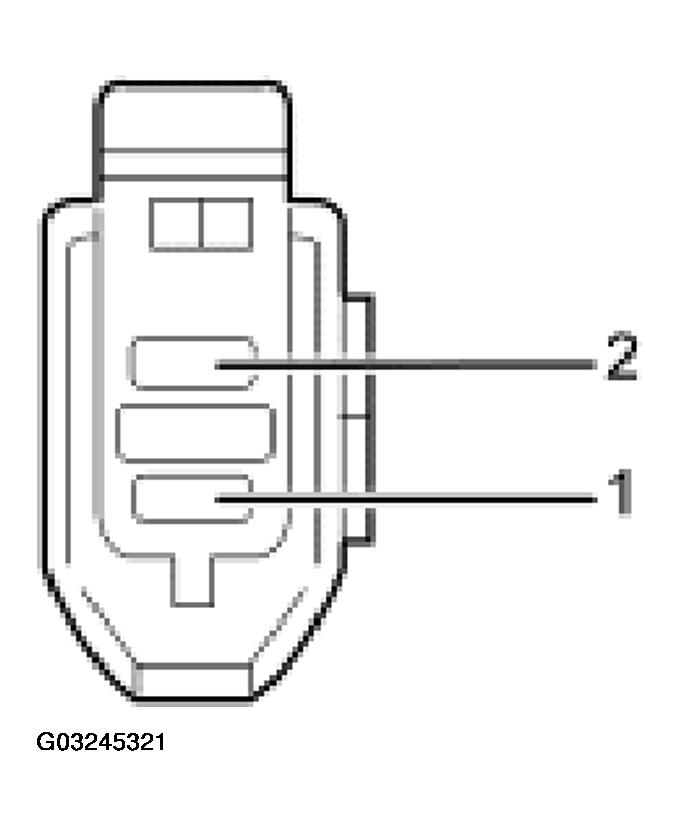

A/C COMPRESSOR CLUTCH FIELD COIL C100 CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1205 (BK) ground | Resistance of 0 ohms to chassis ground. |
| 2 | CKT 883 (PK/LB) A/C compressor clutch relay switched output | Greater than 10 volts with the A/C commanded on. |
