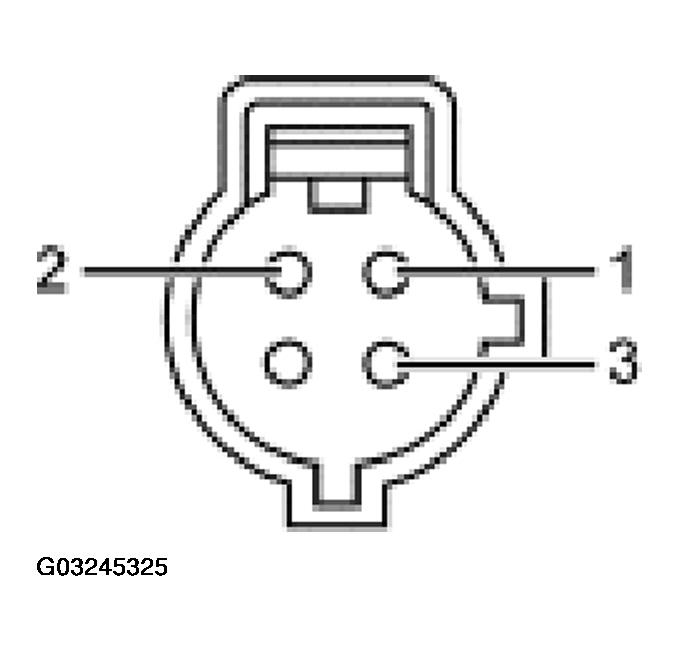

A/C PRESSURE TRANSDUCER C1078 CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 359 (GY/RD) A/C pressure transducer ground | Resistance of 0 ohms to chassis ground. |
| 2 | CKT 351 (BN/WH) A/C pressure transducer voltage | Greater than 10 volts with the ignition on. |
| 3 | CKT 439 (TN/LG) A/C pressure transducer to PCM | Greater than 10,000 ohms to chassis ground and 0 volts. |
