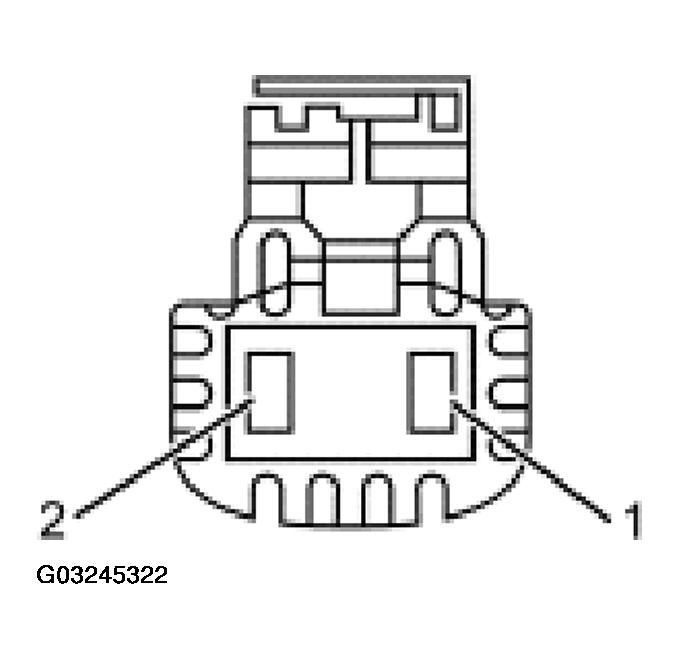

Blower Motor C2004
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. BLOWER MOTOR C2004 CIRCUIT REFERENCE
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
CKT 371 (PK/WH) |
Greater than 10 volts with the climate control in any position except OFF. |
| 2 |
CKT 261 (OG/BK) |
Resistance of 0 ohms to chassis ground with blower in the highest setting. |
