Blower Motor Switch C294b - Manual Climate Control
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

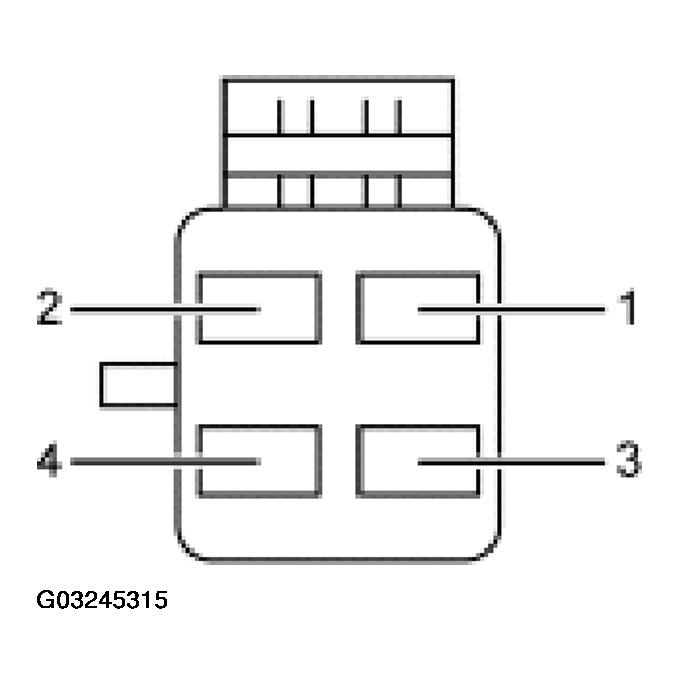

BLOWER MOTOR SWITCH C294B - MANUAL CLIMATE CONTROL CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1205 (BK) Ground | Resistance of 0 ohms to chassis ground. |
| 2 | CKT 261 (OG/BK) High blower motor speed | Less than 100 ohms to chassis ground. |
| 3 | CKT 269 (LB/OG) Med-high blower motor speed | Less than 3 ohms to chassis ground. |
| 4 | CKT 260 (RD/OG) Med-low blower motor speed | Less than 2 ohms to chassis ground. |
