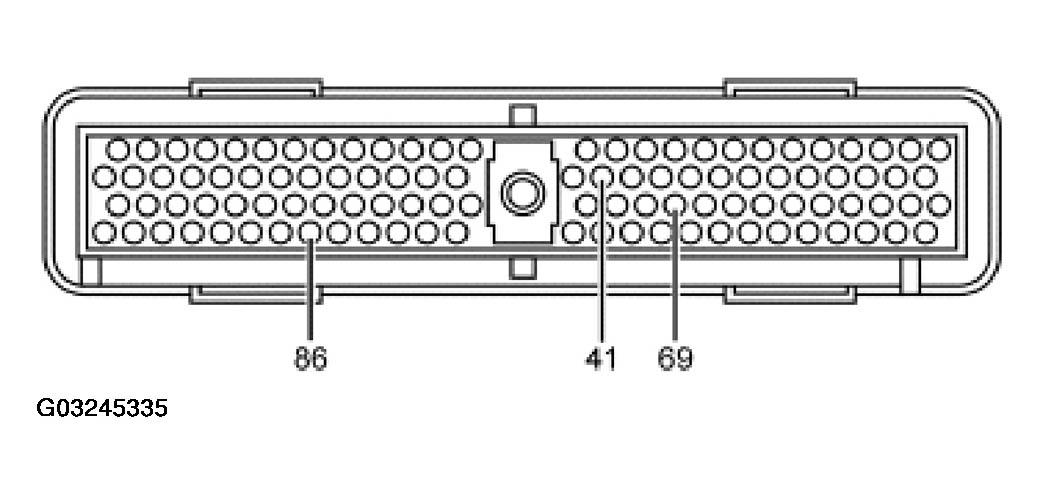

POWERTRAIN CONTROL MODULE C175 CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 41 | CKT 347 (BK/YE) A/C cycling switch input to PCM | Greater than 10 volts with the ignition on and engine running. |
| 69 | CKT 331 (PK/YE) A/C compressor clutch relay control | Greater than 10 volts with the ignition on. |
| 86 | CKT 349 (TN/LG) A/C pressure transducer input to PCM | Greater than 10,000 ohms to chassis ground and 0 volts. |
