Solar Radiation Sensor C286
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

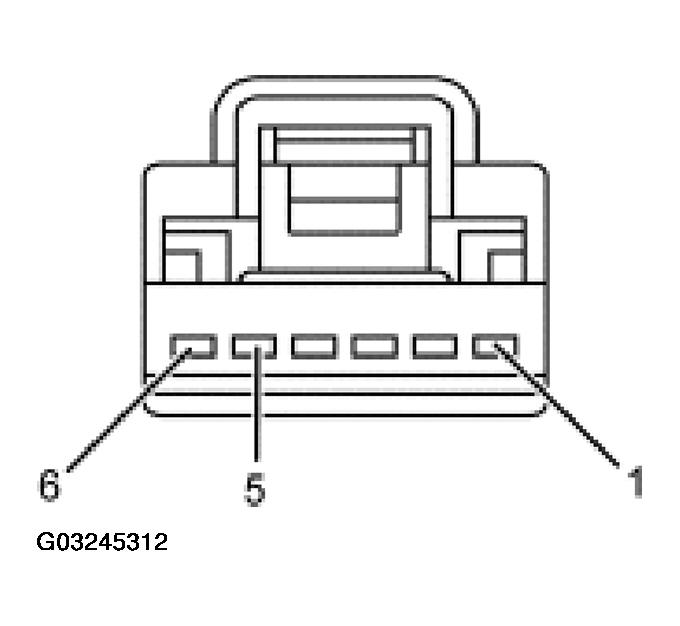

SOLAR RADIATION SENSOR C286 CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 468 (BN) solar radiation sensor input (LH) | Approximately 5 volts with the EATC ON. |
| 5 | CKT 1203 (BK/LB) ground | Resistance of 0 ohms to chassis ground. |
| 6 | CKT 476 (PK/YE) solar radiation sensor input (RH) | Approximately 5 volts with the EATC ON. |
