Blower Motor Speed Control

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the glove compartment.
  2. Remove the parts in the order indicated in the following illustration and table.

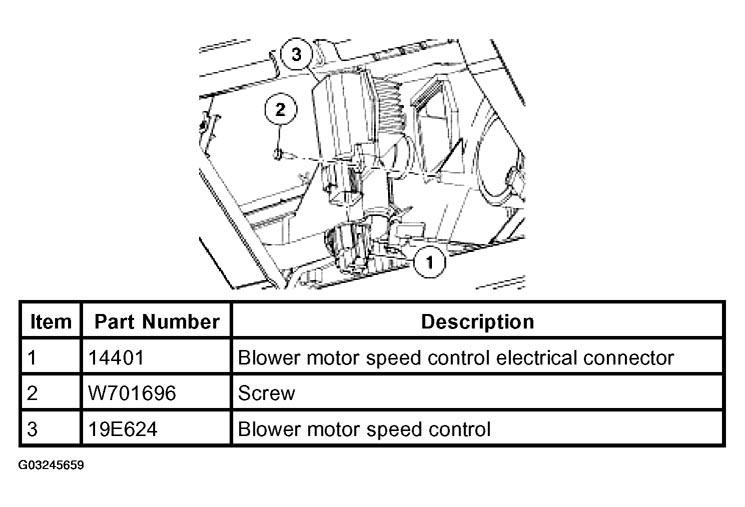

    Fig 1: Blower Motor Speed Control Components Removal Sequence
    G03245659Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
