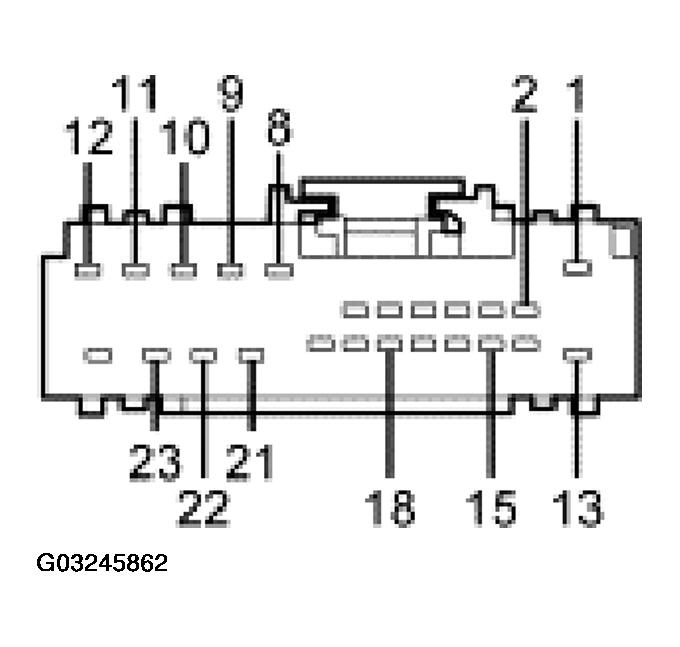

AUDIO UNIT C240a


Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
1	797 (LG/VT) B+ battery feed at all times	Greater than 10 volts between the audio unit and ground.
2	687 (GY/YE) B+ battery feed with the key in the ON and ACC positions	Greater than 10 volts between the audio unit and ground with the key in the ON or ACC positions.
8	804 (OG/LG) LF speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
9 (except base audio)	800 (GY/LB) LR speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
9(base audio)	1726 (GY/LB) LR speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
10 (except base audio)	802 (OG/RD) RR speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
10 (base audio)	1781 (OG/RD) RR speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
11	805 (WH/LG) RF speaker output	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
12	811 (DG/OG) RF speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
13	694 (BK/LG) audio unit ground	Less than 5 ohms between the audio unit and ground.
15	1000 (RD/BK) B+ power feed START position only	Greater than 10 volts with key in START position.
18	595 (LB/RD) steering wheel audio controls reference signal	Less than 5 ohms between the audio unit and the steering wheel control switch. Greater than 10,000 ohms between the audio unit and ground.
21	813 (LB/WH) LF speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
22 (except base audio)	801 (TN/YE) LR speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
22 (base audio)	1725 (TN/YE) LR speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
23 (except base audio)	803 (BN/PK) RR speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
23 (base audio)	1780 (BN/PK) RR speaker return	Less than 5 ohms between the audio unit and the speaker and greater than 10,000 ohms between the audio unit and ground.
