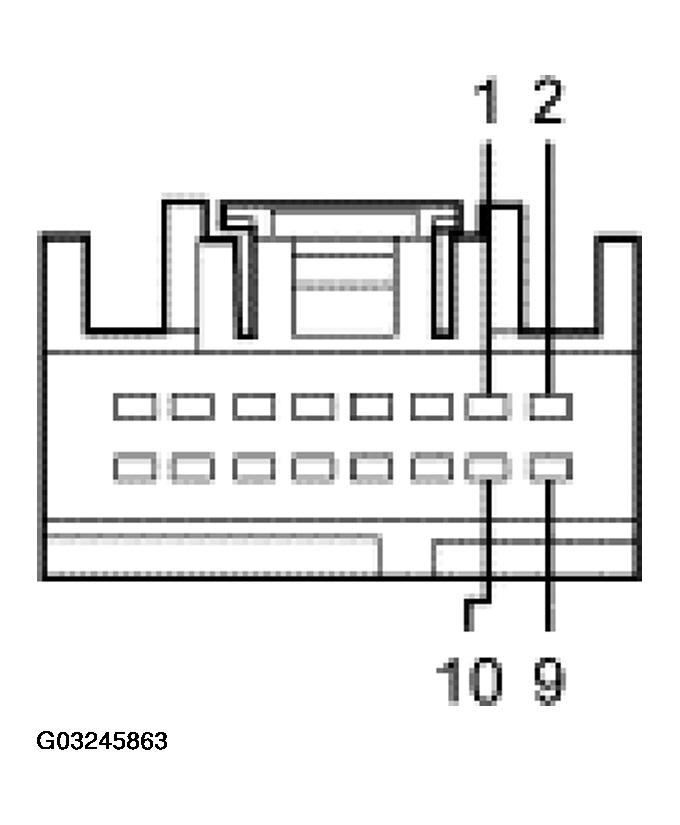

AUDIO UNIT C240b
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1803 (WH) left audio output signal | Less than 5 ohms between the audio unit and DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 2 | 1804 (LG) left audio output signal | Less than 5 ohms between the audio unit and DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 9 | 1805 (RD) right DVD player output signal | Less than 5 ohms between the audio unit and DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 10 | 1806 (BK) right DVD player output signal | Less than 5 ohms between the audio unit and DVD unit and greater than 10,000 ohms between the audio unit and ground. |
