Clockspring C218b

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

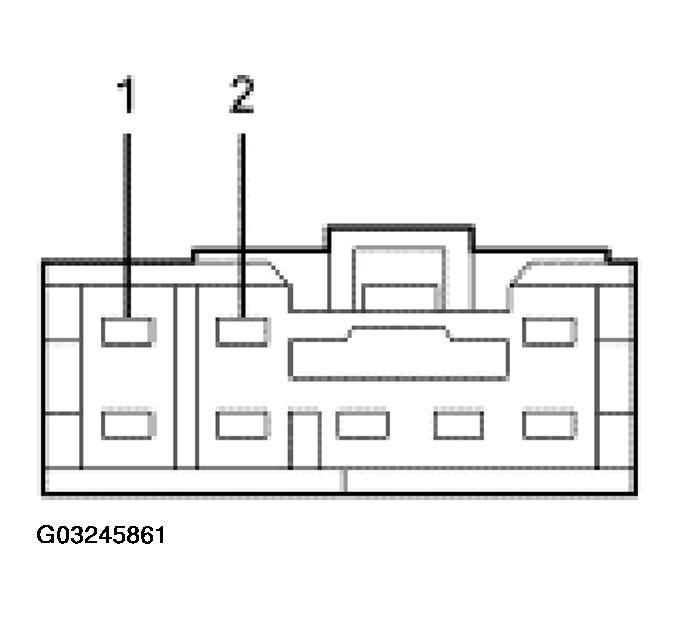

CLOCKSPRING C218b

G03245861
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 1205 (BK) steering wheel audio control switches ground Less than 5 ohms between the clockspring and ground.
2 595 (LB/RD) steering wheel audio control switches signal Less than 5 ohms between the clockspring and the audio unit.
