Audio Unit

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the parts in the order indicated in the following illustration and table.

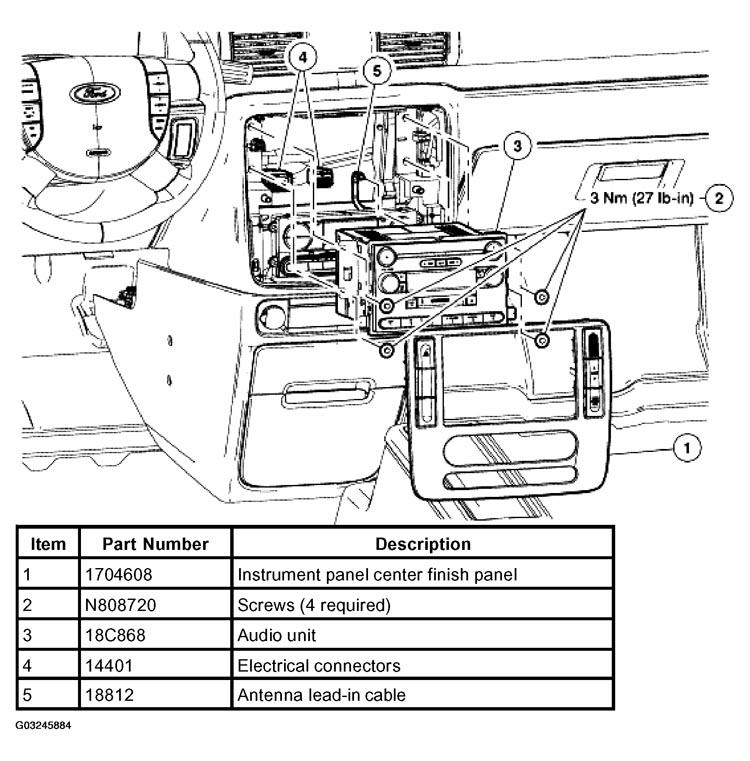

    Fig 1: Removing Audio Unit
    G03245884Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
