Brake Pedal: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the adjustable pedal assembly, make sure that the pedals are adjusted to the full forward position.

Depower the supplemental restraint system (SRS). For additional information, refer to DISABLING SYSTEM .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PARTS SPECIFICATION

Part	Steps
Adjustable pedal assembly	1-12
Adjustable pedal motor	1-14
Fixed pedal assembly	2-8, 12

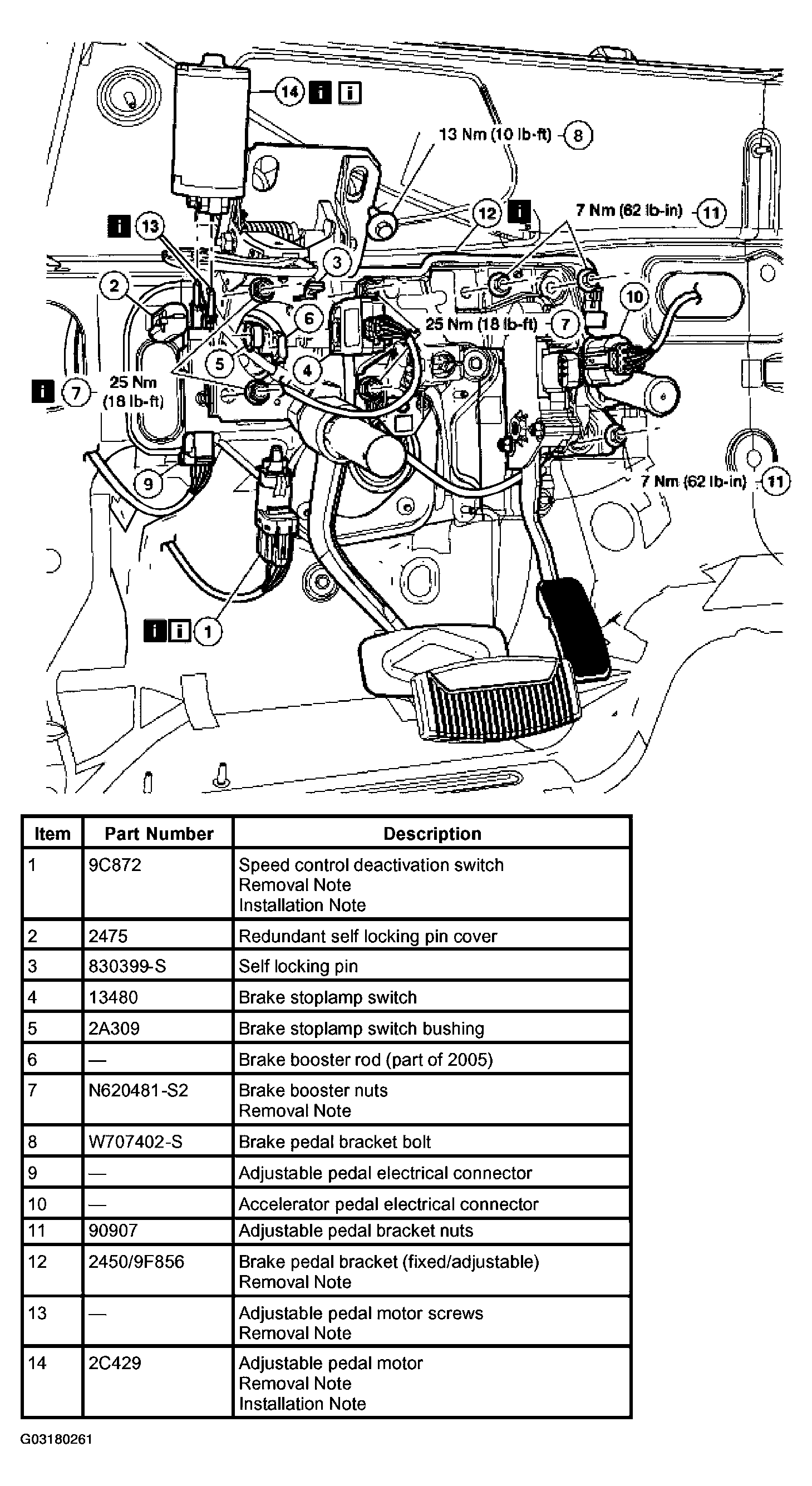

Fig 1: Identifying Removal Order Of Brake Pedal

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Inspect the brake system for correct operation.
