Sensor Cluster C3180 (4WD)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

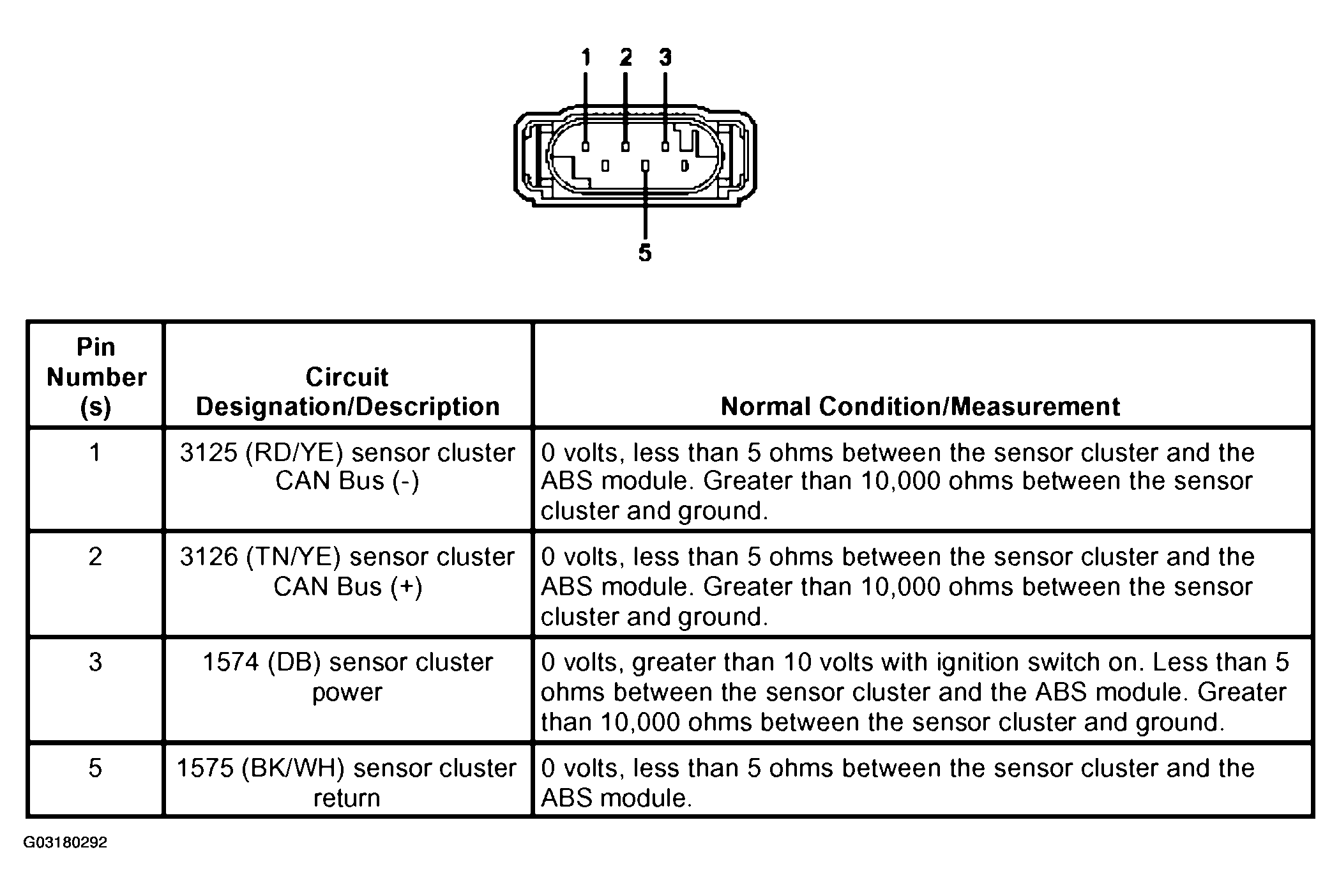

Fig 1: Identifying Sensor Cluster C3180 (4WD)
G03180292Courtesy of FORD MOTOR CO.
