Pinpoint Test O: The Stability Assist Cannot Be Disabled

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the flex probe kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
  1. O1 CHECK THE STABILITY ASSIST SWITCH
    • Key in OFF position.
    • Disconnect: Stability Assist Switch C280.
    • Turn the stability assist switch to the OFF position.
    • Measure the resistance between the stability assist switch C280-1, circuit 1003 (GY/YE), component side and C280-2, circuit 959 (GY).

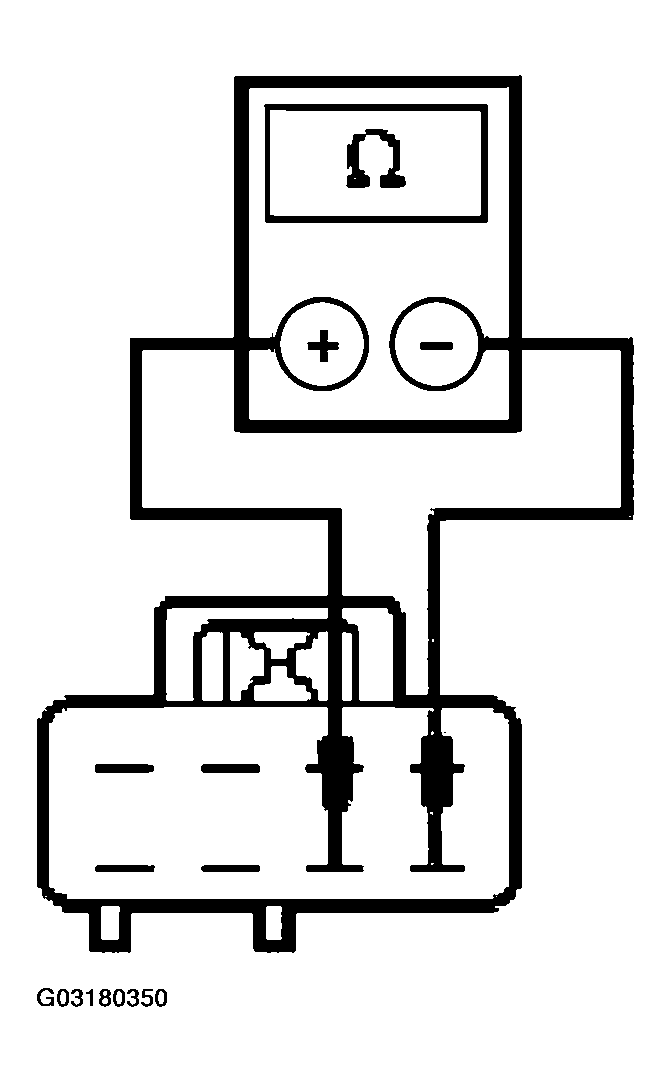

      Fig 1: Measuring Resistance Between Stability Assist Switch C280-1, Circuit 1003 (GY/YE)
      G03180350Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes

    GO to O2.

    No

    INSTALL a new stability assist switch. REFER to TRACTION CONTROL SWITCH . TEST the system for normal operation.

  2. O2 CHECK CIRCUIT 959 (GY) FOR A SHORT TO POWER
    • Key in OFF position.
    • Disconnect: ABS Module C155.
    • Key in ON position.
    • Measure the voltage between the ABS module C155-38, circuit 959 (GY), harness side and ground.

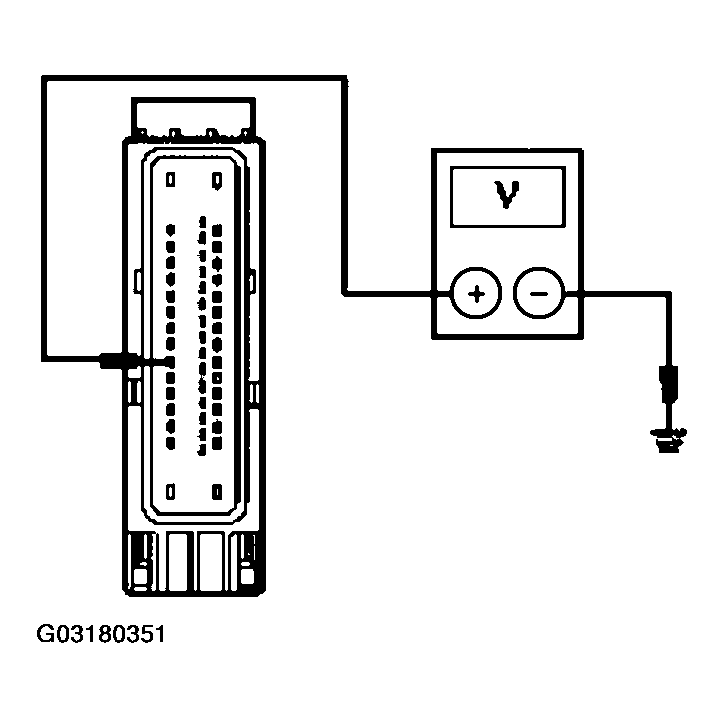

      Fig 2: Measuring Voltage Between ABS Module C155-38, Circuit 959 (GY)
      G03180351Courtesy of FORD MOTOR CO.
    • Is any voltage present?

    Yes

    REPAIR the circuit. REPEAT the self-test.

    No

    GO to O3.

  3. O3 CHECK CIRCUIT 960 (BK/LB) FOR SHORT TO GROUND
    • Key in OFF position.
    • Measure the resistance between the ABS module C155-13, circuit 960 (BK/LB), harness side and ground.

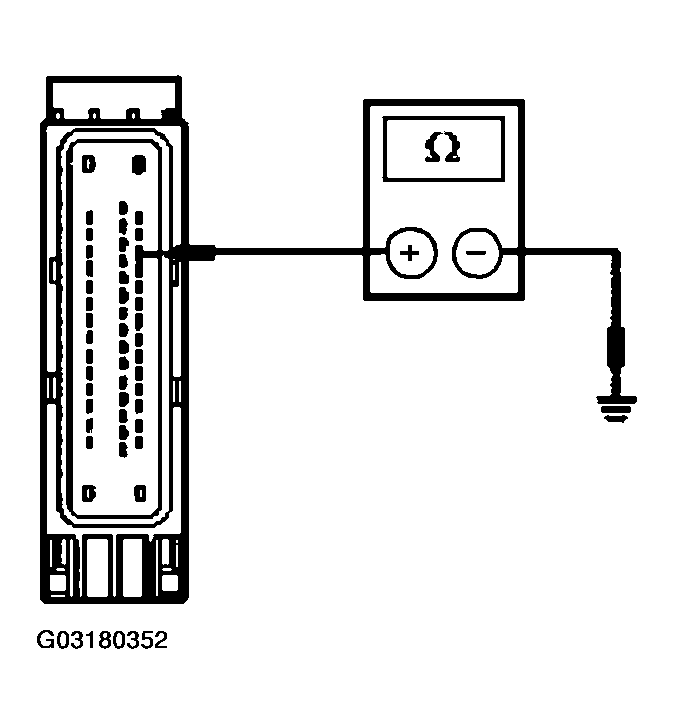

      Fig 3: Measuring Resistance Between ABS Module C155-13, Circuit 960 (BK/LB)
      G03180352Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?

    Yes

    GO to O4.

    No

    REPAIR the circuit. TEST the system for normal operation.

  4. O4 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect all ABS connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all ABS connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?

    Yes

    INSTALL a new ABS module. refer to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE . TEST the system for normal operation.

    No

    The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self -test.
