Piston - Diameter
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

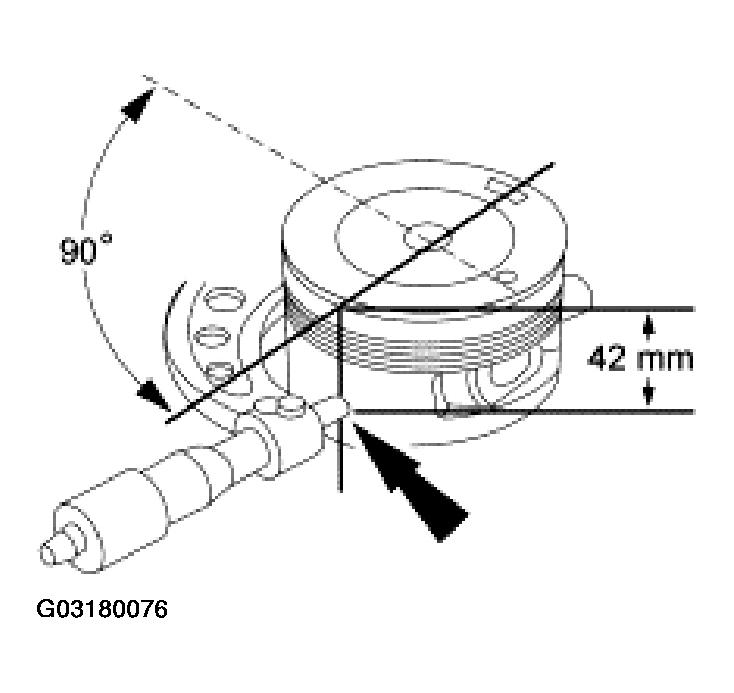

- Measure the piston diameter 90 degrees from the piston pin and 42 mm down from the top of the piston at the point indicated.
- If out of specification, install new components as necessary.
Courtesy of FORD MOTOR CO.
