Removal And Installation: Antenna

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the antenna mast.
Remove the RH front fender splash shield. For additional information, refer to BODY SYSTEM - EXTERIOR .
Remove the RH cowl side trim panel and the RH front door scuff plate trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

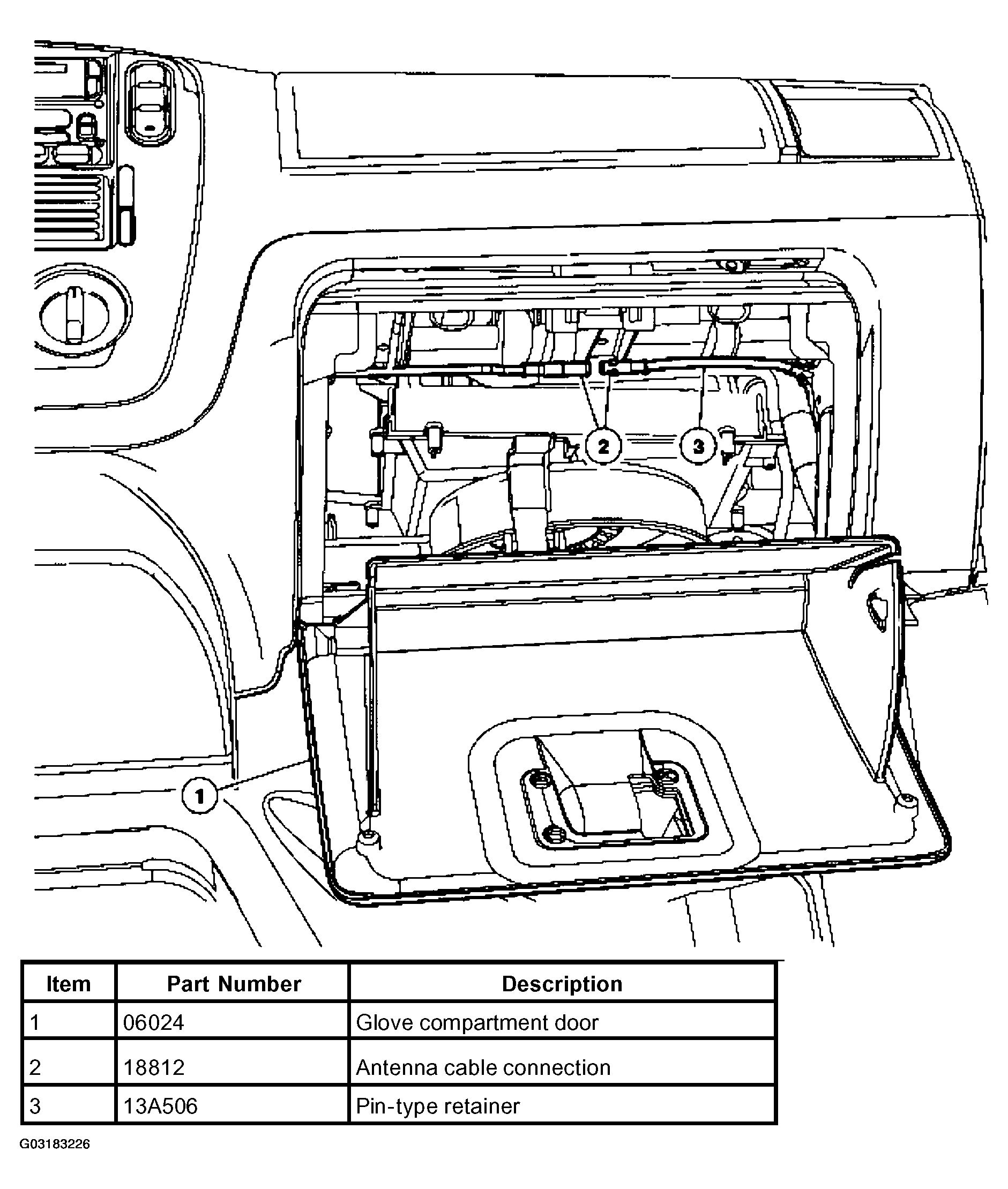

Fig 1: Identifying Removal Sequence Of Antenna (1 Of 2)
Courtesy of FORD MOTOR CO.

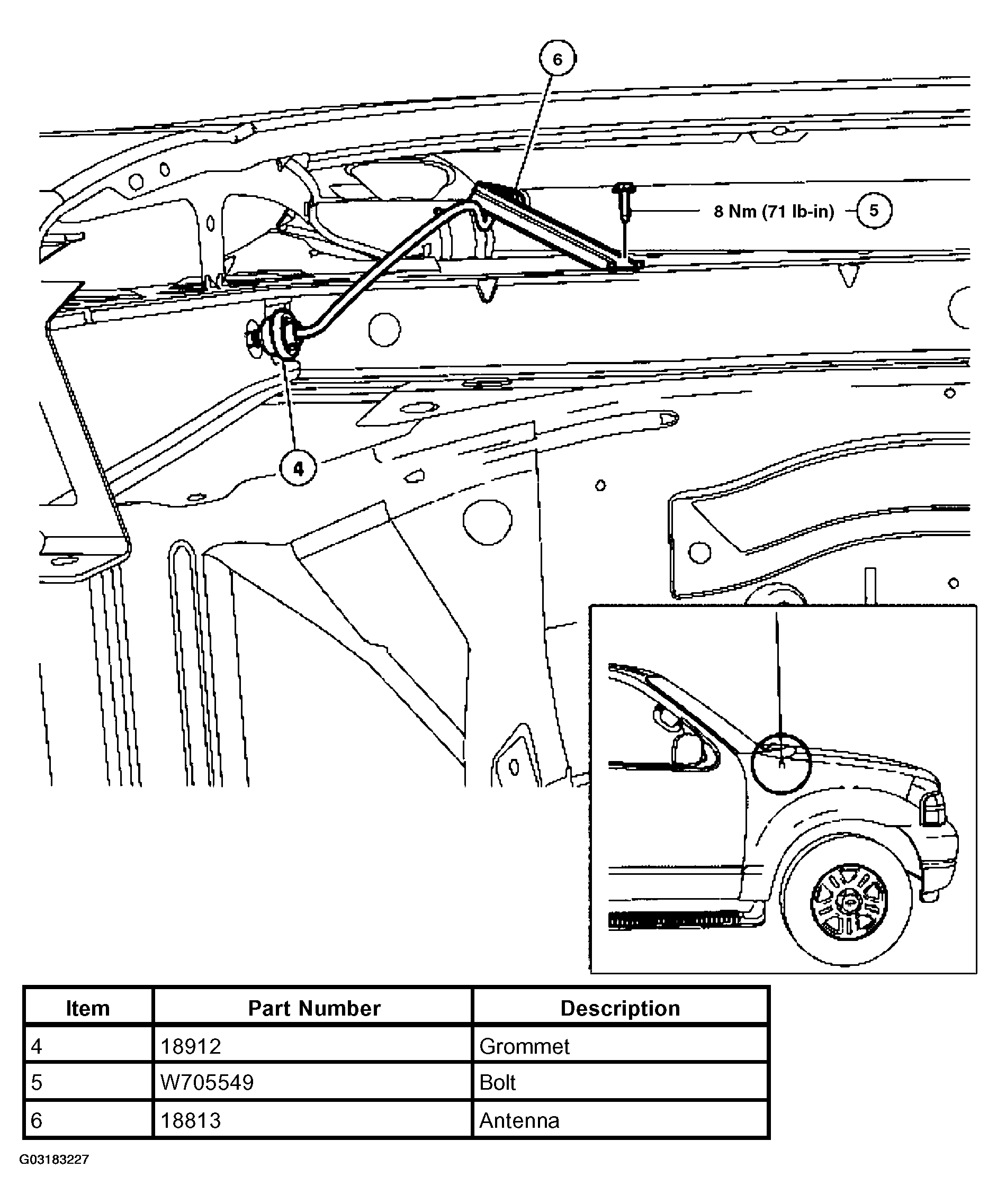

Fig 2: Identifying Removal Sequence Of Antenna (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
