Spring Codes
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

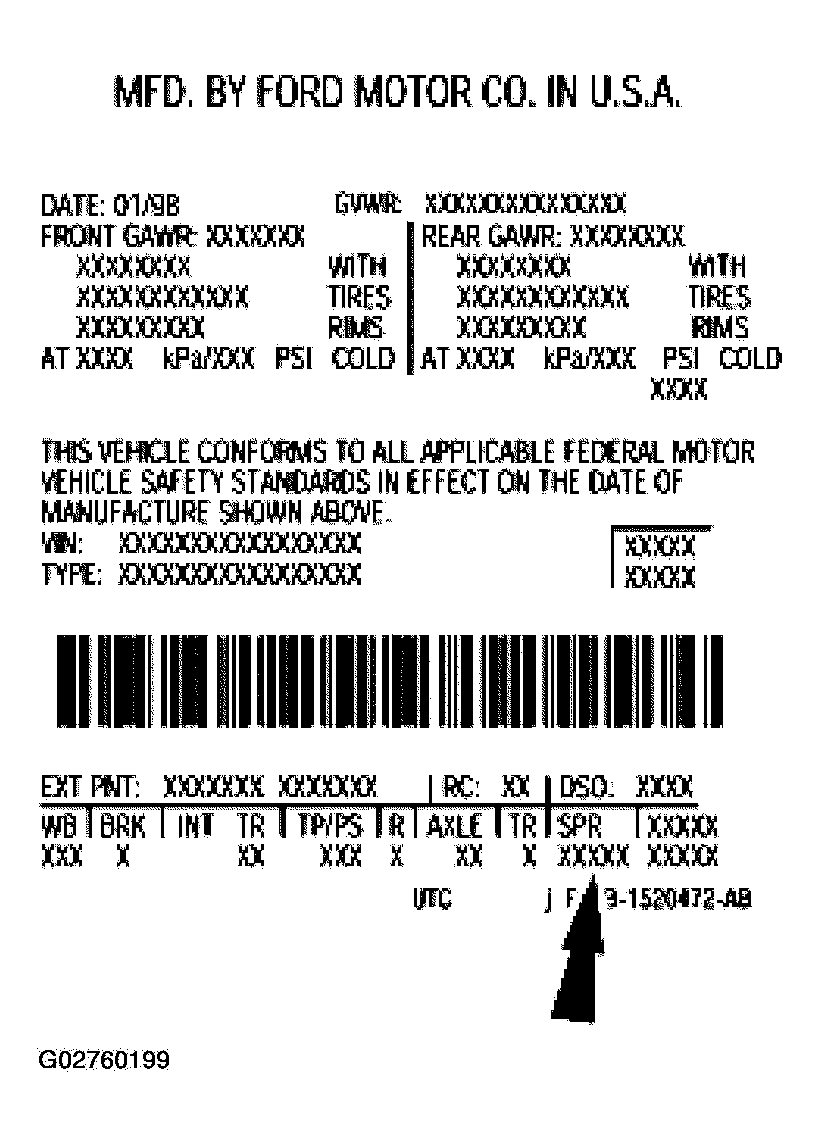

Spring codes are identified as a two-part code. The first character listed identifies the front spring code. The second character listed identifies the rear spring code.
FRONT SPRINGS
- A - F2UA-5310-AA (coil)
- B - F2UA-5310-BA (coil)
- C - F2UA-5310-CA (coil)
- D - F2UA-5310-DA (coil)
- E - F2UA-5310-EA (coil)
- F - F2UA-5310-FA (coil)
- G - F2UA-5310-GA (coil)
- H - F2UA-5310-HA (coil)
- J - F2UA-5310-JA (coil)
- K - F2UA-5310-KA (coil)
- L - F2UA-5310-LA (coil)
- M - F2UA-5310-MA (coil)
- N - F2UA-5310-NA (coil)
- P - F2UA-5310-PA (coil)
- R - FU2A-5310-RA (coil)
- S - FU2A-5310-SA (coil)
- T - FU2A-5310-TA (coil)
- U - FU2A-5310-UA (coil)
- V - FU2A-5310-VA (coil)
- Z - FU2A-5310-ZA (coil)
REAR SPRINGS
- 6 - F5UA-5560-VA (leaf)
- 7 - F6US-5560-AA (leaf)
- C - F5UA-5560-XA (leaf)
- G - F7UA-5560-AGA (leaf)
- N - F5UA-5560-NA (leaf)
- P - F5UA-5560-PA (leaf)
- R - F5UA-5560-RA (leaf)
- S - F5UA-5560-SB (leaf)
