Symptom Chart
WARNING:
This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

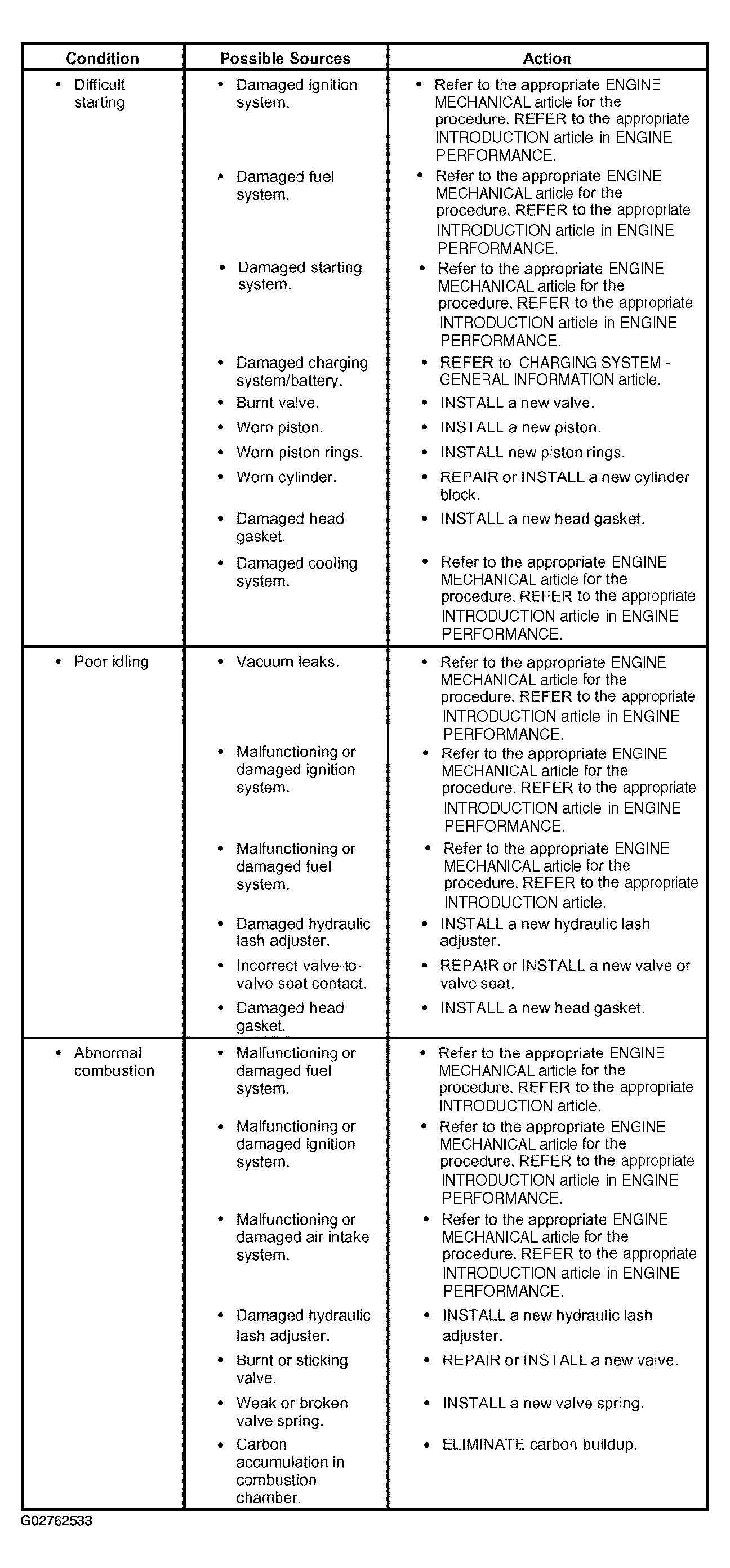

Fig 1: Symptom Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

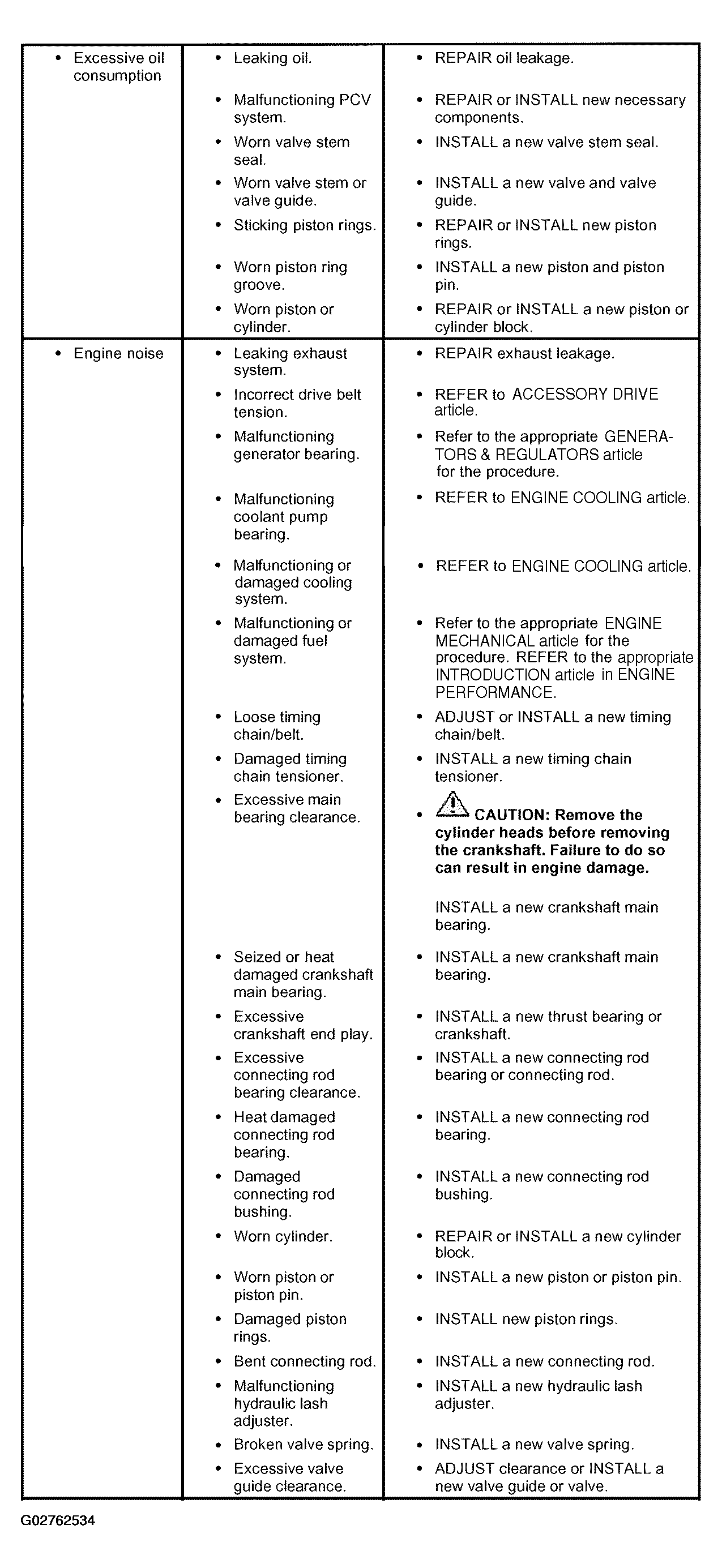

Fig 2: Symptom Chart (2 Of 3)
Courtesy of FORD MOTOR CO.

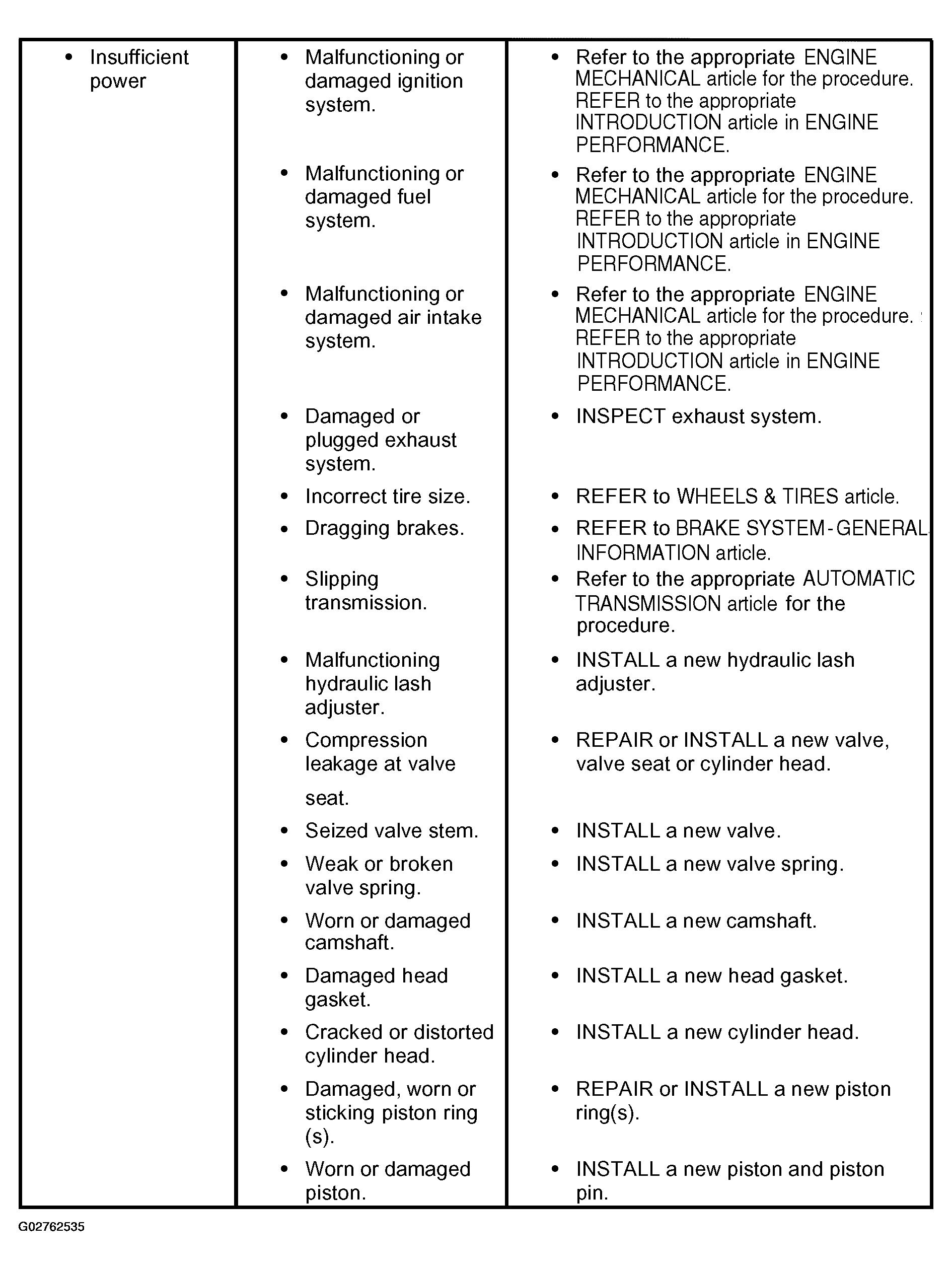

Fig 3: Symptom Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
