Camshaft Runout

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

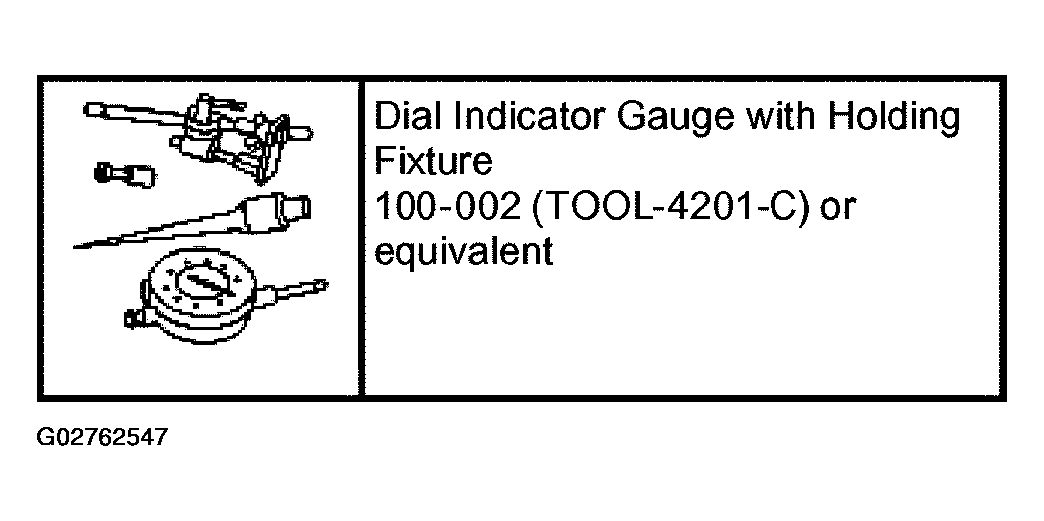

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

NOTE: Camshaft journals must be within specifications before checking runout.

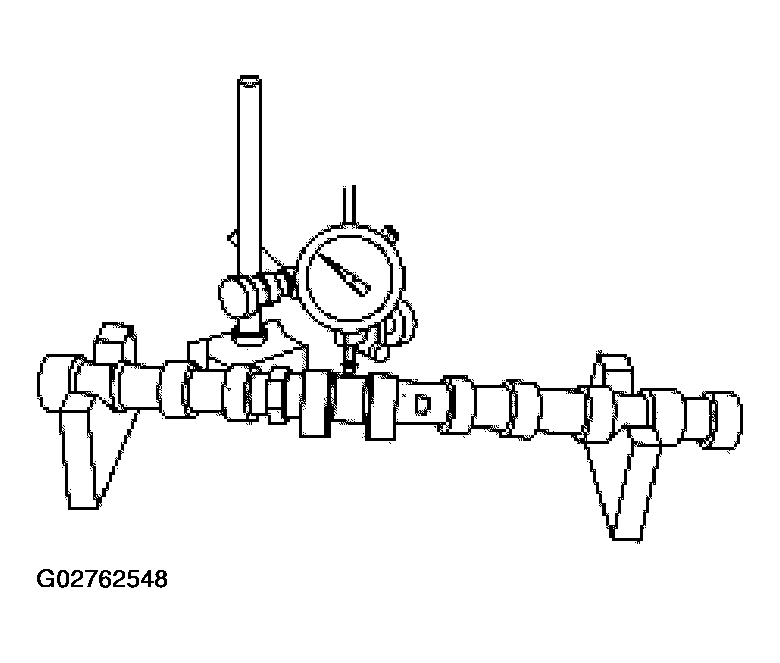

Fig 2: Measuring Camshaft Runout Using Special Tool

Courtesy of FORD MOTOR CO.

Use a Dial Indicator Gauge with Holding Fixture to measure the camshaft runout.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
- For additional information, refer to the specification chart in the appropriate ENGINE MECHANICAL article.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE MECHANICAL article for the procedure.
