Connecting Rod - Bend

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- Refer to the appropriate ENGINE MECHANICAL article for the procedure.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE MECHANICAL article for the procedure.

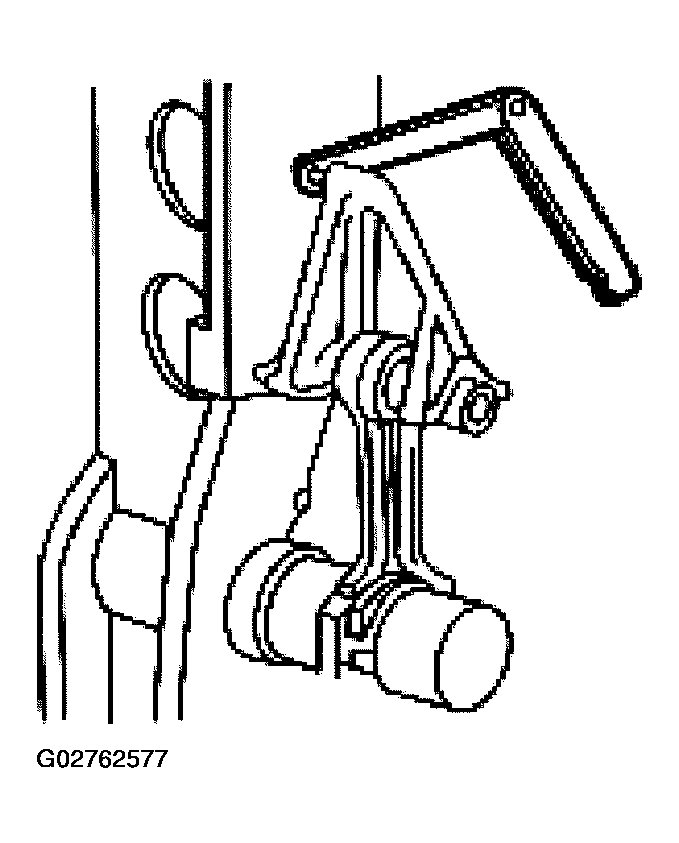

Fig 1: Measuring Connecting Rod Bend On Alignment Fixture
Courtesy of FORD MOTOR CO.
