Connecting Rod - Large End Bore

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the bolts to specification, then measure the bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round is within specification.
- Refer to the appropriate ENGINE MECHANICAL article for the procedure.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE MECHANICAL article for the procedure.

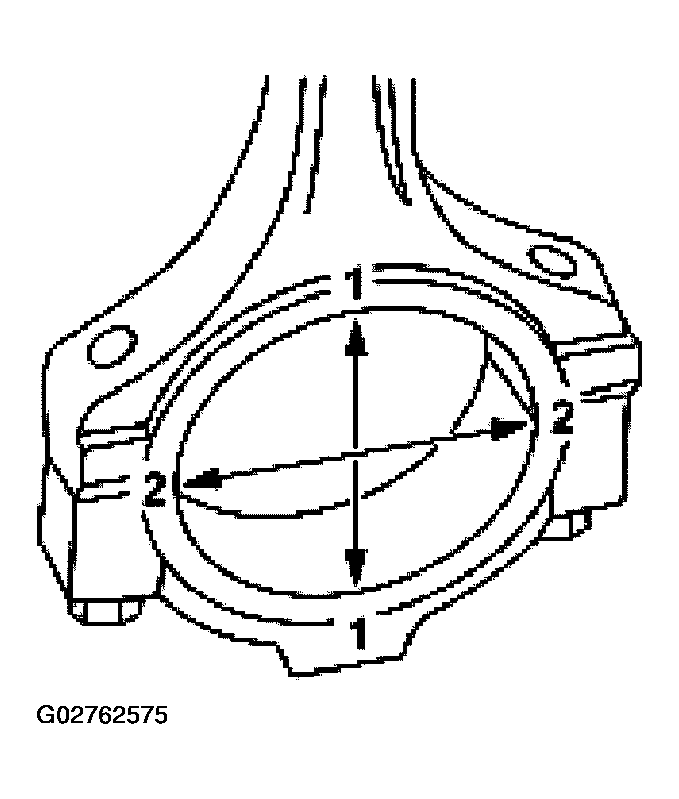

Fig 1: Measuring Connecting Rod - Large End Bore
Courtesy of FORD MOTOR CO.
