Piston - Selection

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

Select a piston size based on the cylinder bore.

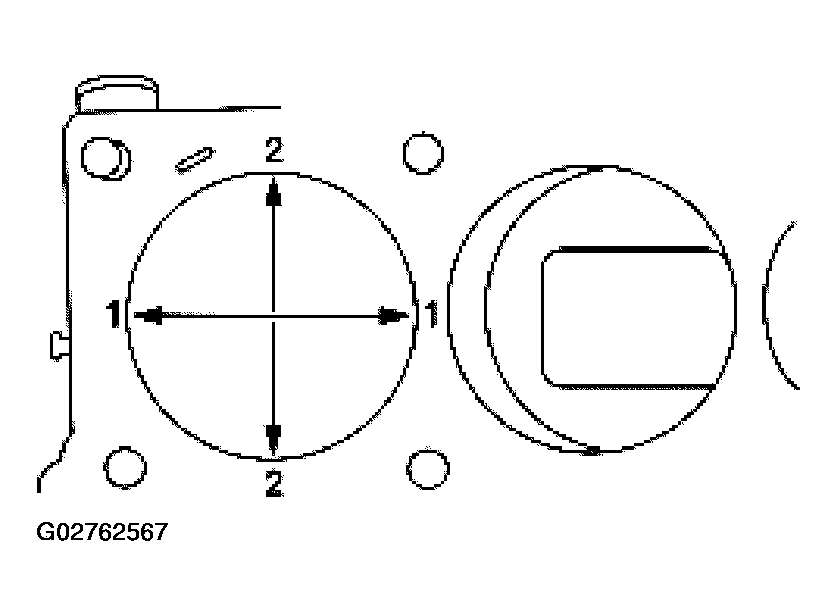

Fig 1: Measuring Piston - To Cylinder Bore Clearance
Courtesy of FORD MOTOR CO.

NOTE: For precision fit, new pistons are divided into three categories within each size range based on their relative position within the range. A paint spot or specific size grade on a new piston indicates the position within the size range.

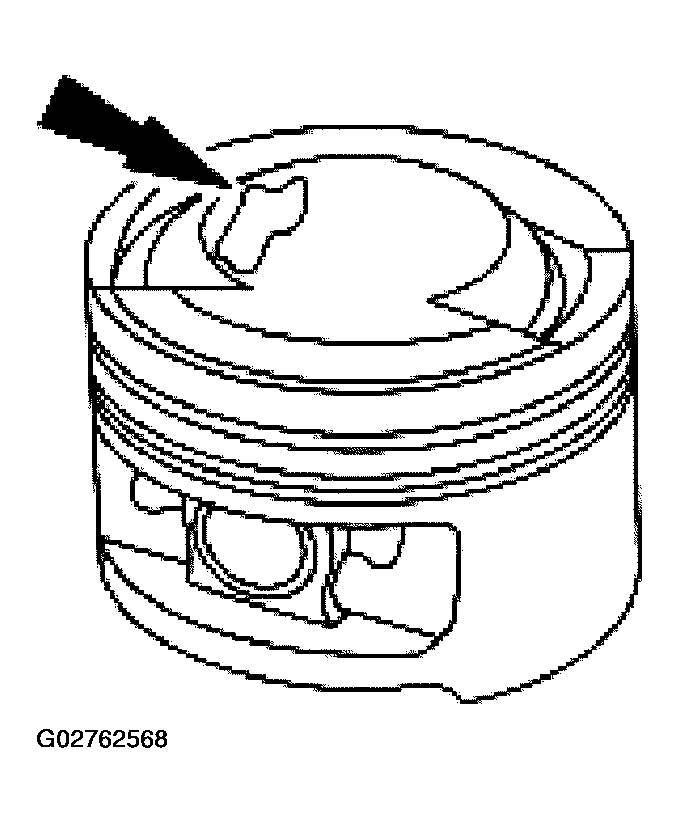

Fig 2: Identifying Correct Paint Color Or Specific Size Grade

Courtesy of FORD MOTOR CO.

Choose the piston with the correct paint color or specific size grade.
- Refer to the appropriate ENGINE MECHANICAL article for the procedure.
