Roller Follower Inspection

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the roller follower for flat spots or scoring. If any damage is found, inspect the camshaft lobes and hydraulic lash adjuster for damage.

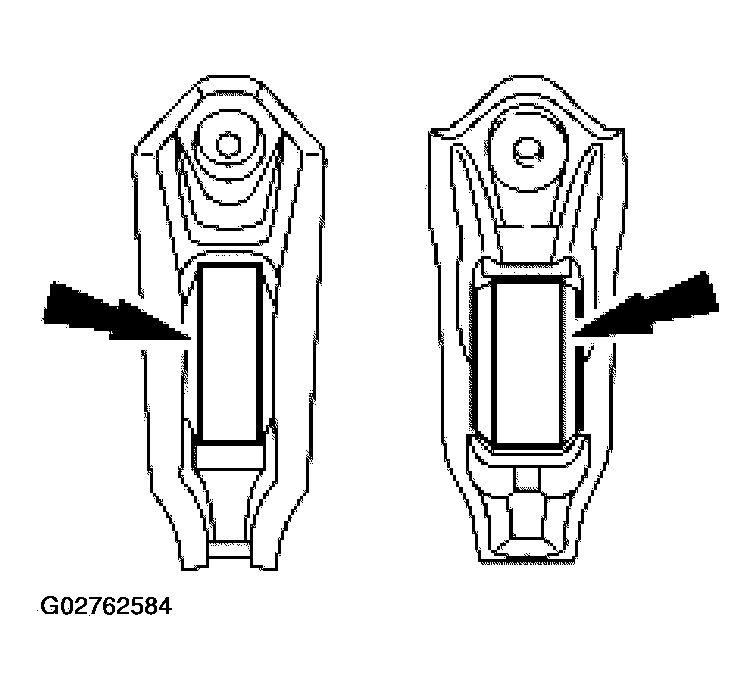

    Fig 1: Inspecting Roller Follower
    G02762584Courtesy of FORD MOTOR CO.

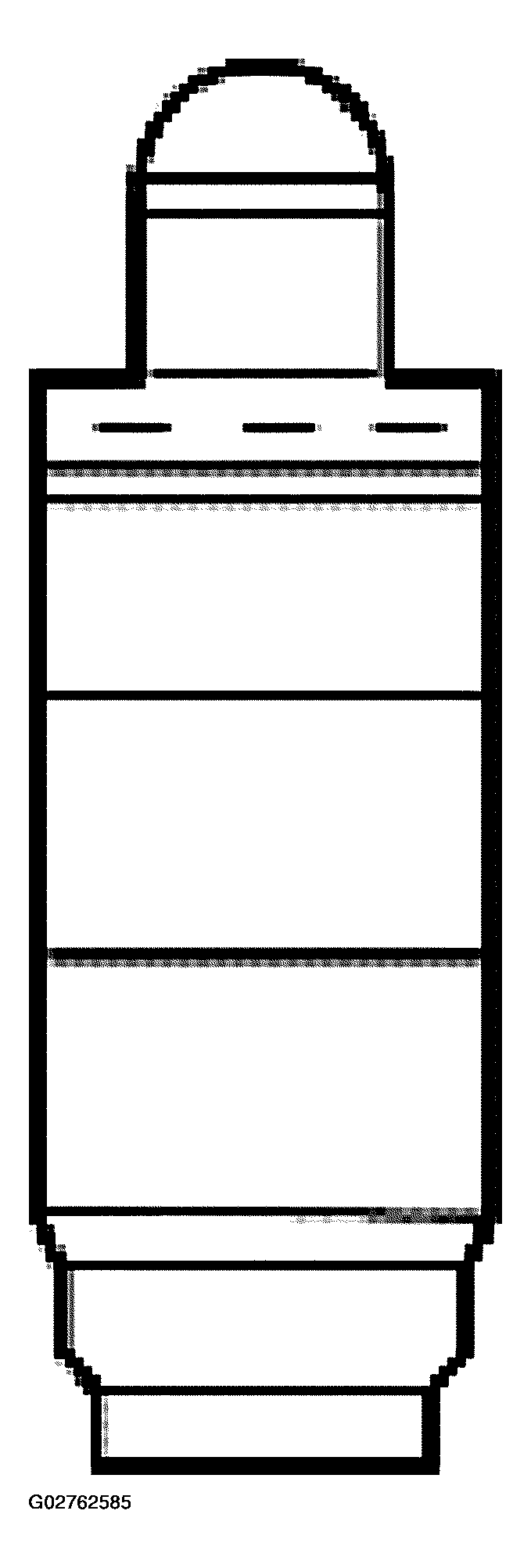

    Fig 2: View Of Roller Follower
    G02762585Courtesy of FORD MOTOR CO.
