Valve - Guide Inner Diameter

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of the valve guides in two directions where indicated.
- Refer to the appropriate ENGINE MECHANICAL article for the procedure.

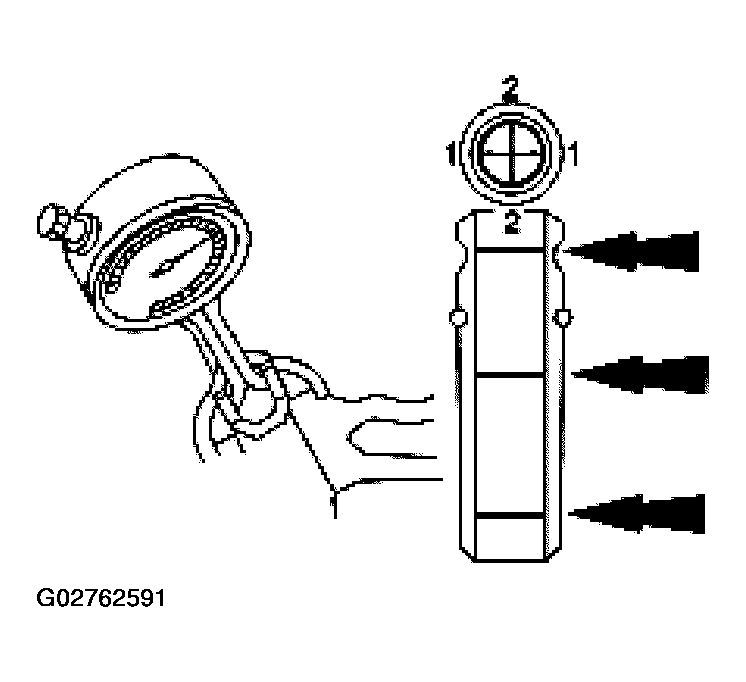

Fig 1: Measuring Valve - Guide Inner Diameter Using Special Tool
Courtesy of FORD MOTOR CO.
If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
