Pinpoint Test A: No Communication With The Vehicle Security Module

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

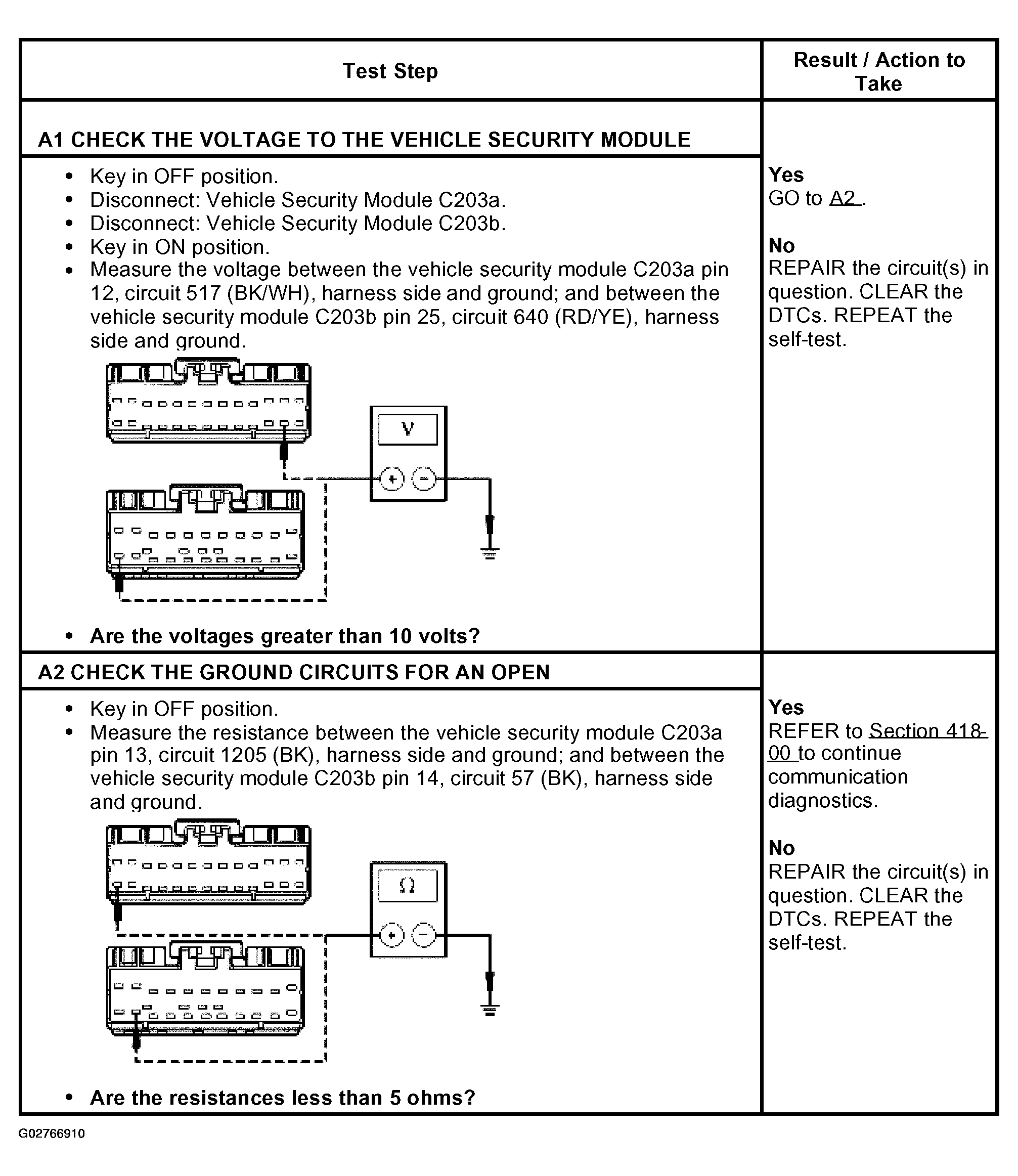

Fig 1: Pinpoint Test A: No Communication With Vehicle Security Module (Steps A1-A2)
G02766910Courtesy of FORD MOTOR CO.
