Ignition switch (11572)

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

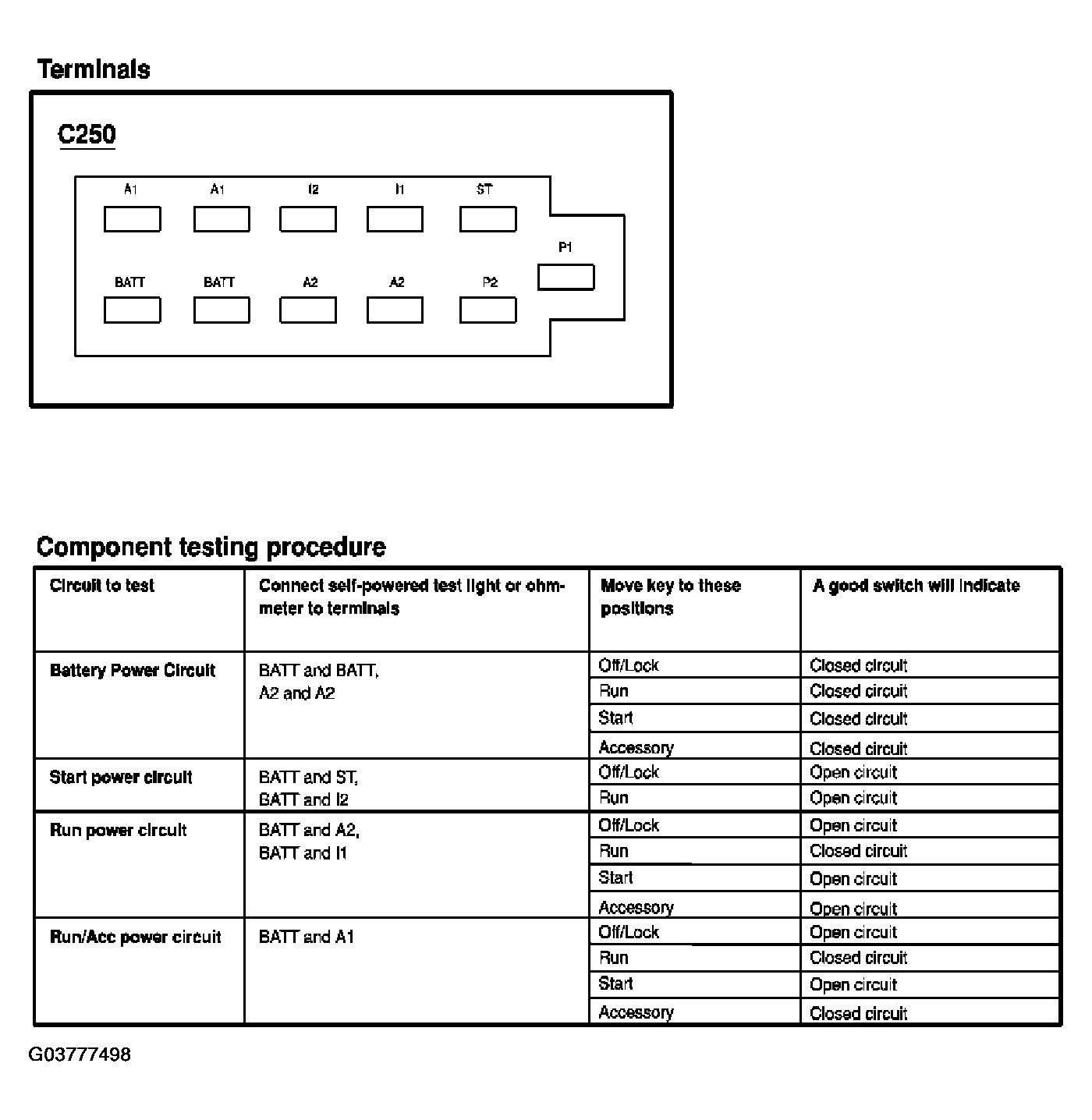

Fig 1: Testing Ignition Switch (11572) (1 Of 2)
G03777498Courtesy of FORD MOTOR CO.

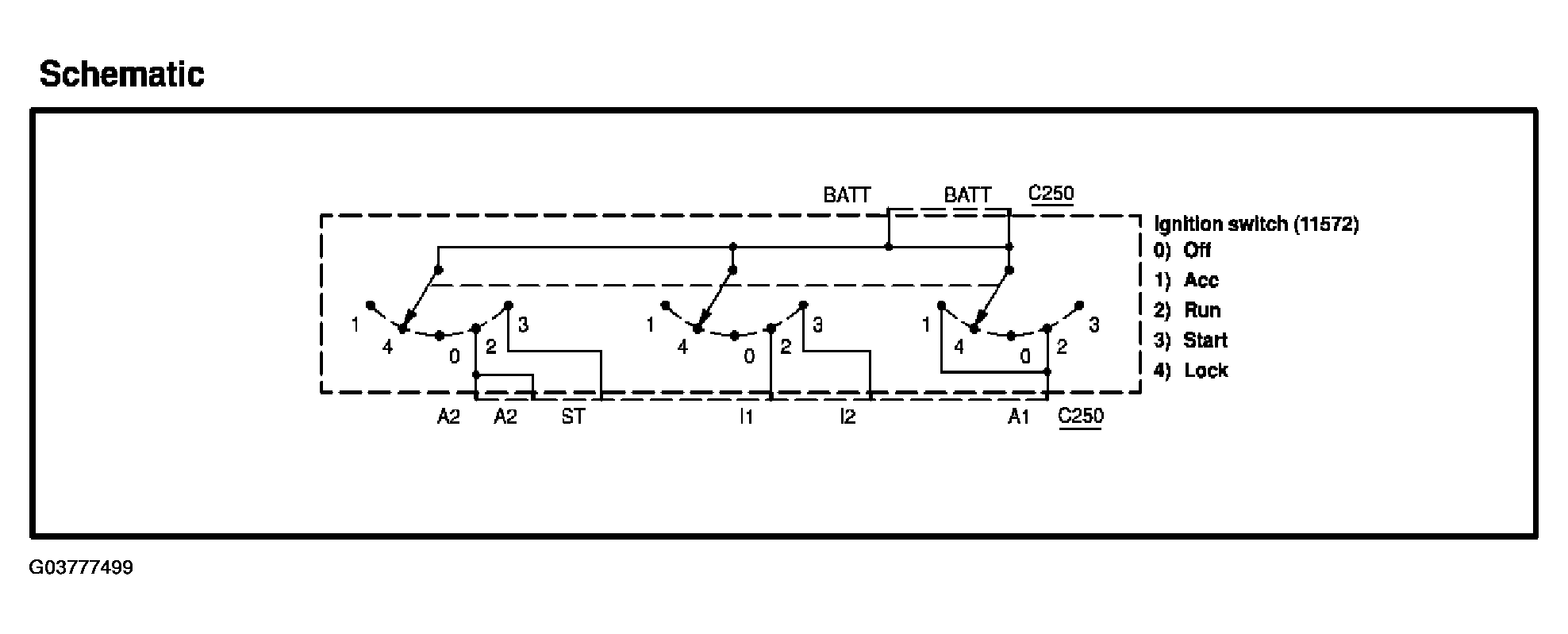

Fig 2: Testing Ignition Switch (11572) (2 Of 2)
G03777499Courtesy of FORD MOTOR CO.
