Ignition switch (11572)
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

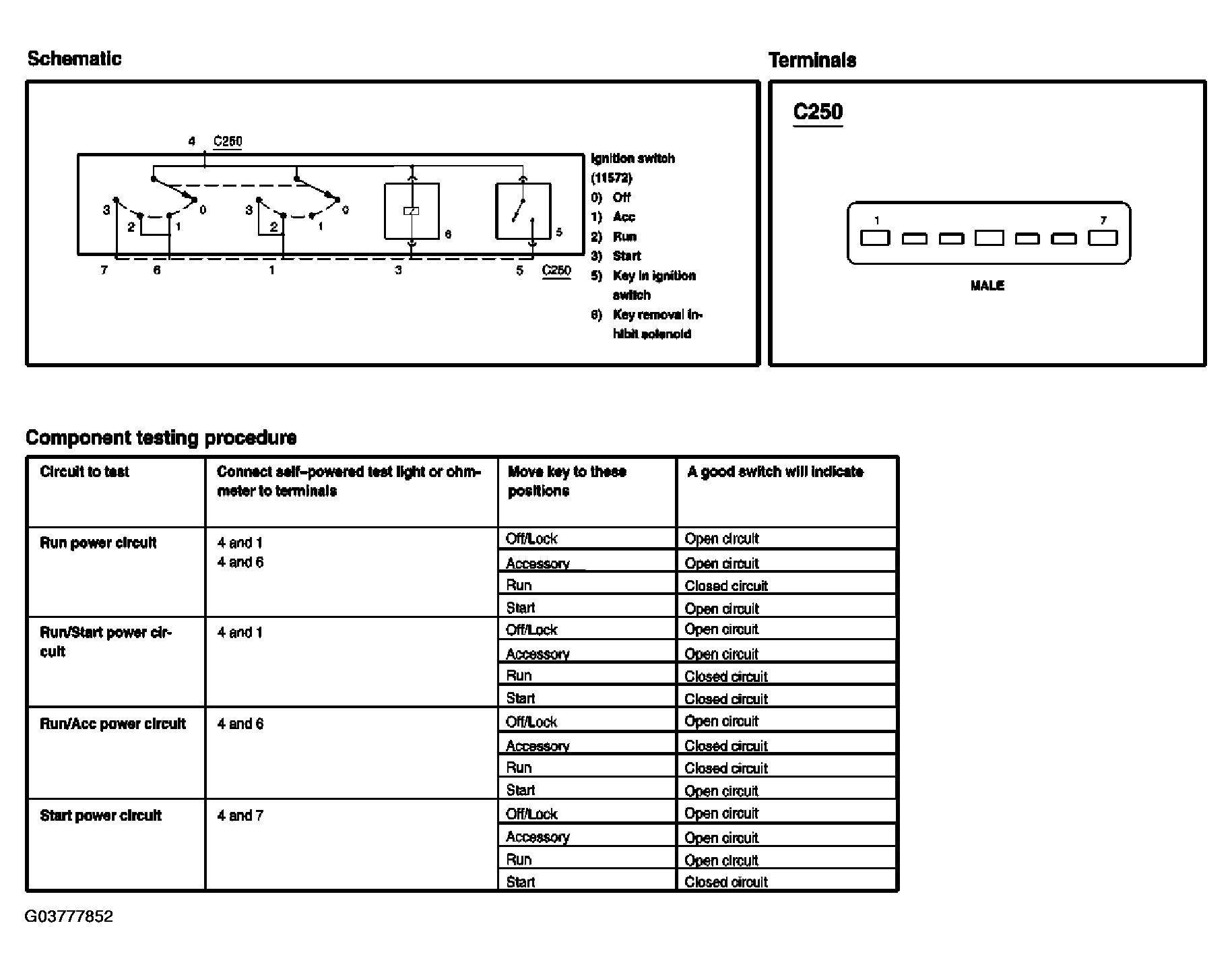

Fig 1: Testing Ignition Switch (11572)
Courtesy of FORD MOTOR CO.
