Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not allow brake fluid to contact the electrical connector.

Install the deactivator switch.
- Add a few drops of brake fluid to the fluid port on the threaded side of the switch before installing it.

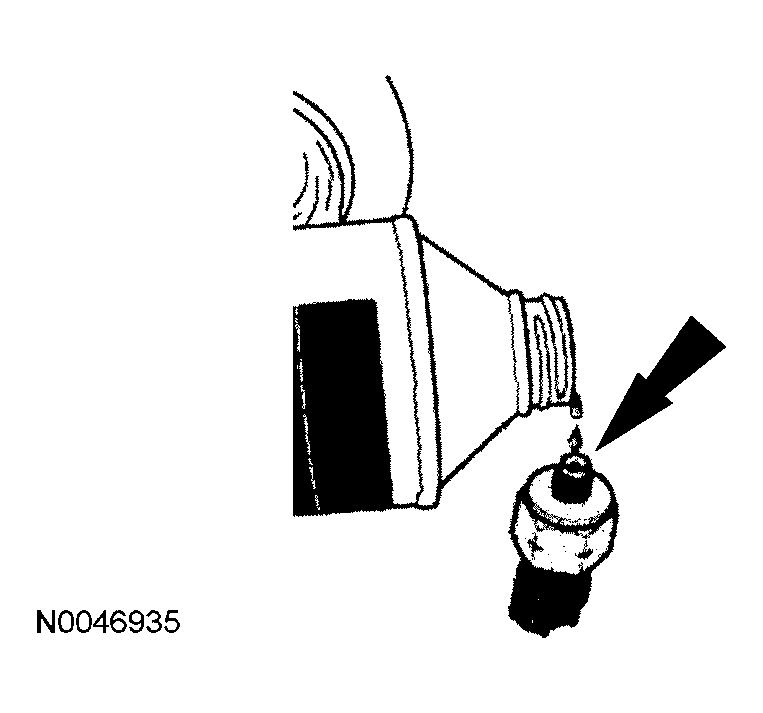

  Fig 1: Adding Drops Of Brake Fluid To Fluid Port On Threaded Side Of Switch
  Courtesy of FORD MOTOR CO.

  Fig 2: Checking Master Cylinder Fluid Level
  Courtesy of FORD MOTOR CO.
Check the master cylinder fluid level and adjust as necessary.
Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
