Speed Control Deactivator Switch: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure the master cylinder reservoir cap is secure before performing this procedure.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the deactivator switch electrical connector.

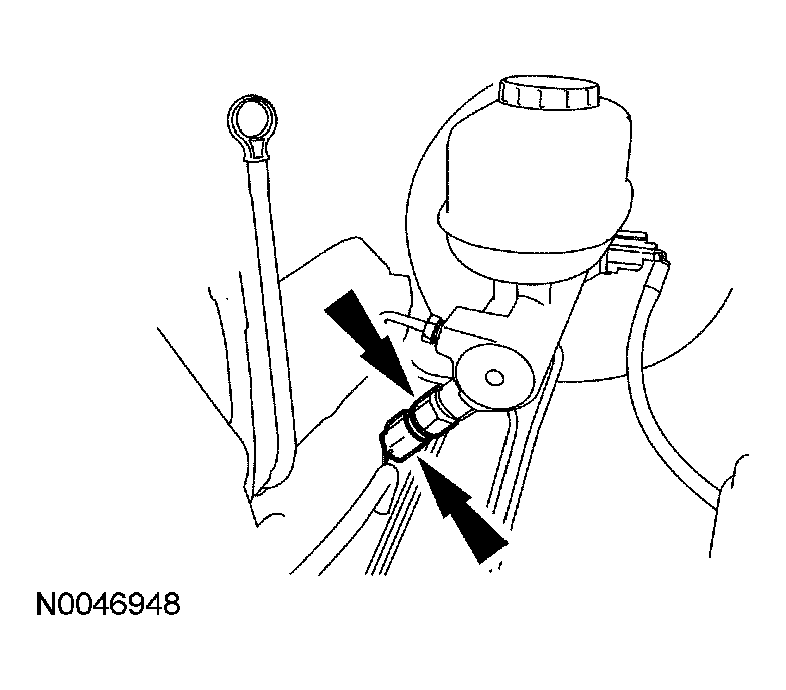

    Fig 1: Disconnecting Deactivator Switch Electrical Connector
    G03889853Courtesy of FORD MOTOR CO.
  3. WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
    CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
    CAUTION: Do not allow any foreign matter to enter the master cylinder port once the deactivator switch is removed.
  4. Remove the deactivator switch.
