Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

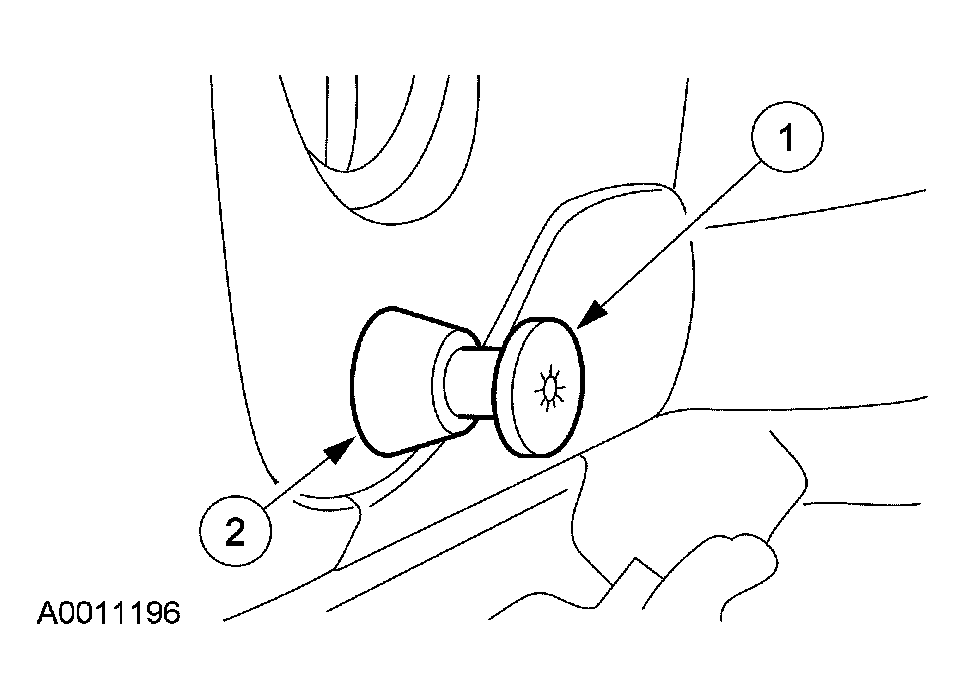

Remove the headlamp switch knob.
1. Remove the headlamp switch knob.
2. Rotate the headlamps switch bezel counterclockwise and remove.

  Fig 1: Removing Headlamp Switch Knob
  Courtesy of FORD MOTOR CO.
Remove the audio unit. For additional information, refer to AUDIO UNIT .

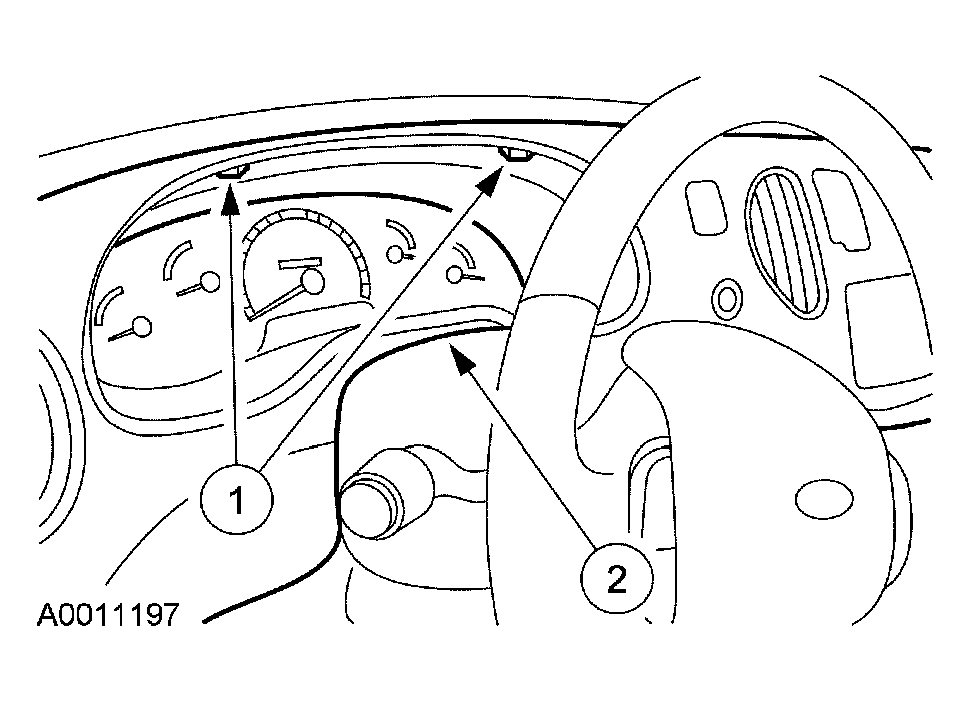

Remove the instrument panel finish panel.
1. Remove the screws.
2. Remove the instrument panel finish panel.
  - Disconnect the electrical connectors.

    Fig 2: Removing Instrument Panel Finish Panel
    Courtesy of FORD MOTOR CO.

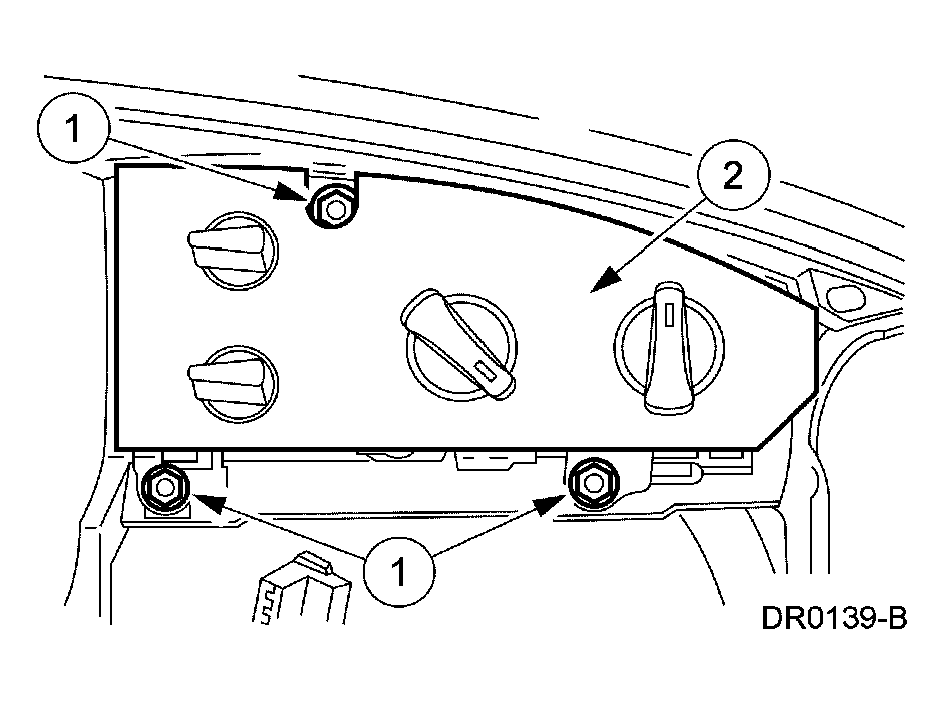

Remove the climate control assembly.
1. Remove the screws.
2. Remove the climate control assembly.

  Fig 3: Removing Climate Control Assembly
  Courtesy of FORD MOTOR CO.

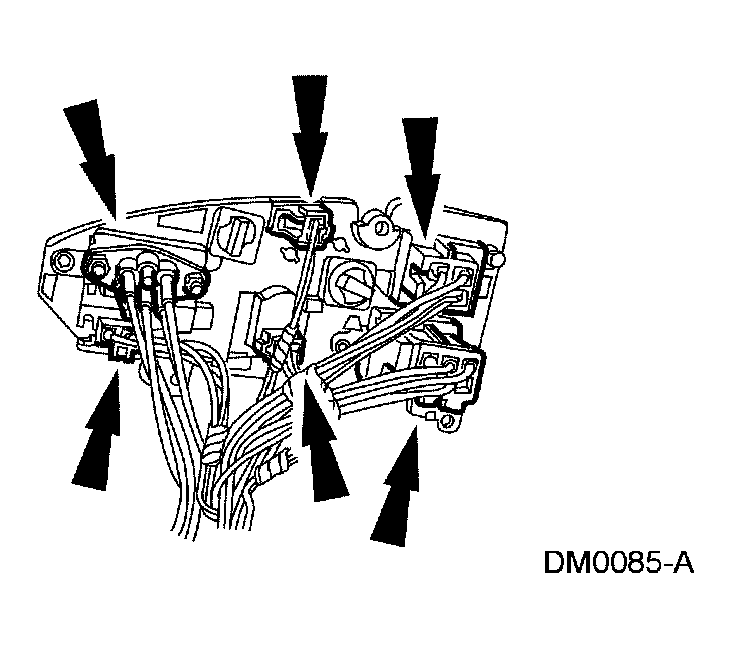

Disconnect the vacuum and electrical connectors.

Fig 4: Disconnecting Vacuum And Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the climate control assembly.
To install, reverse the removal procedure.
