Coil Spring & Strut Assembly: Reassembly

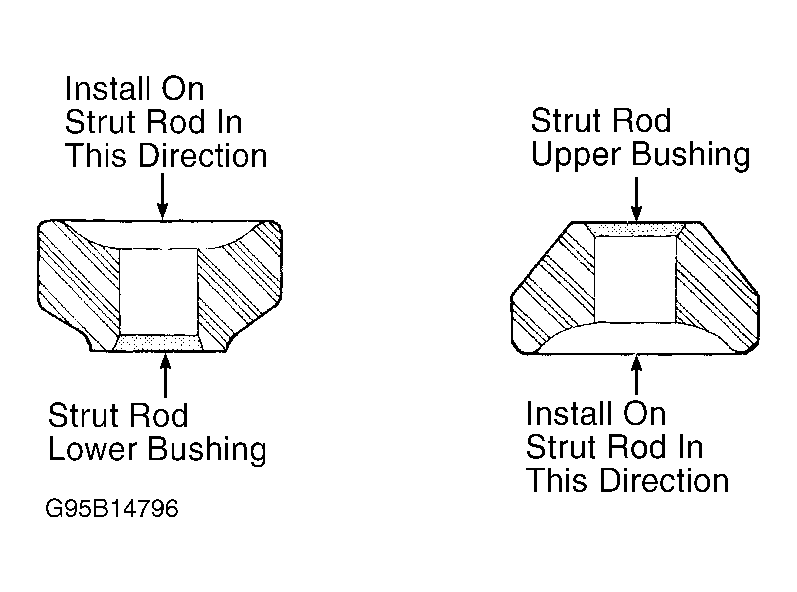

To reassemble, reverse disassembly procedure. Ensure edge of coil spring is aligned with stepped part of spring seat. Ensure upper and lower strut rod bushings are installed in correct locations. See Figure. Tighten thrust bearing retaining nut to specification before releasing spring compressor. See TORQUE SPECIFICATIONS . Remove spring compressor.
