Rear Window Switches

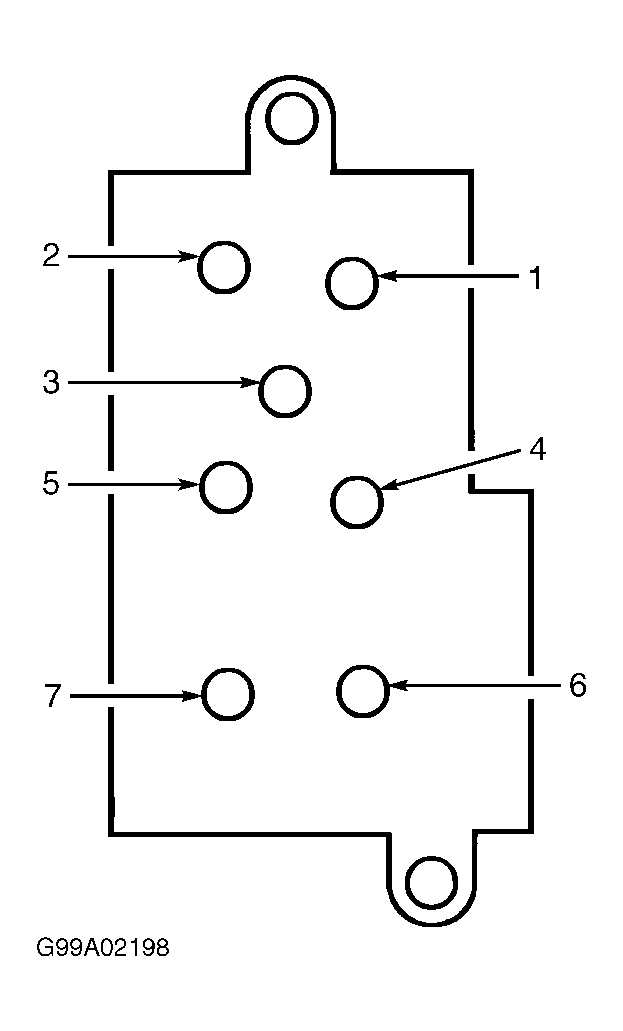

Remove switch to be tested. Check continuity between specified switch terminals with switch in appropriate position. See REAR WINDOW SWITCH TEST table. If continuity is not as specified, replace rear window switch.
REAR WINDOW SWITCH TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 4; 2 & 5 |
| Down | 1 & 4; 3 & 5 |
| Up | 1 & 3; 2 & 5 |
