Connector Locations

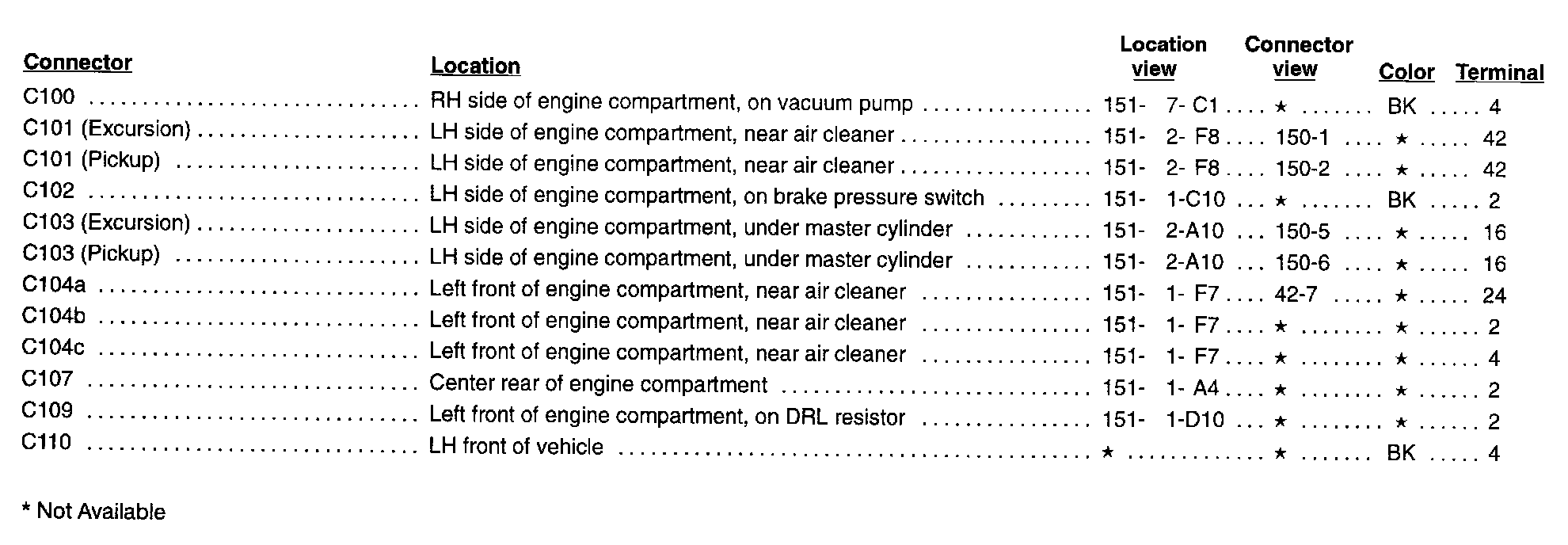

C100-C110:

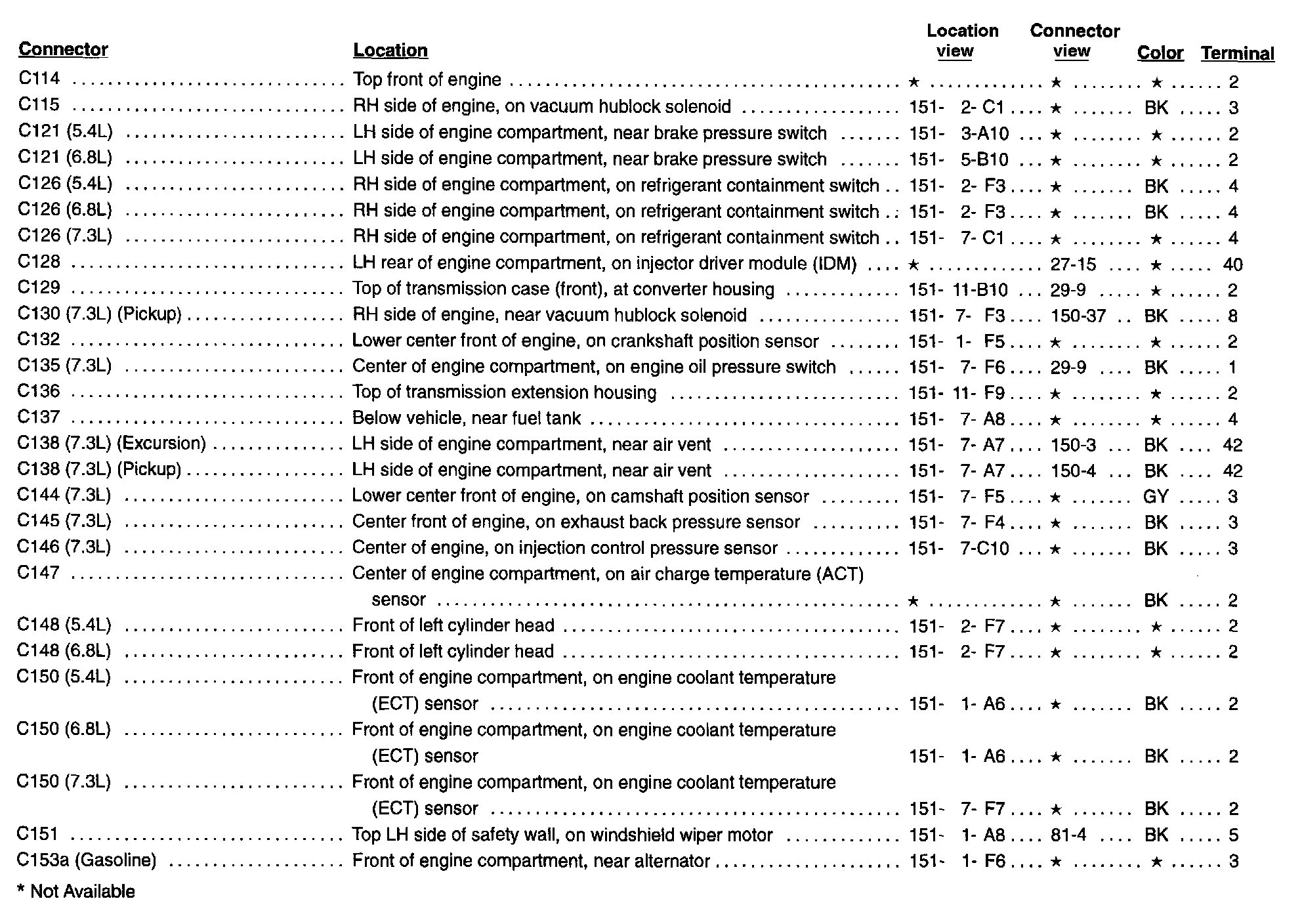

C114-C153a:

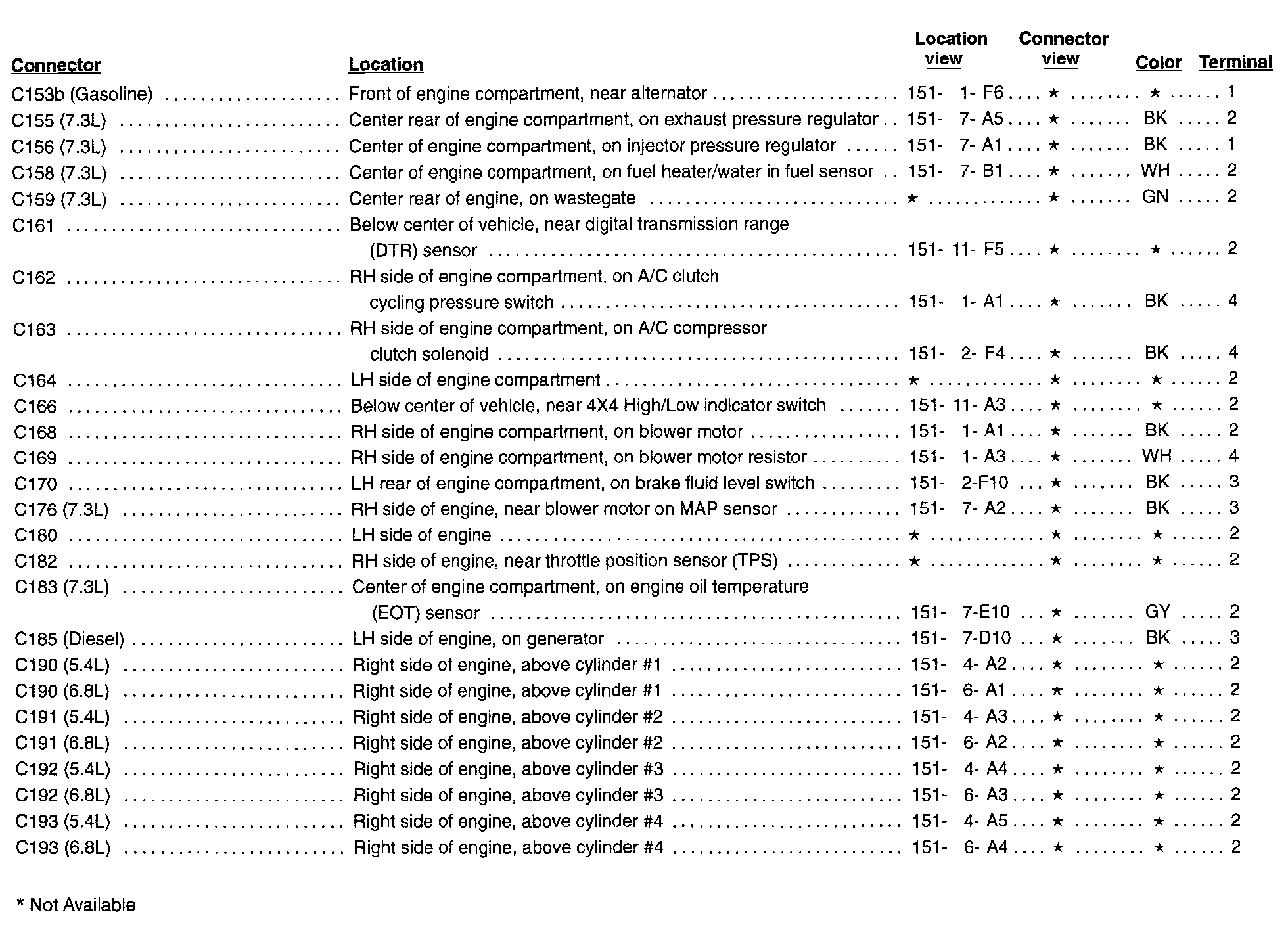

C153b-C193:

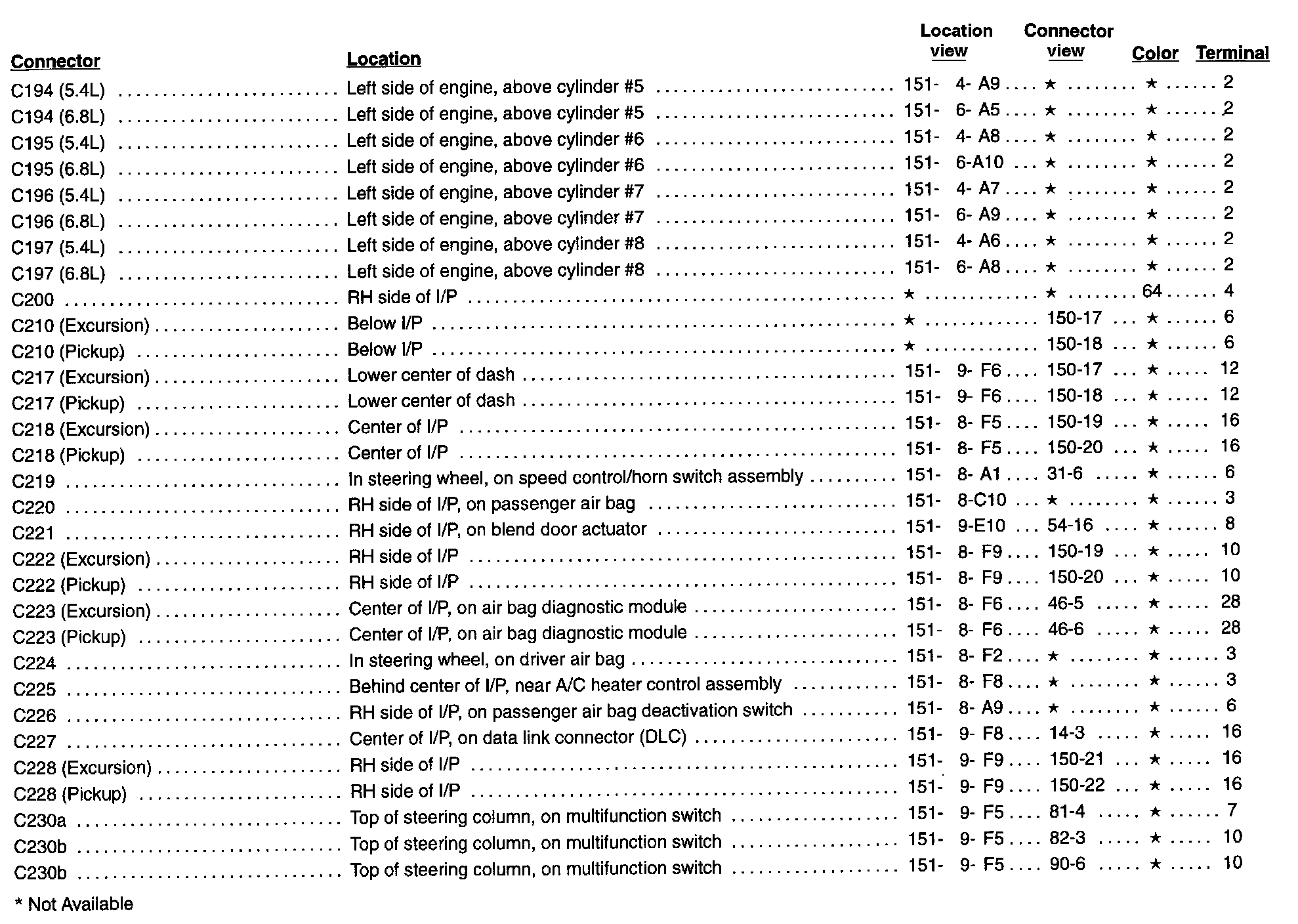

C194-C230b:

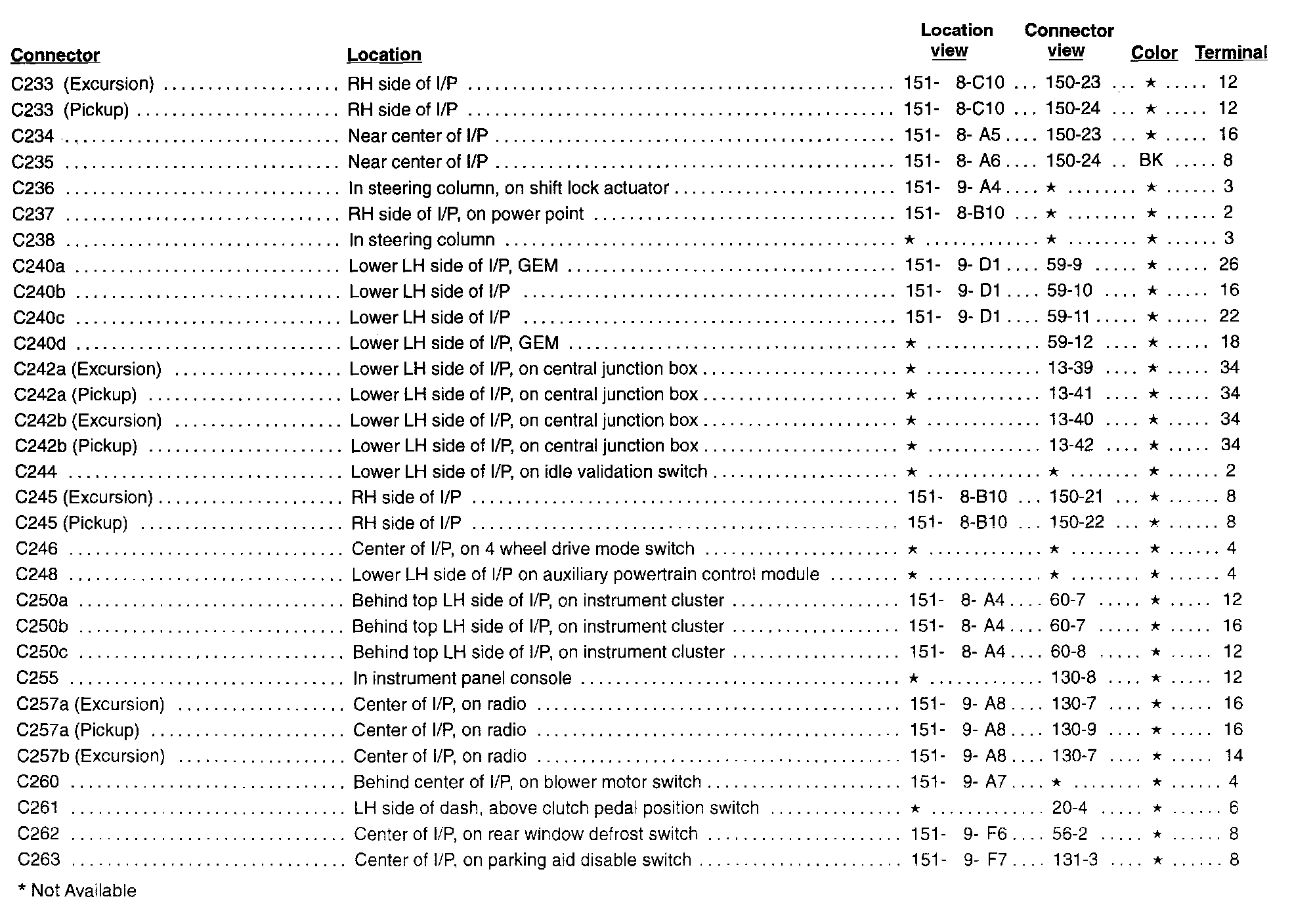

C233-C263:

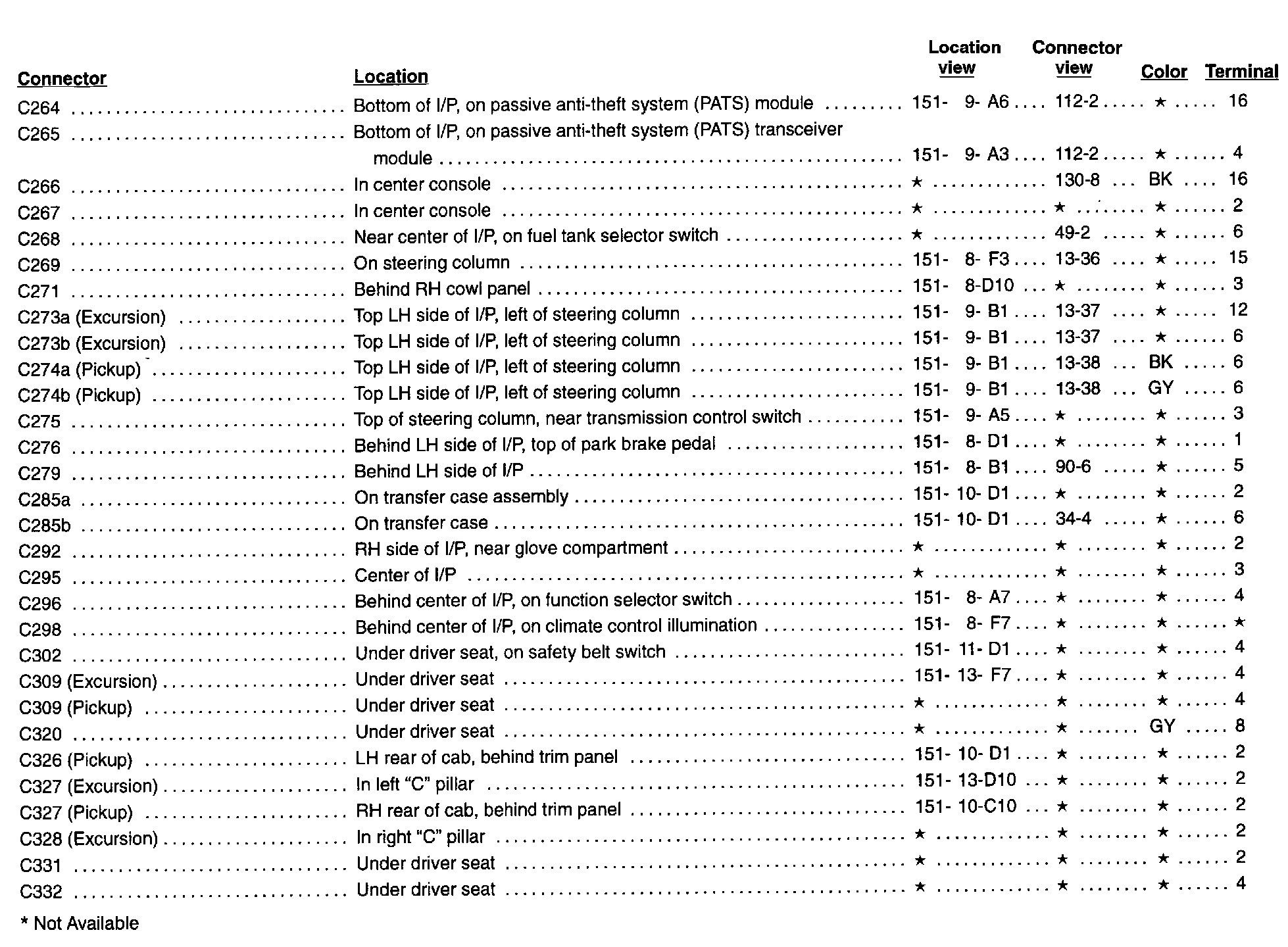

C264-C332:

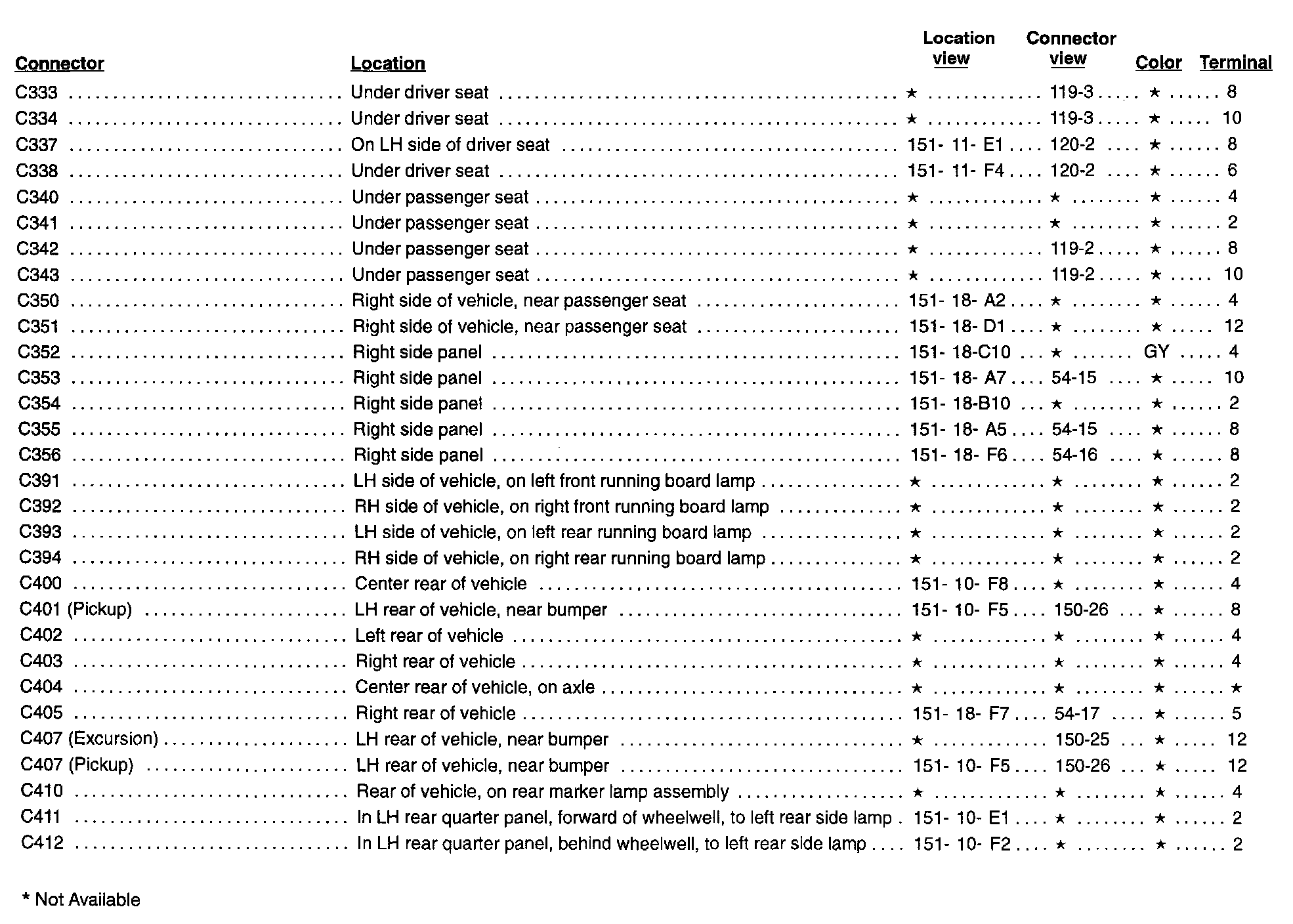

C333-C412:

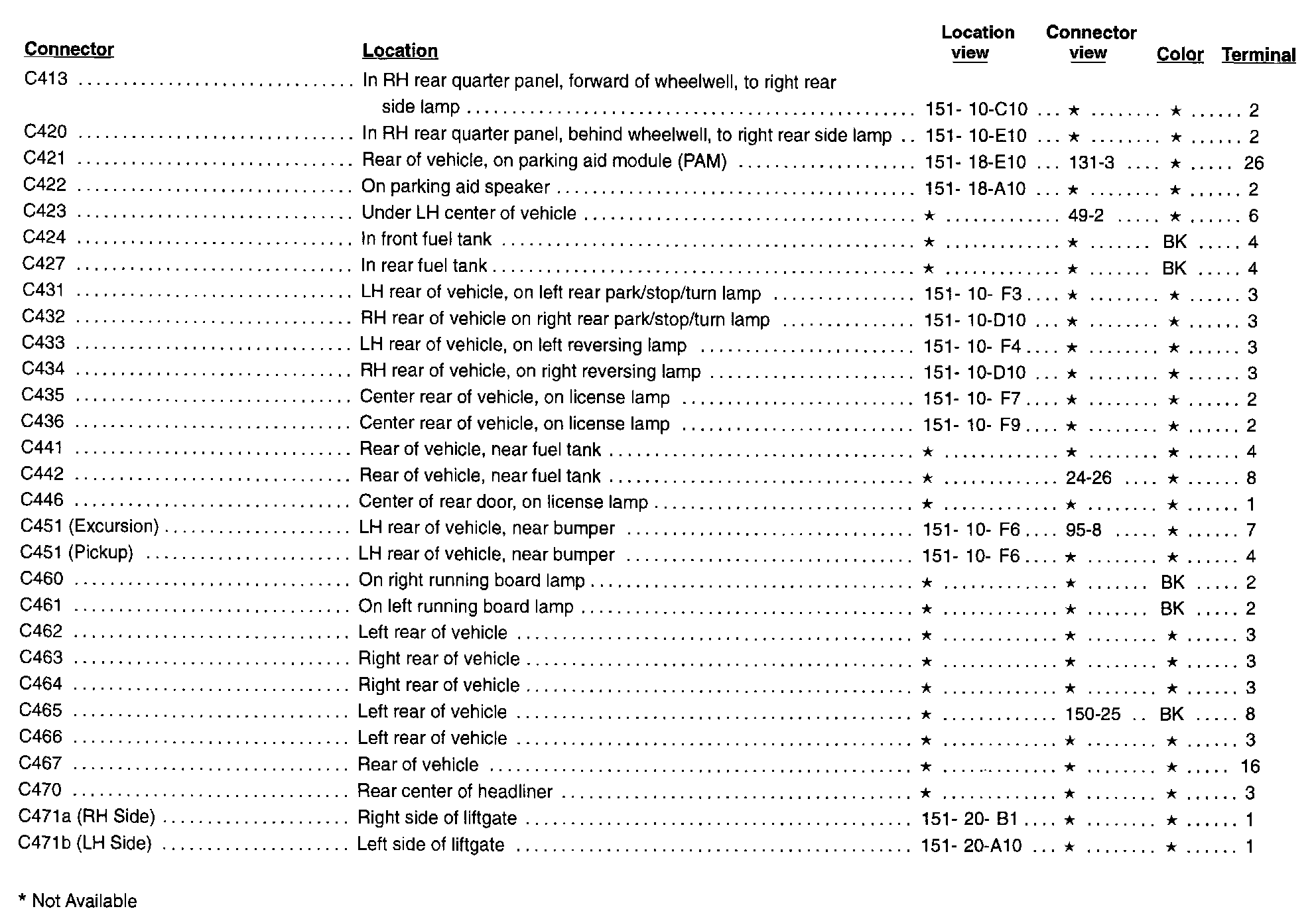

C413-C471b:

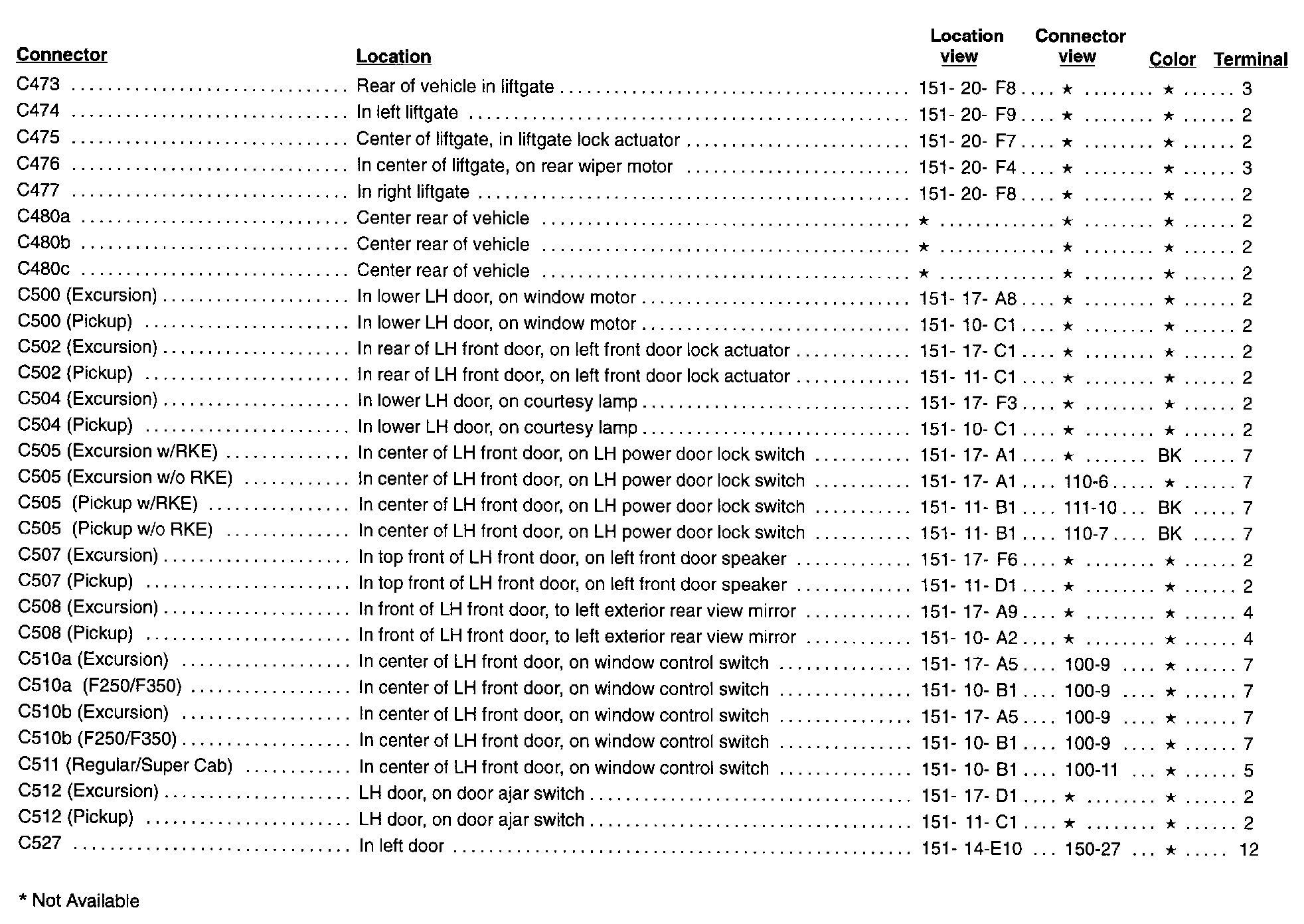

C473-C527:

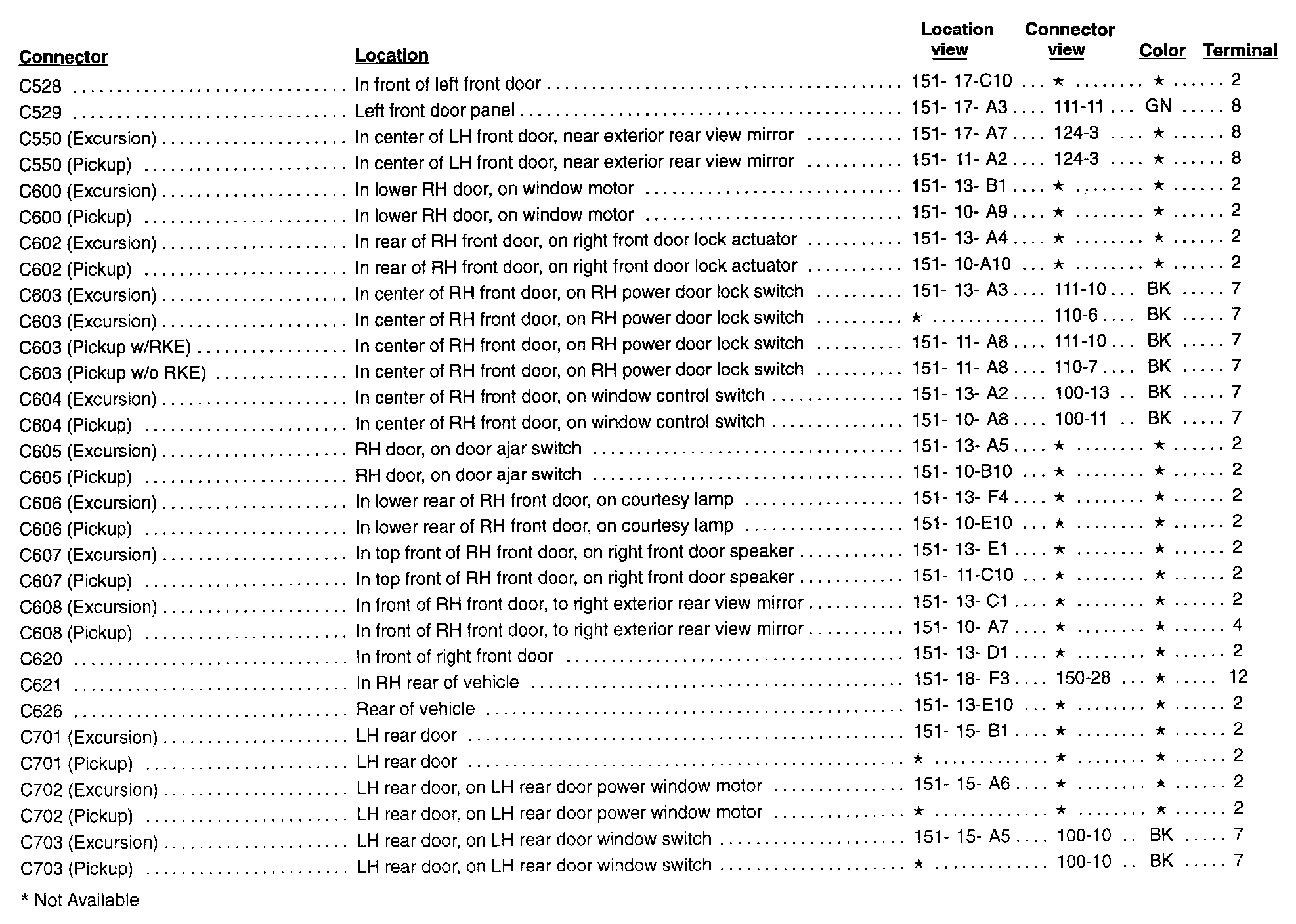

C528-C703:

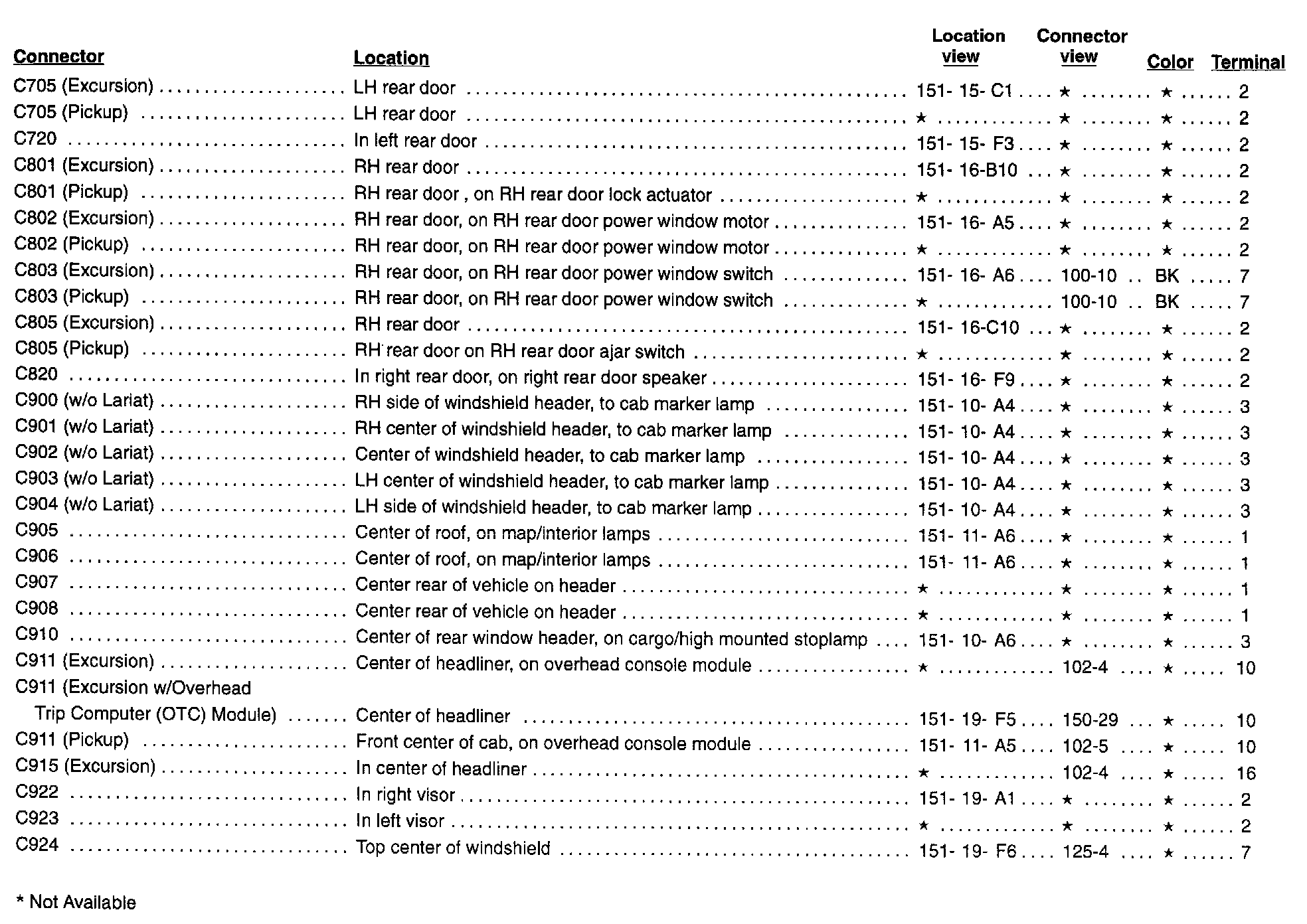

C705-C924:

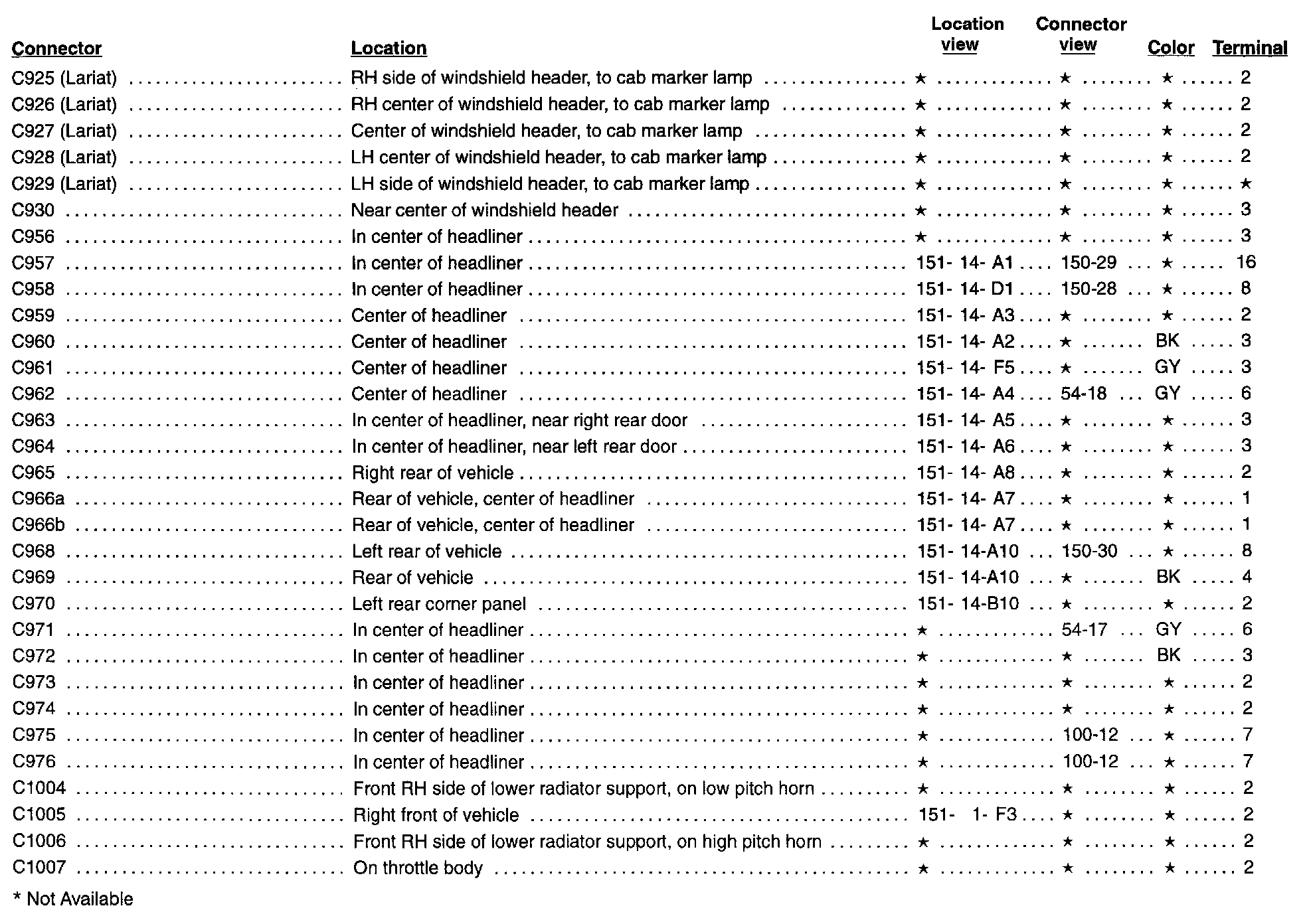

C925-C1007:

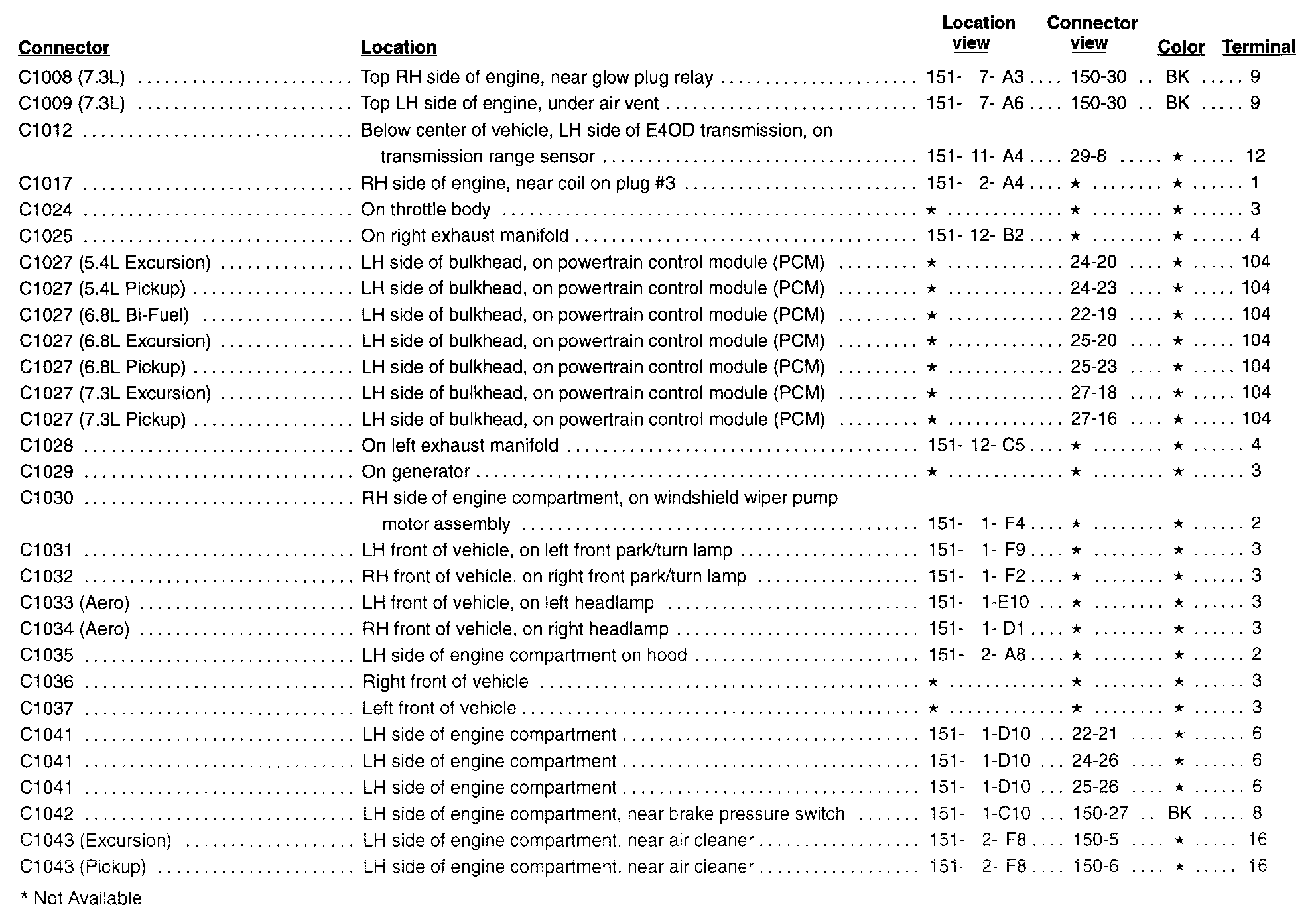

C1008-C1043:

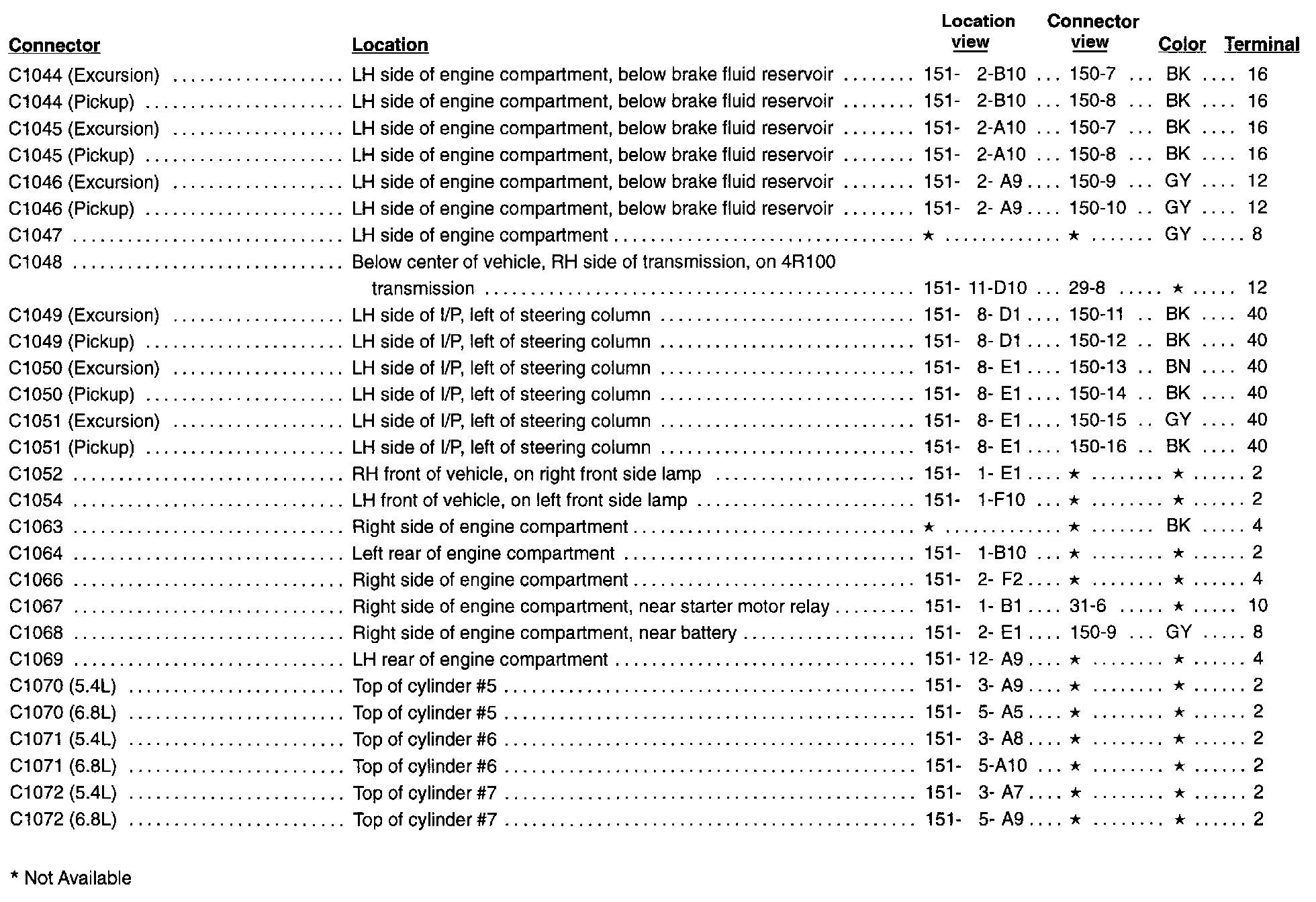

C1044-C1072:

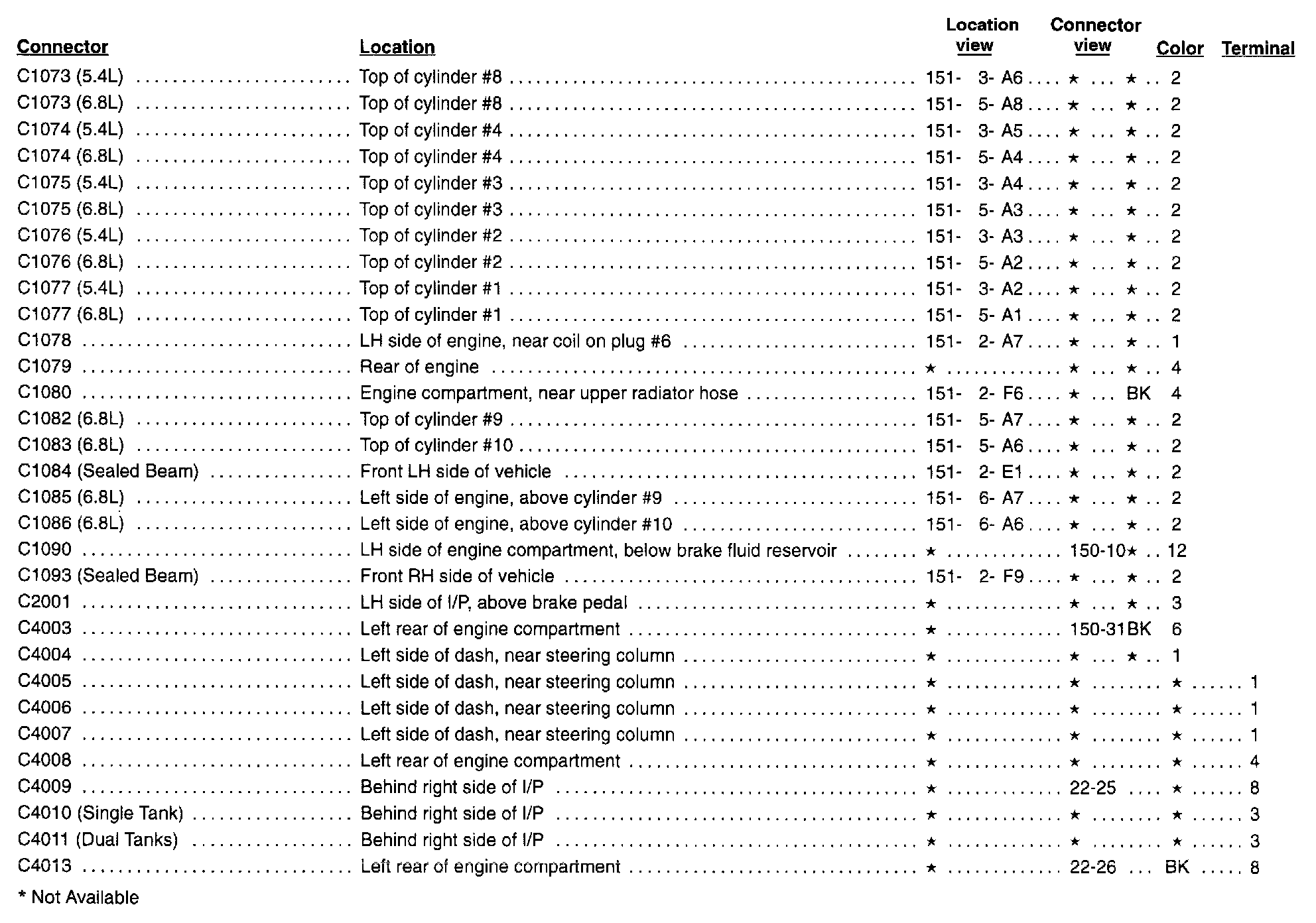

C1073-C4013:

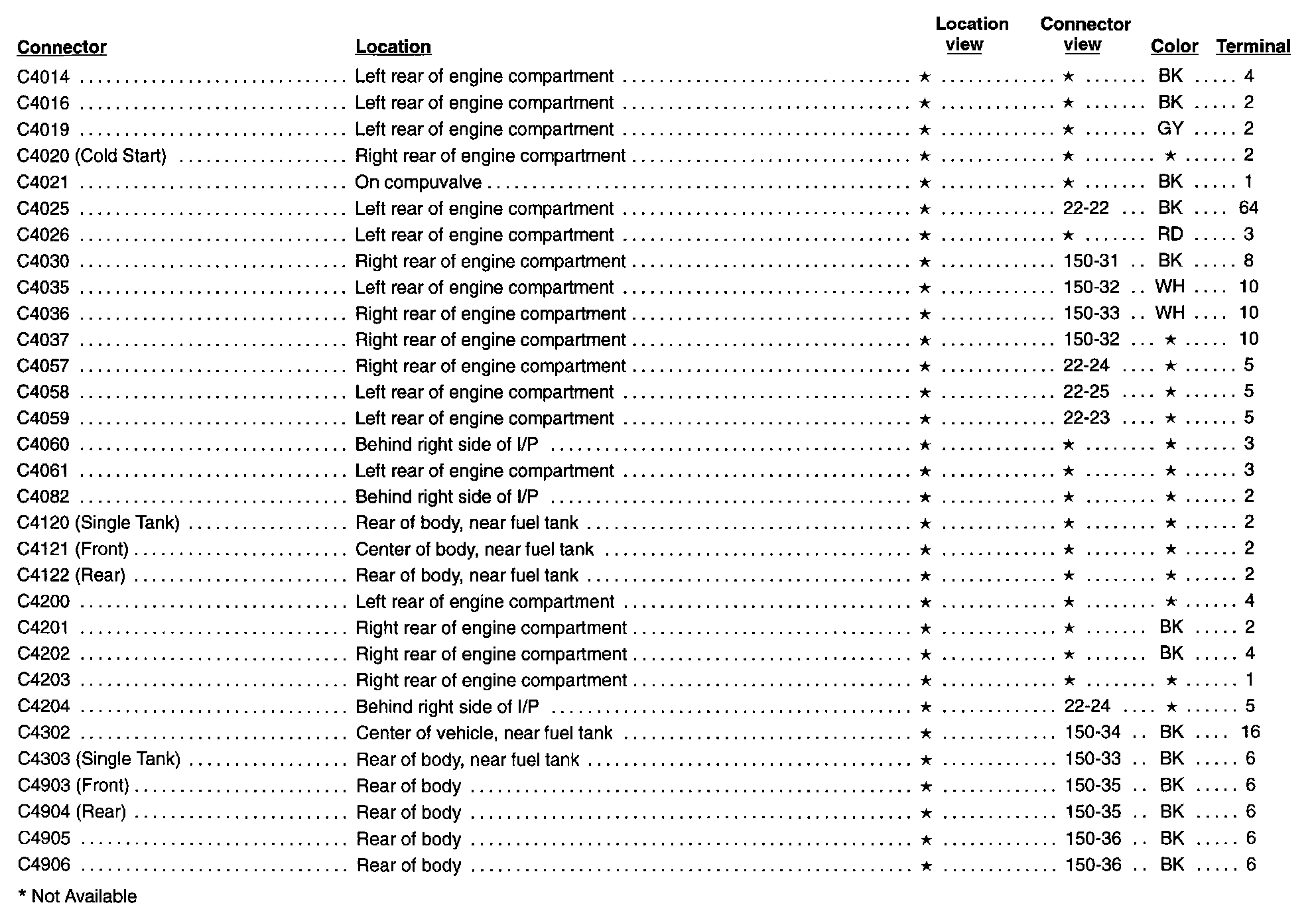

C4014-C4906:
