Toe Adjustment - Motorhome

Toe Adjustment - Motorhome

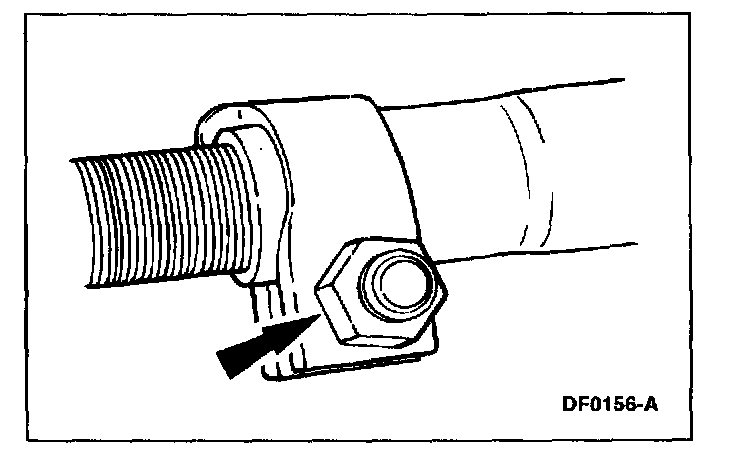

1. Loosen the clamp at both ends of the tie rod.






2. Rotate the tie rod to bring the toe into specification.






3. NOTE: For movable tie rod clamps, make sure the tab is against the end of the tie rod.

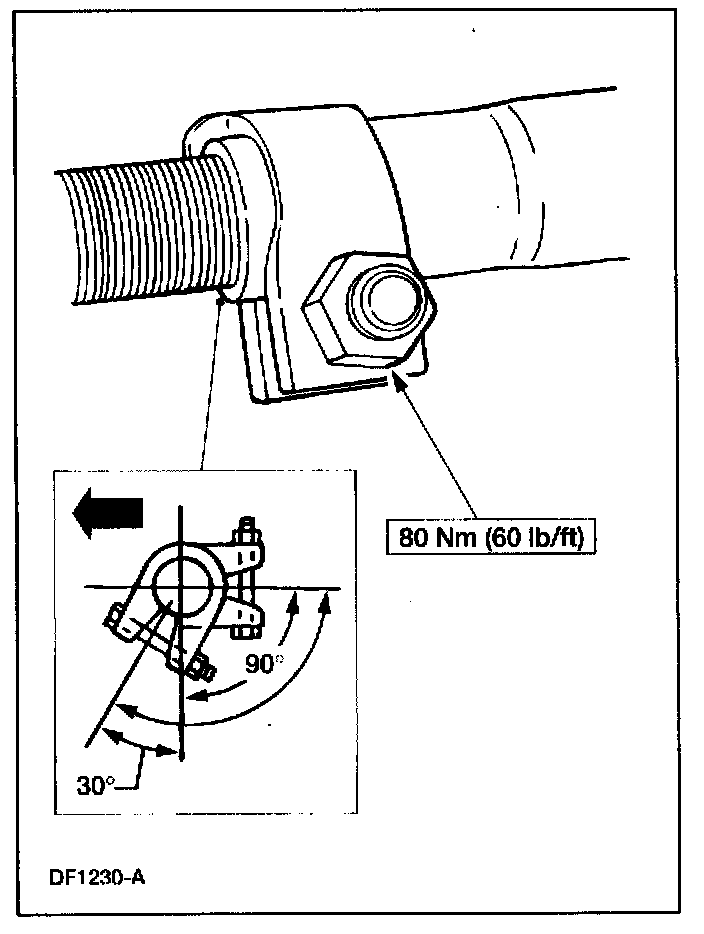

NOTE: Note the specification for the tie rod clamp orientation.

Tighten the clamp to specification.
4. Recheck the toe.
