Tests DH: Throttle Position (TP) Sensor

NOTE
This Pinpoint Test is intended to diagnose the following:
- Throttle Position (TP) Sensor
- Binding and sticking Throttle Linkage
- Harness Circuits: TP, SIG RTN, VREF, Vehicle Power (VPWR), Power Ground (PWR GND) Powertrain Control Module (PCM)

Graphs

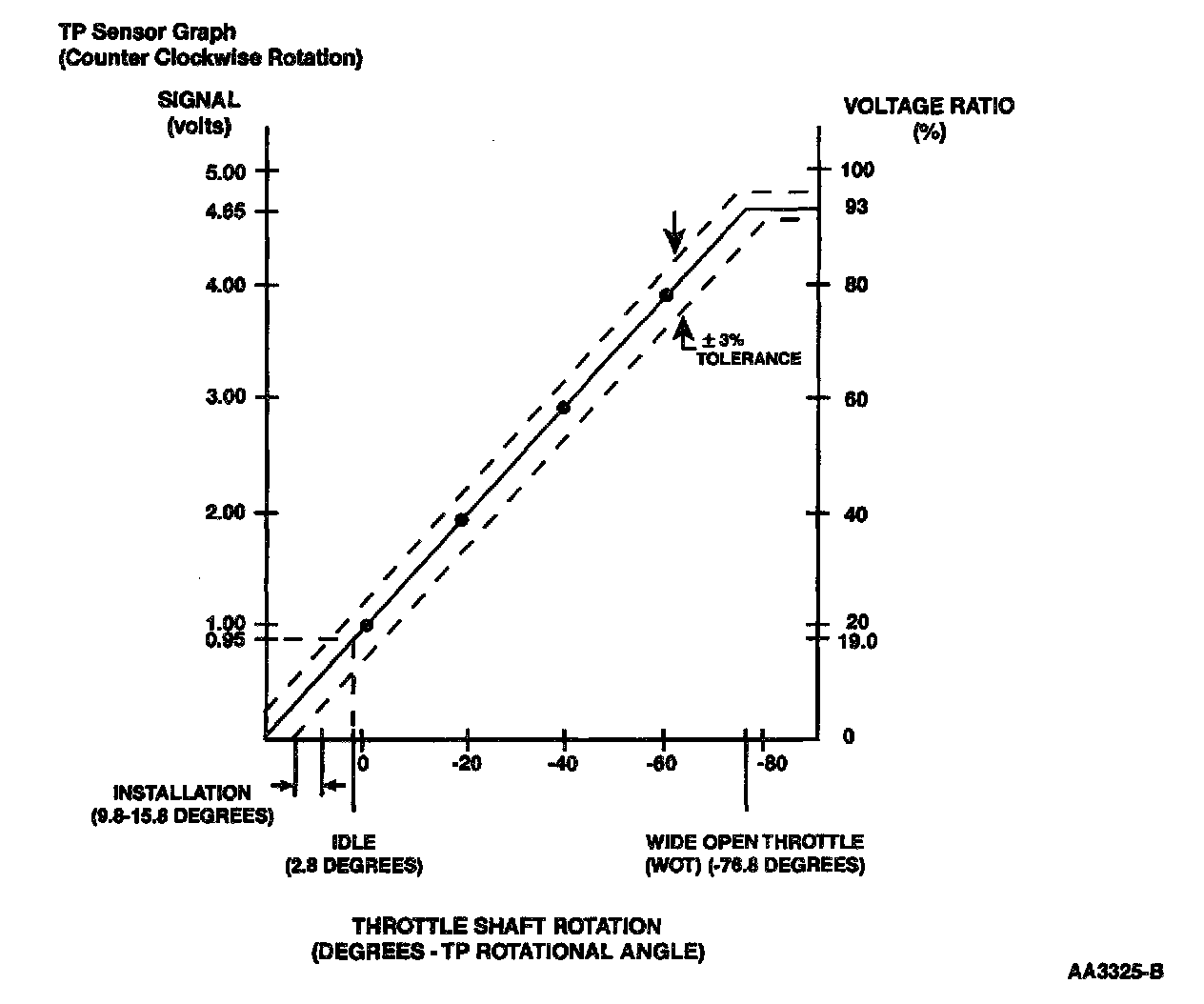

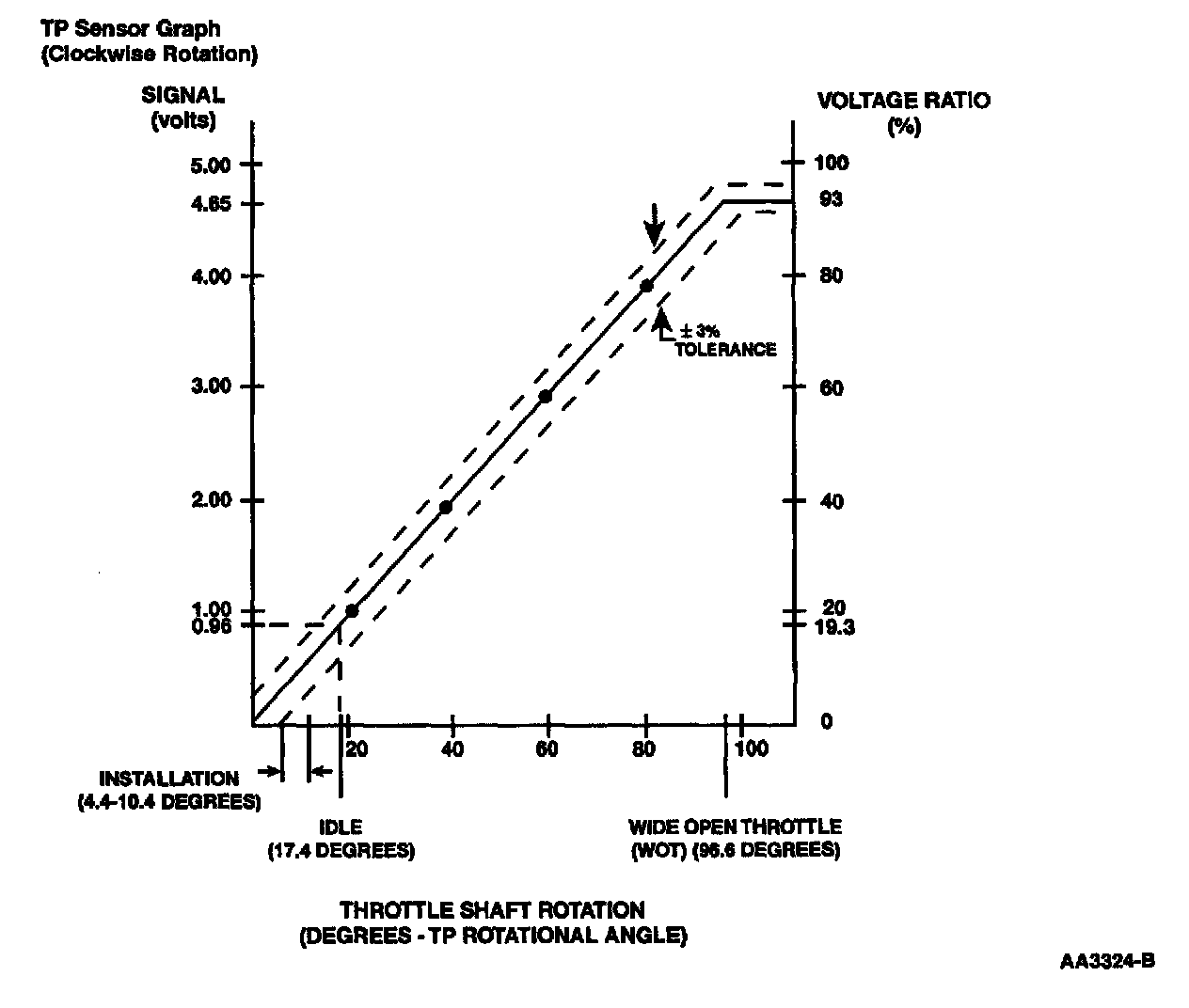

Throttle Position Sensor Graph (1 Of 2):

Throttle Position Sensor Graph (2 Of 2):

NOTE: The normal range of the throttle angle measurement for the Throttle Position (TP) sensor is 0 to 96.6 degrees.

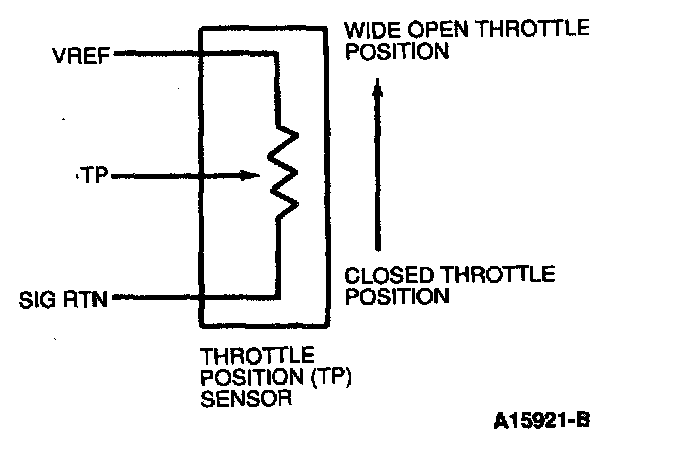

Pinpoint Test Schematics and Connectors

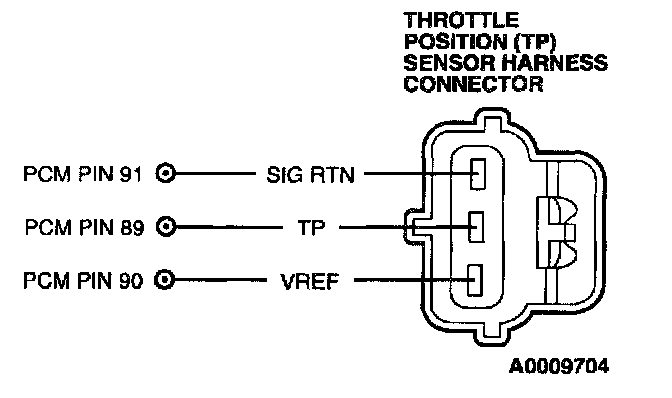

Contacting Throttle Position (TP) Sensor:

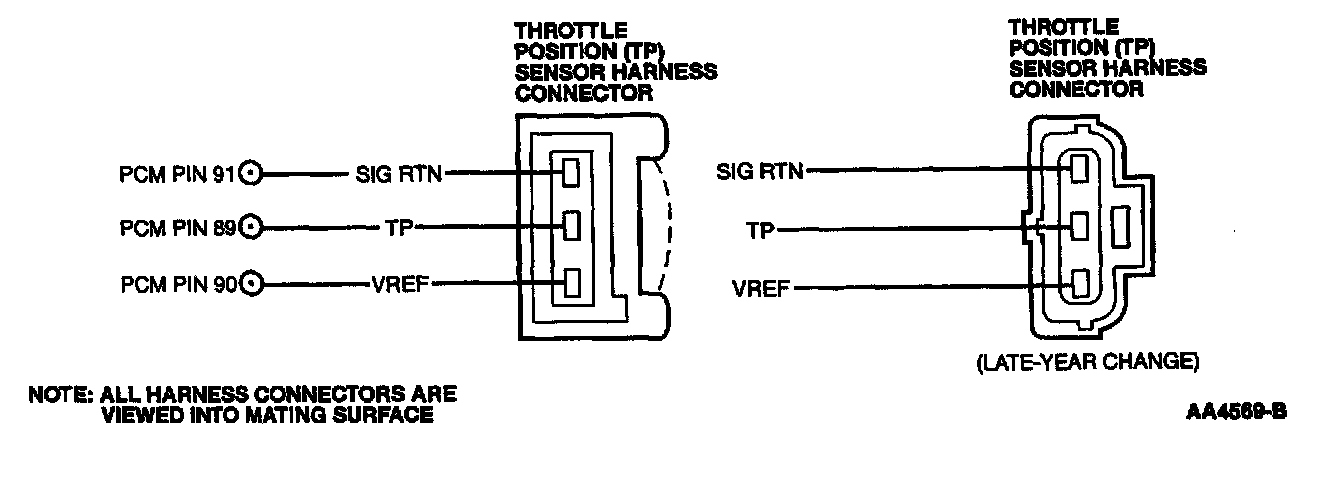

2.0L (4V) Escort, 2.0L Contour/Mystique/Cougar (TP):

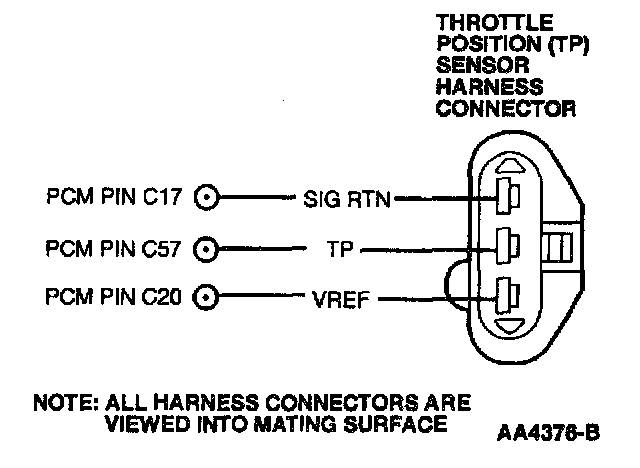

2.0L (4V) Focus (TP):

LS6/LS8 (TP):

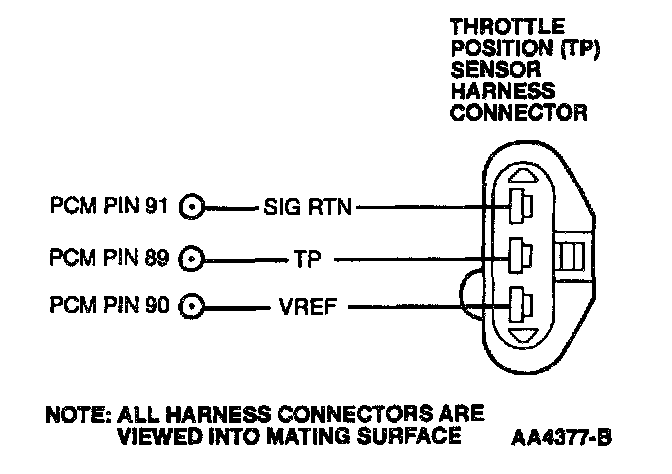

All Others (TP):

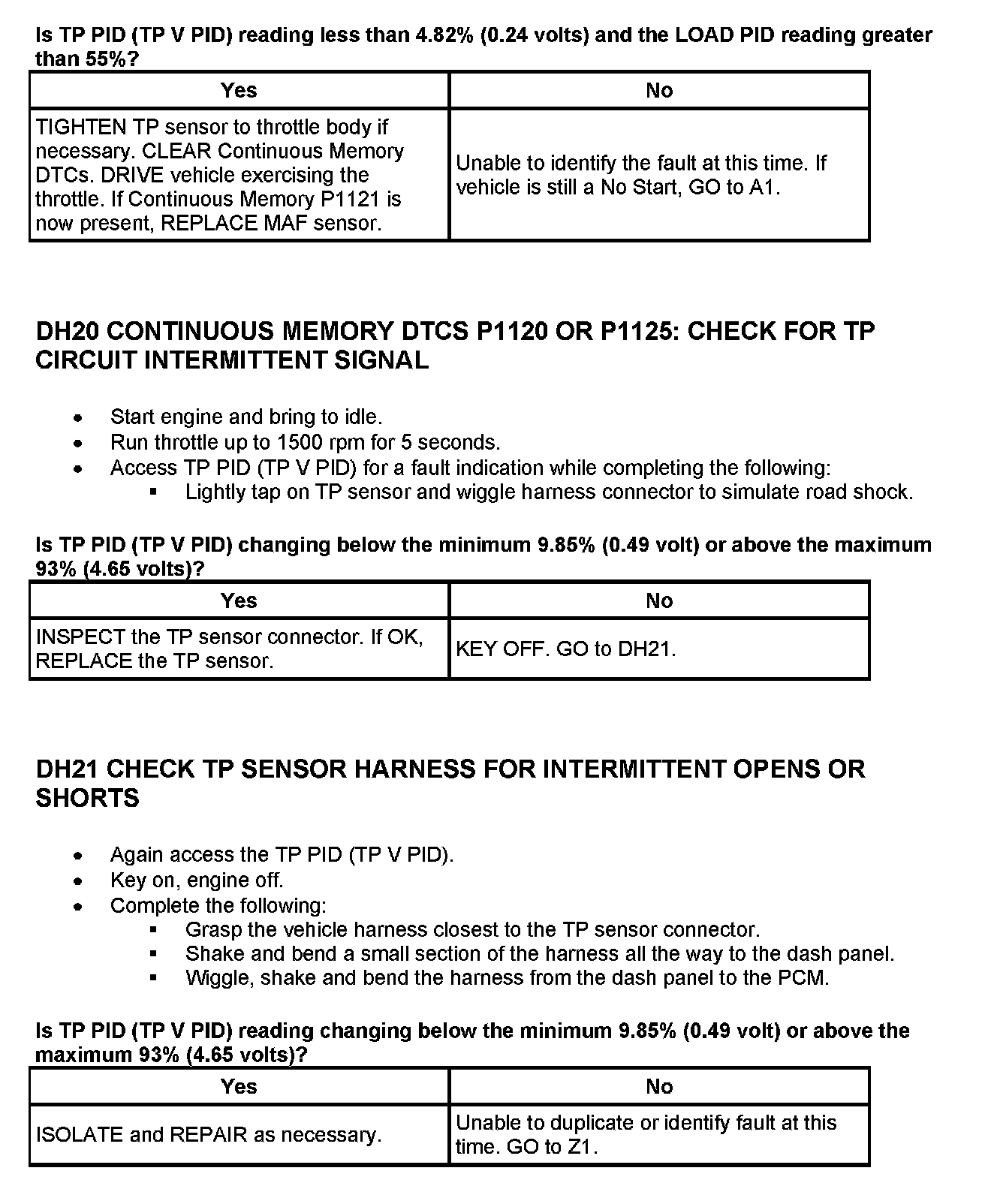

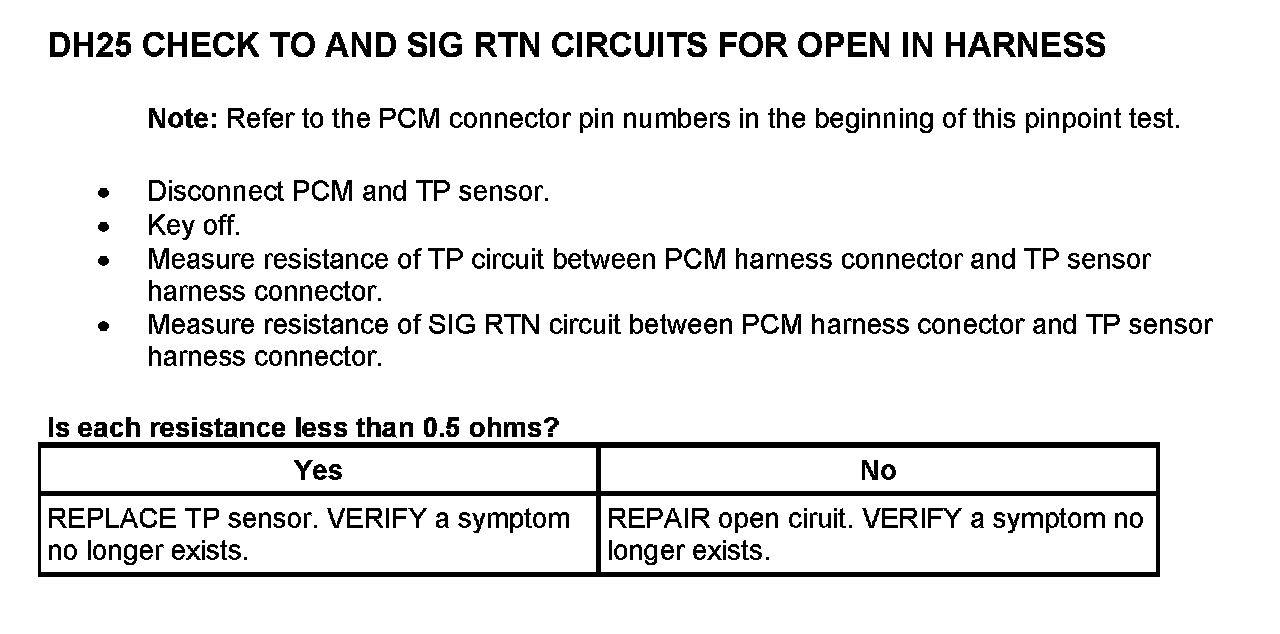

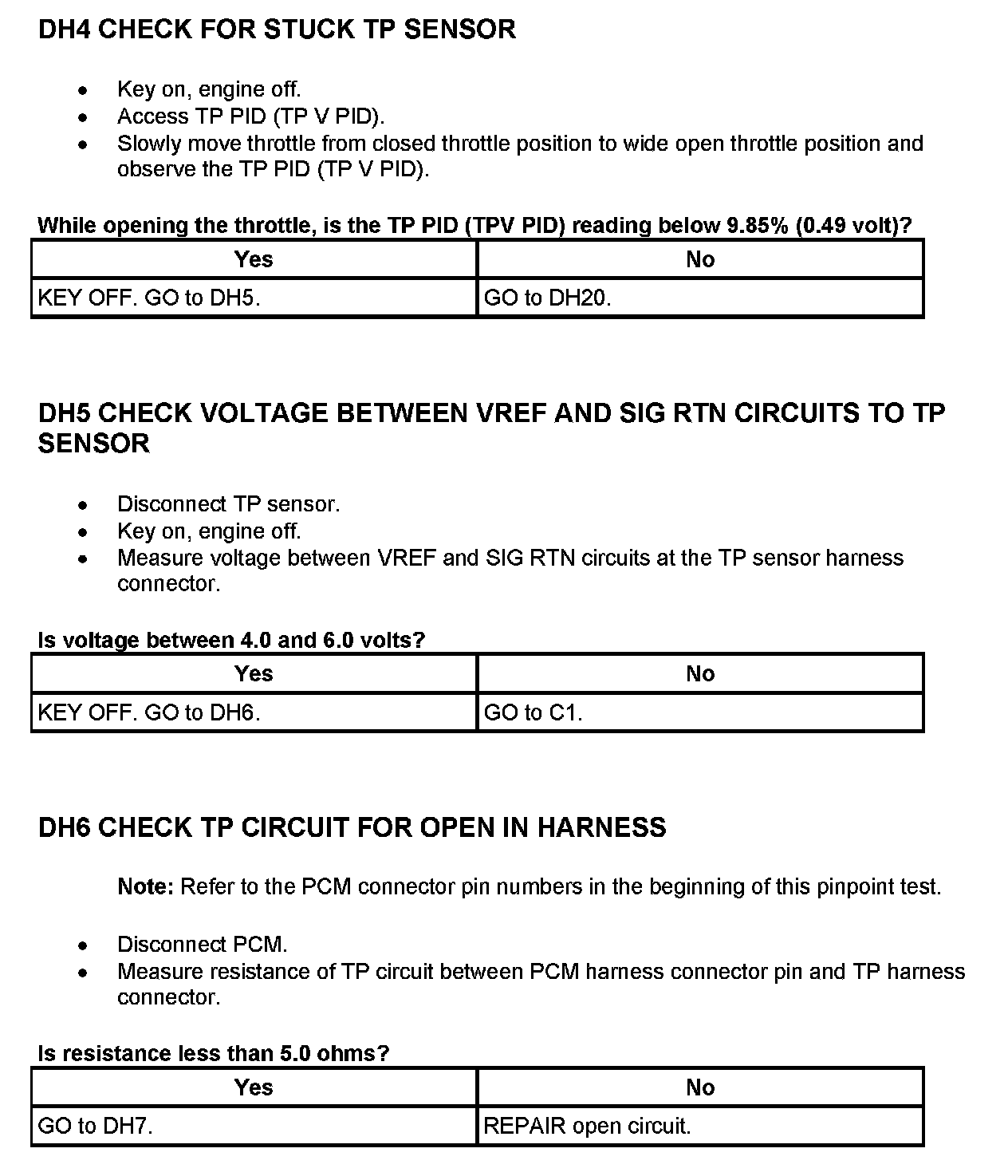

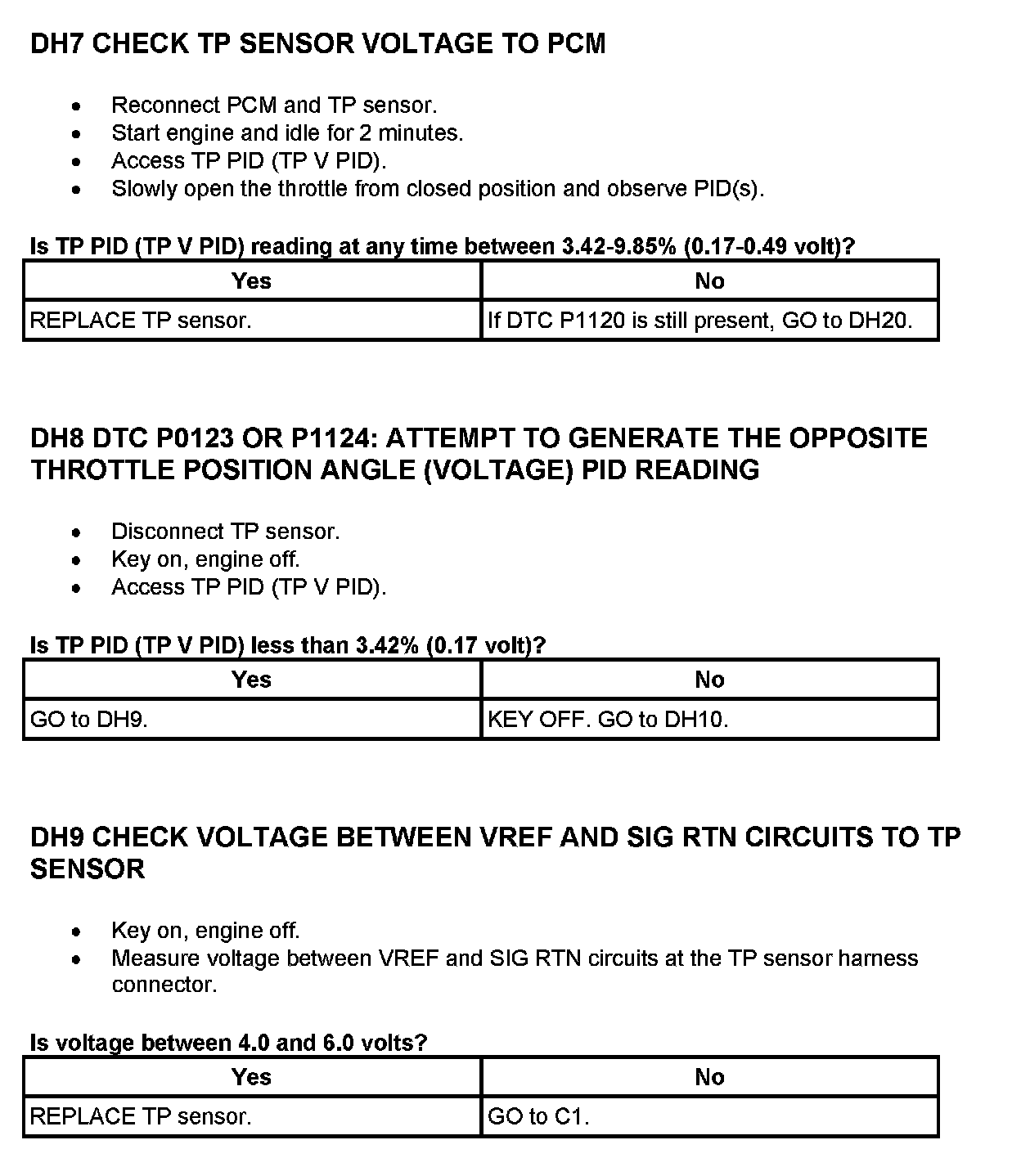

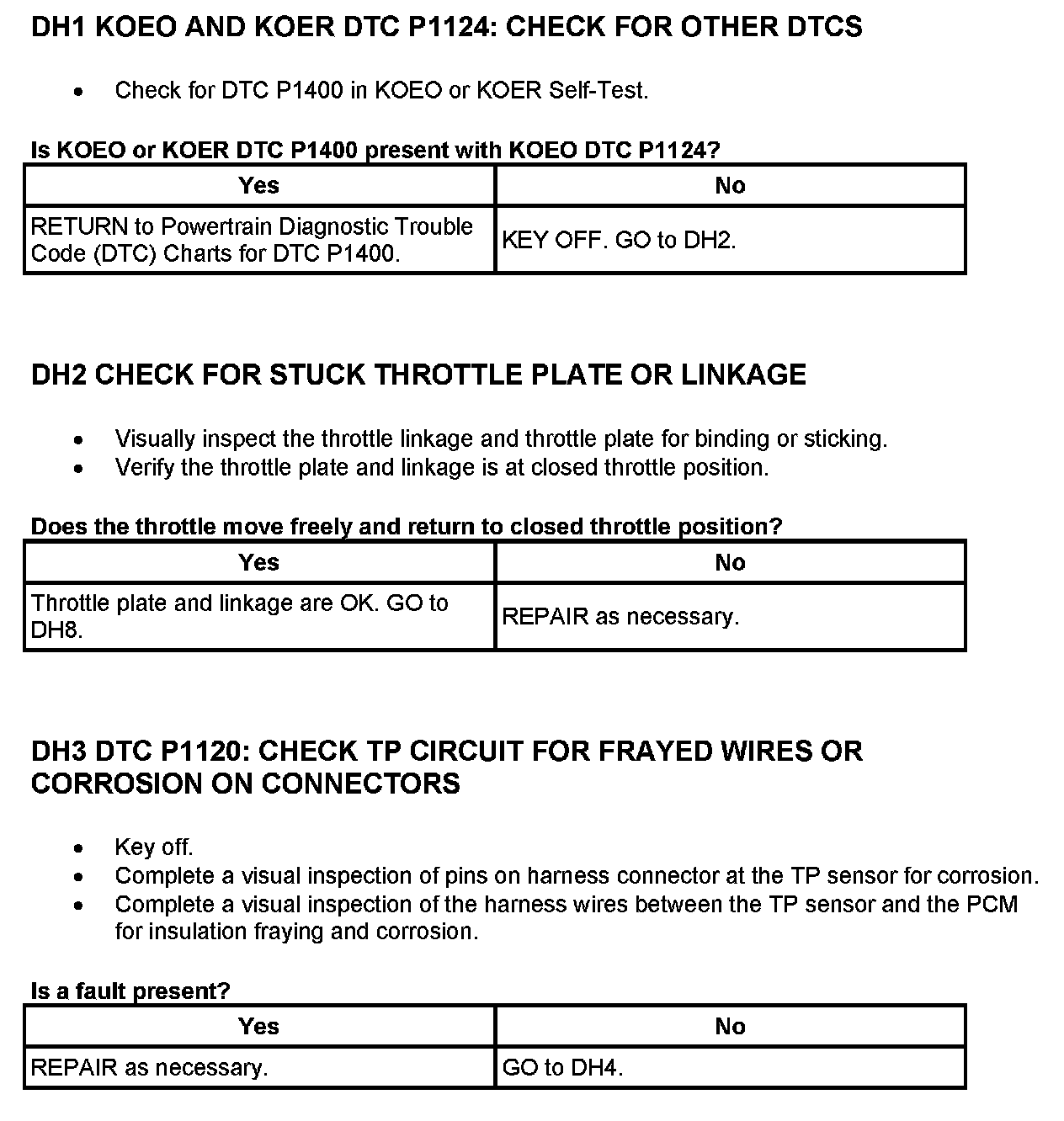

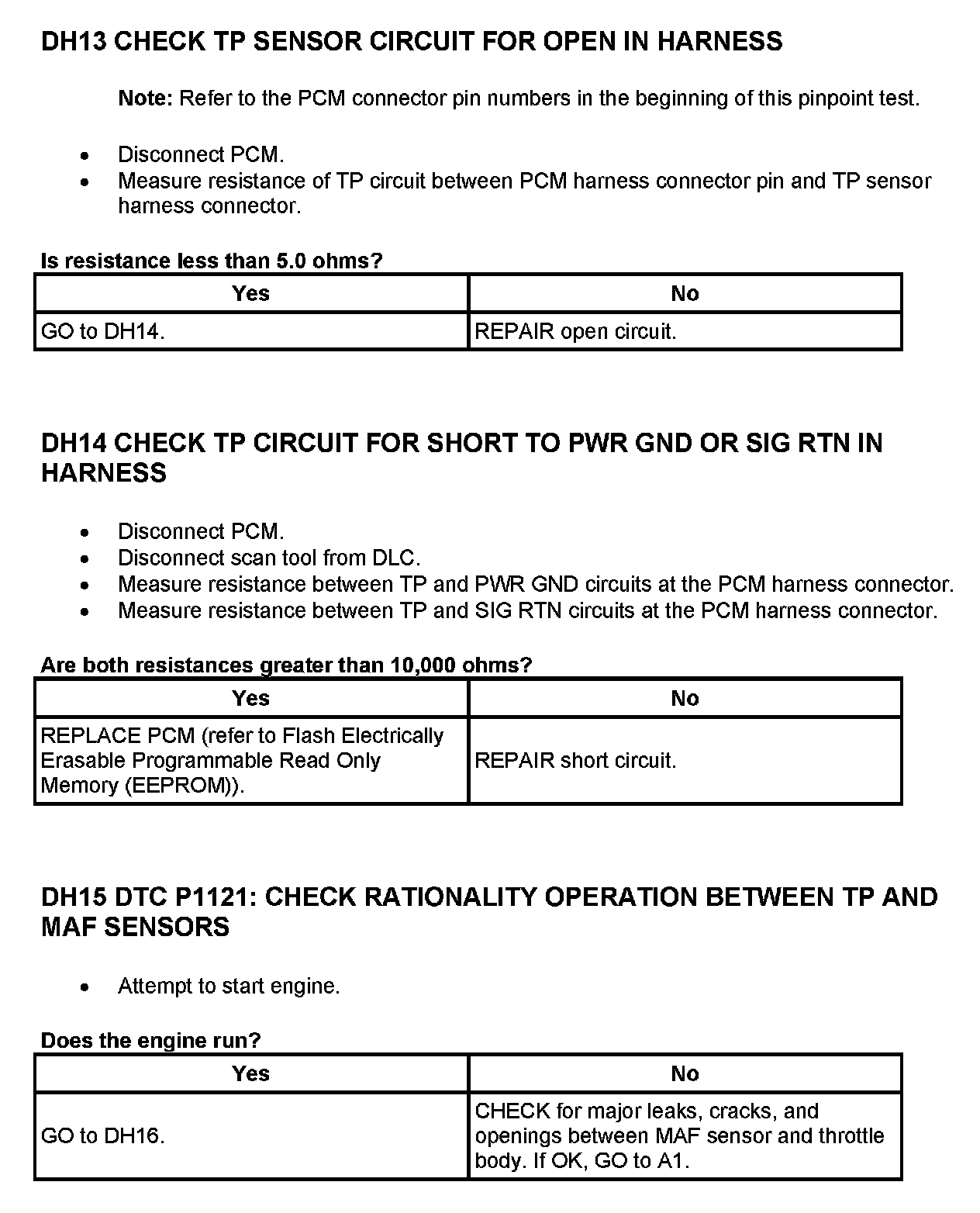

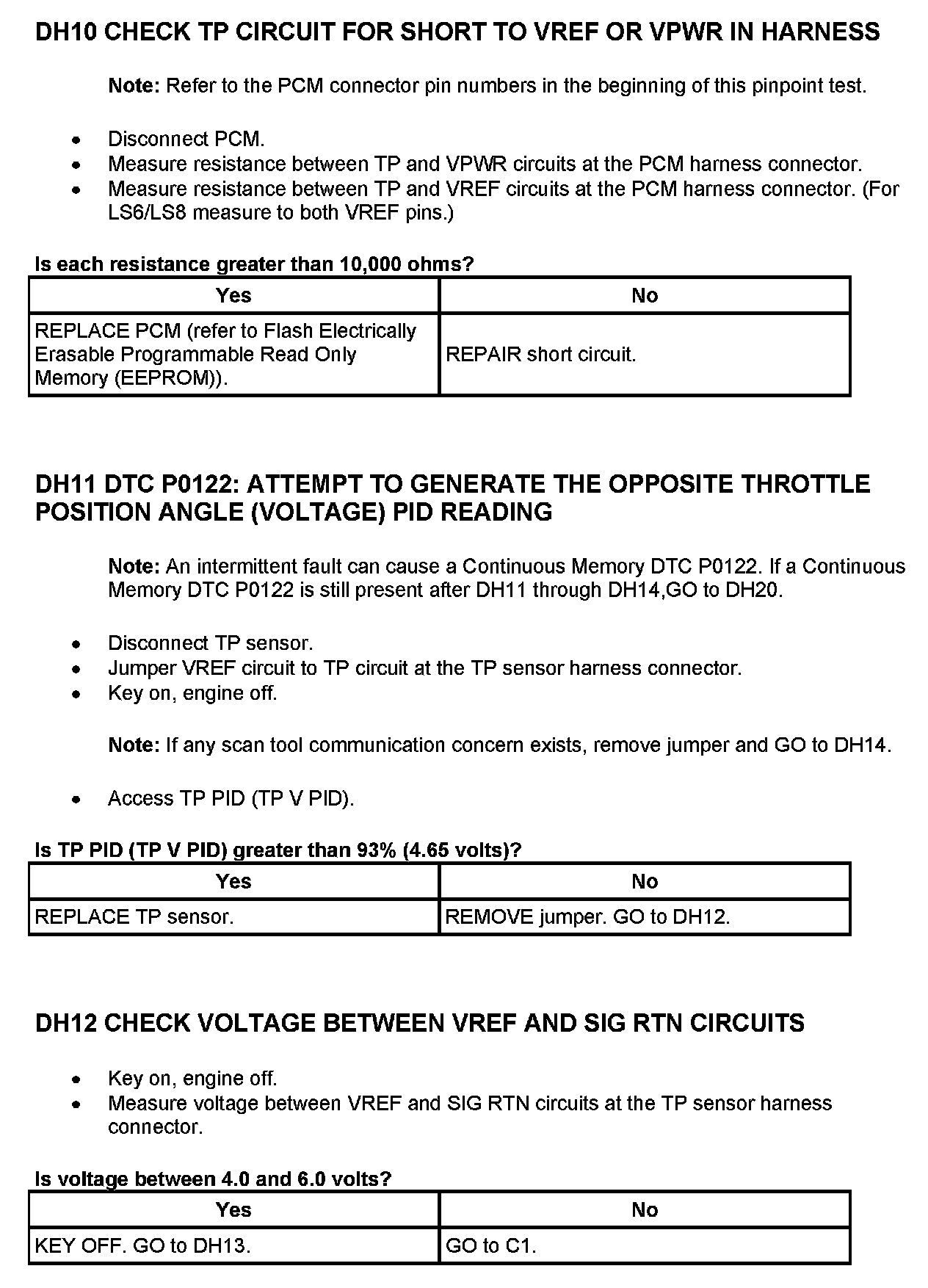

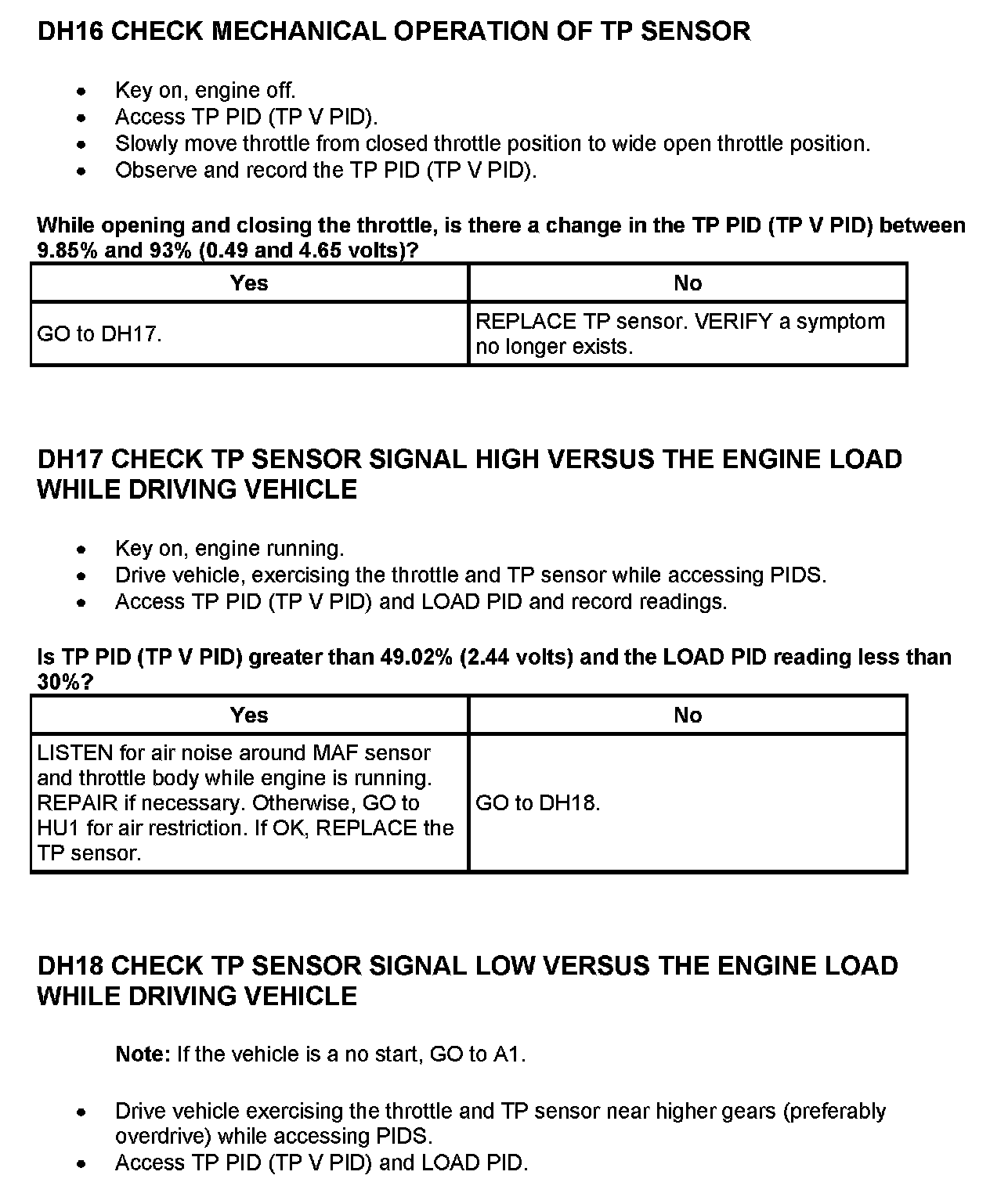

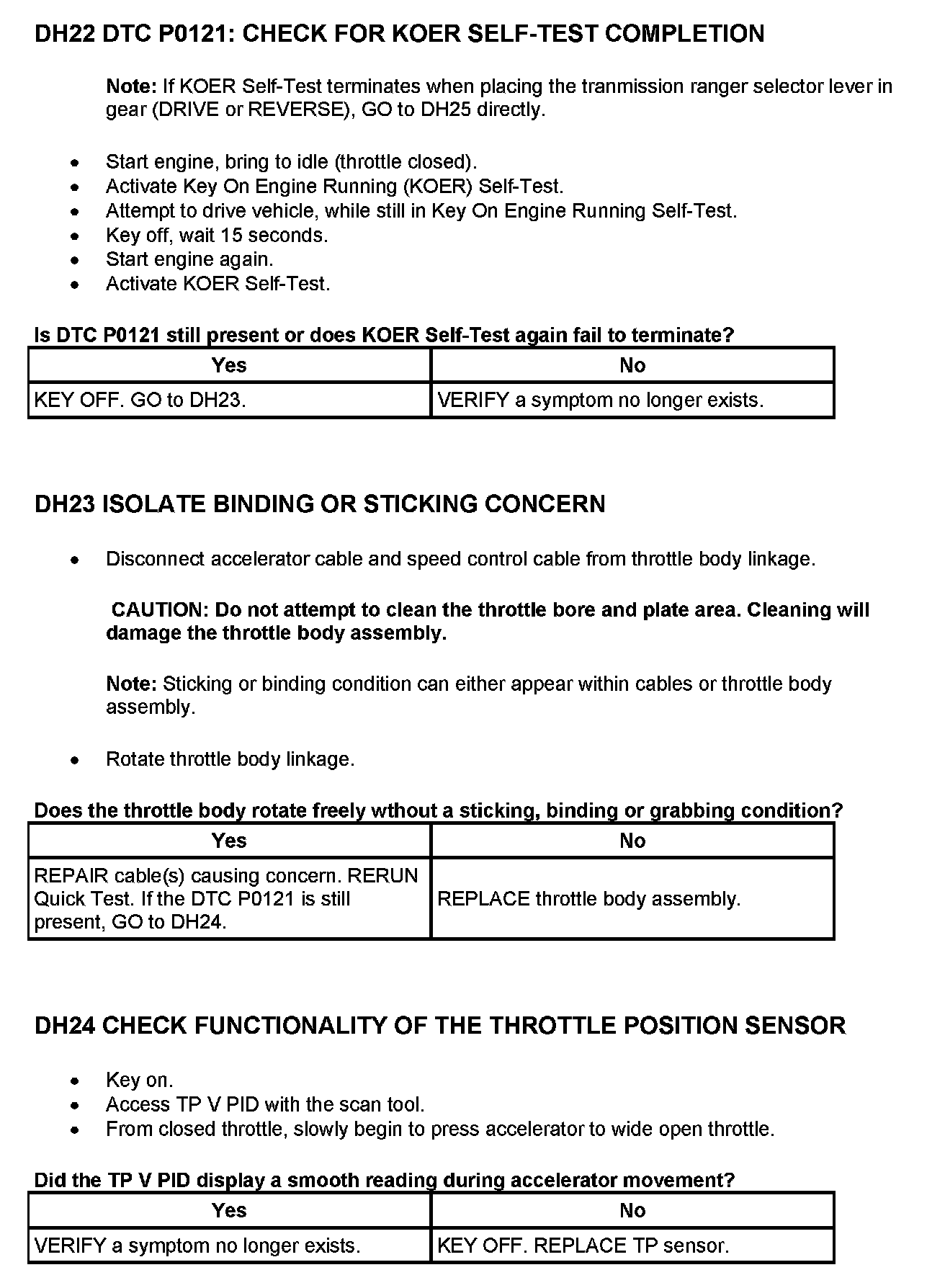

Pinpoint Tests
