Tests FH: Generator Load Input (GLI)

NOTE
This Pinpoint Test is intended to diagnose the following:
- Generator Load Input (GLI) circuit
- Powertrain Control Module (PCM)

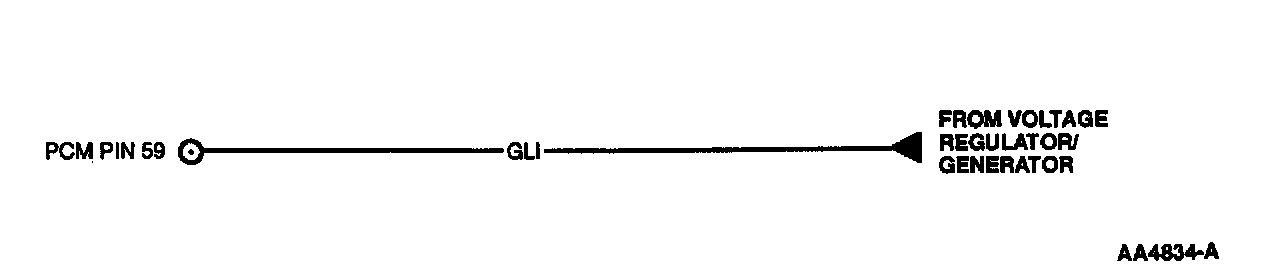

Pinpoint Test Schematic

Generator Load Input (GLI) Circuit:

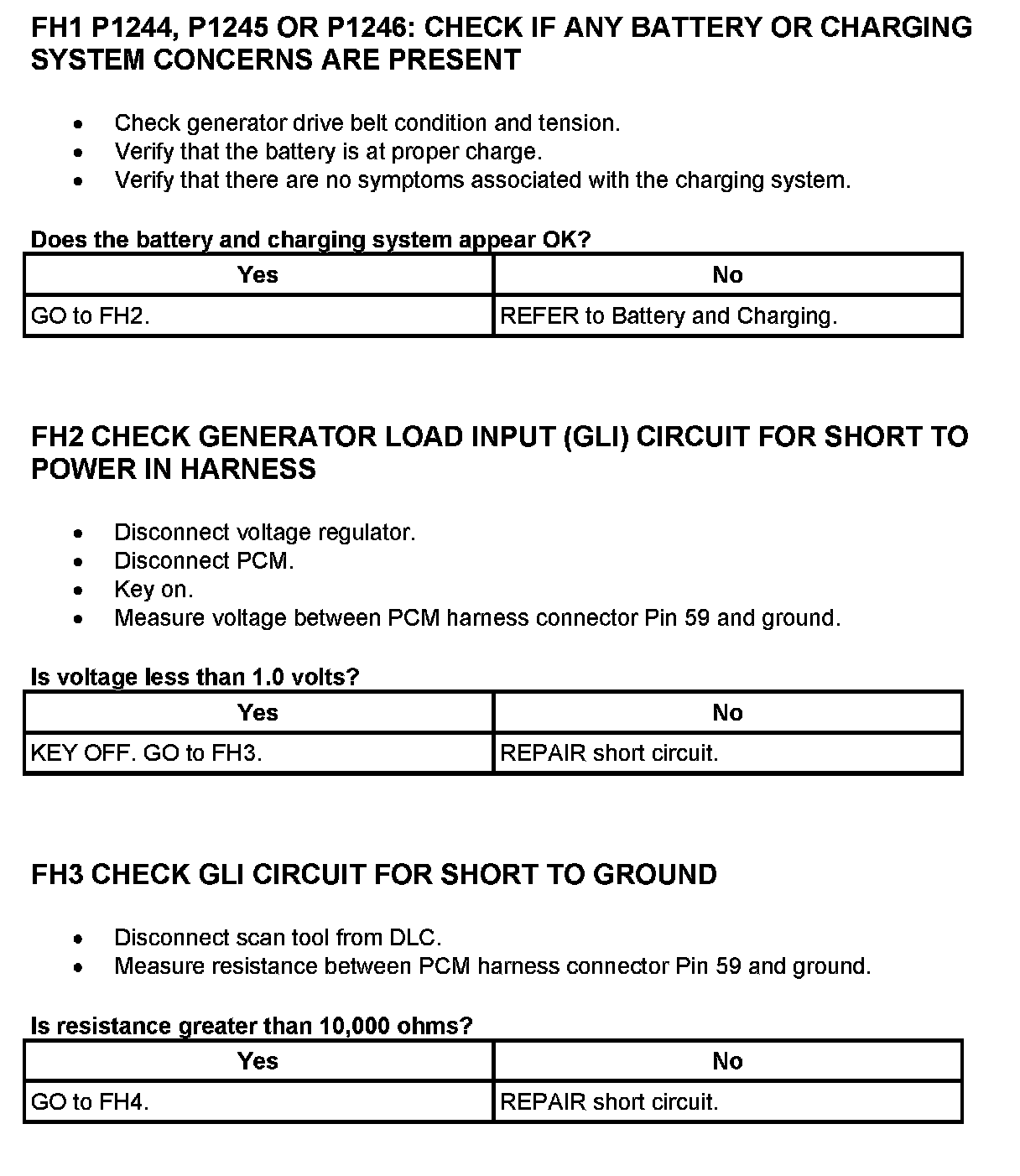

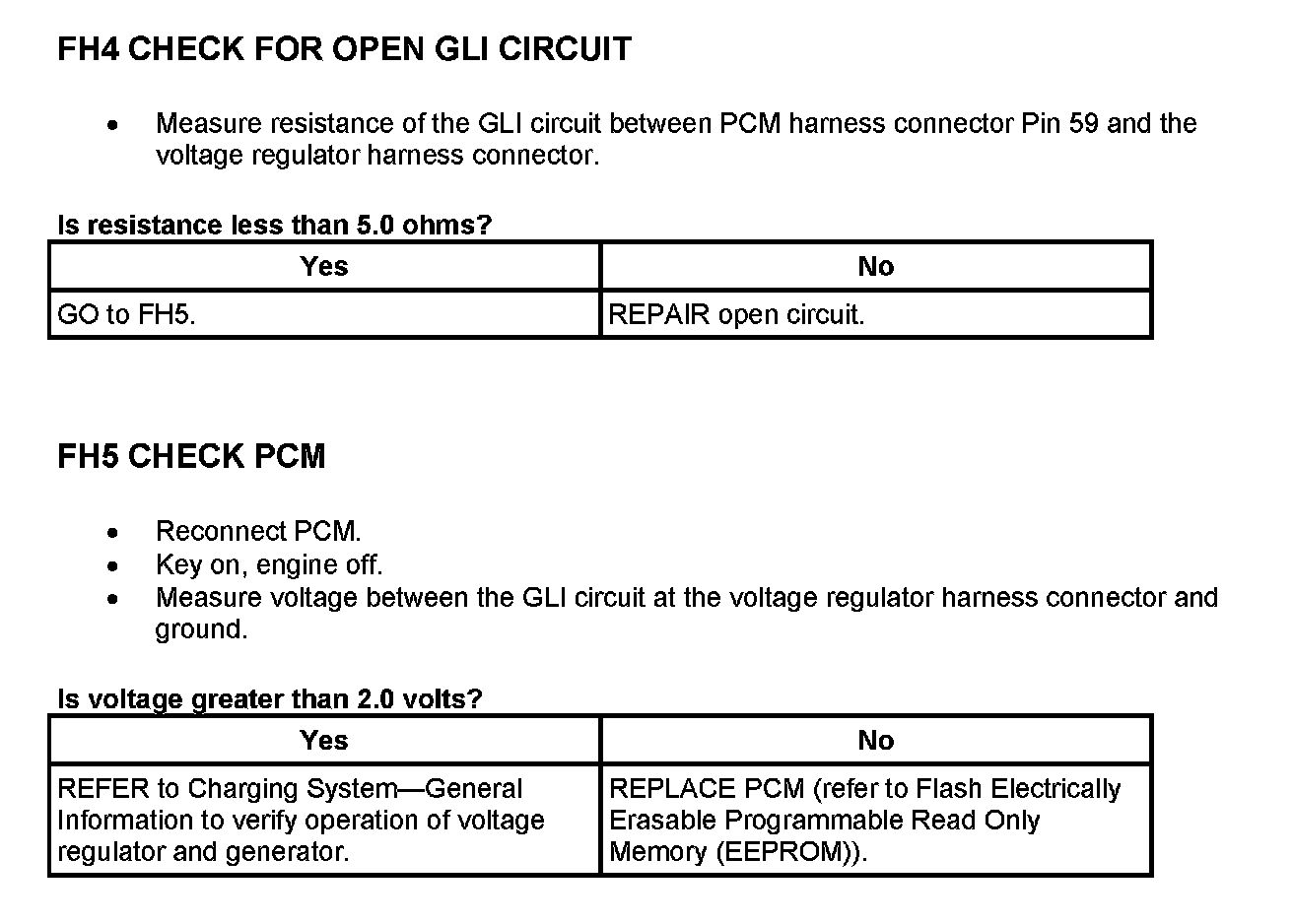

Pinpoint Tests
