Tests HY: Generator/Regulator System




NOTE
This Pinpoint Test is intended to diagnose the following:
- Generator/Regulator
- Generator/Regulator harness circuits: GEN-MON, GEN-COM, BATT-SENSE
- PCM

Pinpoint Test Schematics and Connectors

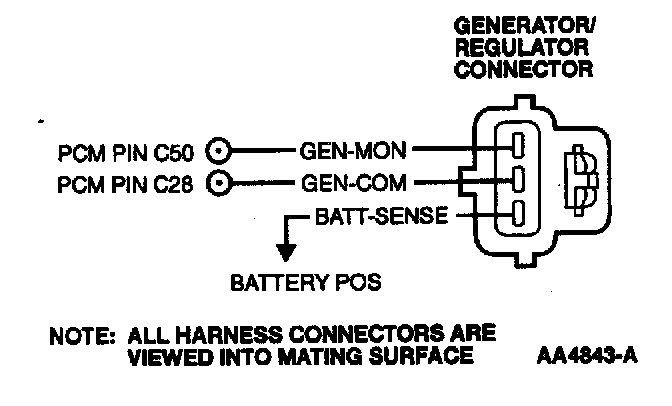

Windstar (Generator/Regulator Connector):

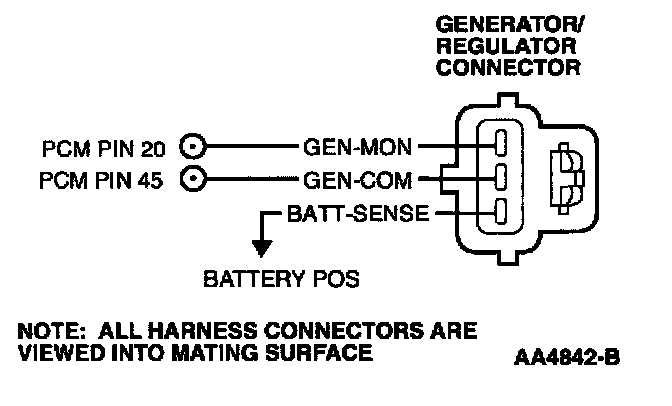

LS6/LS8 (Generator/Regulator Connector):





Focus (Generator/Regulator Connector):

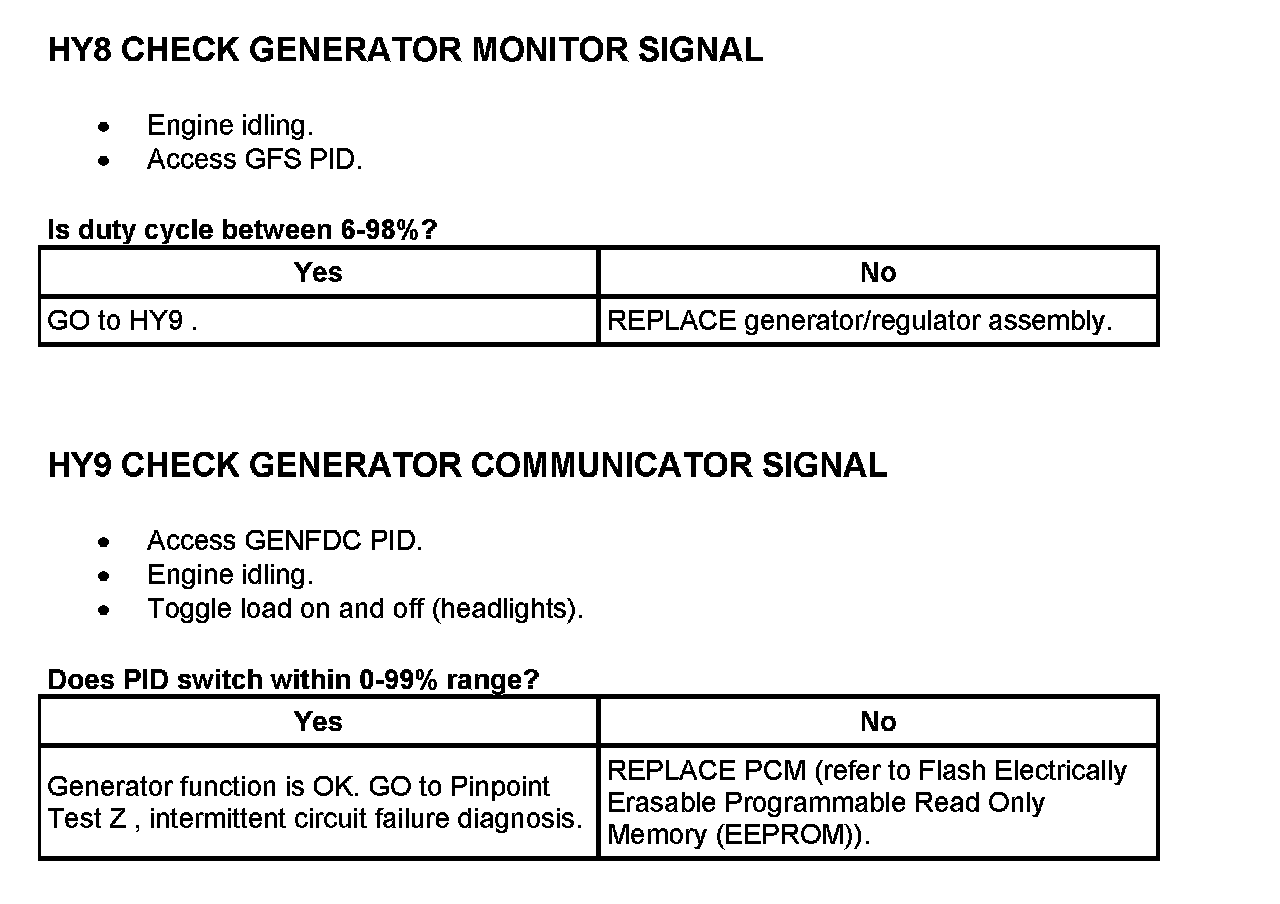

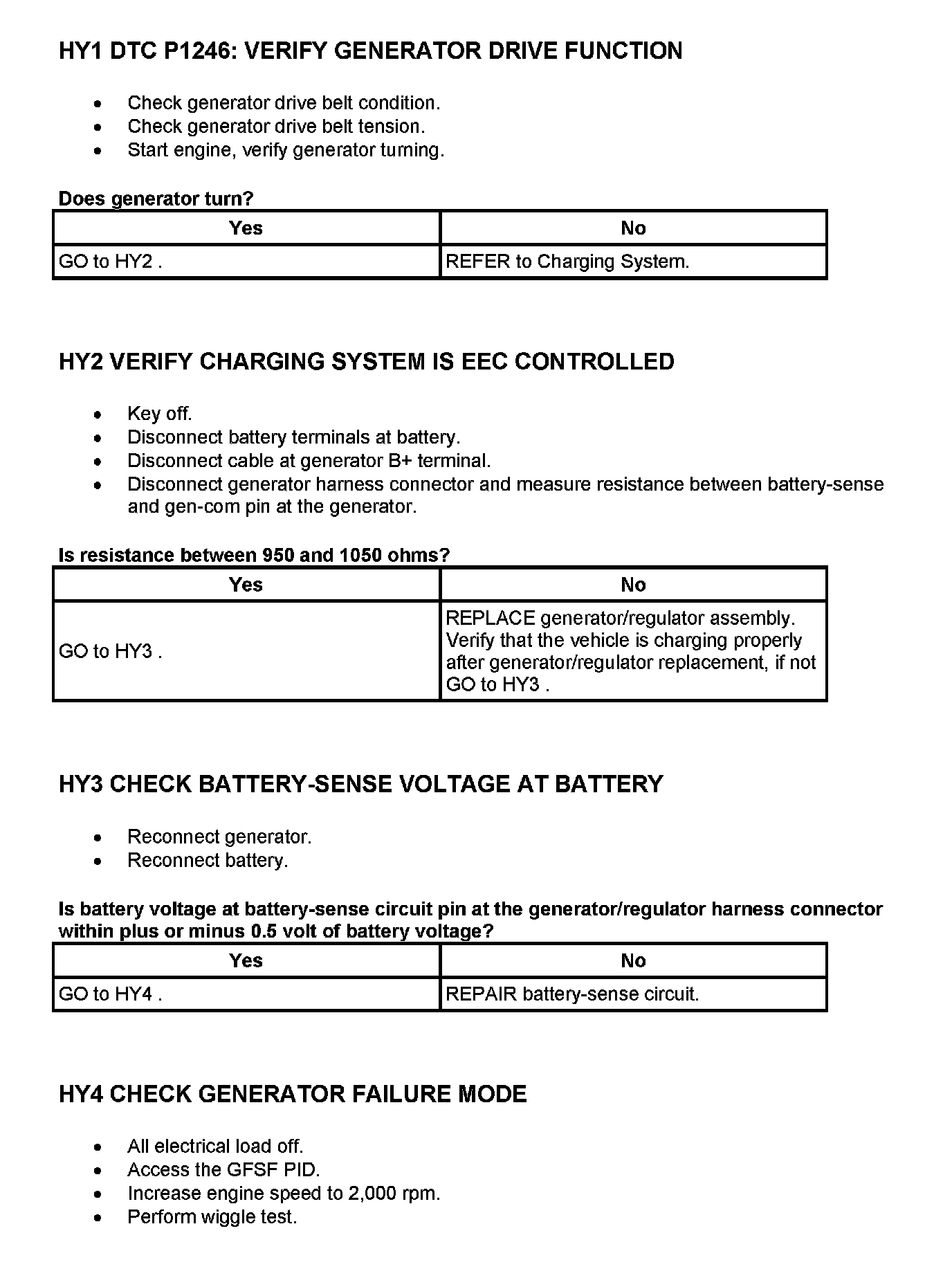

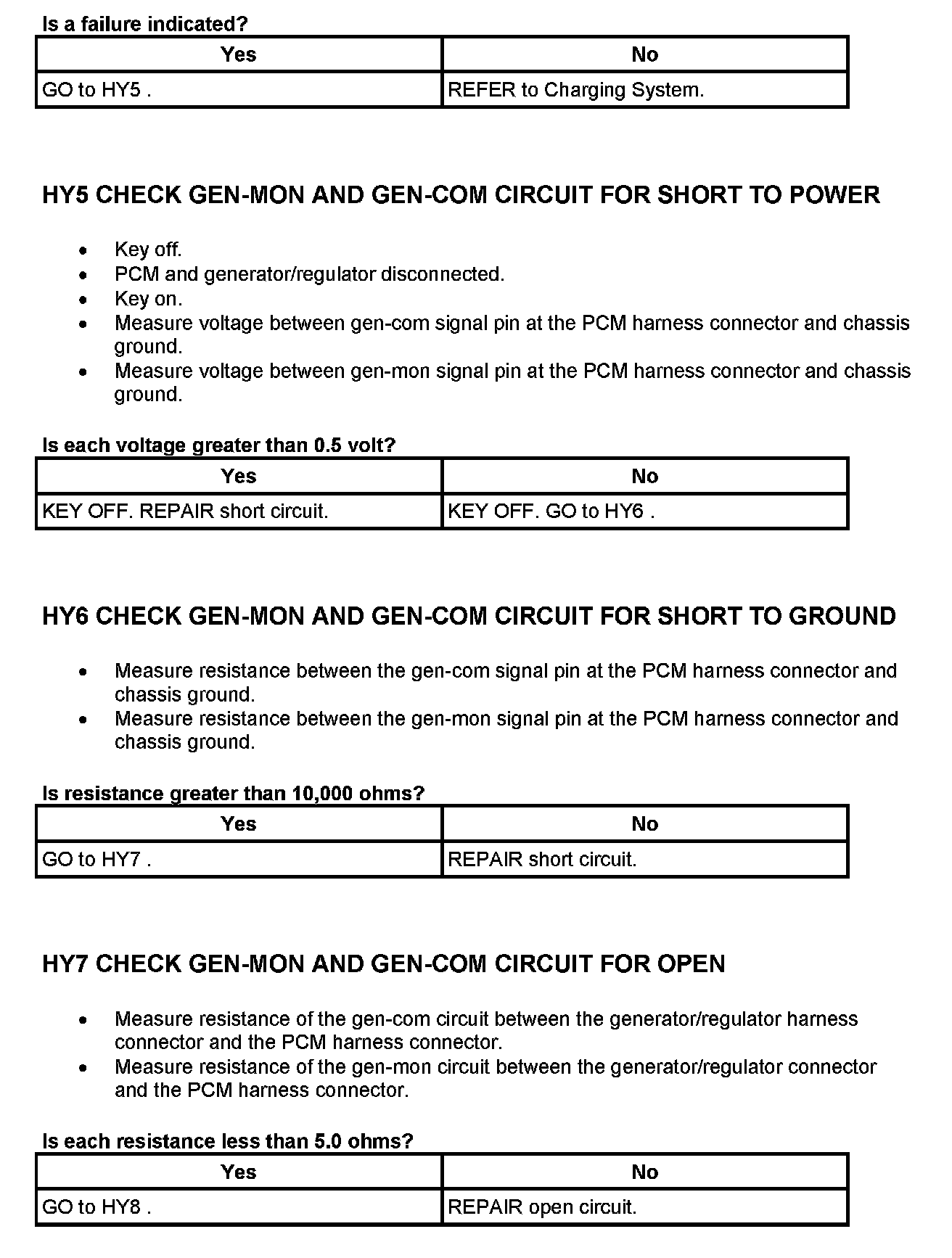

Pinpoint Tests
