Key Release Button

Removal and Installation
1. Remove the ignition switch lock cylinder.





2. If equipped, remove the tilt wheel handle and shank.





3. Remove the upper and lower steering column shrouds.
1 Remove the screws.
2 Remove the upper and lower steering column shrouds.

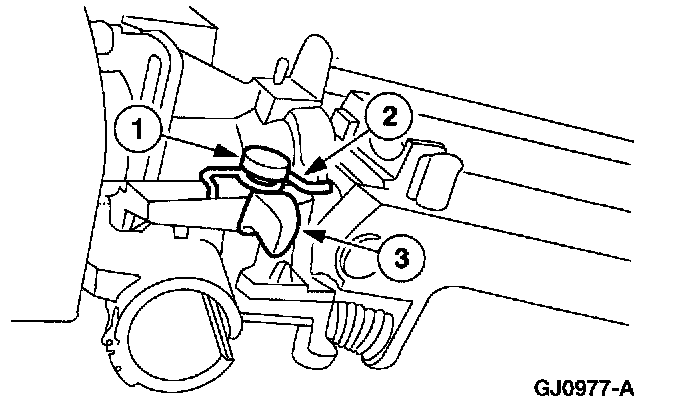

4. Remove the key release button.
1 Remove the bolt.
2 Remove the spring.
3 Remove the key release button.

5. To install, reverse the removal procedure.
