Multifunction Switch

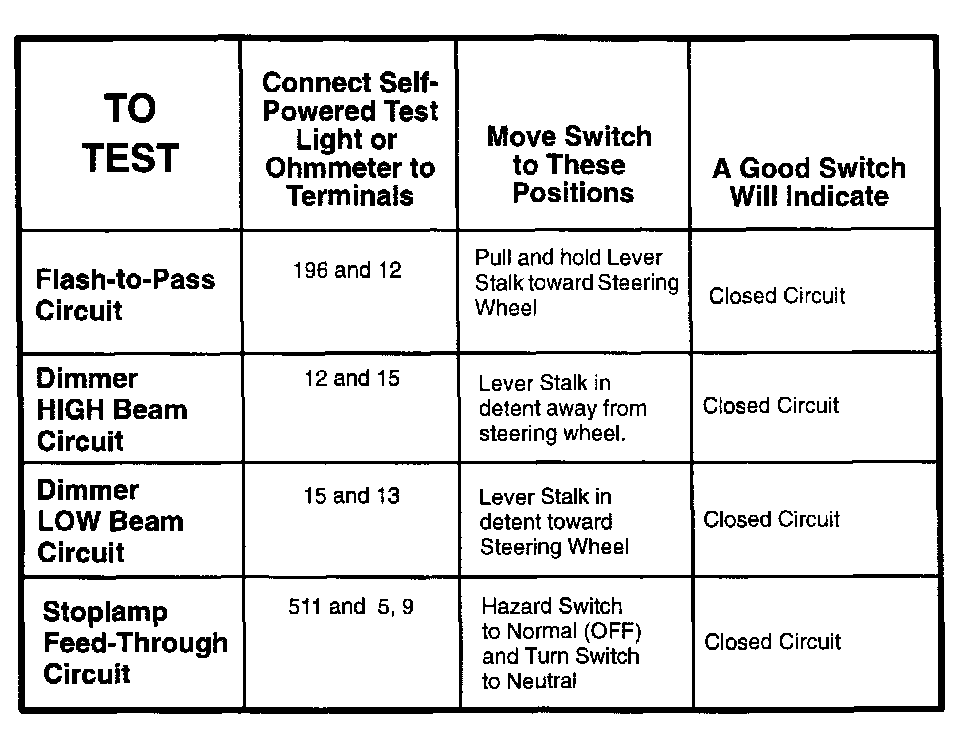

Component Testing Procedure:

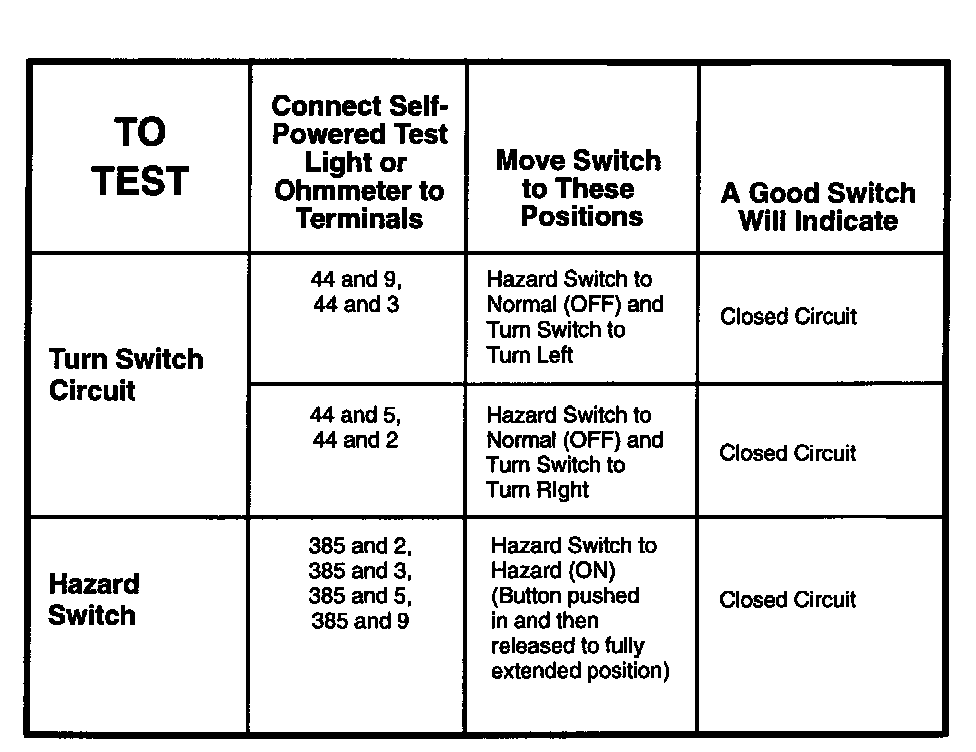

Component Testing Procedure:






Component Testing Procedure:

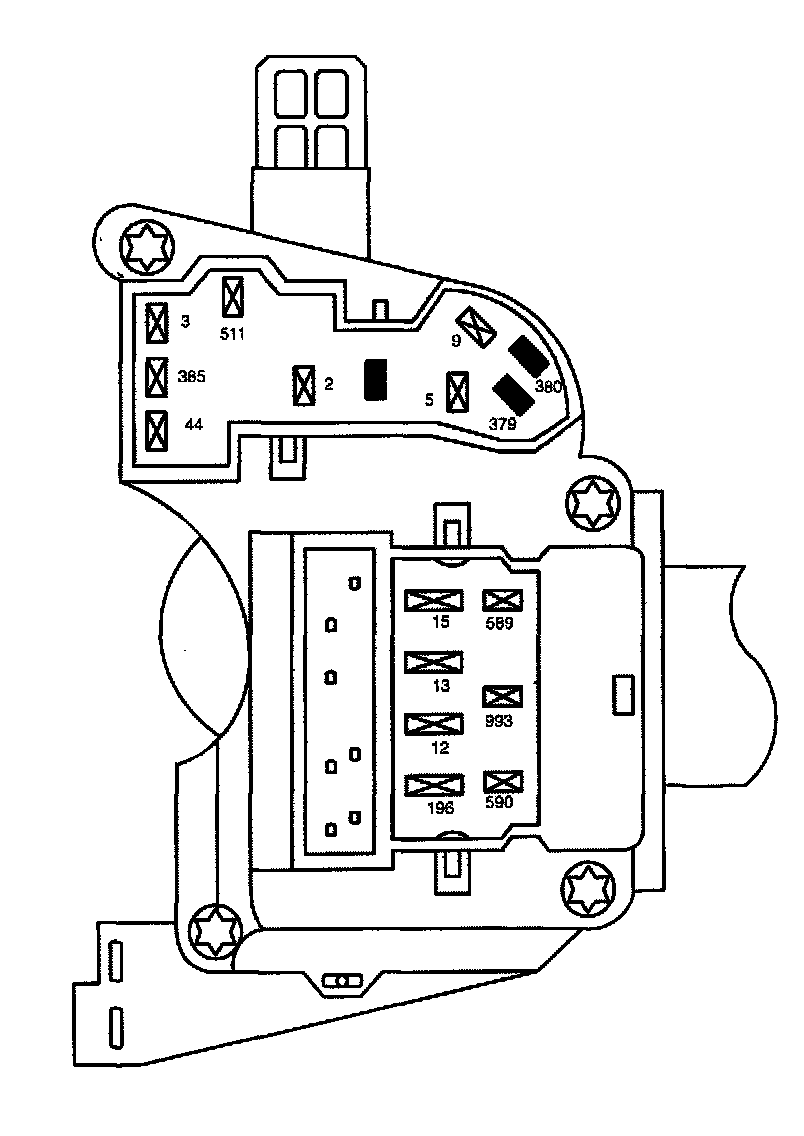

Terminals:






Schematic:






Schematic-Dimmer, Flash To Pass, Turn/Hazard Portion:
