Test H: Auxiliary Powertrain Control System

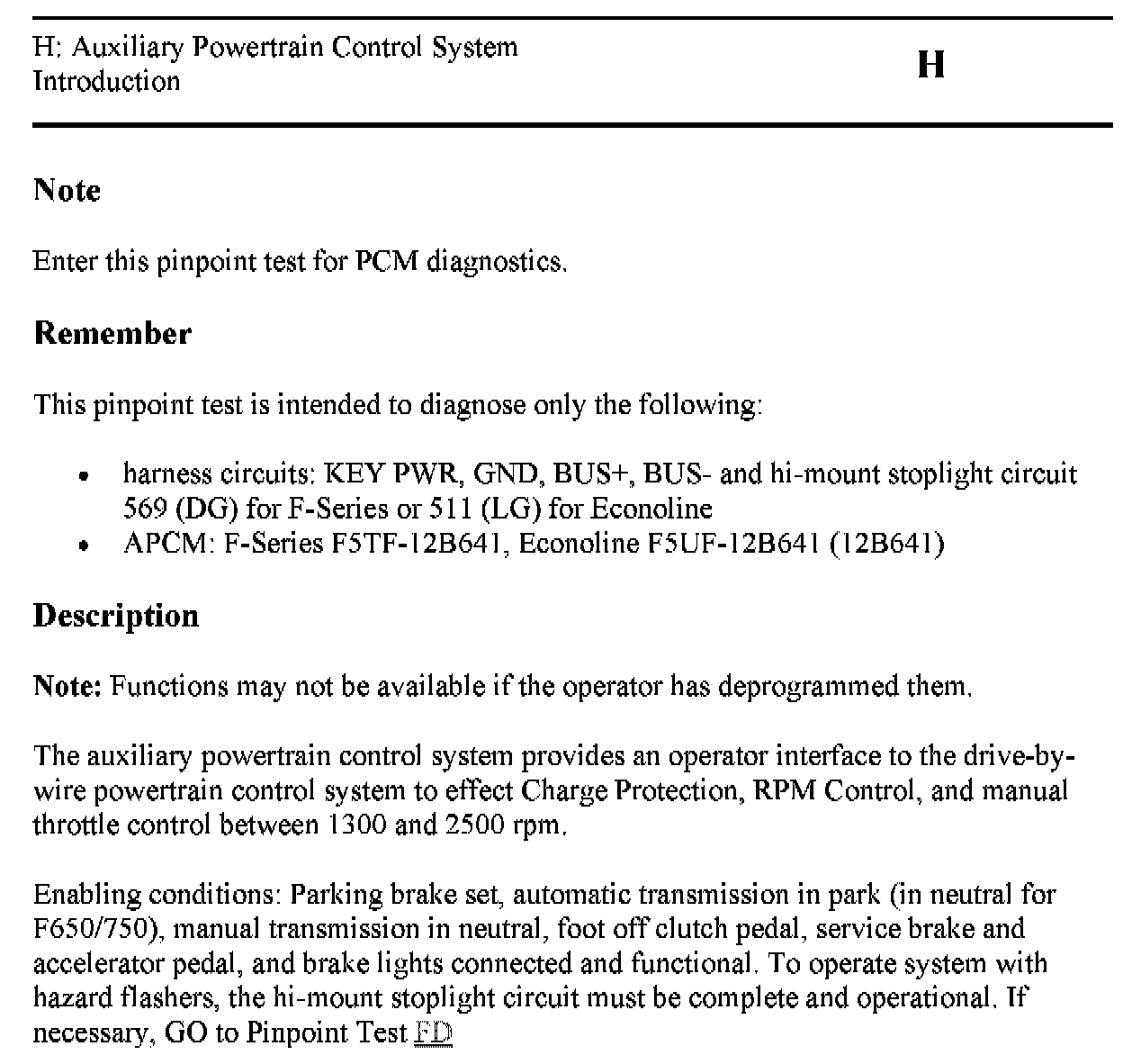

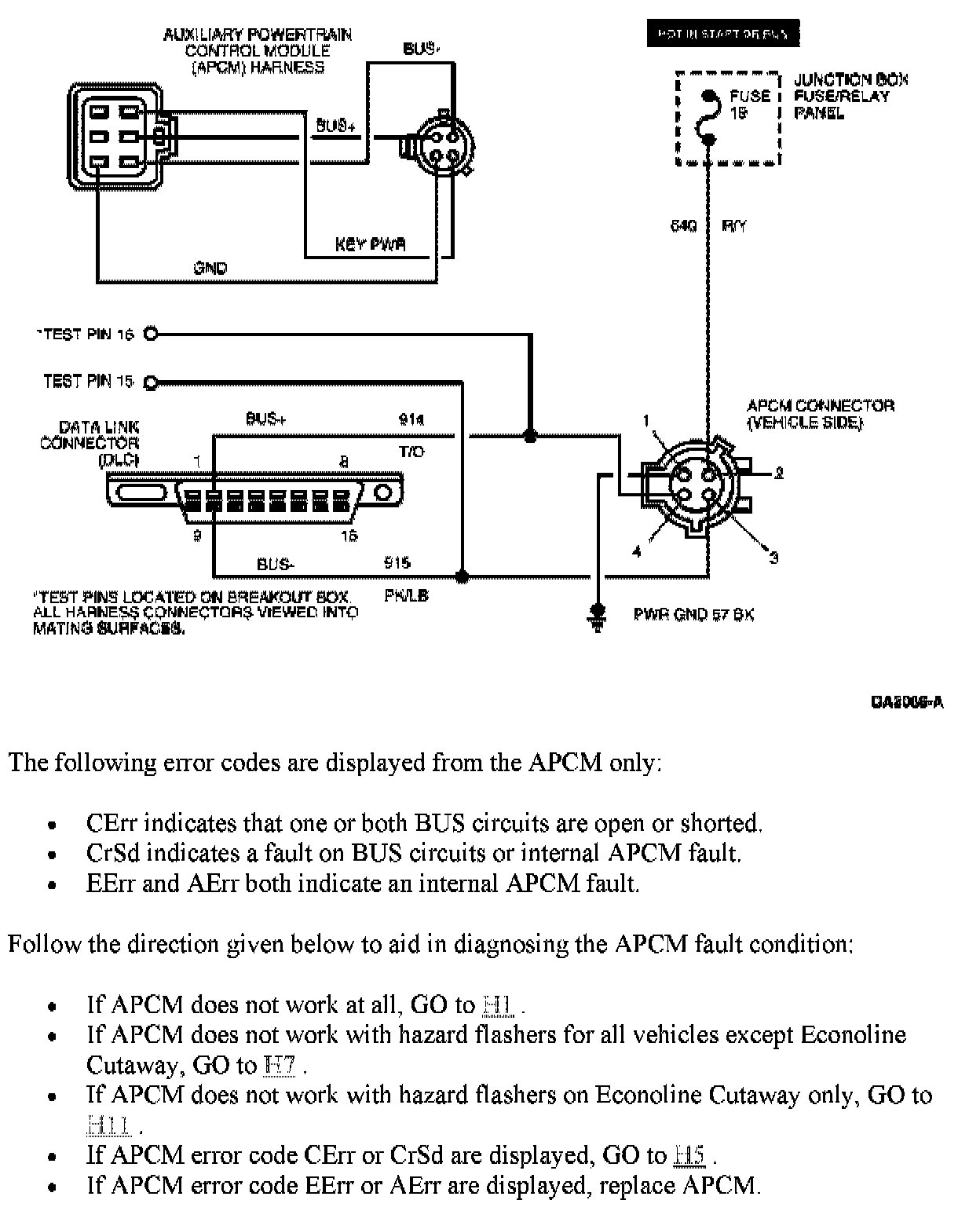

H: Introduction:





H: Introduction:

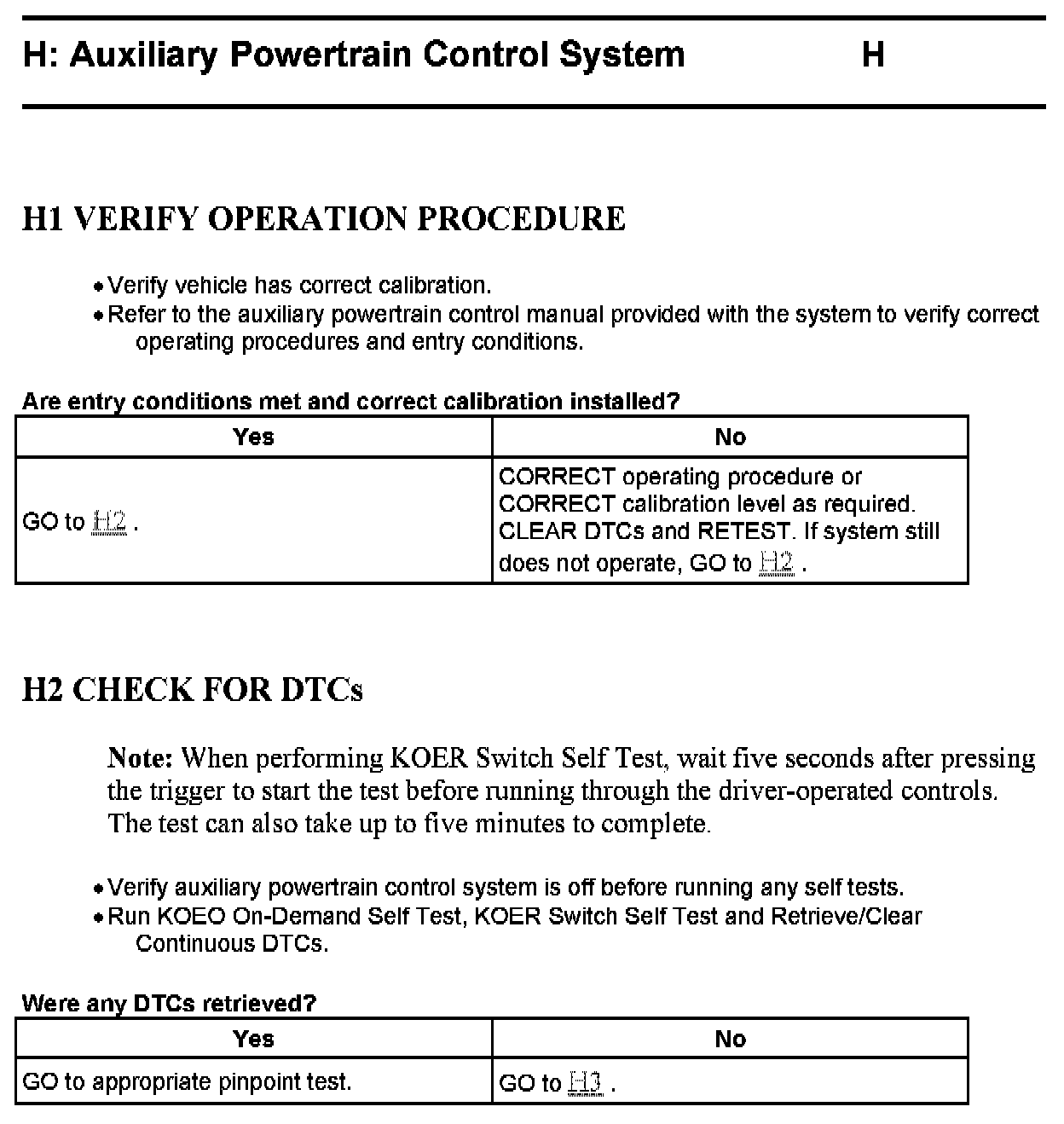

H1 - H2:

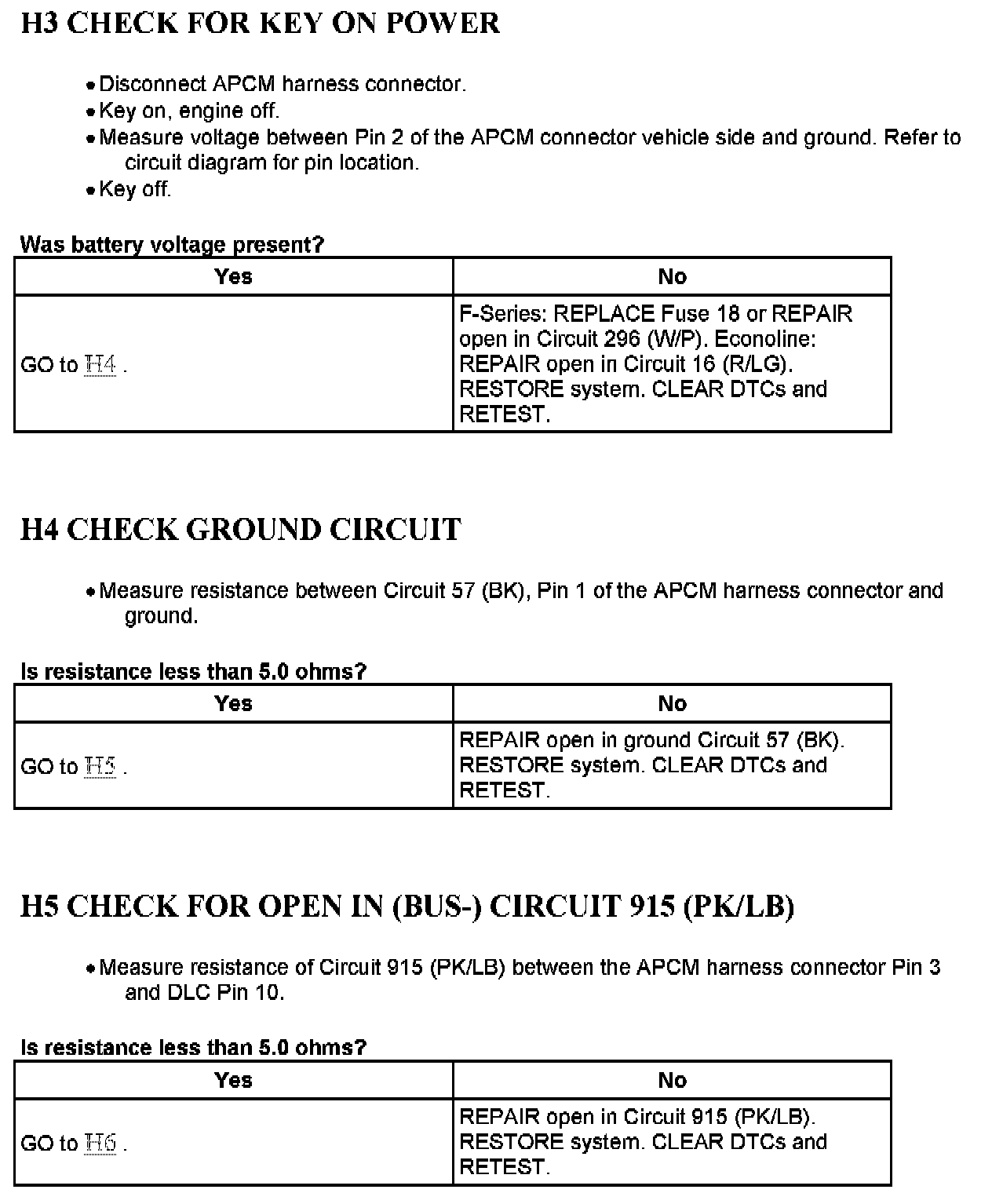

H3 - H5:

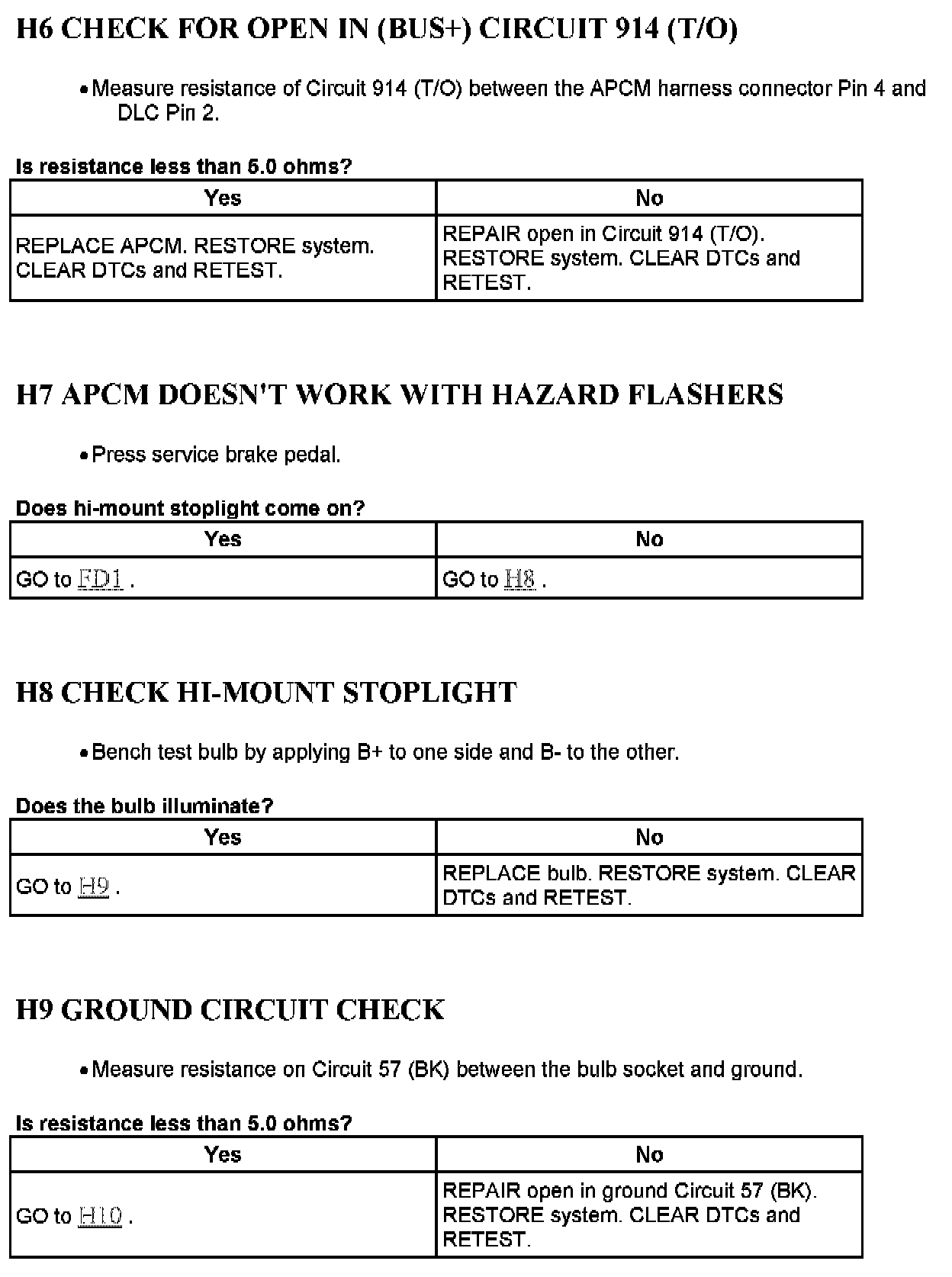

H6 - H9:

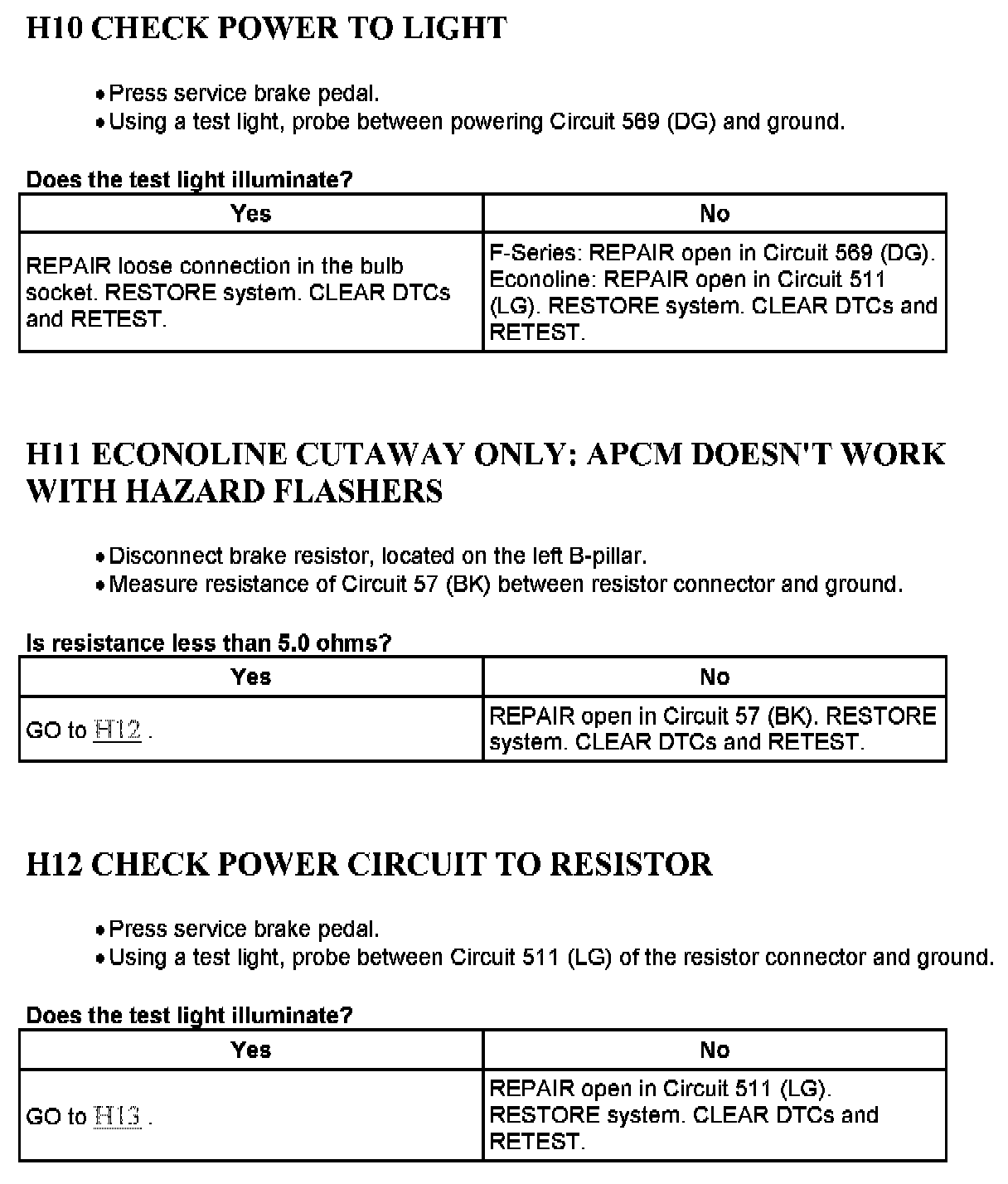

H10 - H12:

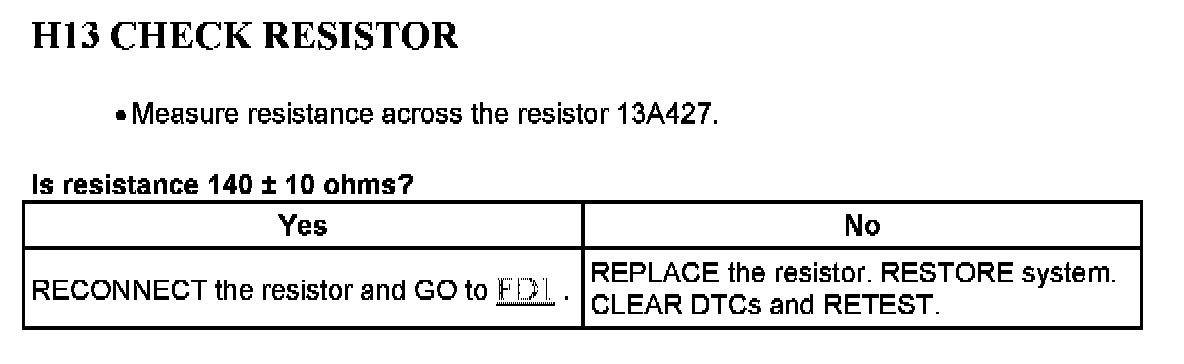

H13:
