Tests DD: Accelerator Pedal (AP) Sensor

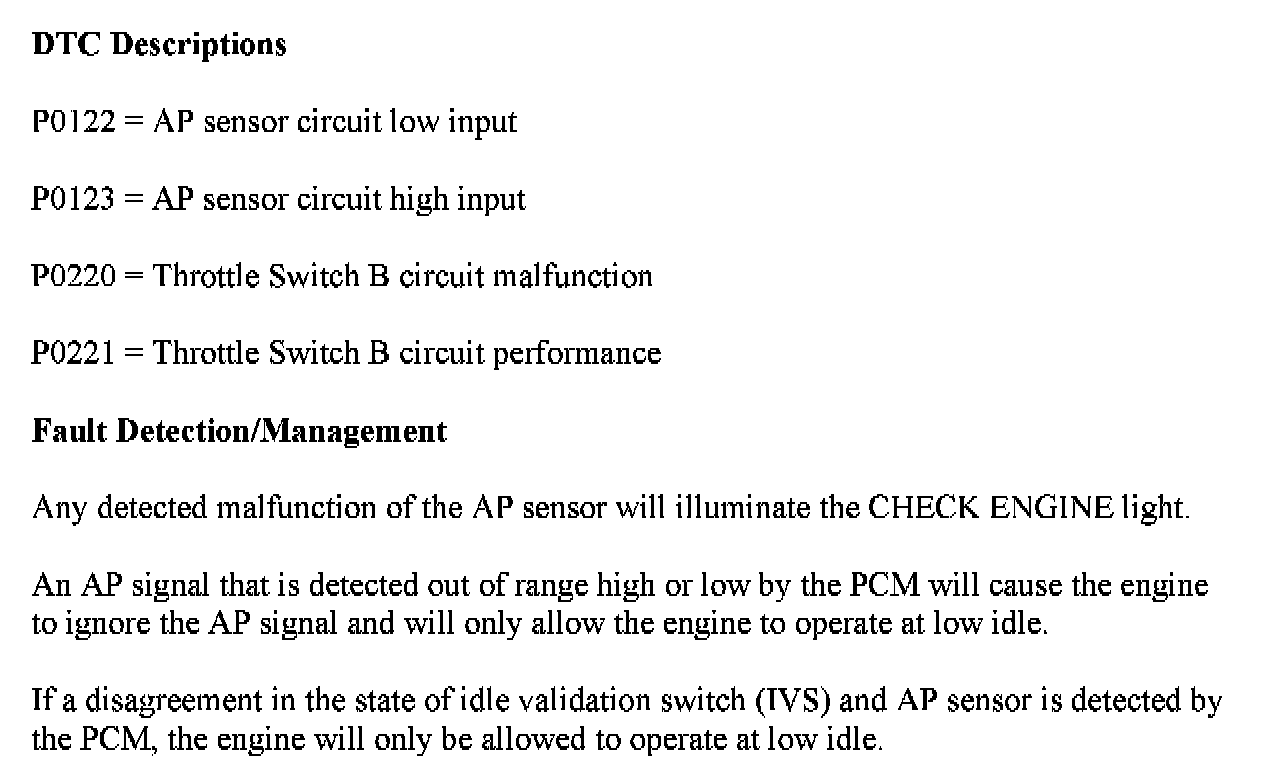

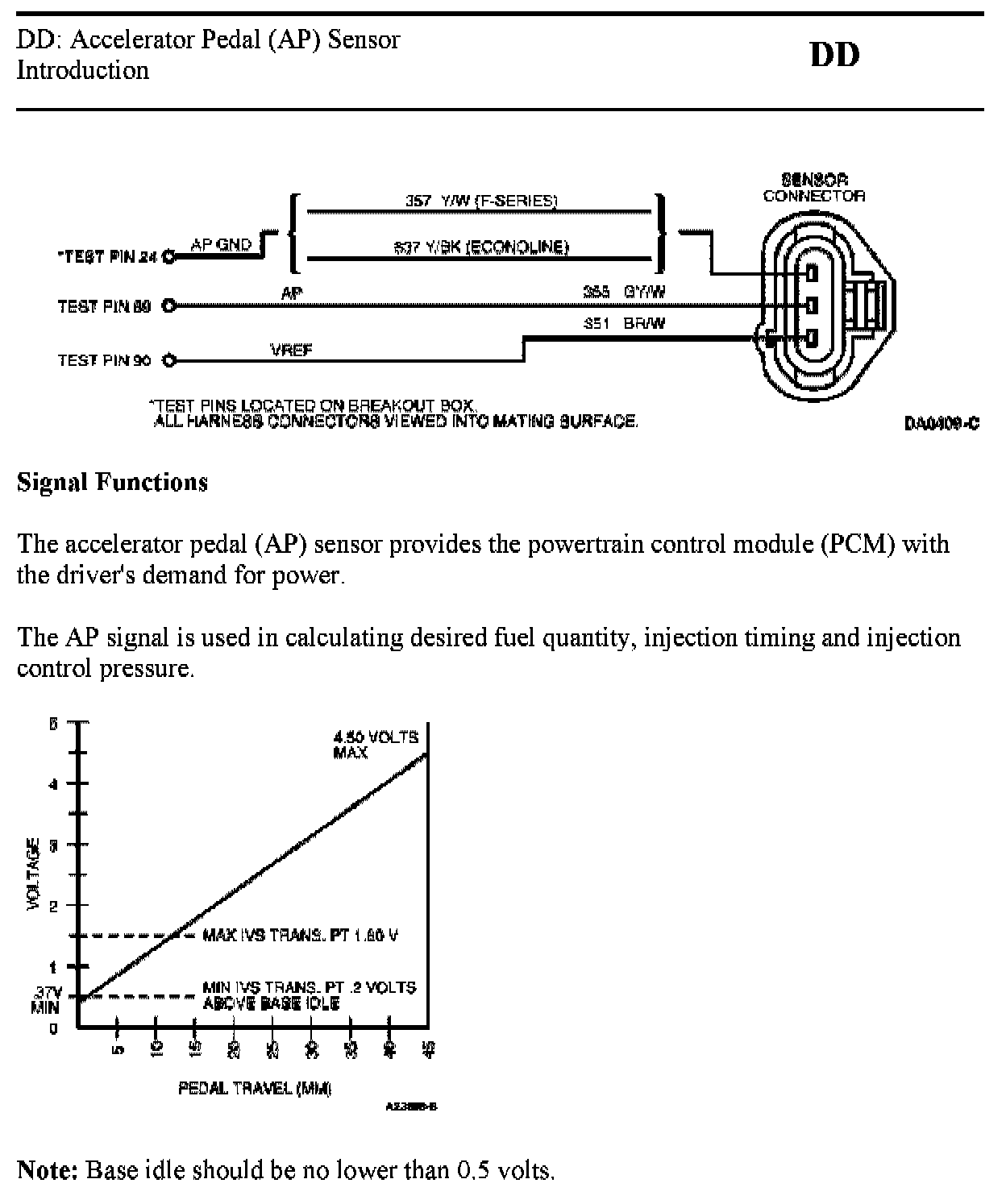

DD: Introduction:





DD: Introduction:

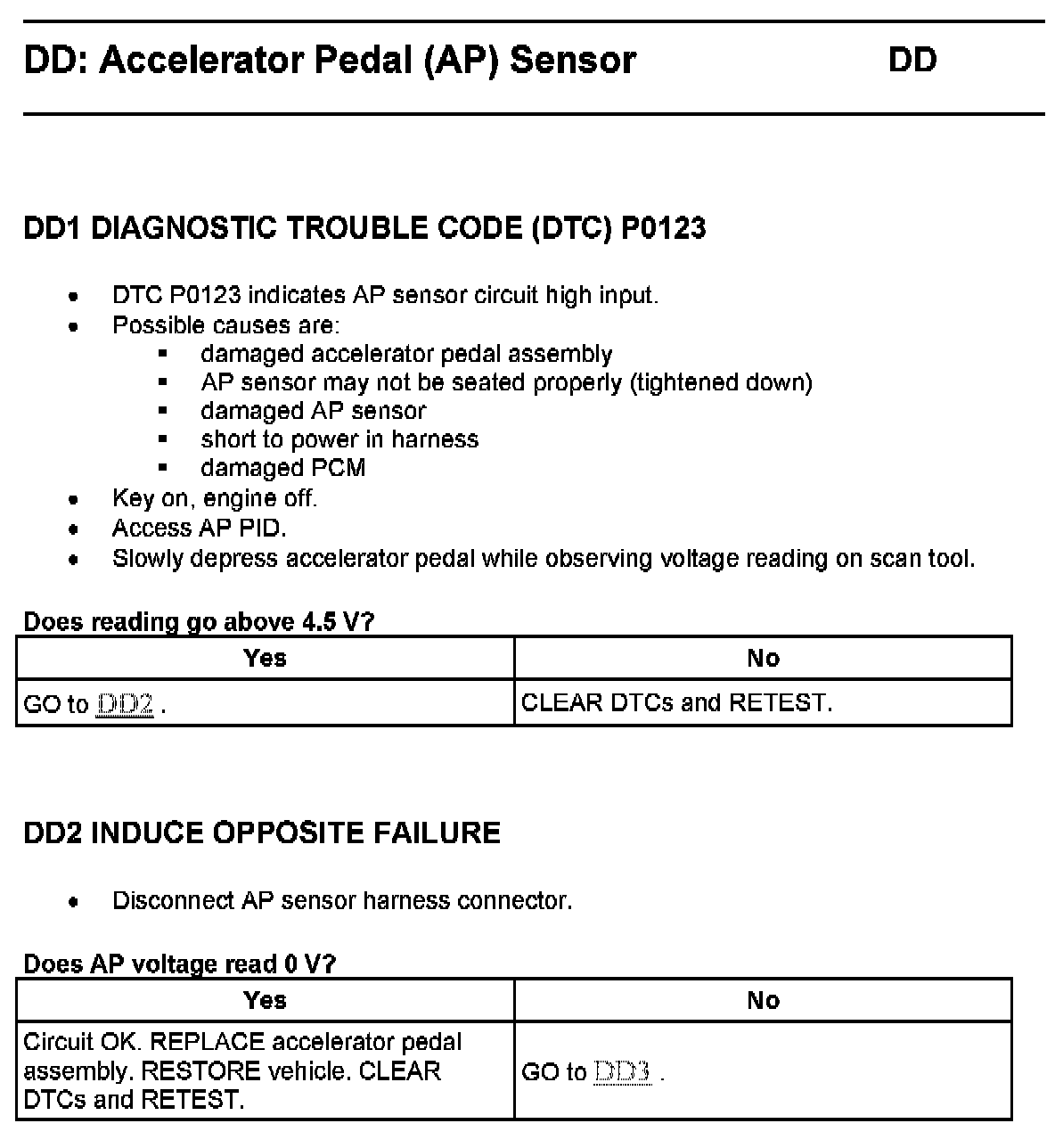

DD1 - DD2:

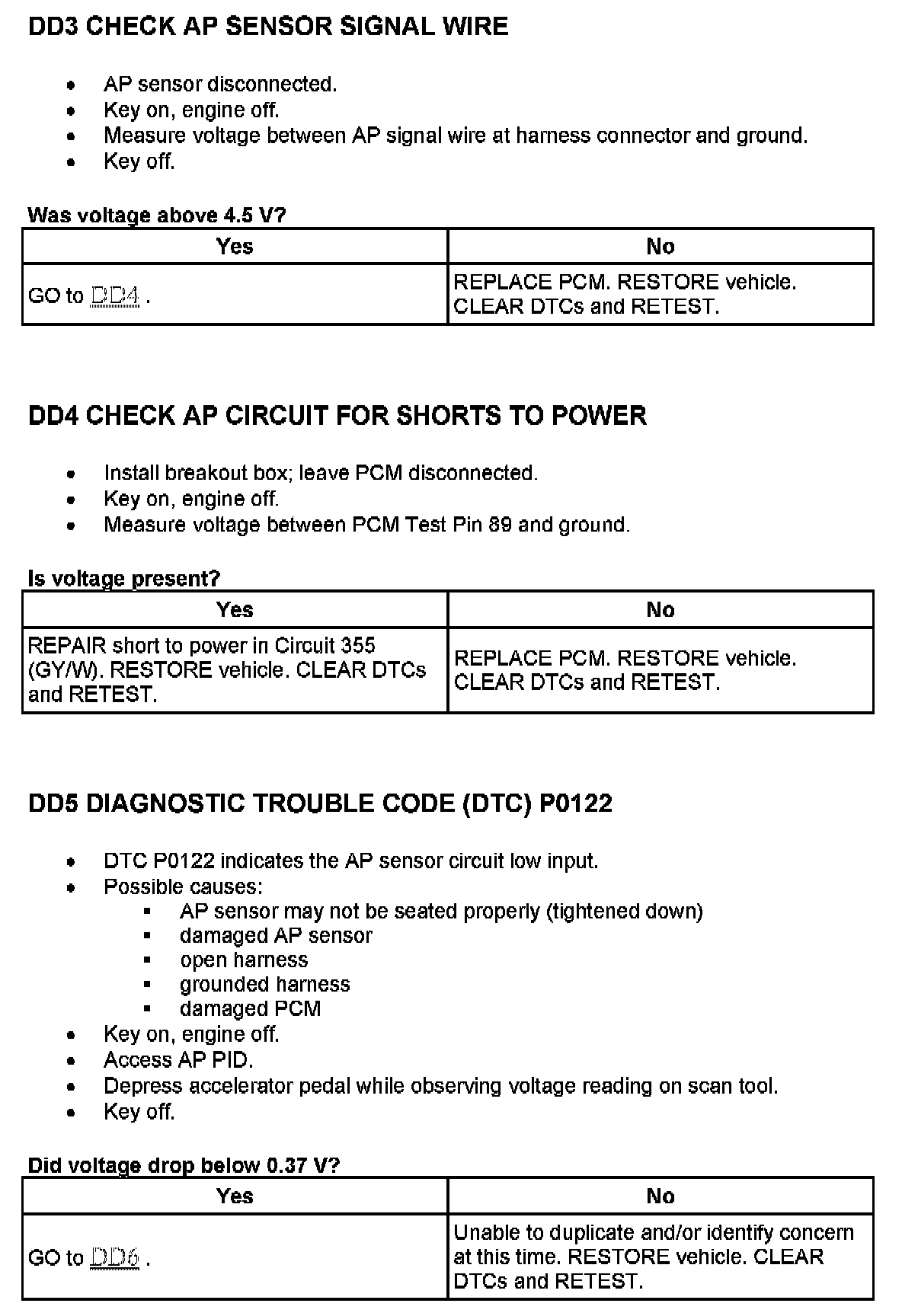

DD3 - DD5:

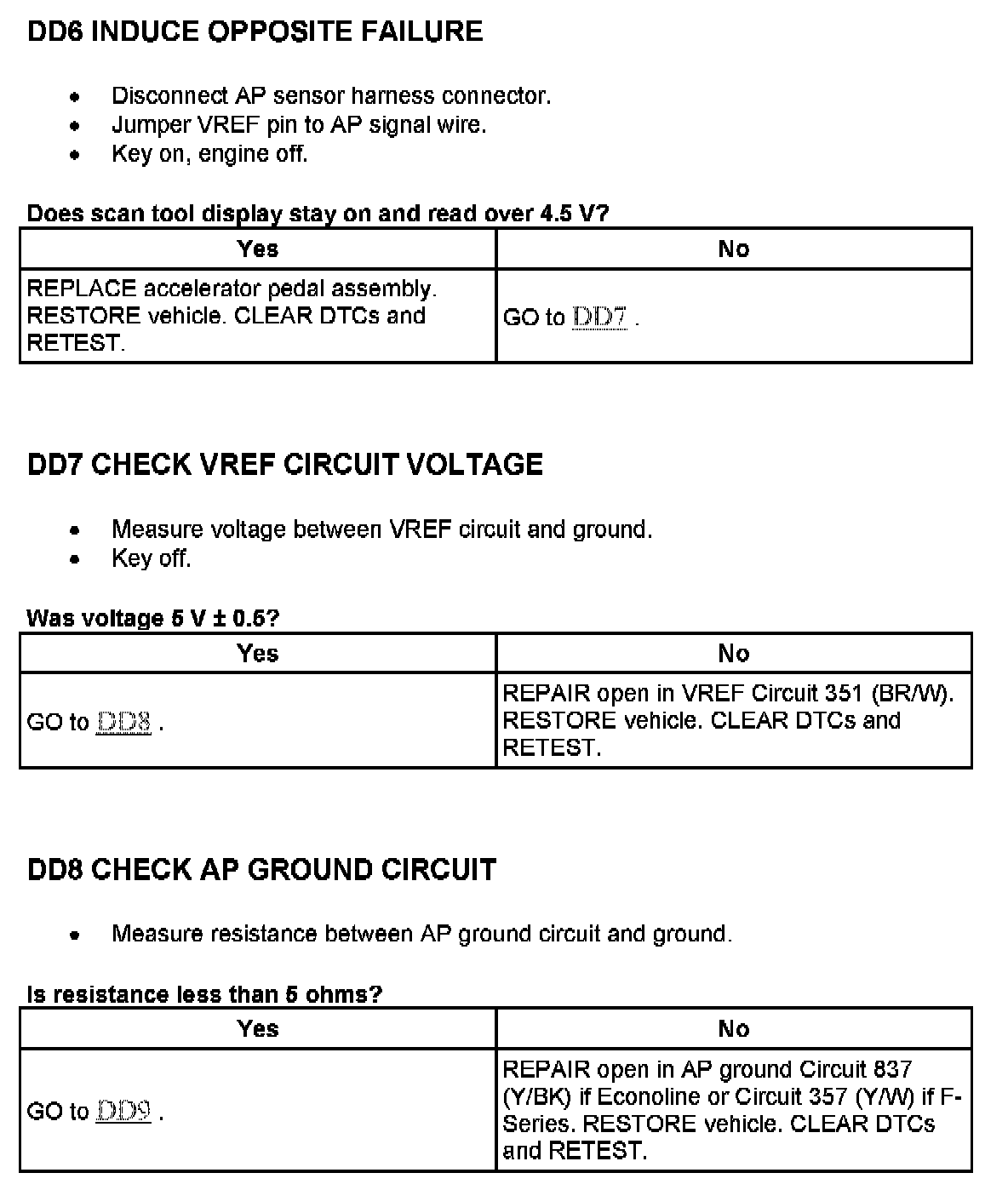

DD6 - DD8:

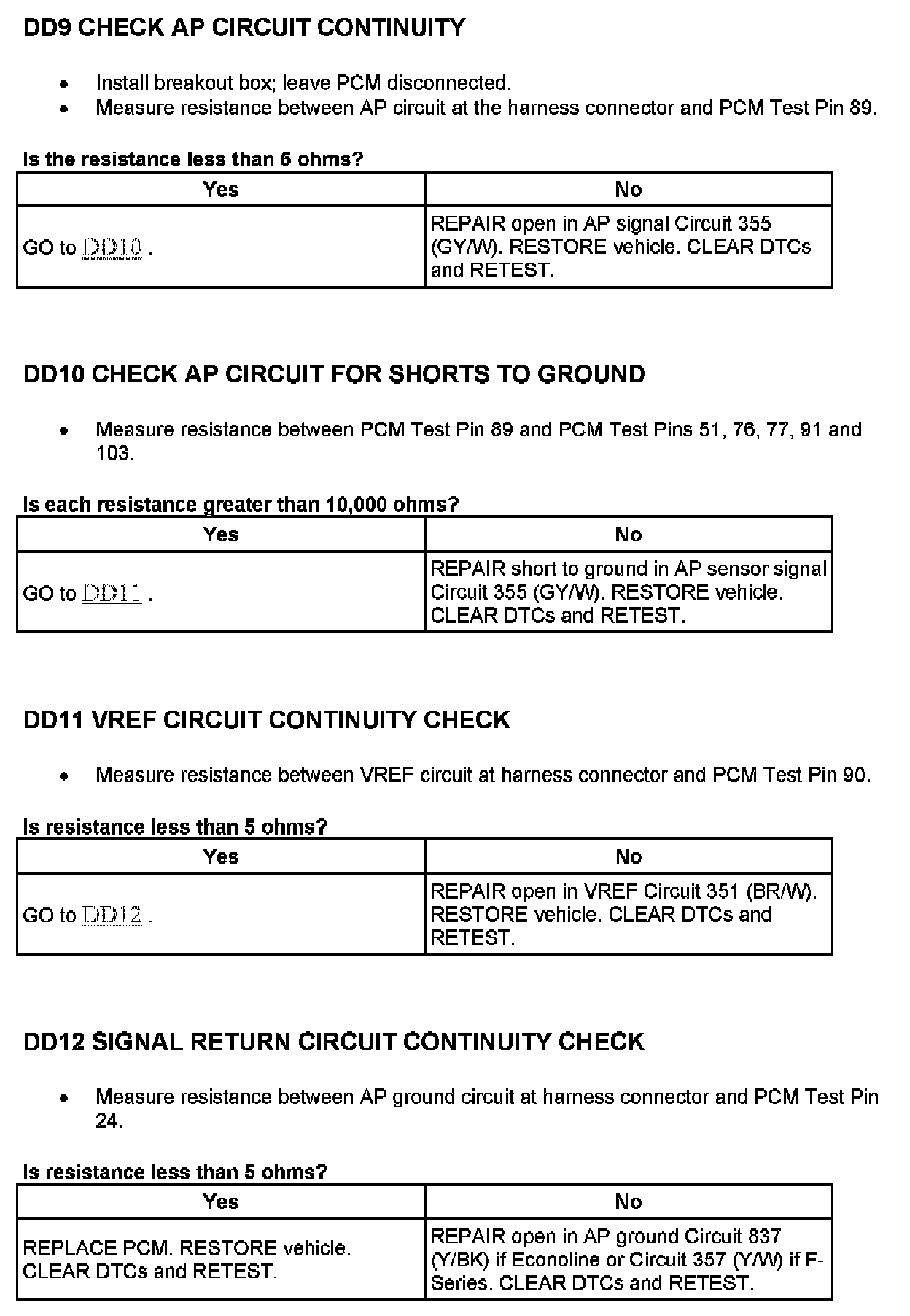

DD9 - DD12:
