Tests FK: Fuel Pump Monitor/Control



FK: Introduction:





FK: Introduction:

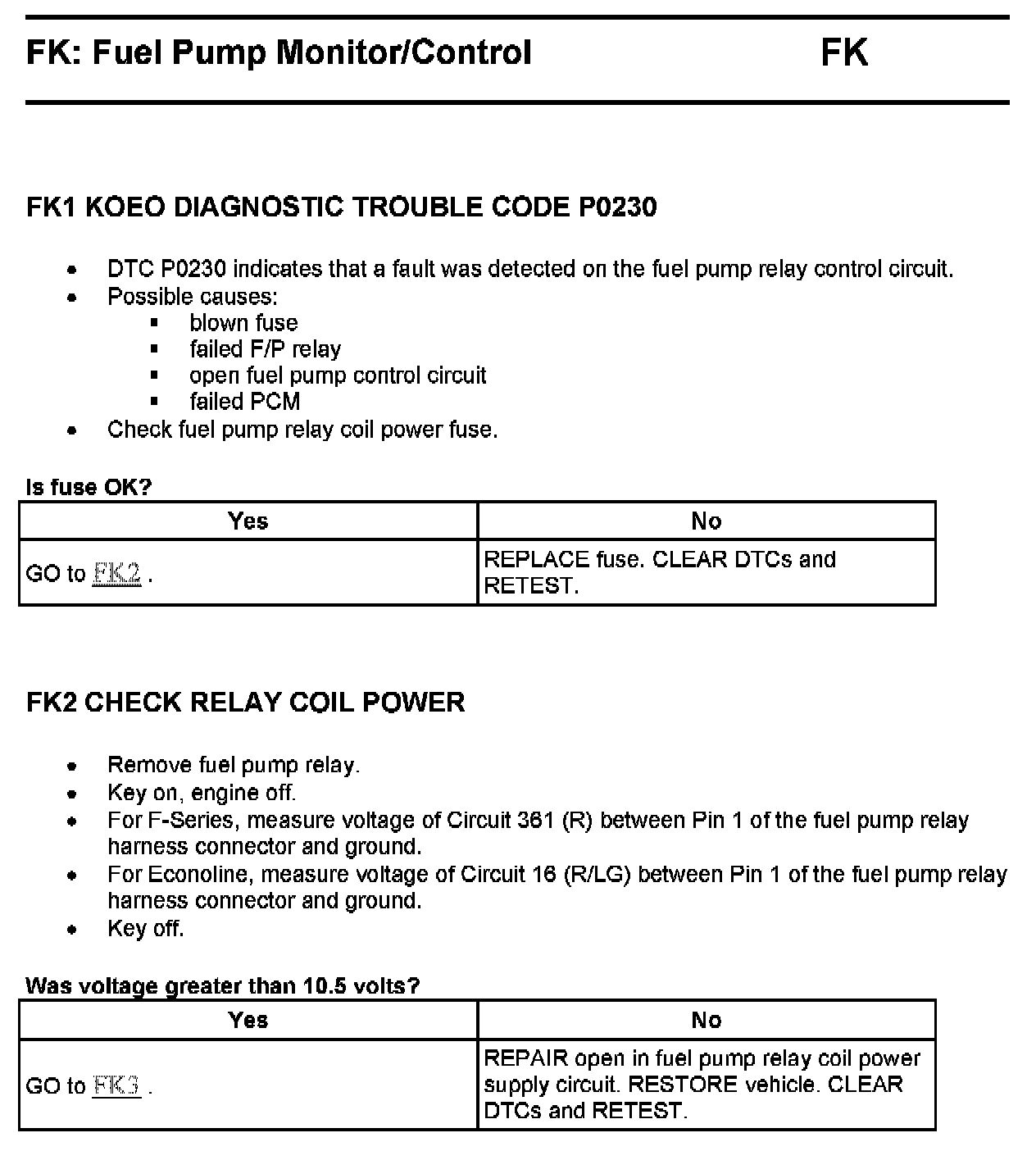

FK1 - FK2:

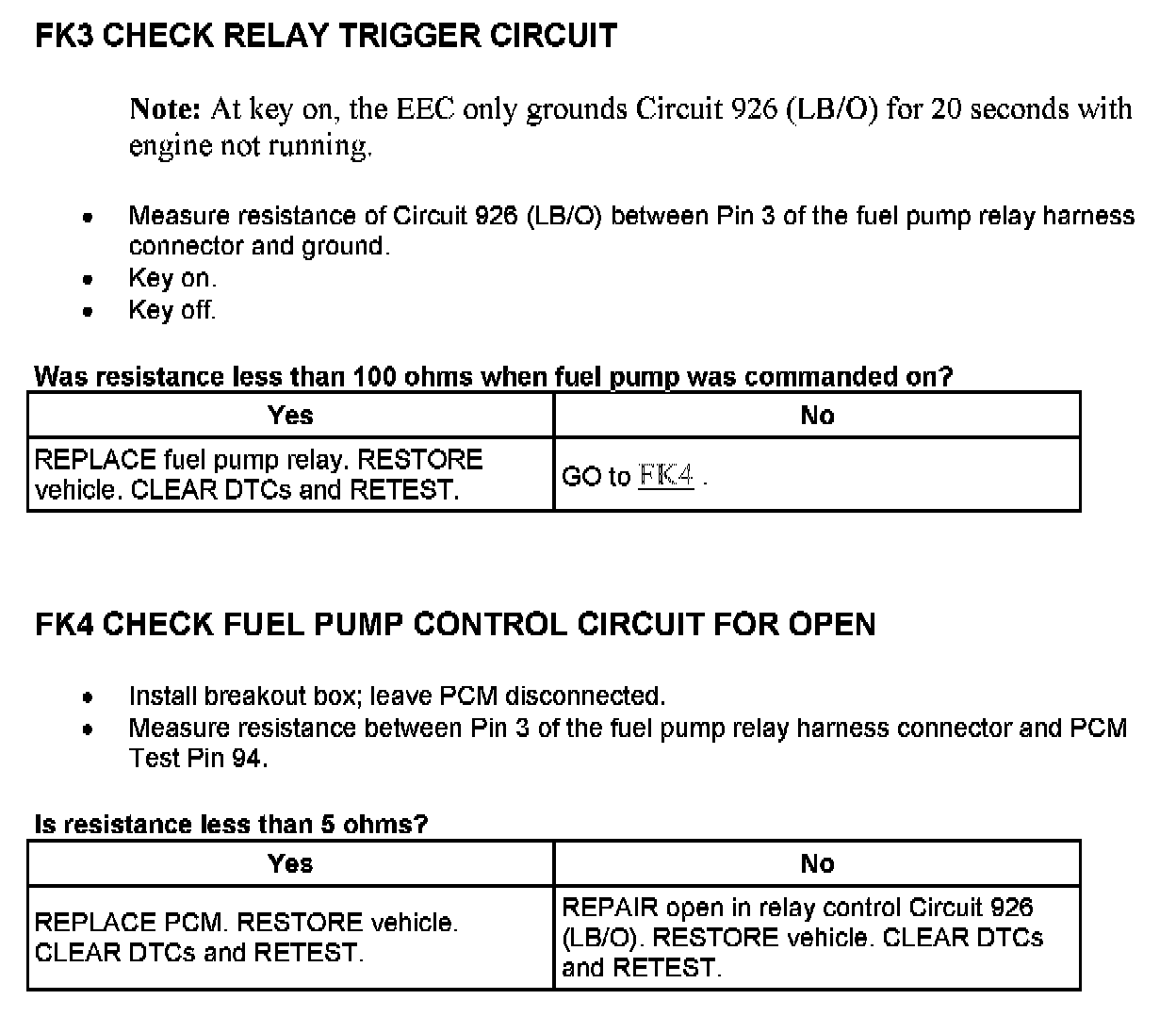

FK3 - FK4:

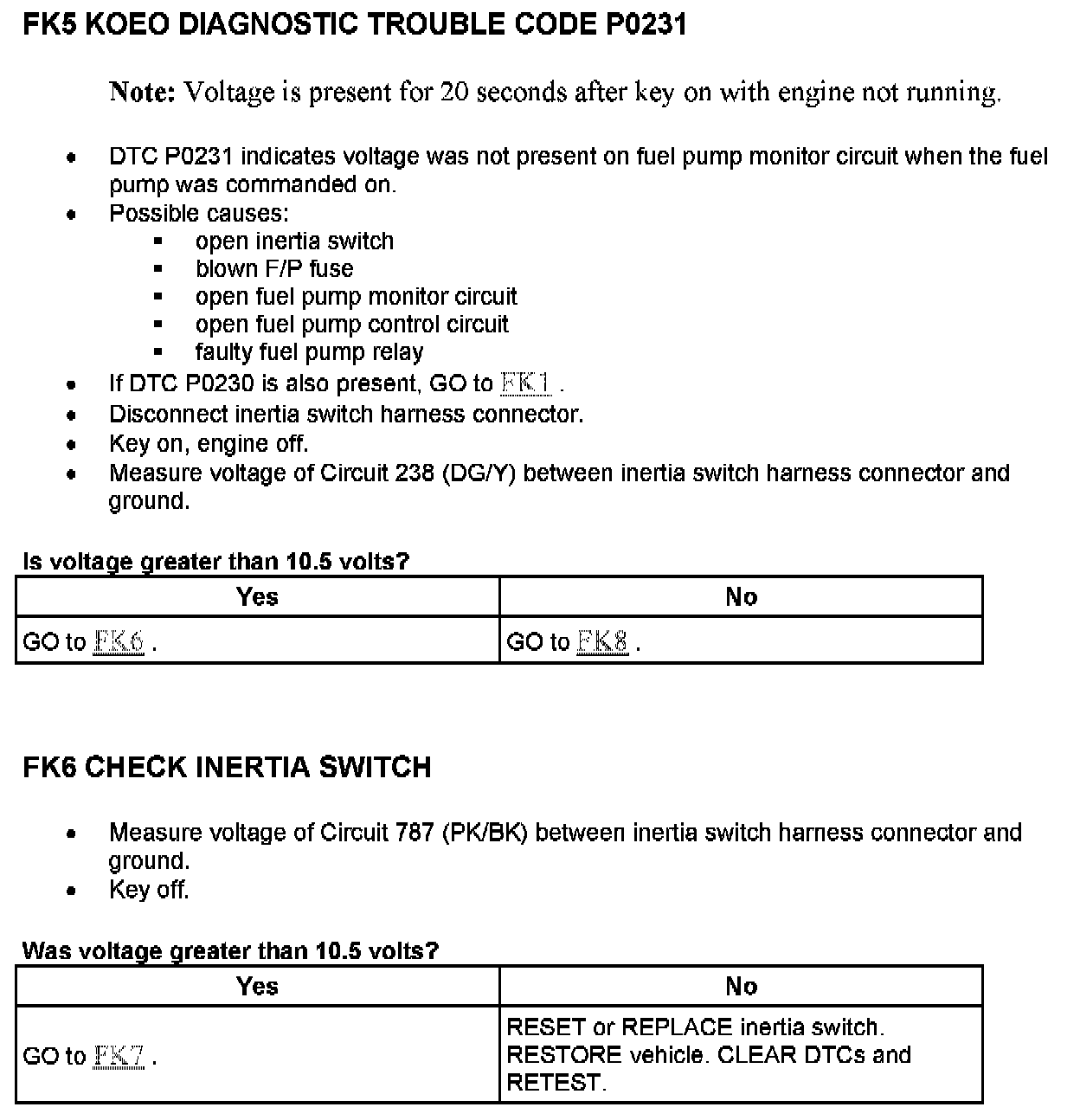

FK5 - FK6:

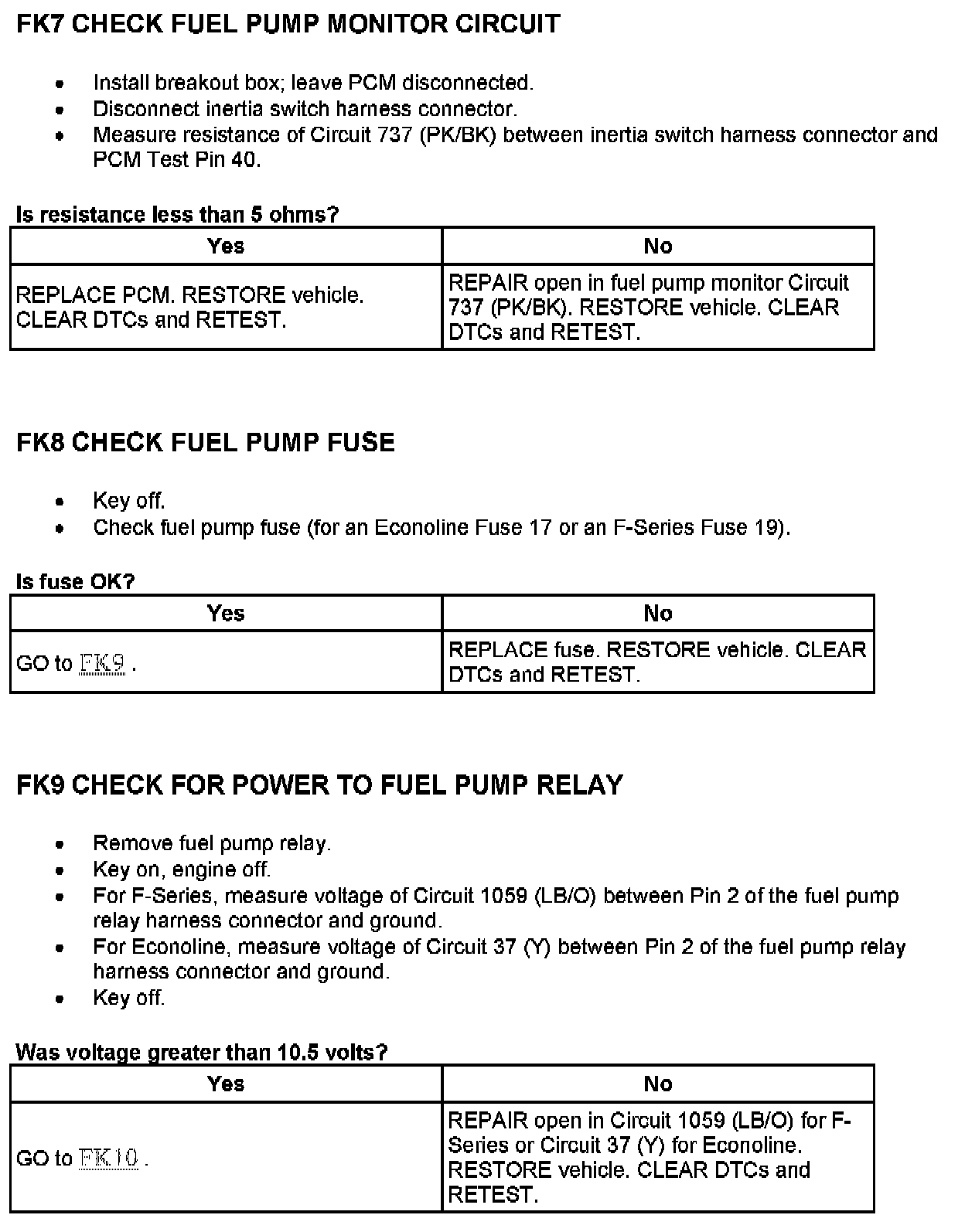

FK7 - FK9:

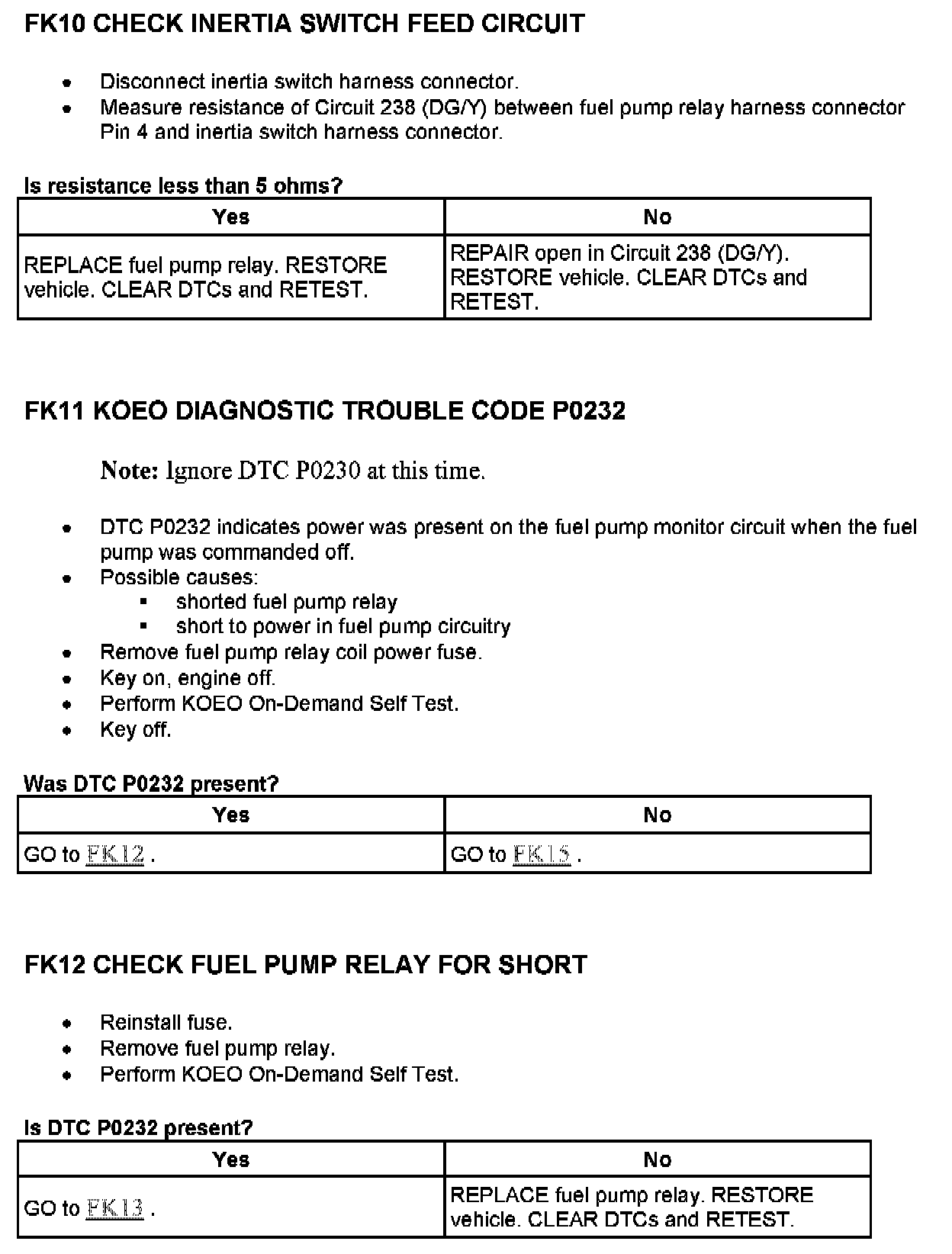

FK10 - FK12:

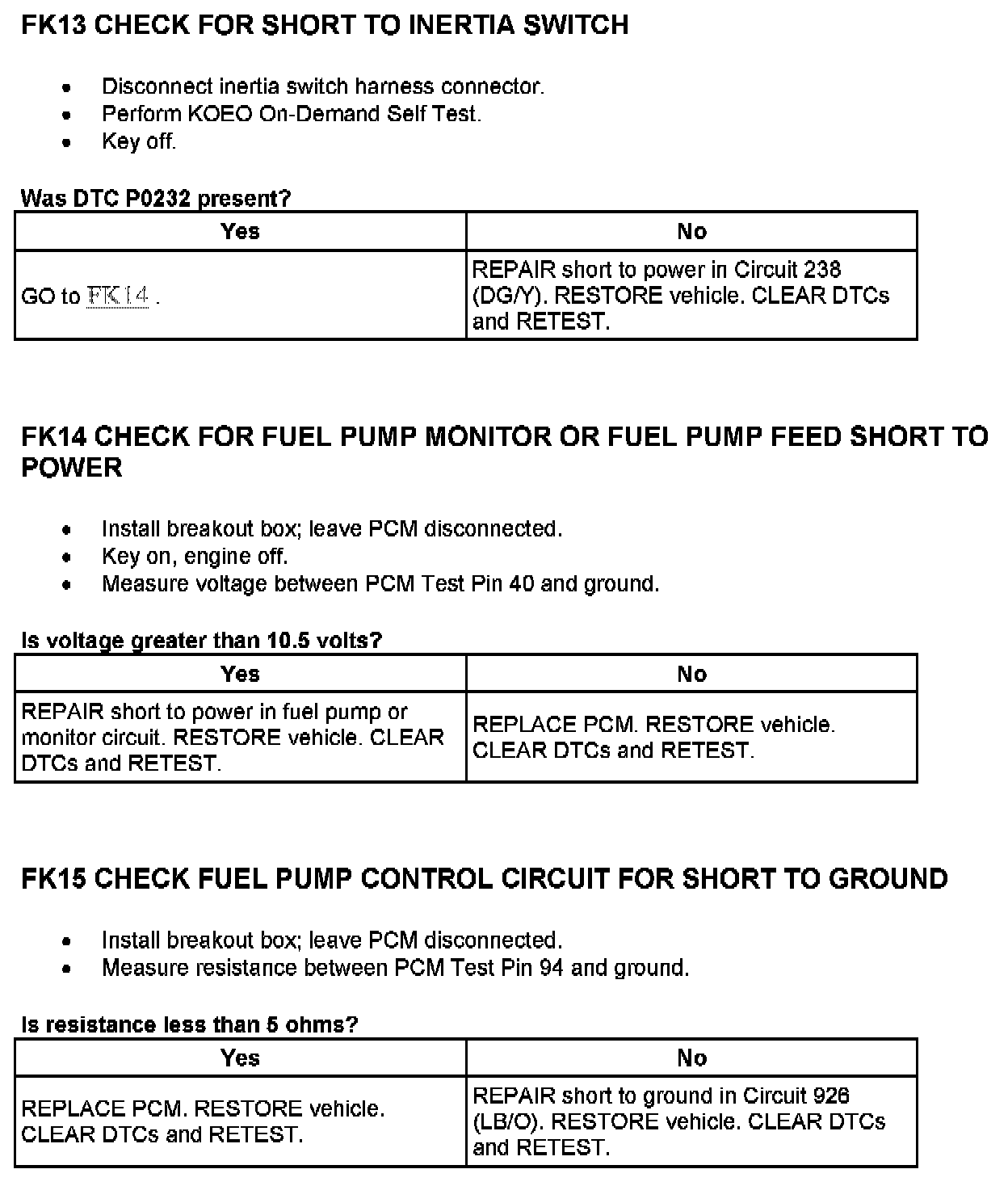

FK13 - FK15:

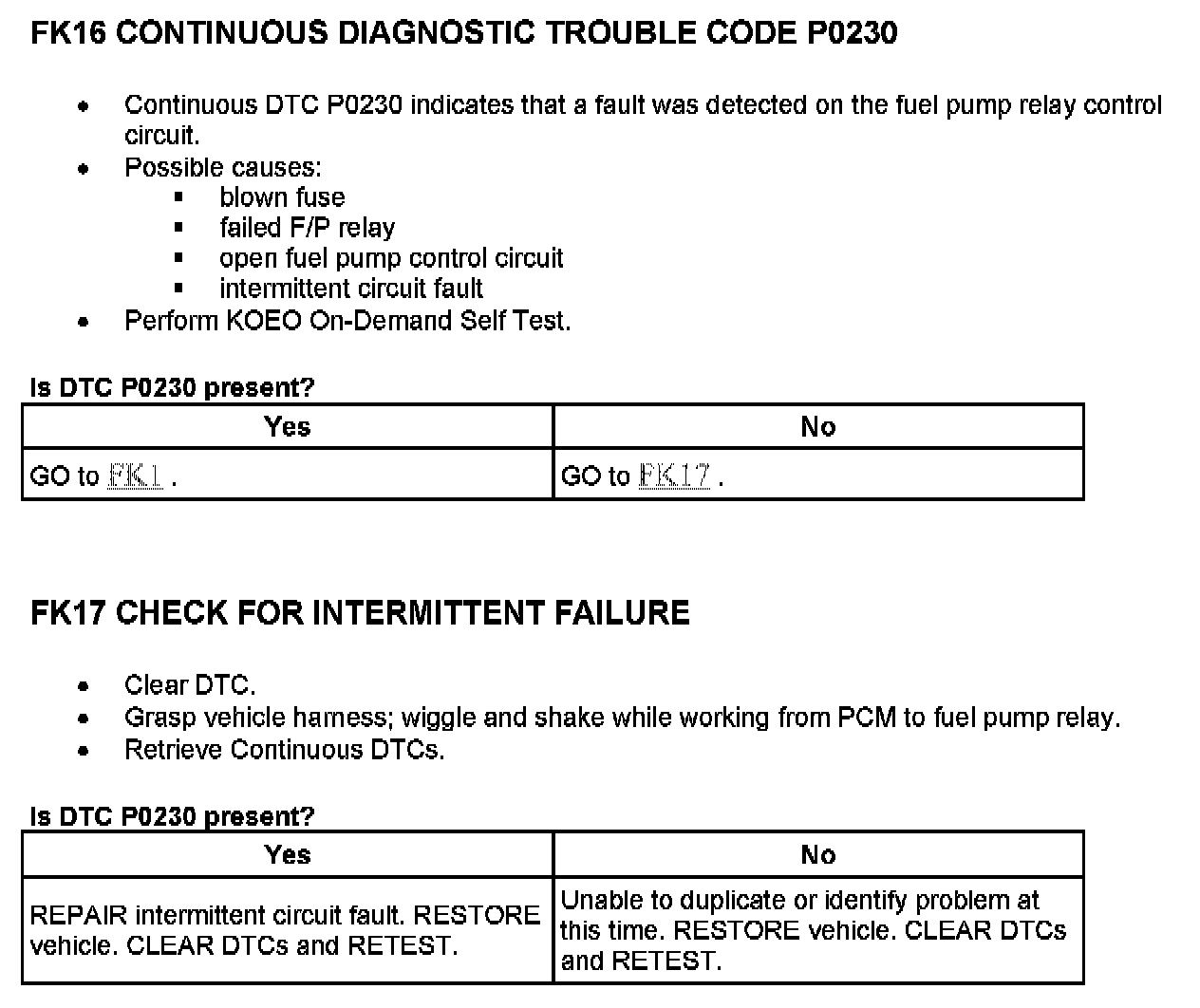

FK16 - FK17:

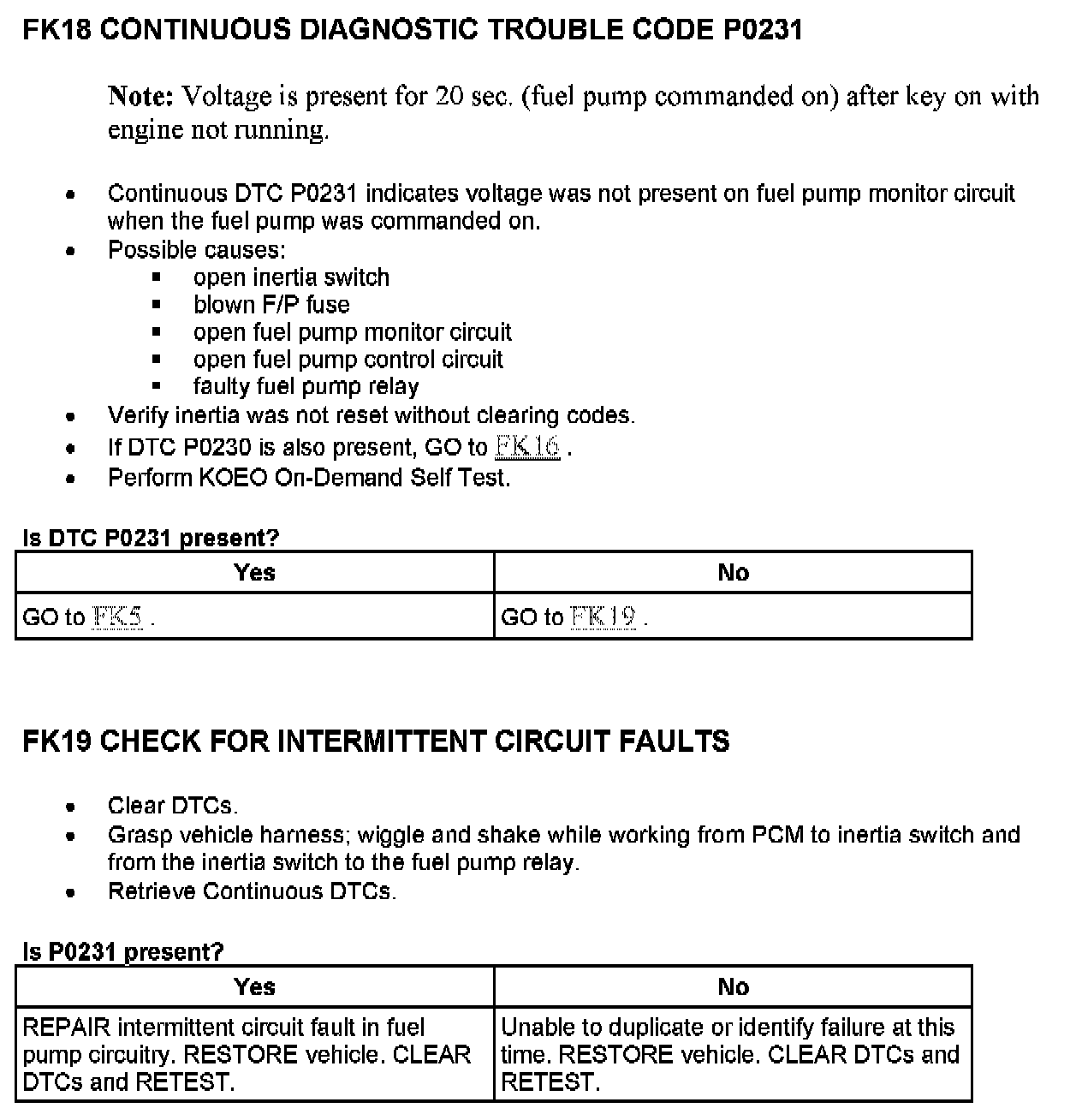

FK18 - FK19:

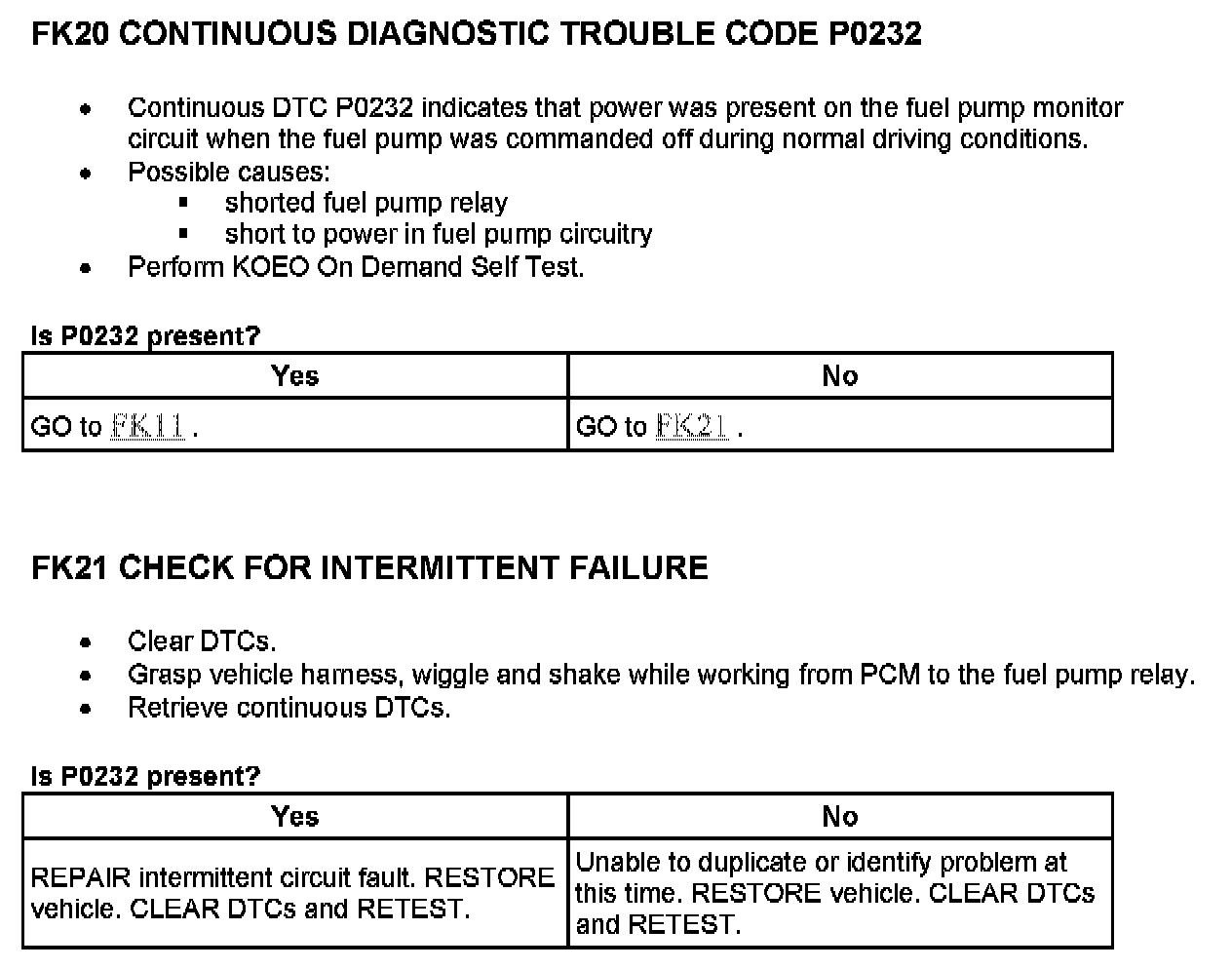

FK20 - FK21:
