Tests NC: Injector Driver Module Enable (IDM-EN)

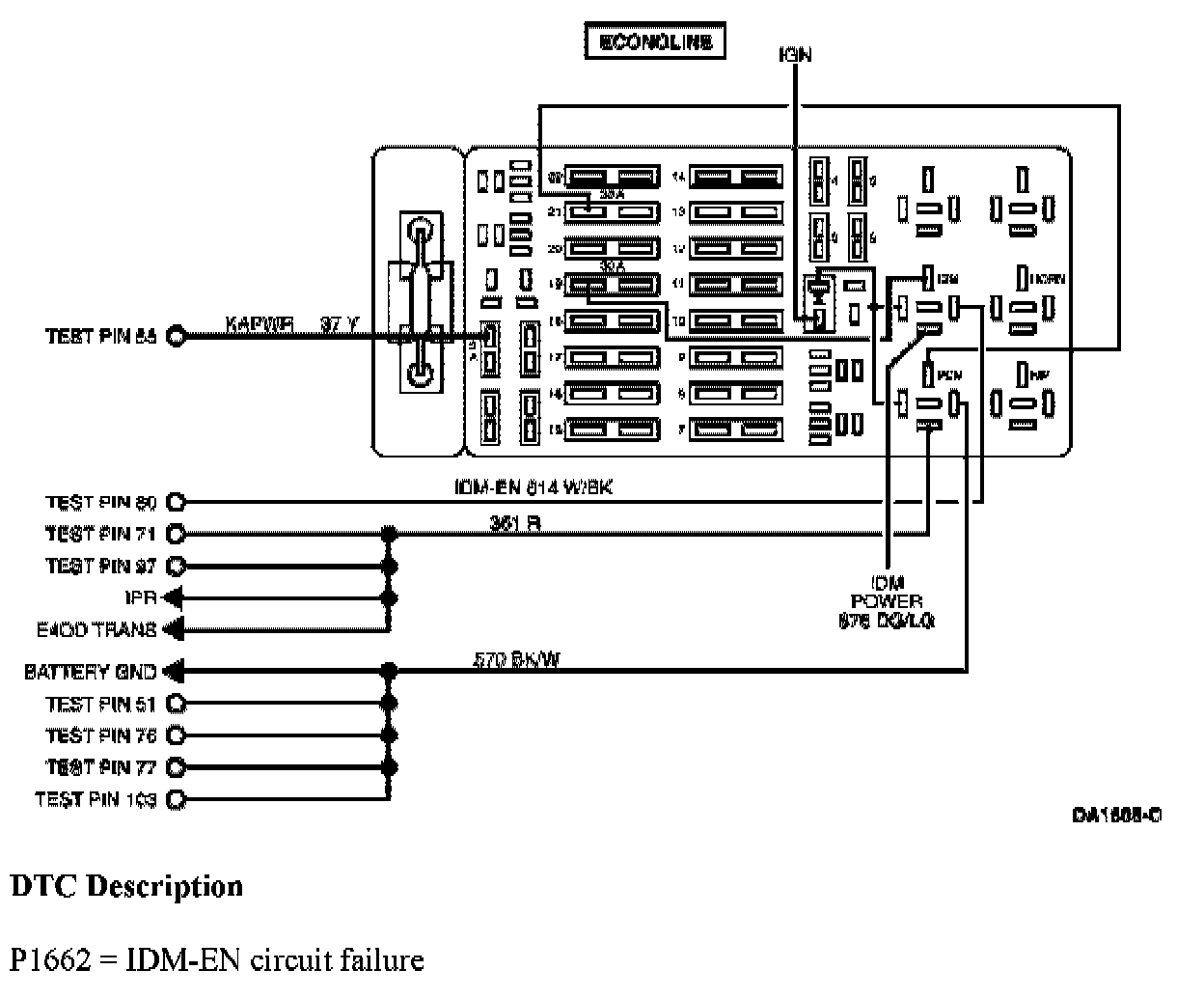

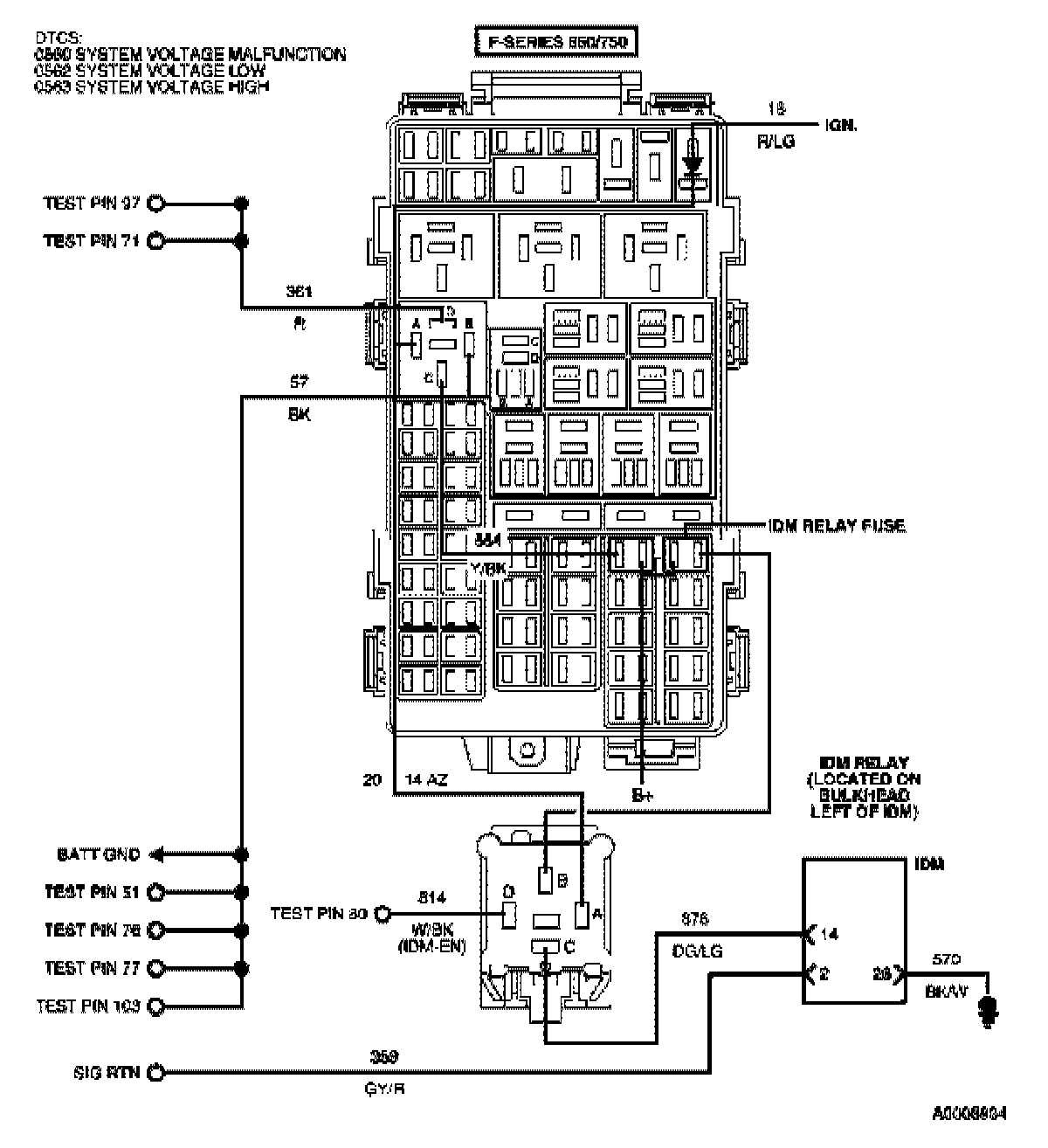

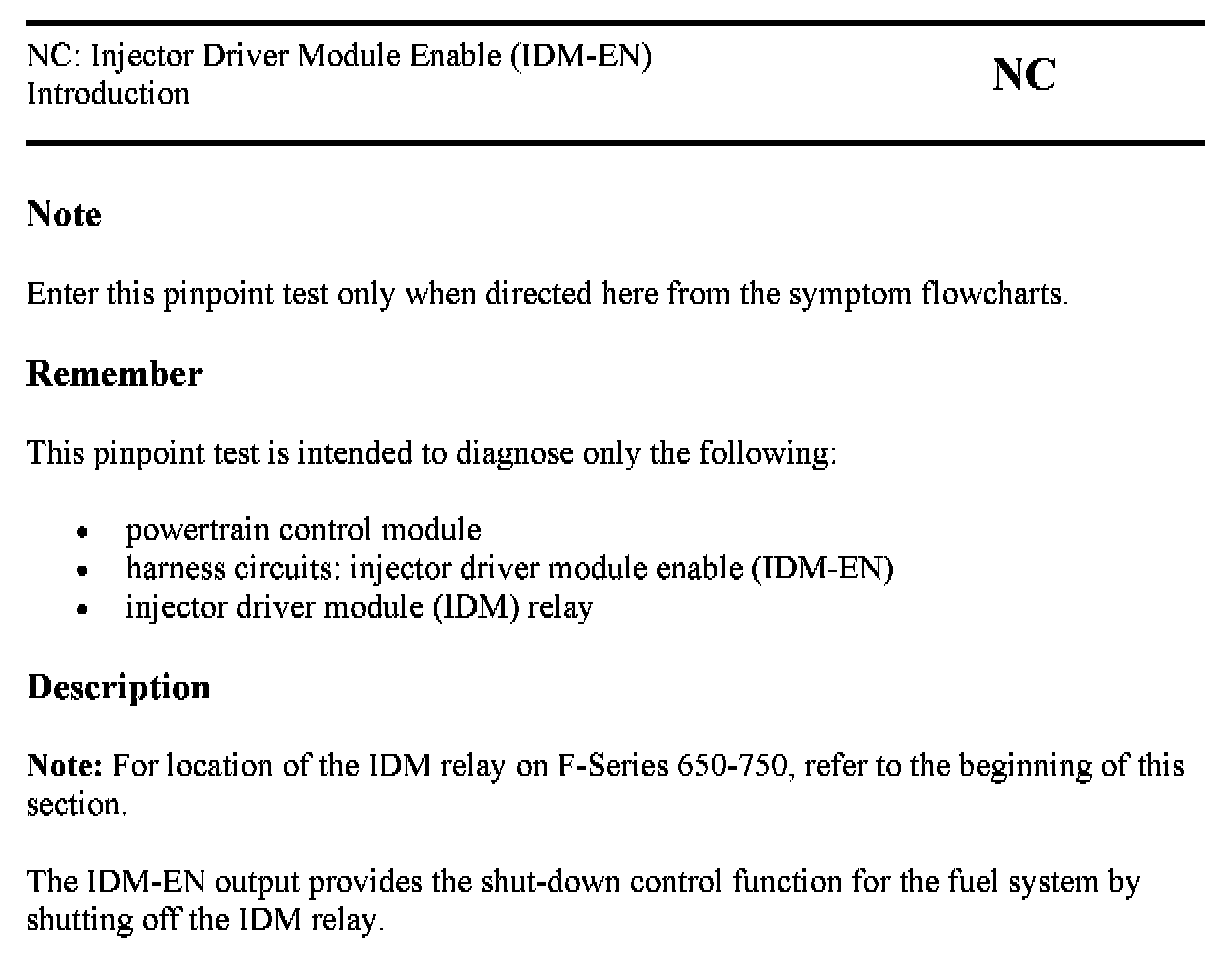

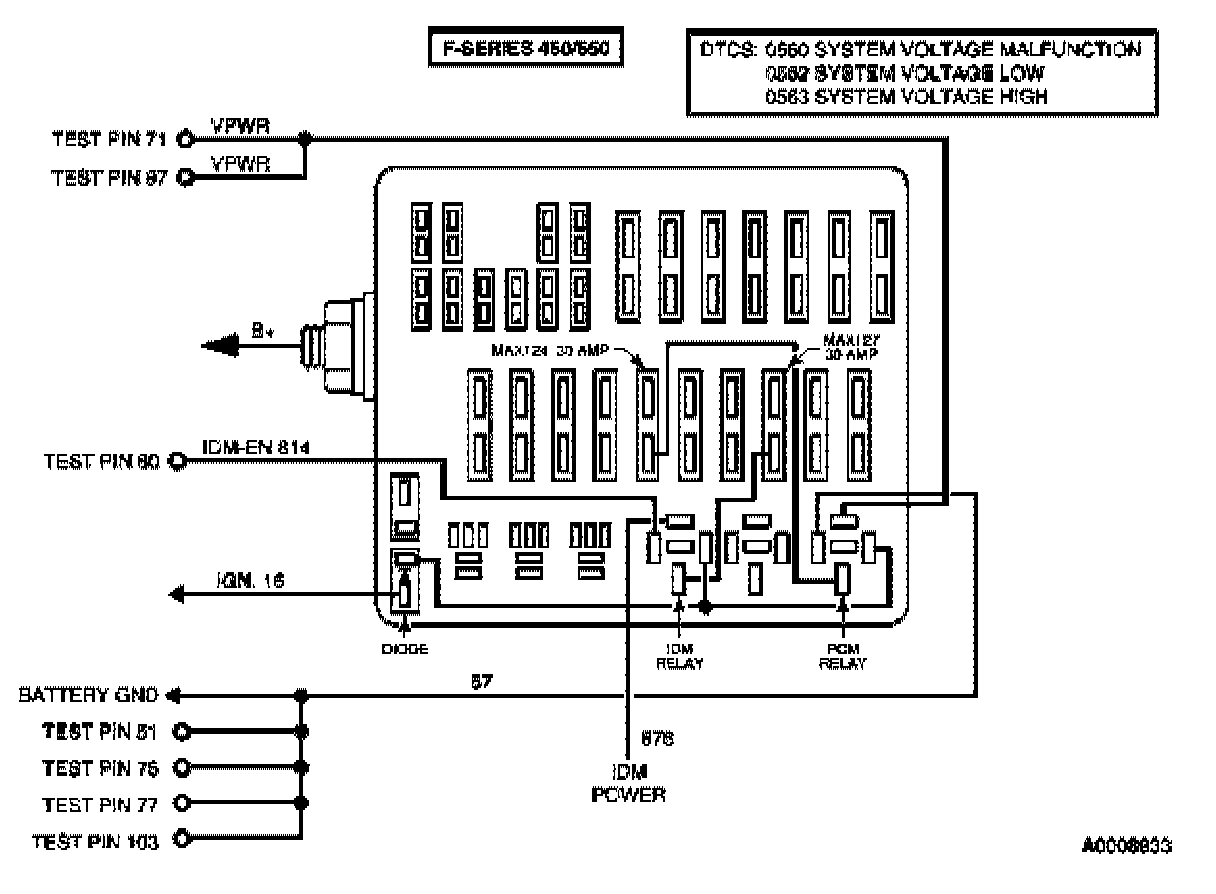

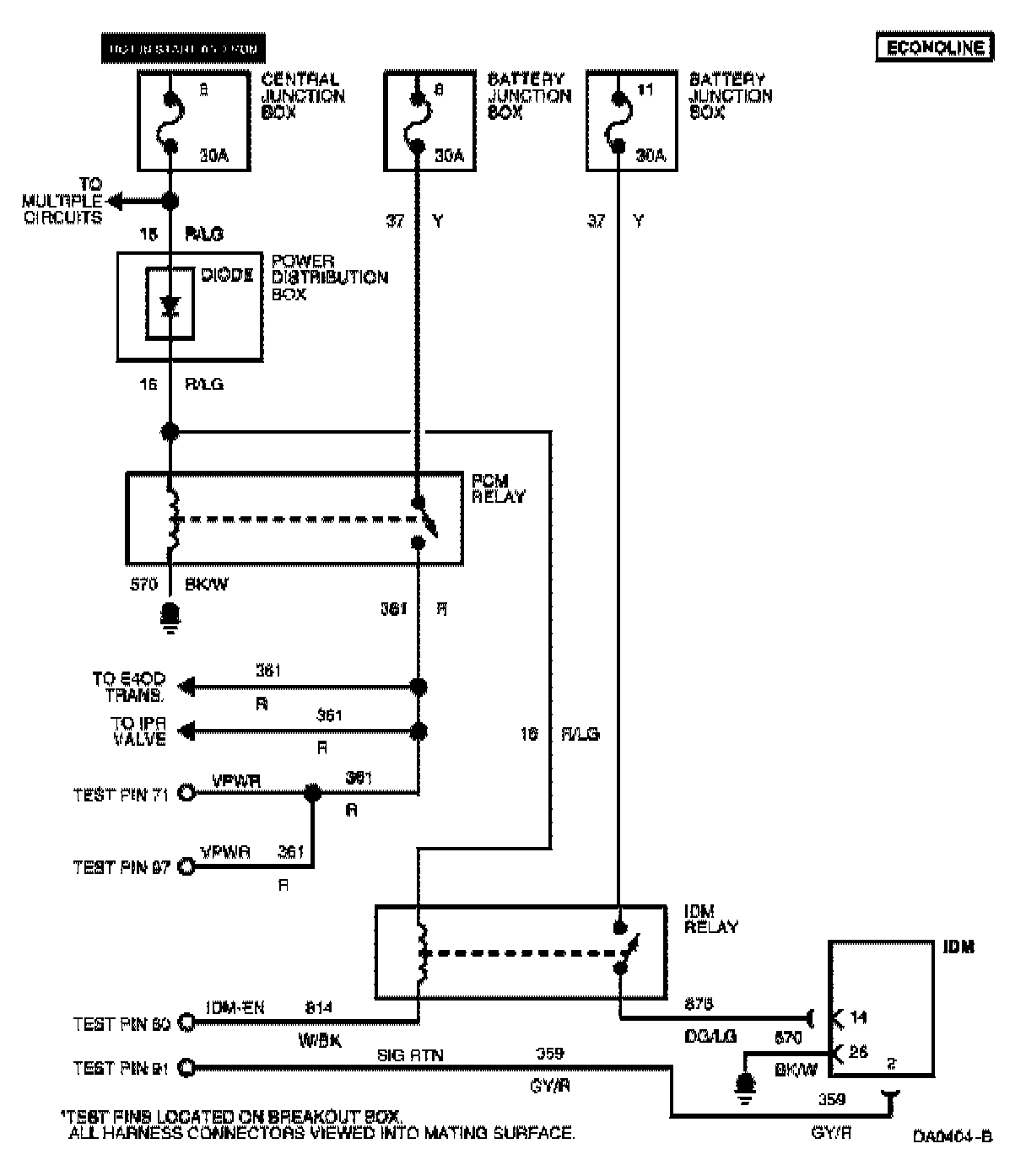

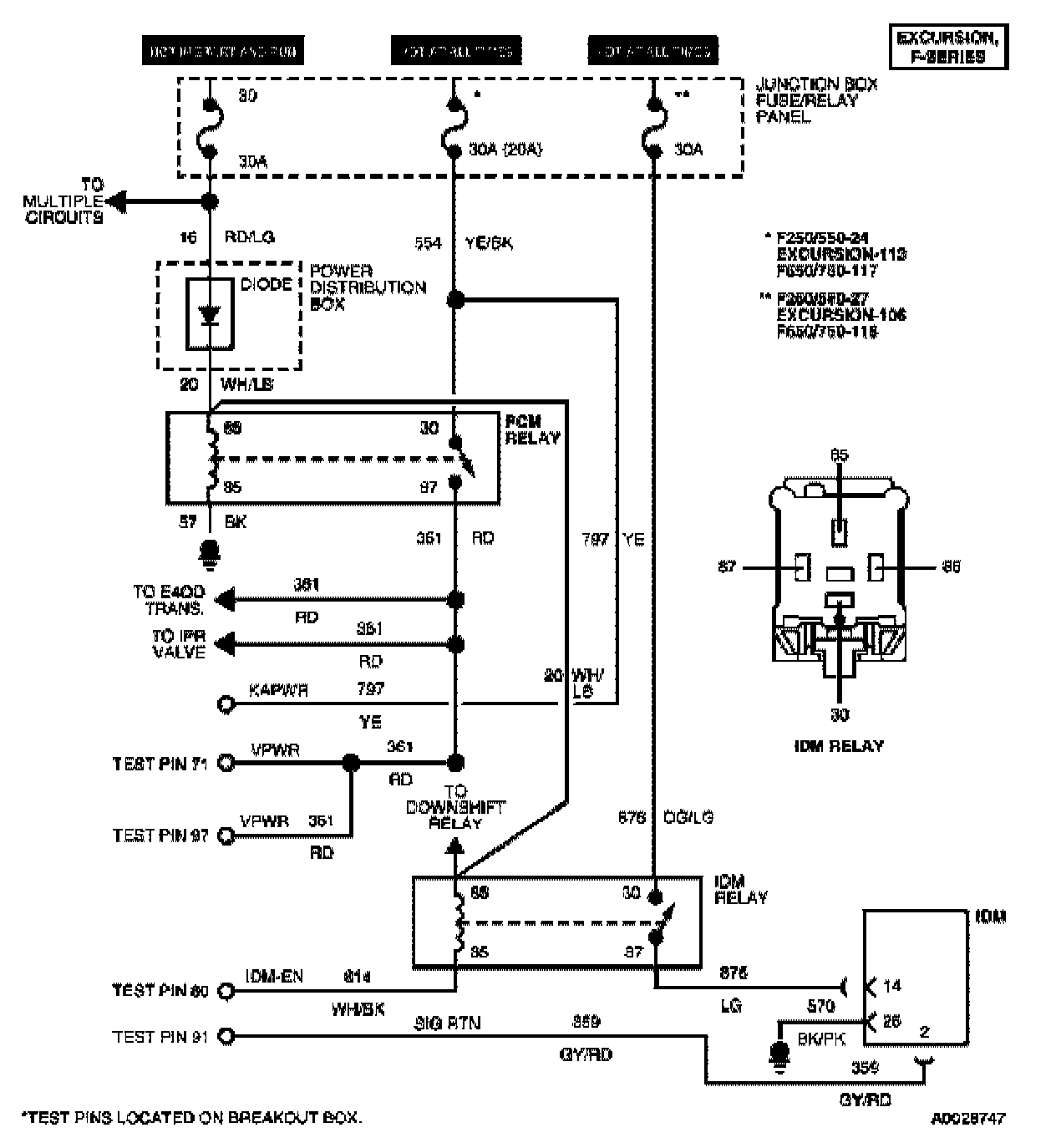

NC: Introduction:





NC: Introduction:





NC: Introduction:





NC: Introduction:





NC: Introduction:





NC: Introduction:

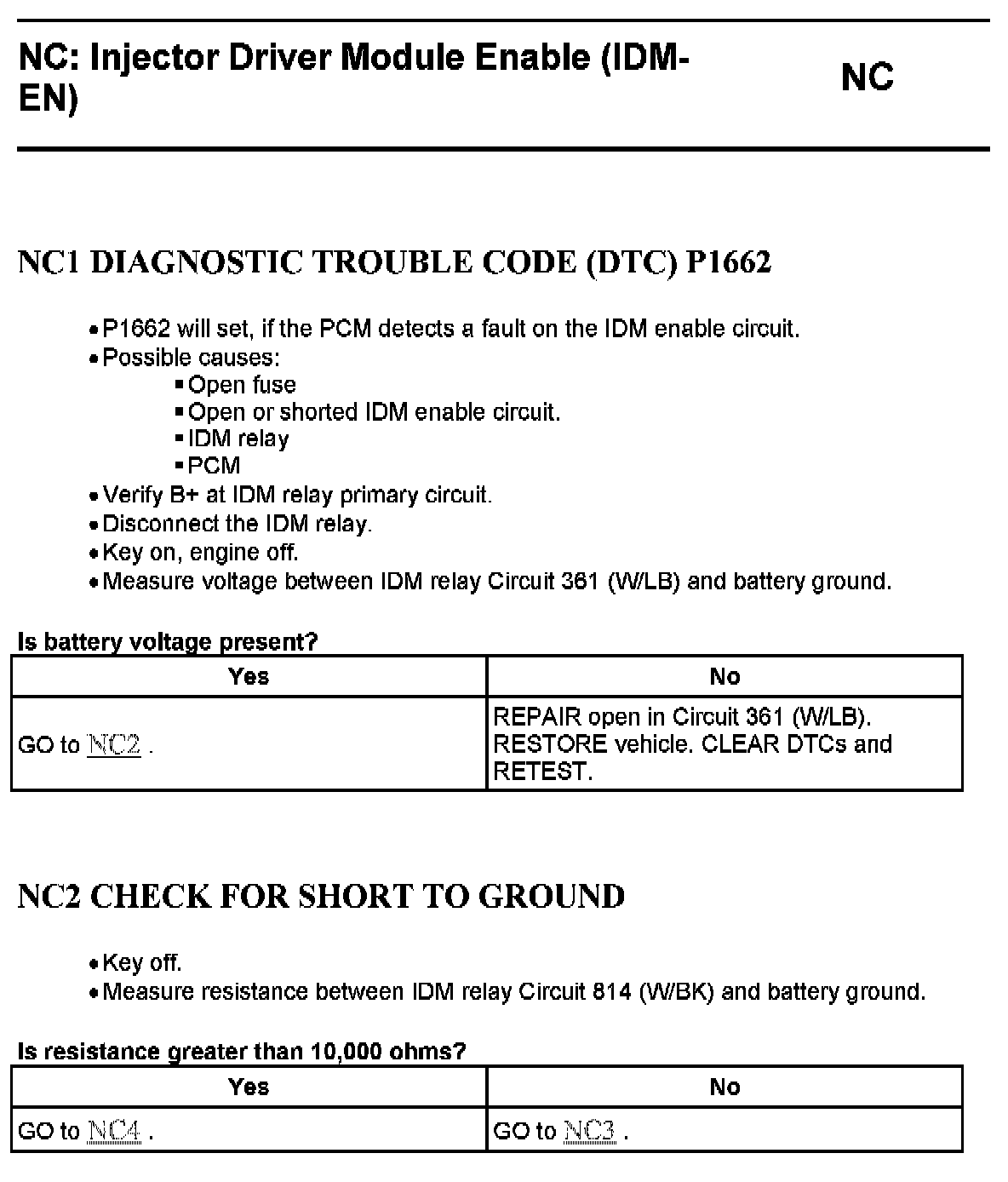

NC1 - NC2:

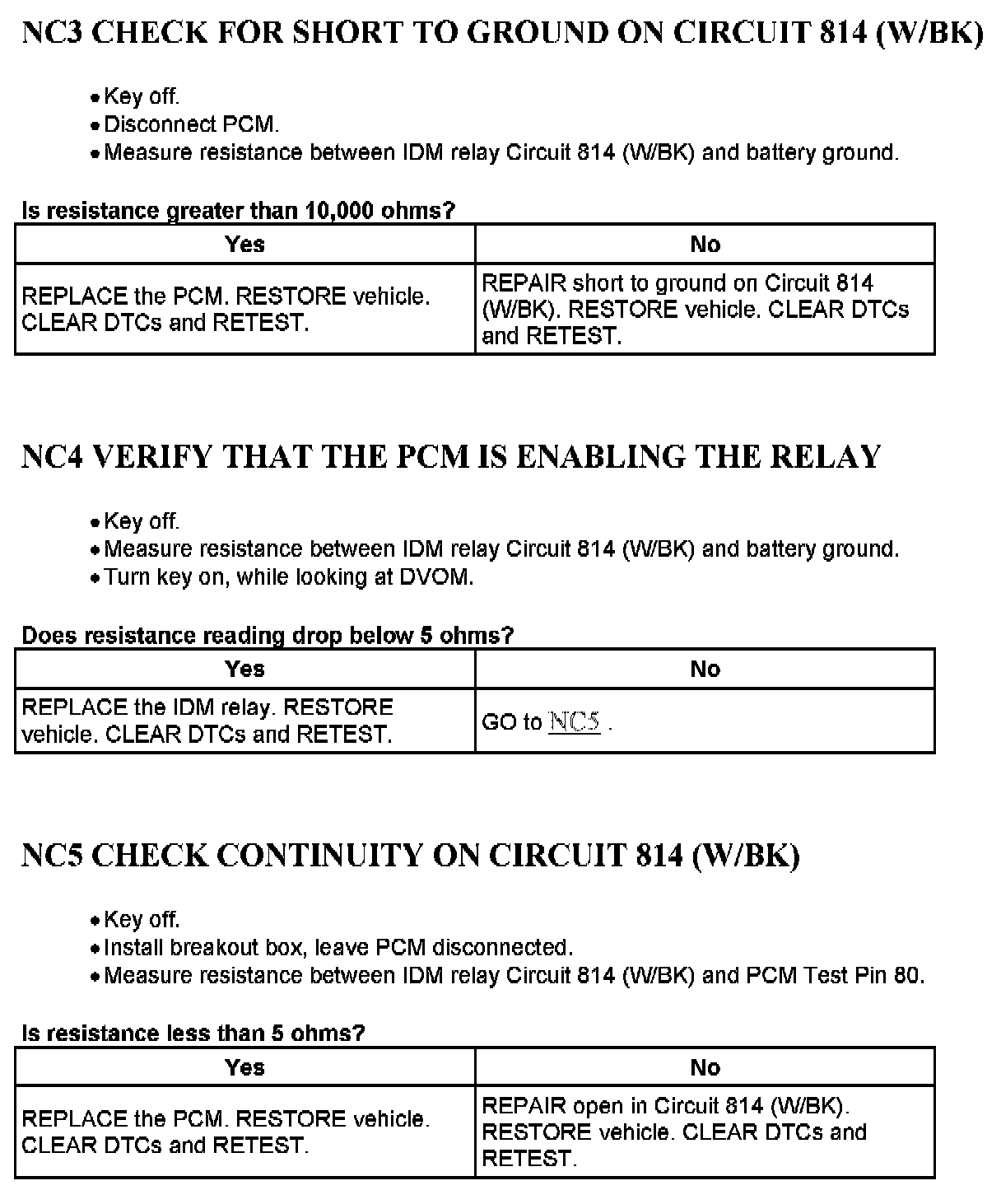

NC3 - NC5:

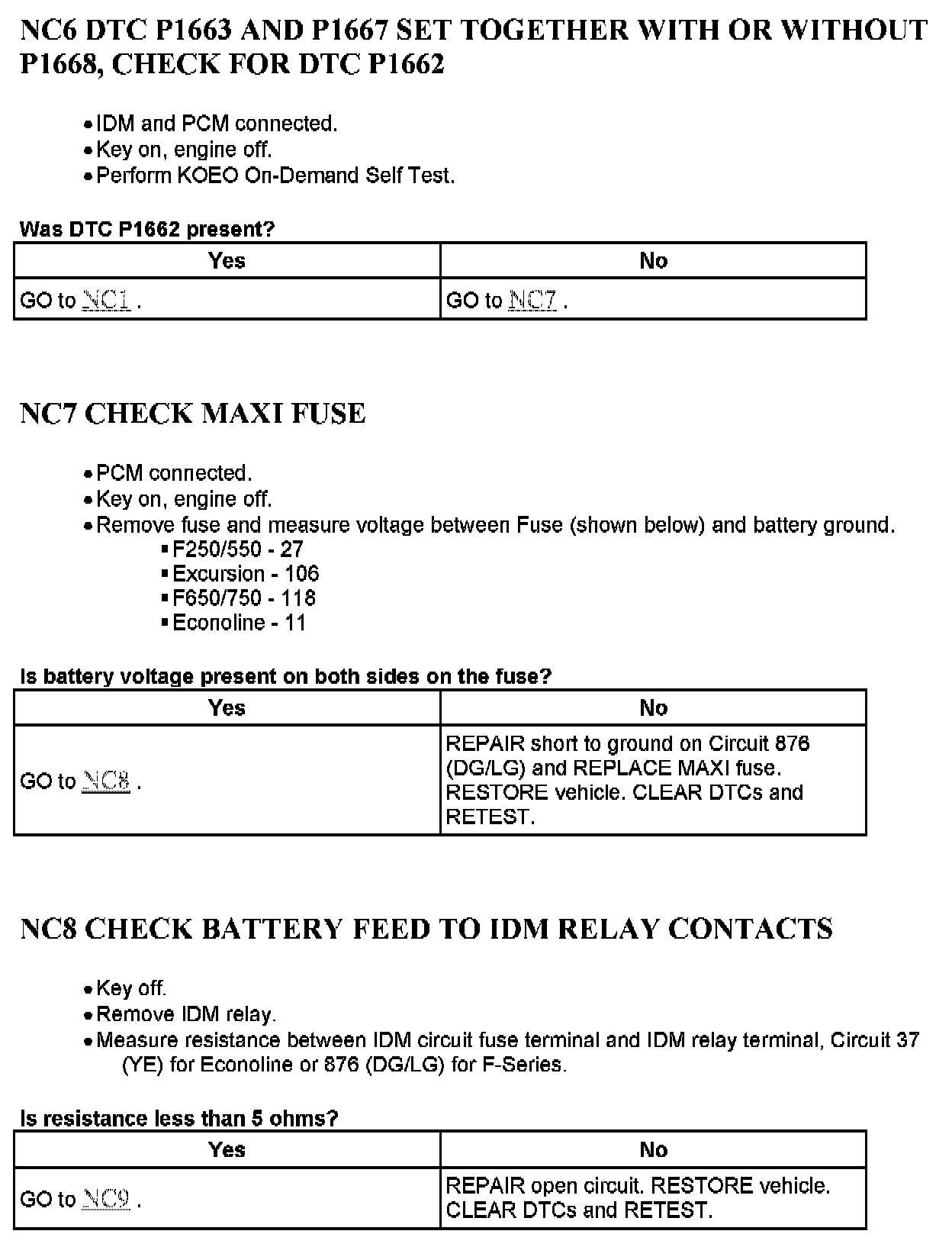

NC6 - NC8:

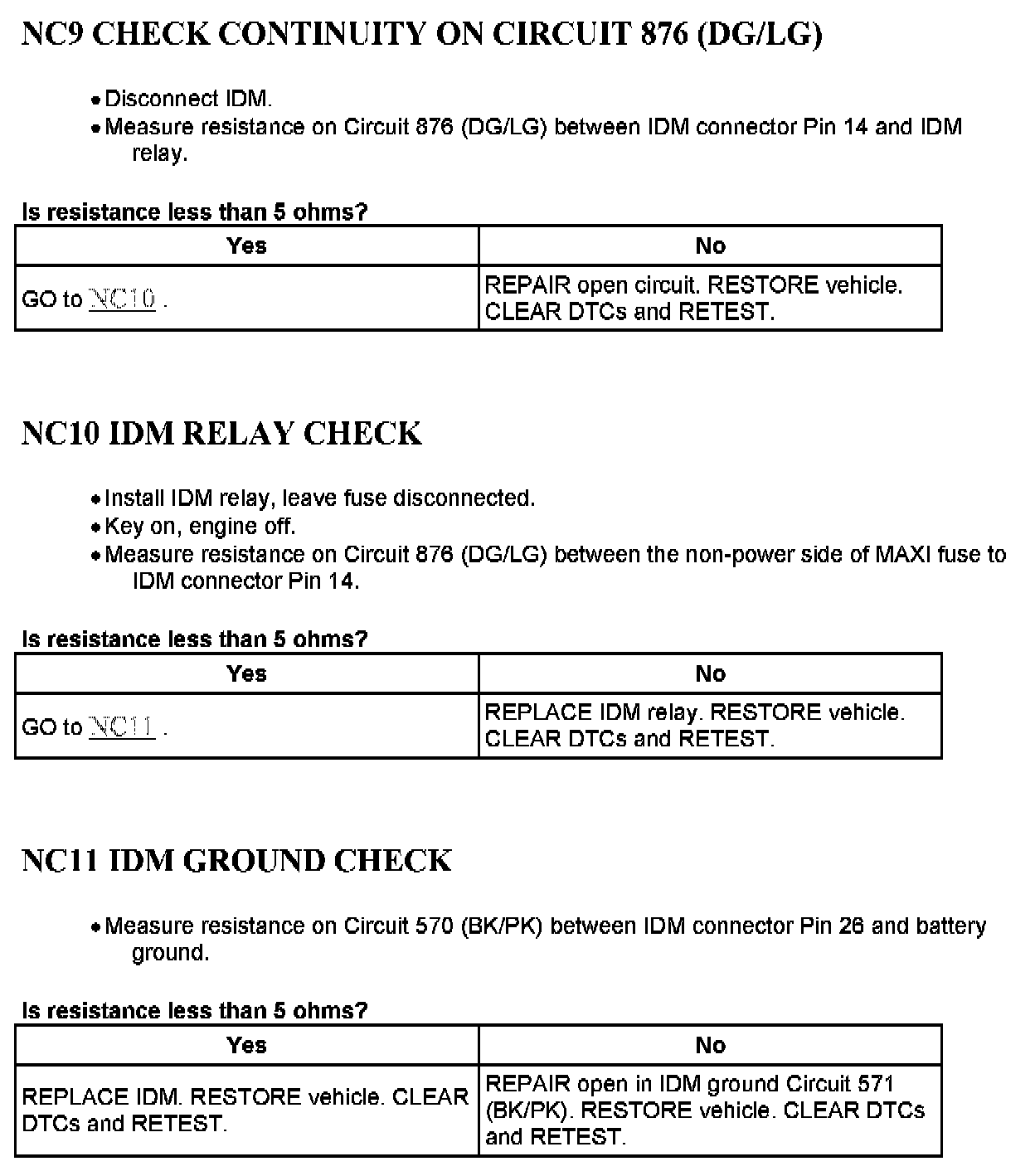

NC9 - NC11:
