Single Generators

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the accessory drive belt from the generator. For additional information, refer to Drive Belts, Mounts, Brackets and Accessories.

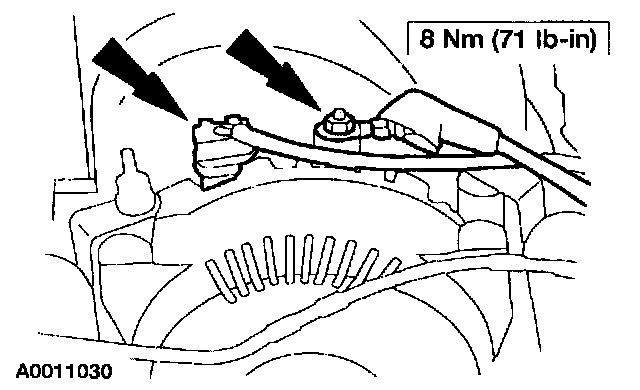

3. Disconnect the generator electrical connectors.

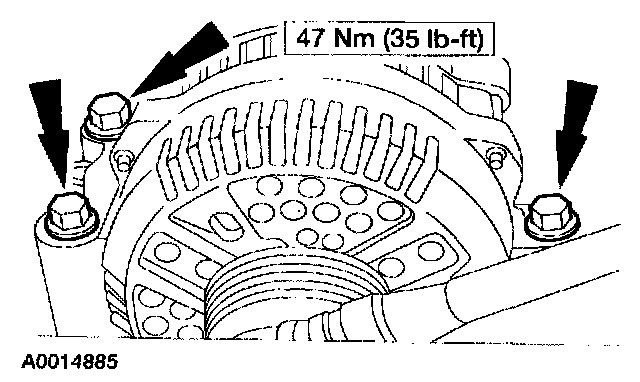

4. Remove the generator mounting bolts and remove the generator.

INSTALLATION
1. To install, reverse the removal procedure.
