Home >> Ford >> 2000 >> Excursion 4WD V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Electric Shift Transfer Case
April 5, 2026: LEMON Manuals is launched! Read the announcement.

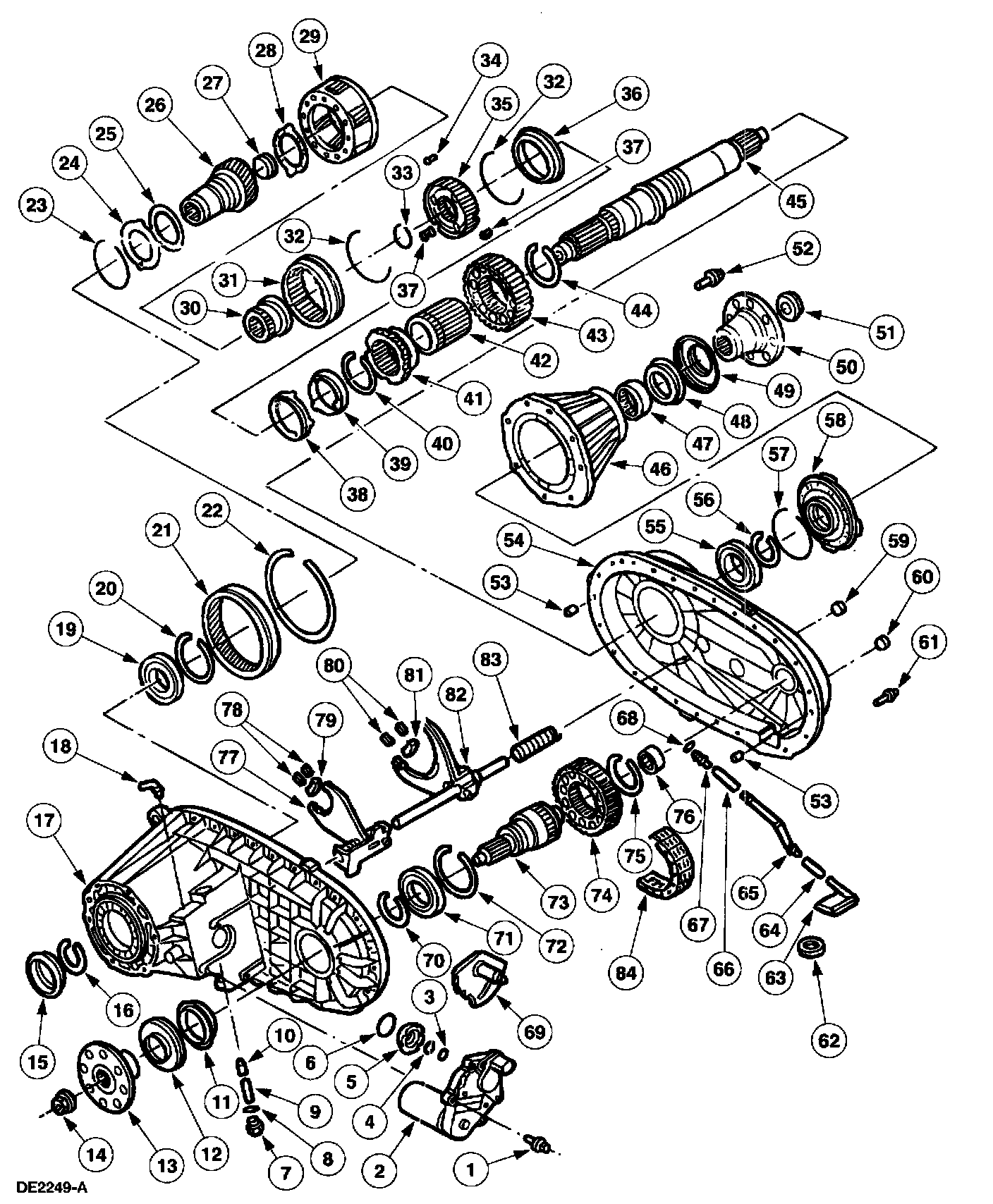

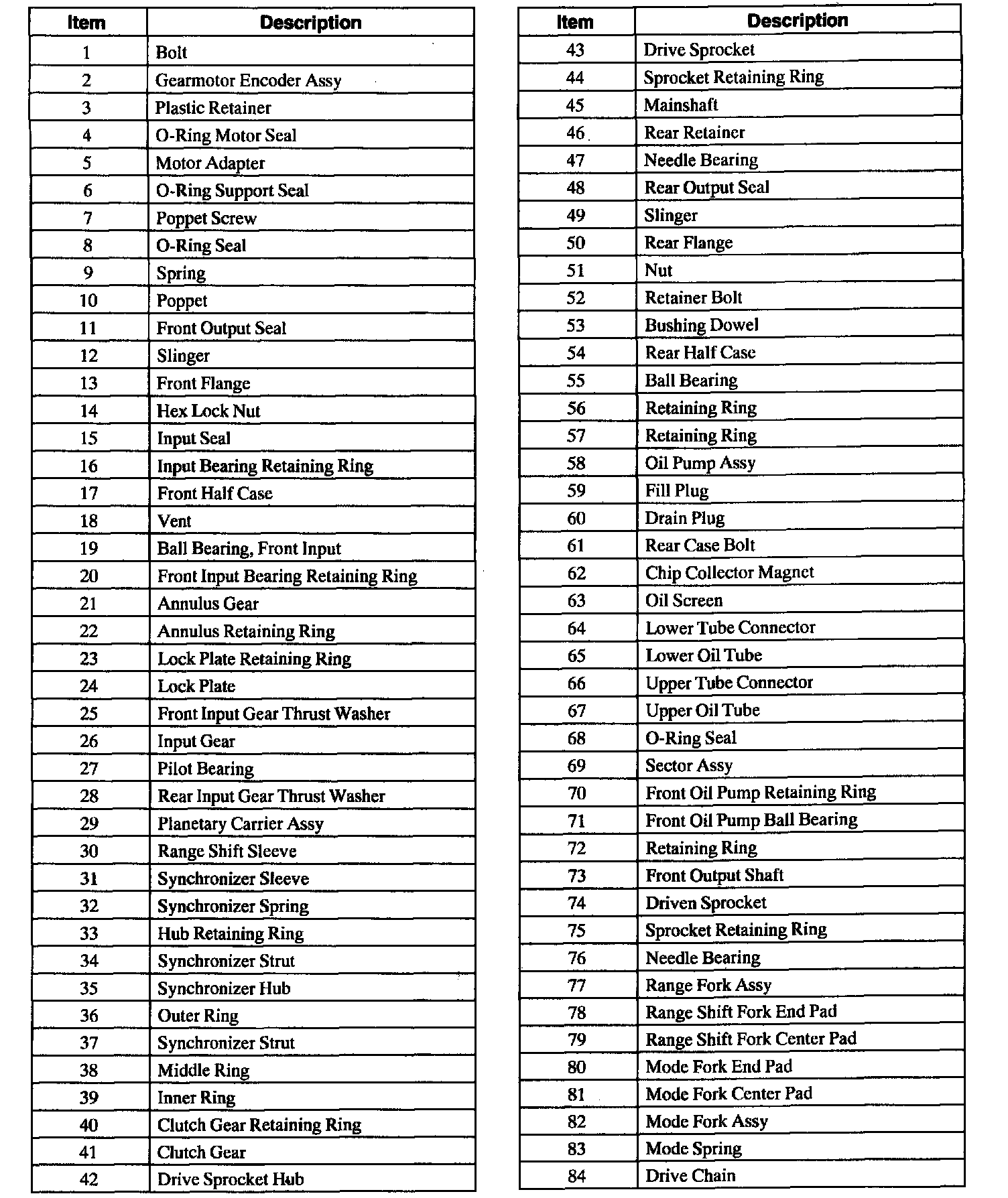

Electric Shift Transfer Case





1 of 2





2 of 2
