Tests KF: Fan Control (FC) Relay

NOTE
This Pinpoint Test is intended to diagnose the following:
- Harness circuits: VPWR, B+, HFC, LFC, IGN START/RUN, FAN(s) PWR
- High Speed Fan Control (HFC) and Low Speed Fan Control (LFC) relays
- Powertrain Control Module (PCM)

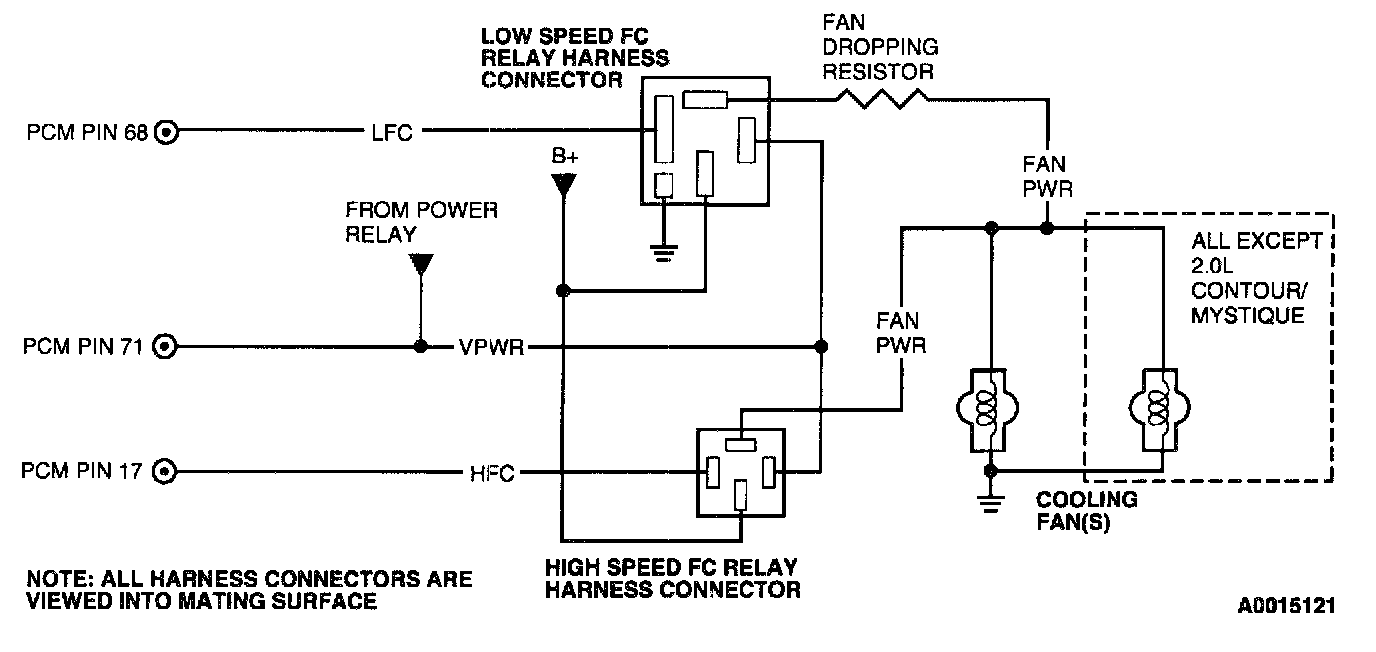

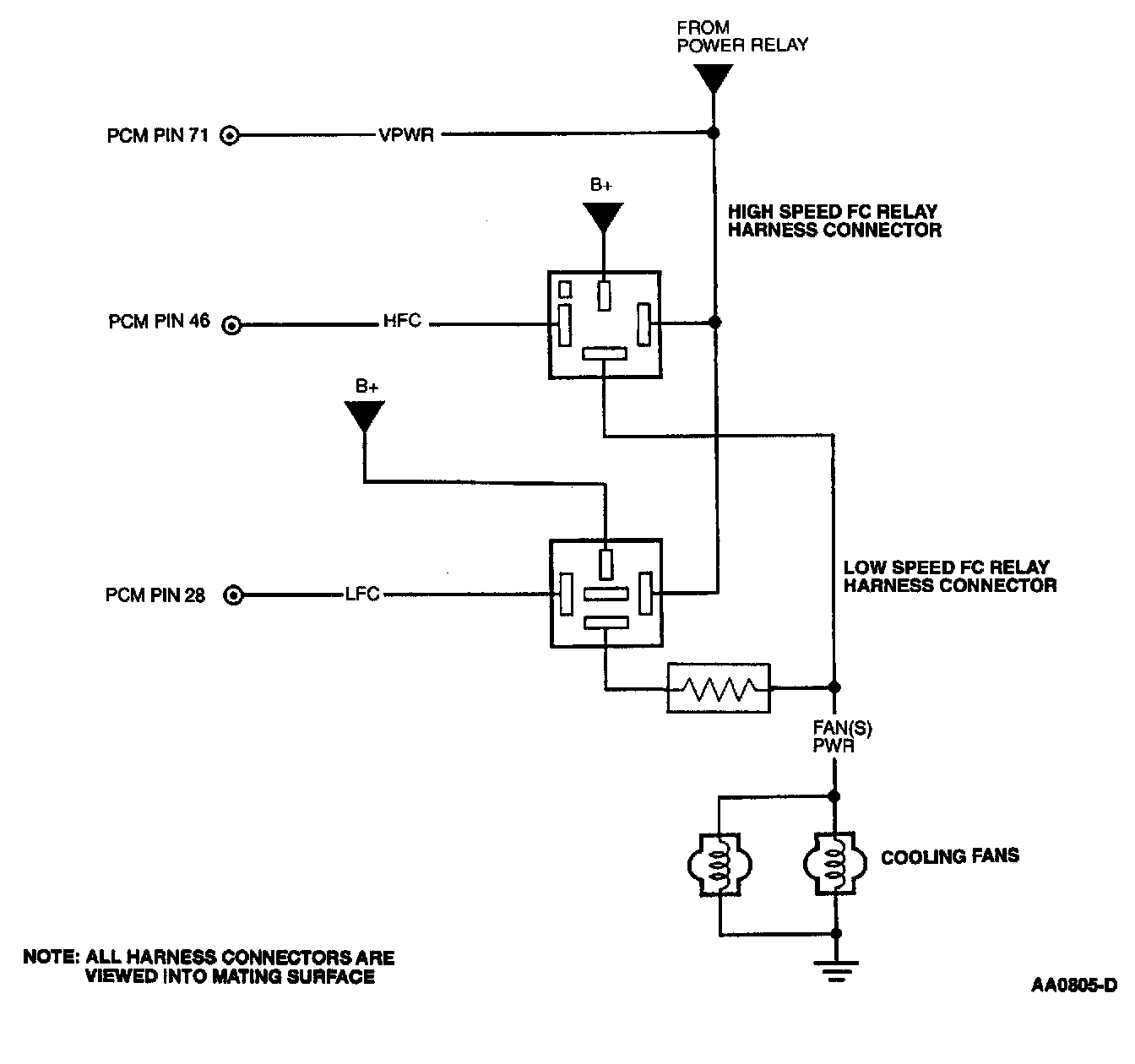

Pinpoint Test Schematics and Connectors

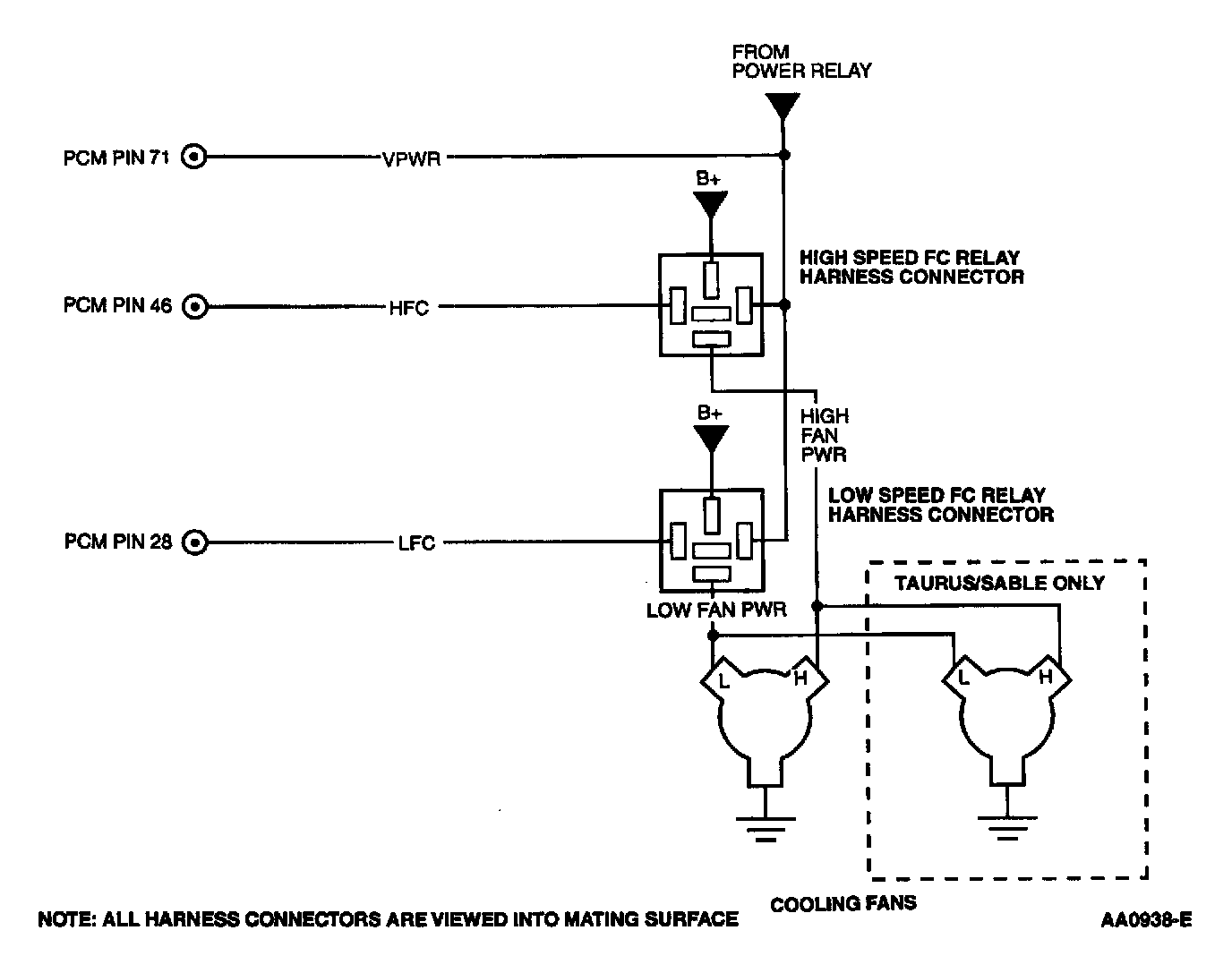

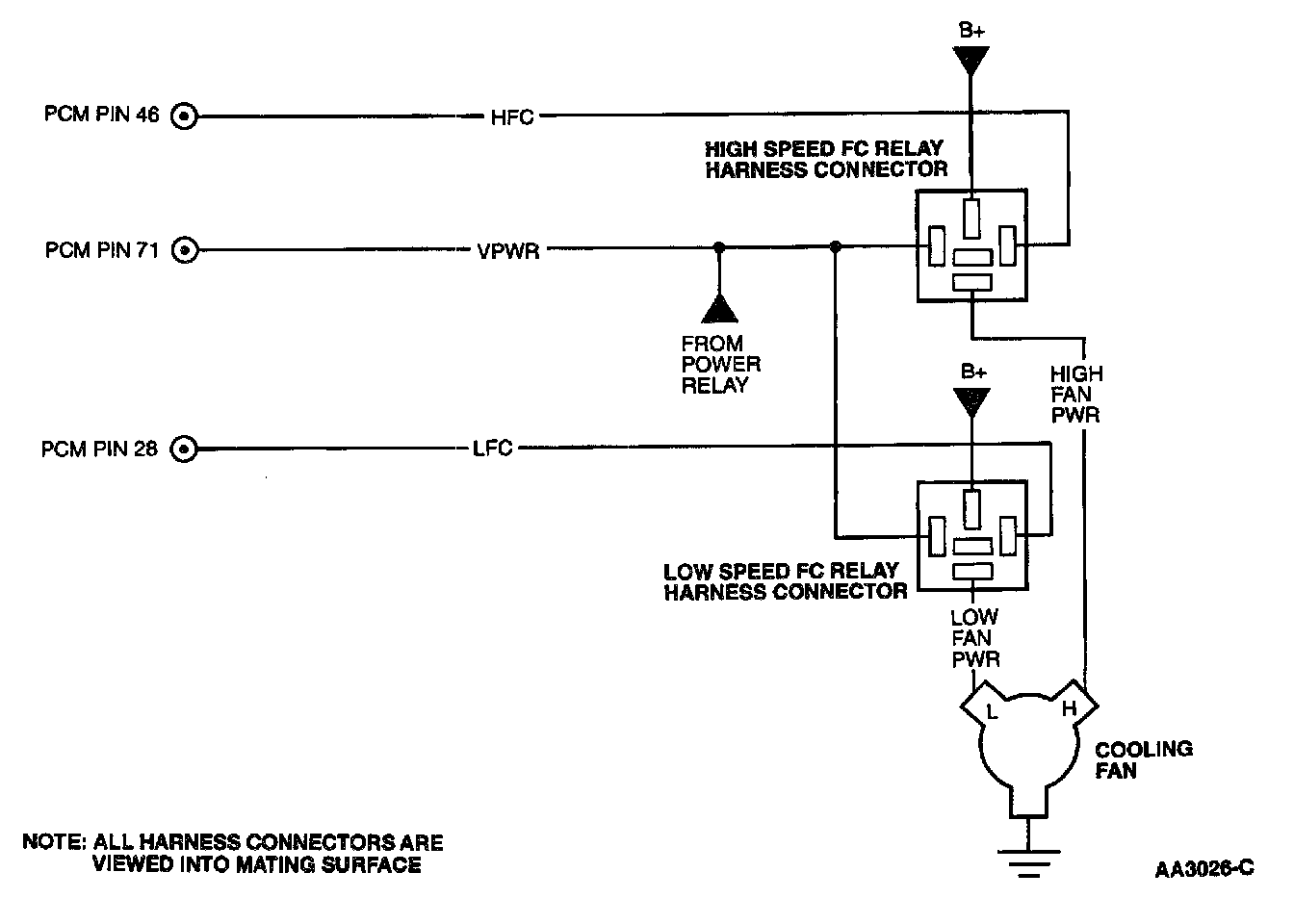

Focus (With A/C), Contour/Mystique/Cougar (Low and High Speed (FC) Relay):

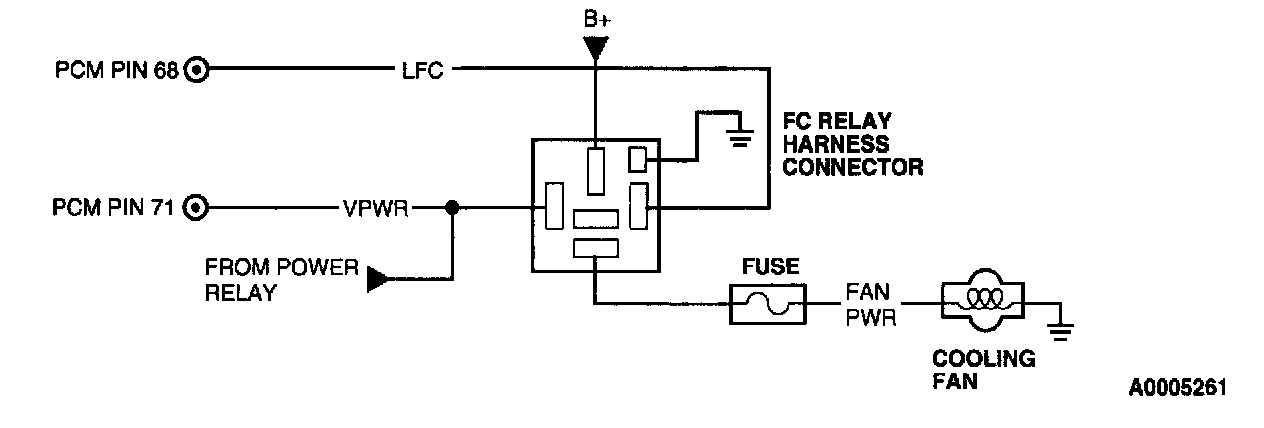

Focus (Without A/C) (FC) Relay):

Taurus/Sable, Continental (Low and High Speed Fan Control (FC) Relay):

Crown Victoria/Grand Marquis, Town Car (Low and High Speed Fan Control (FC) Relay):

Windstar (Low and High Speed (FC) Relay):

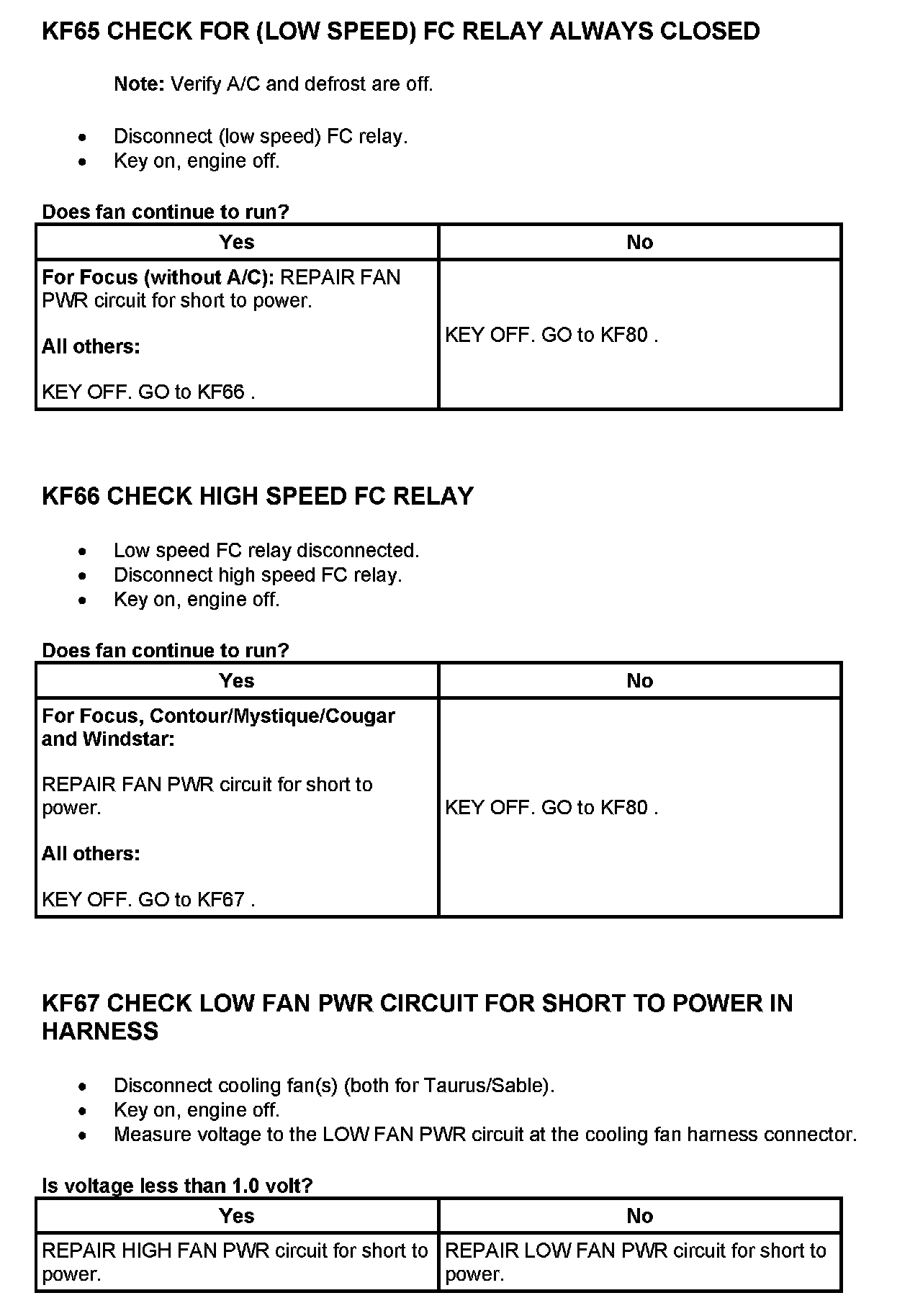

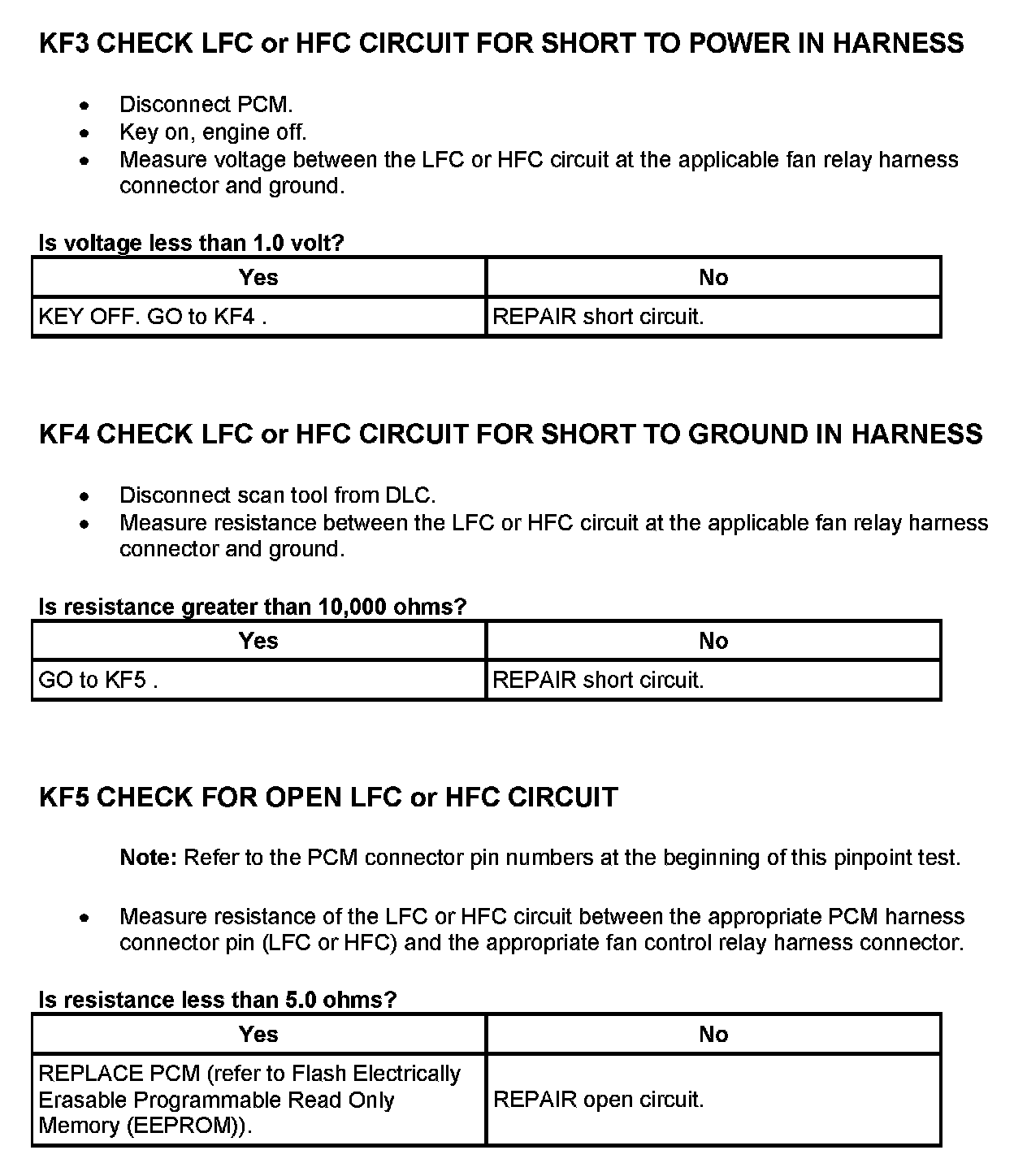

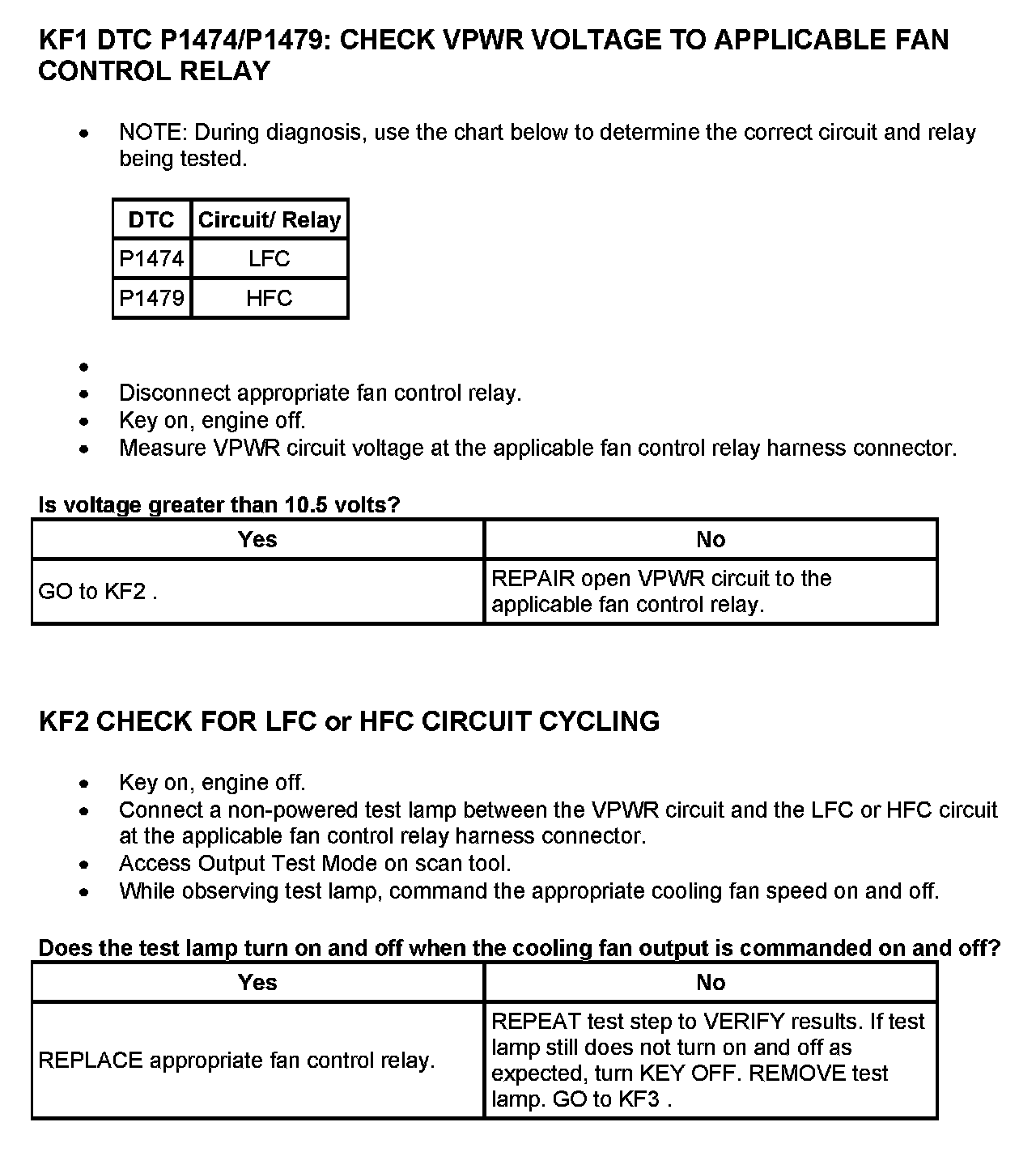

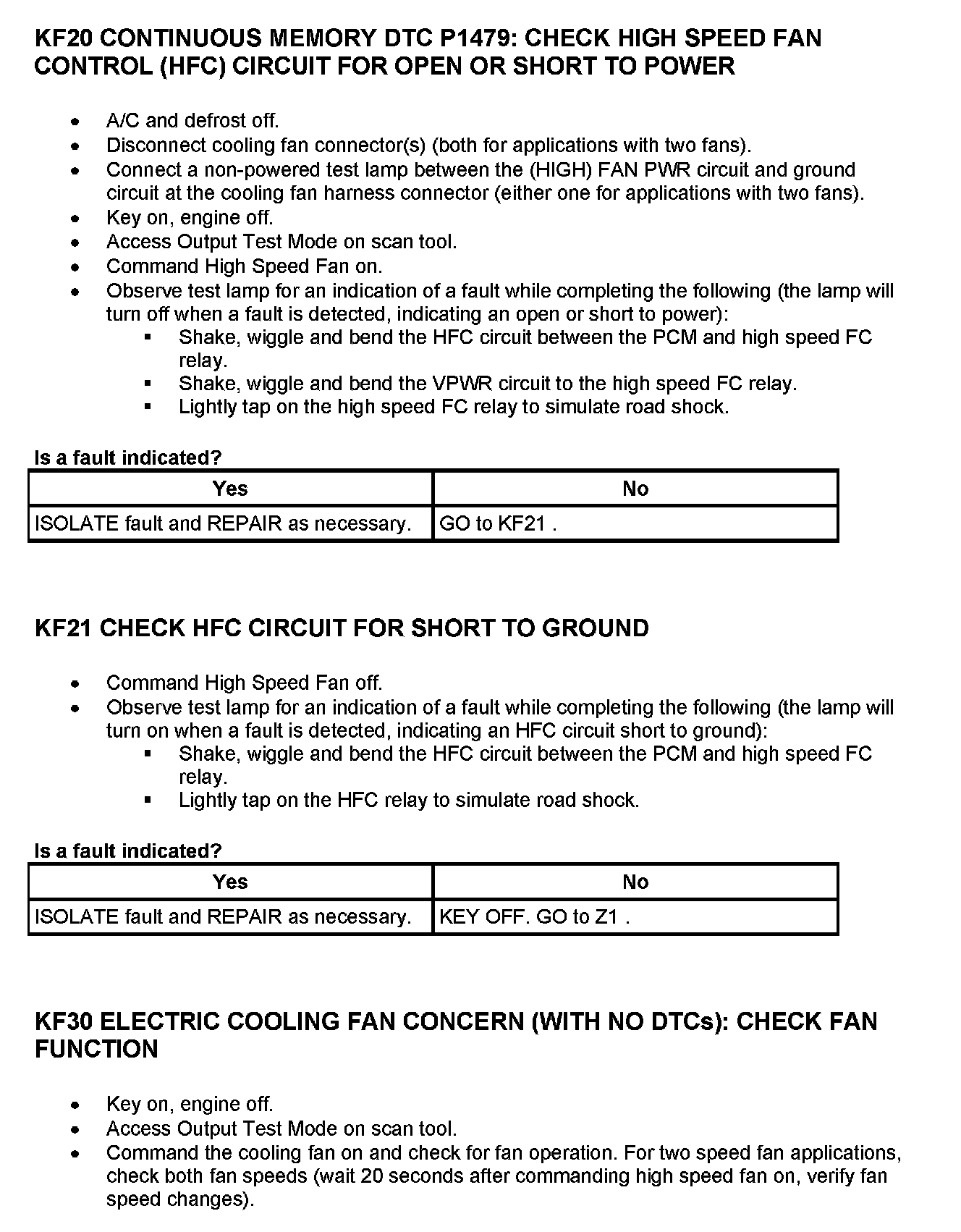

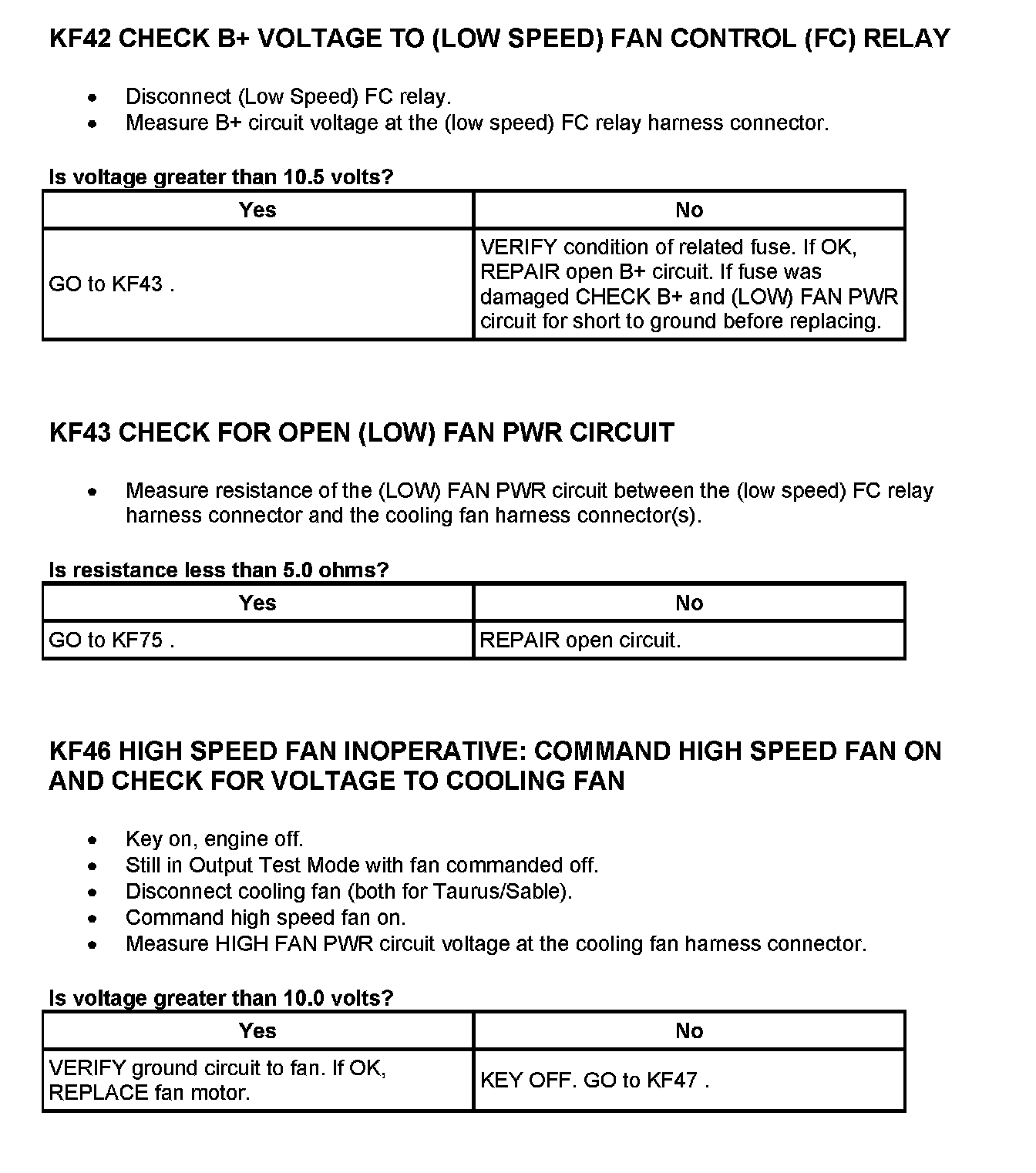

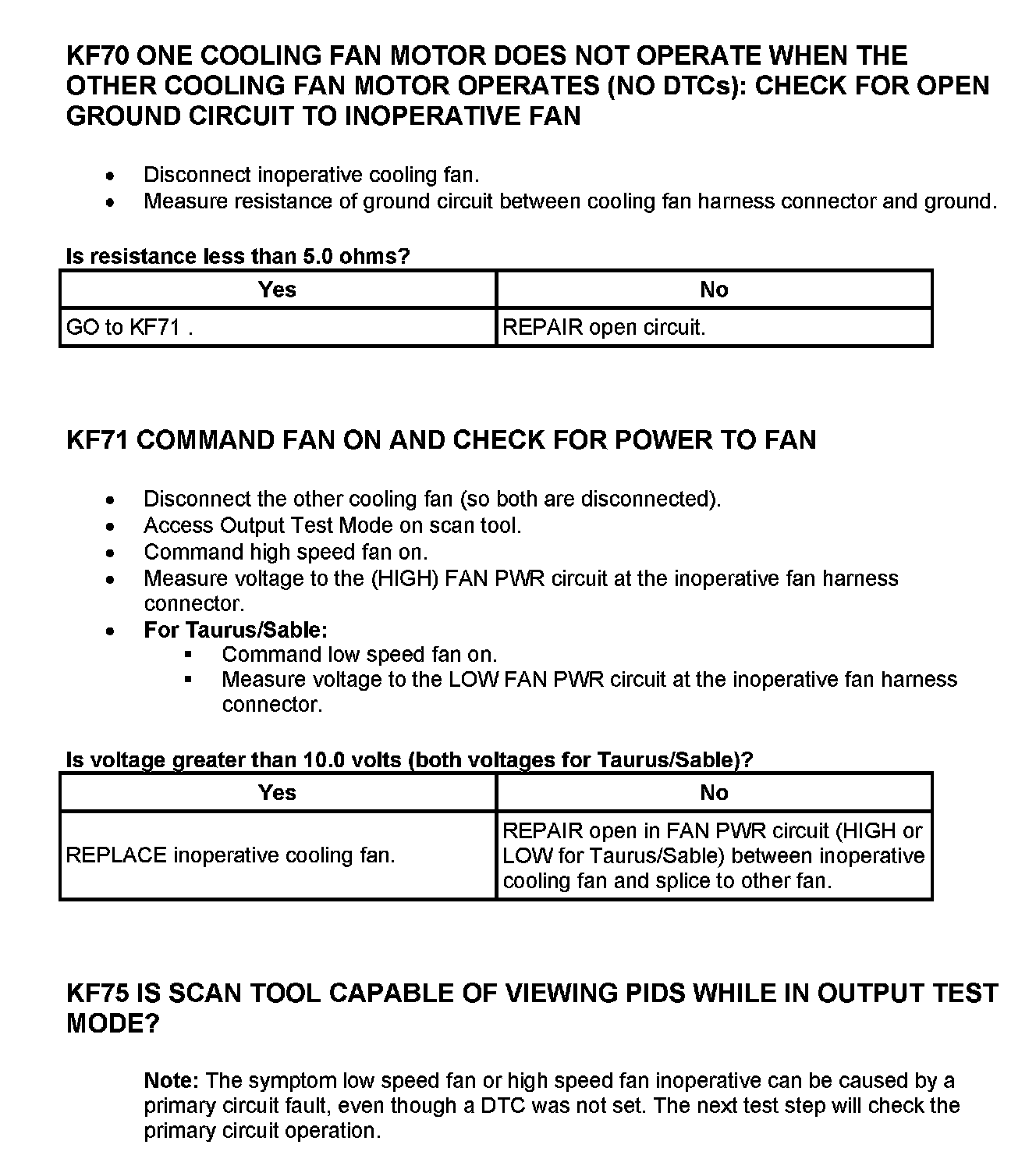

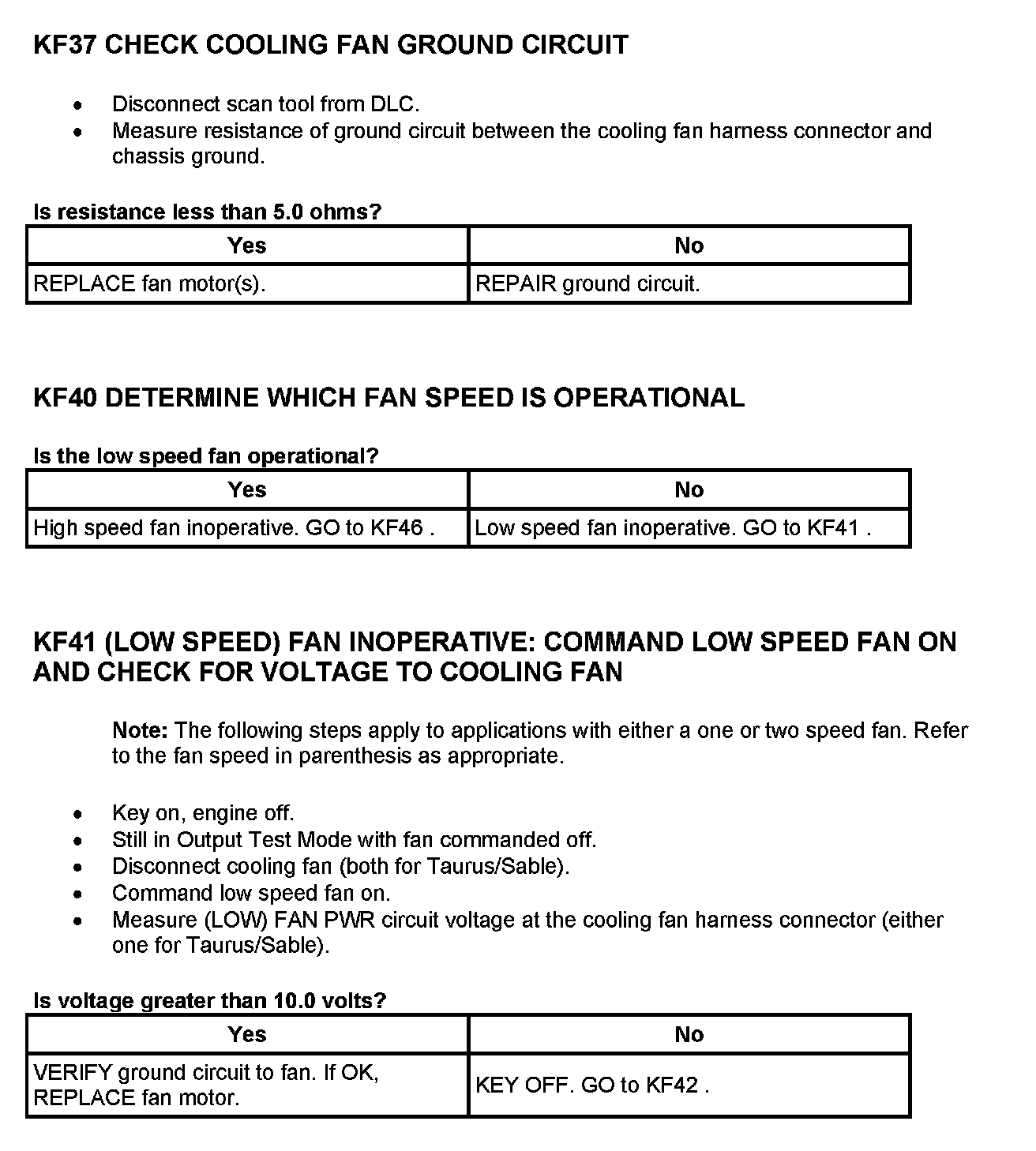

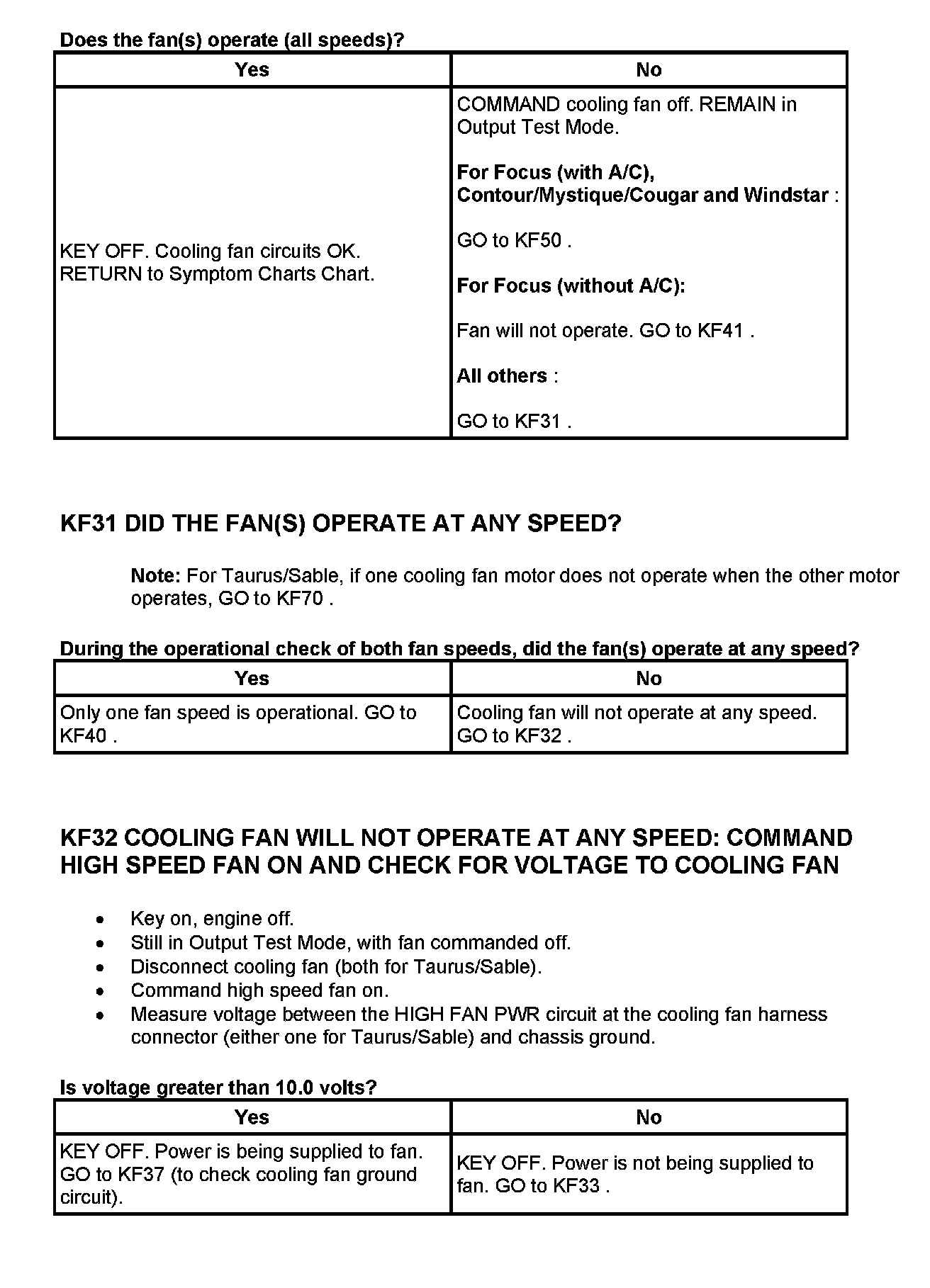

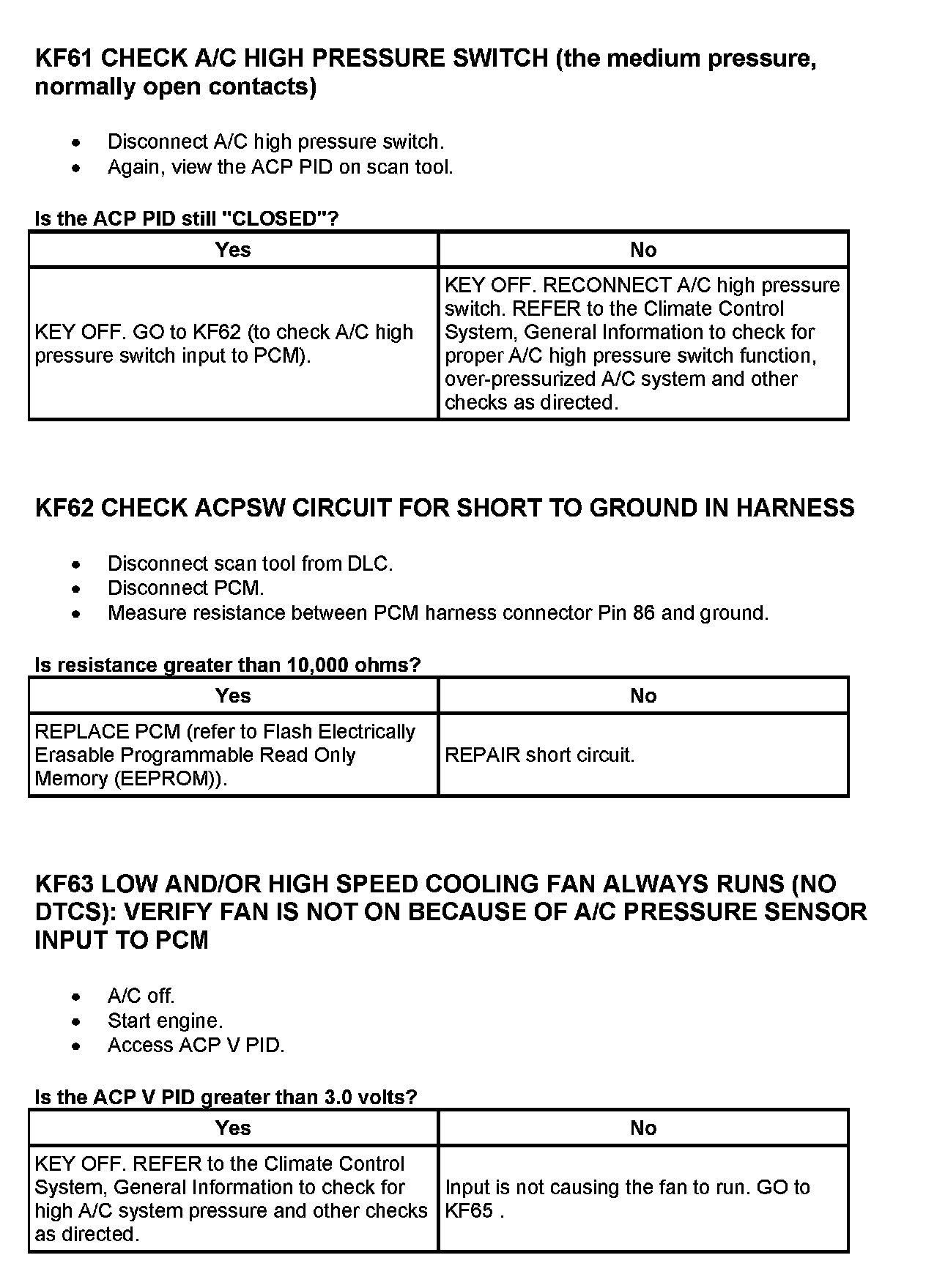

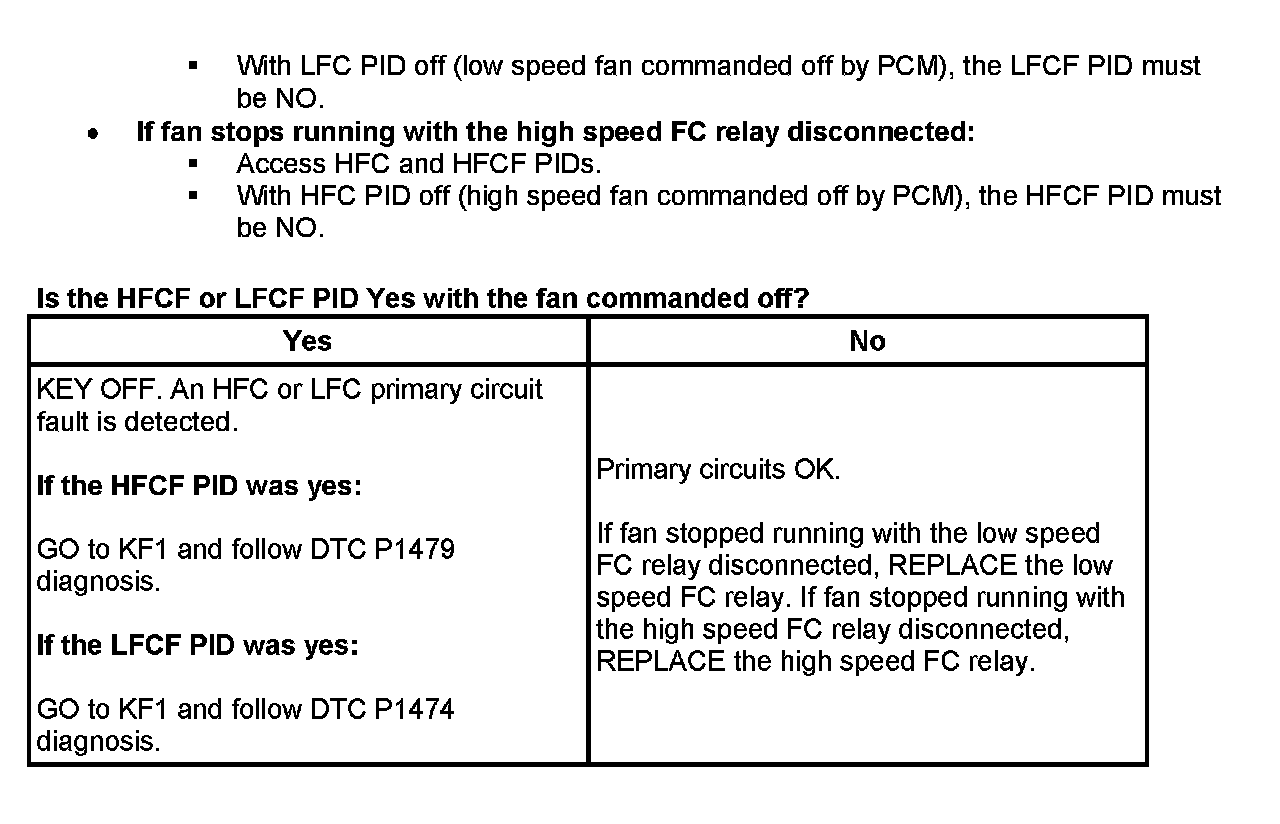

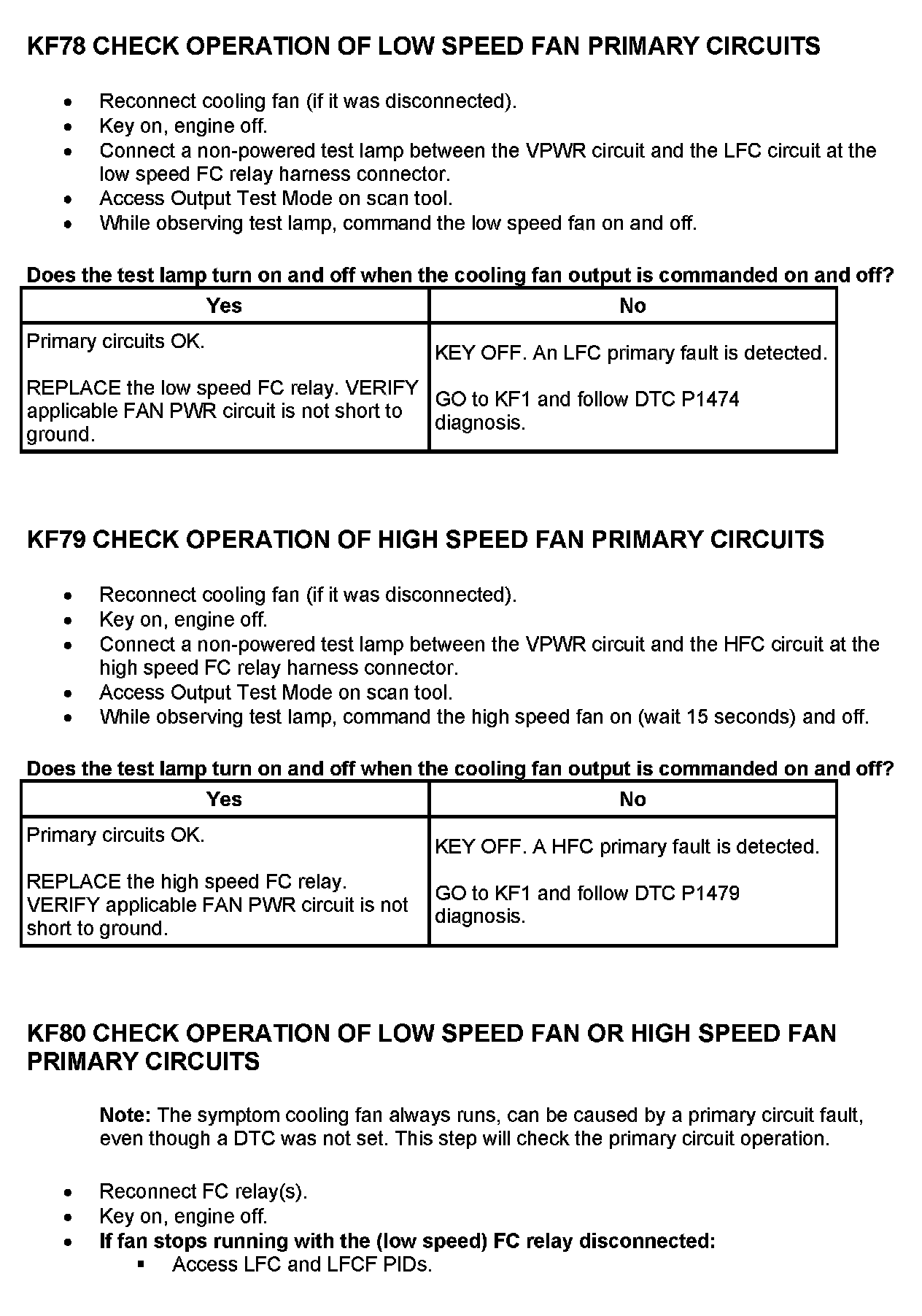

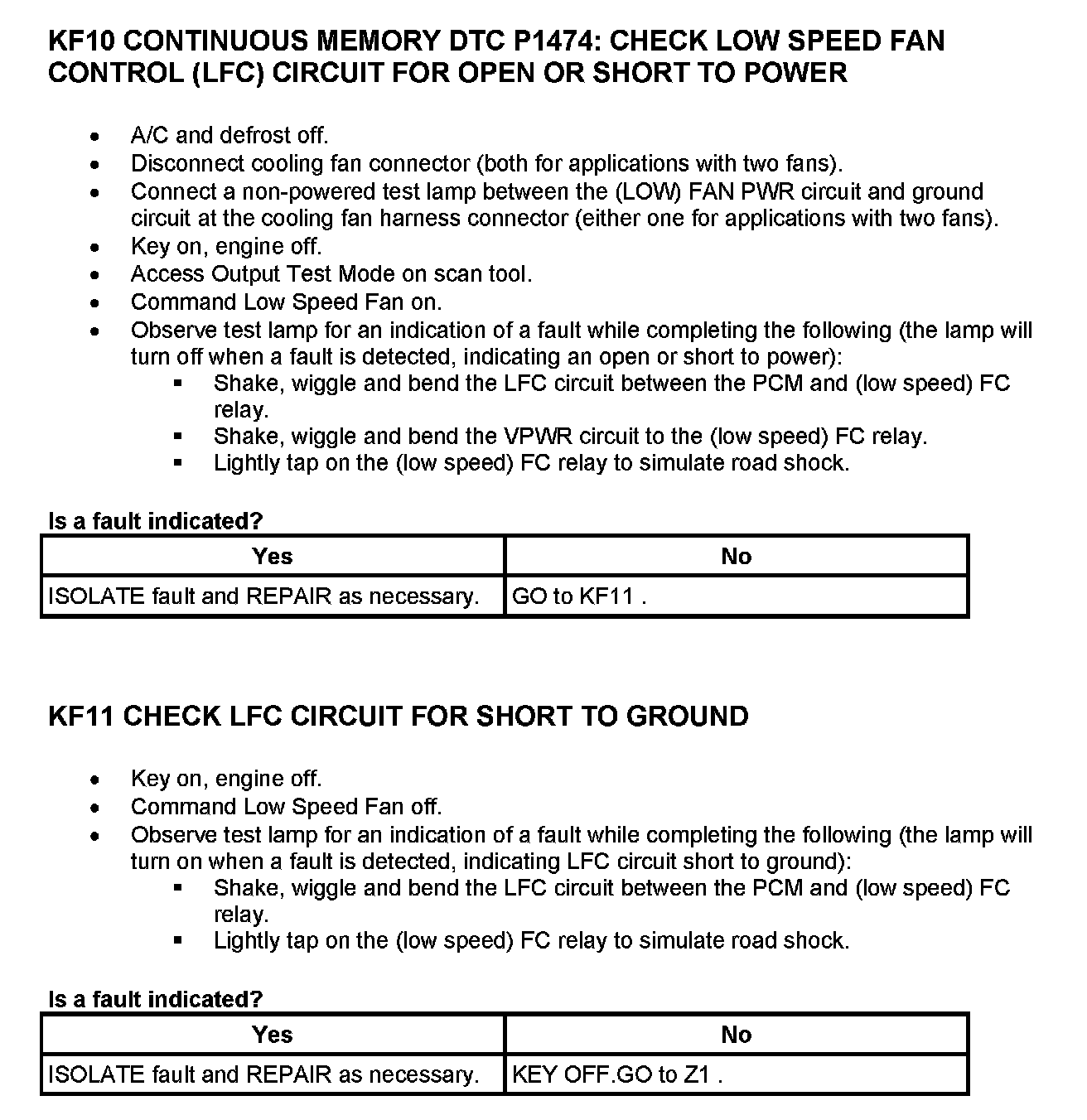

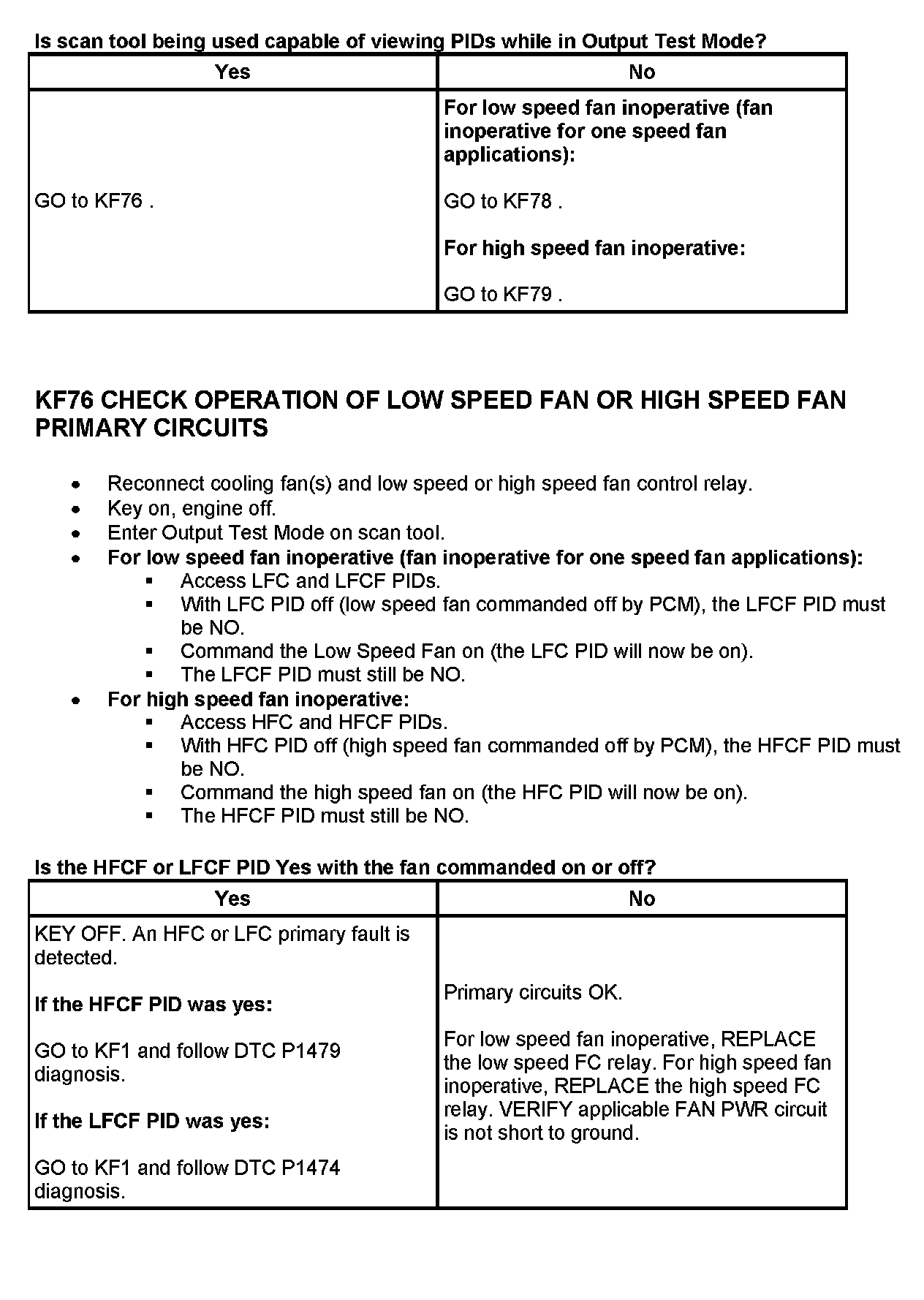

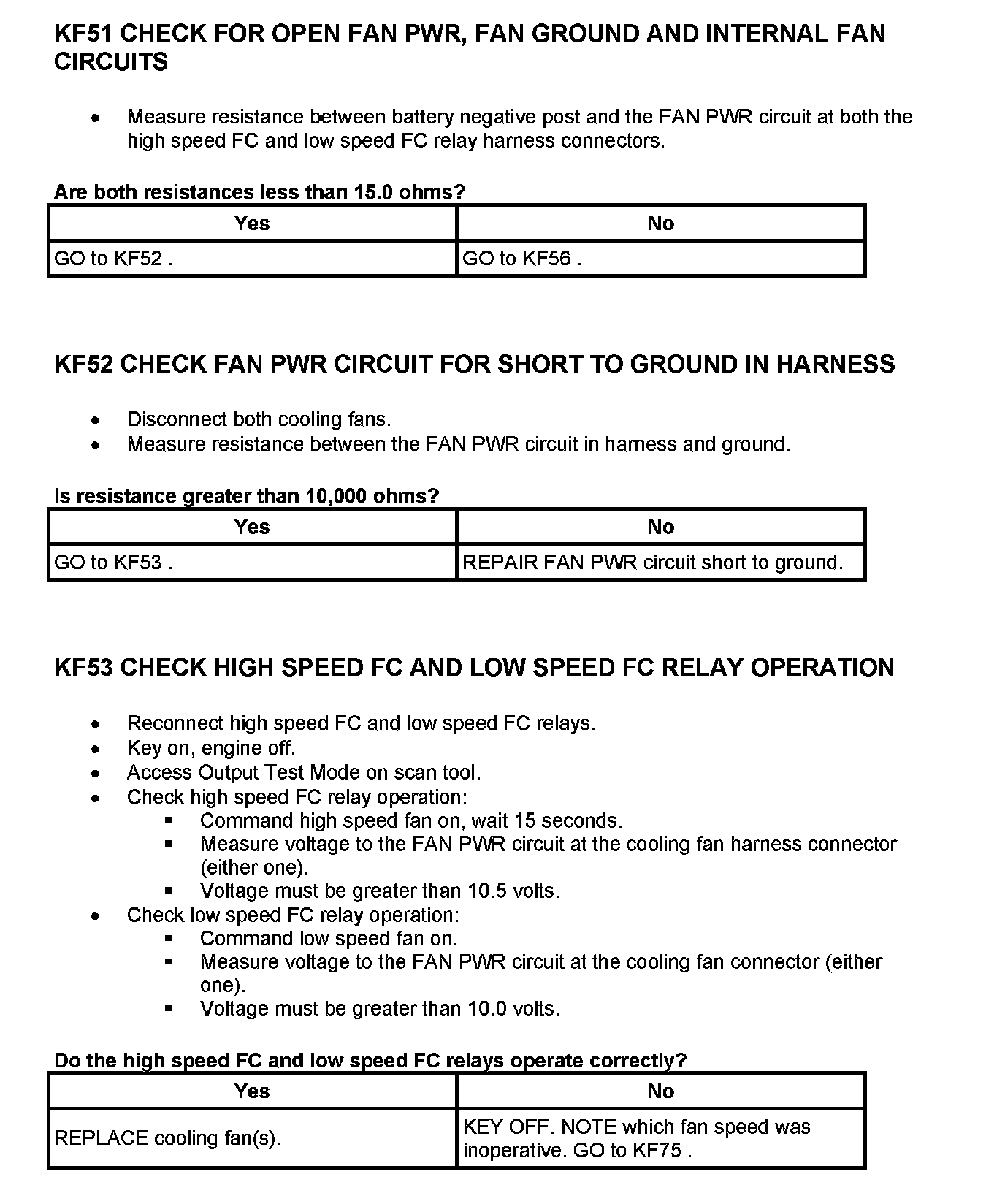

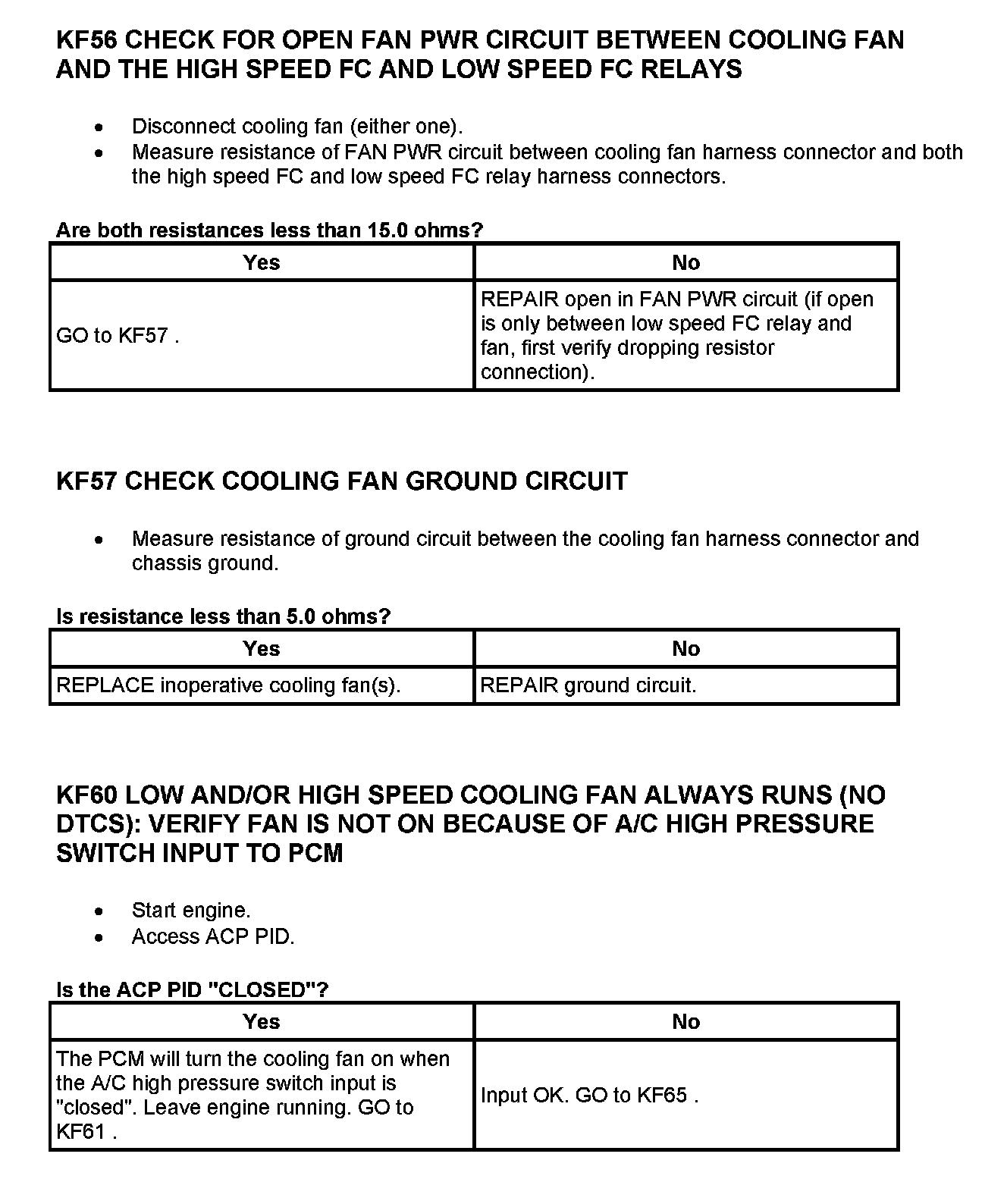

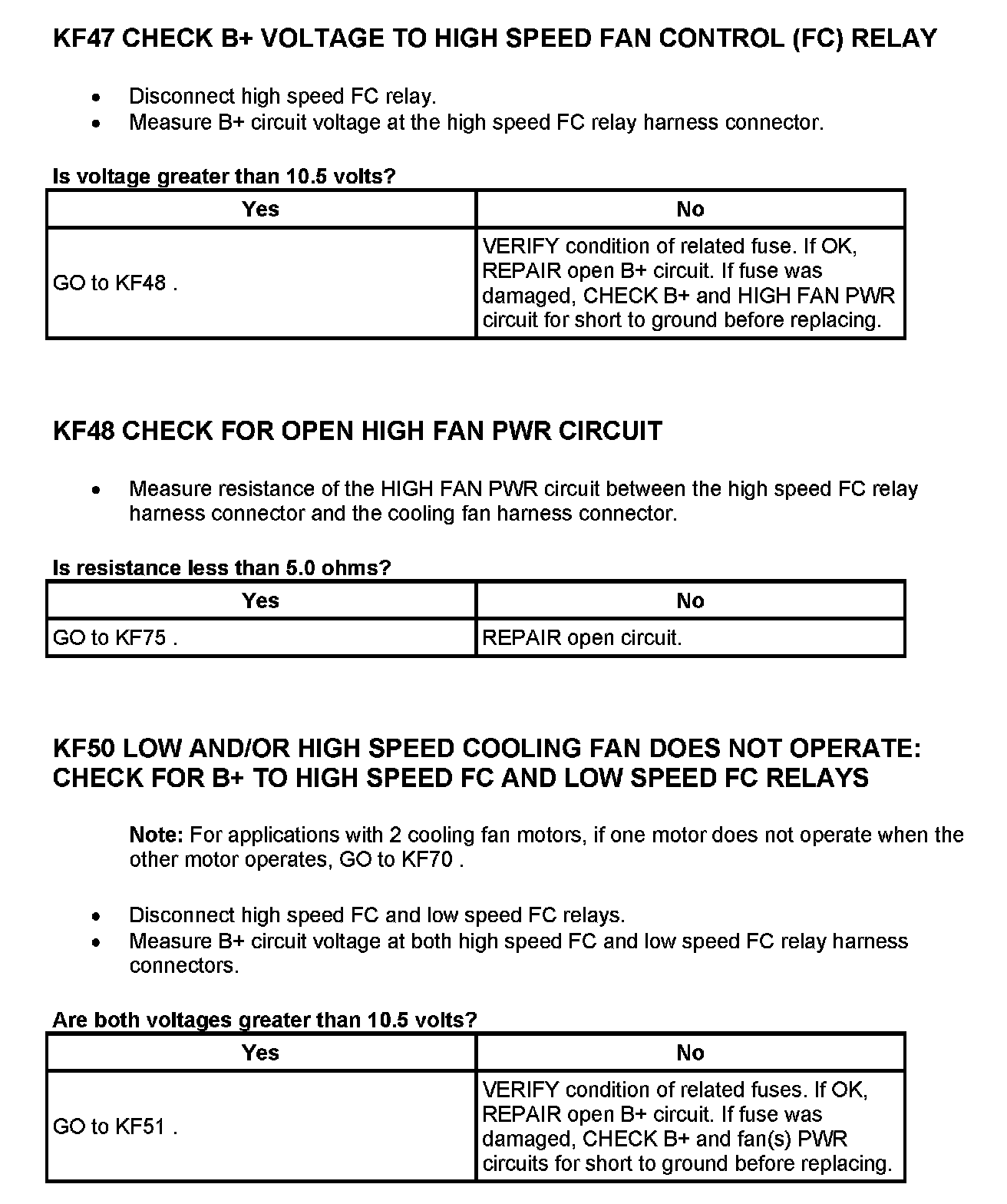

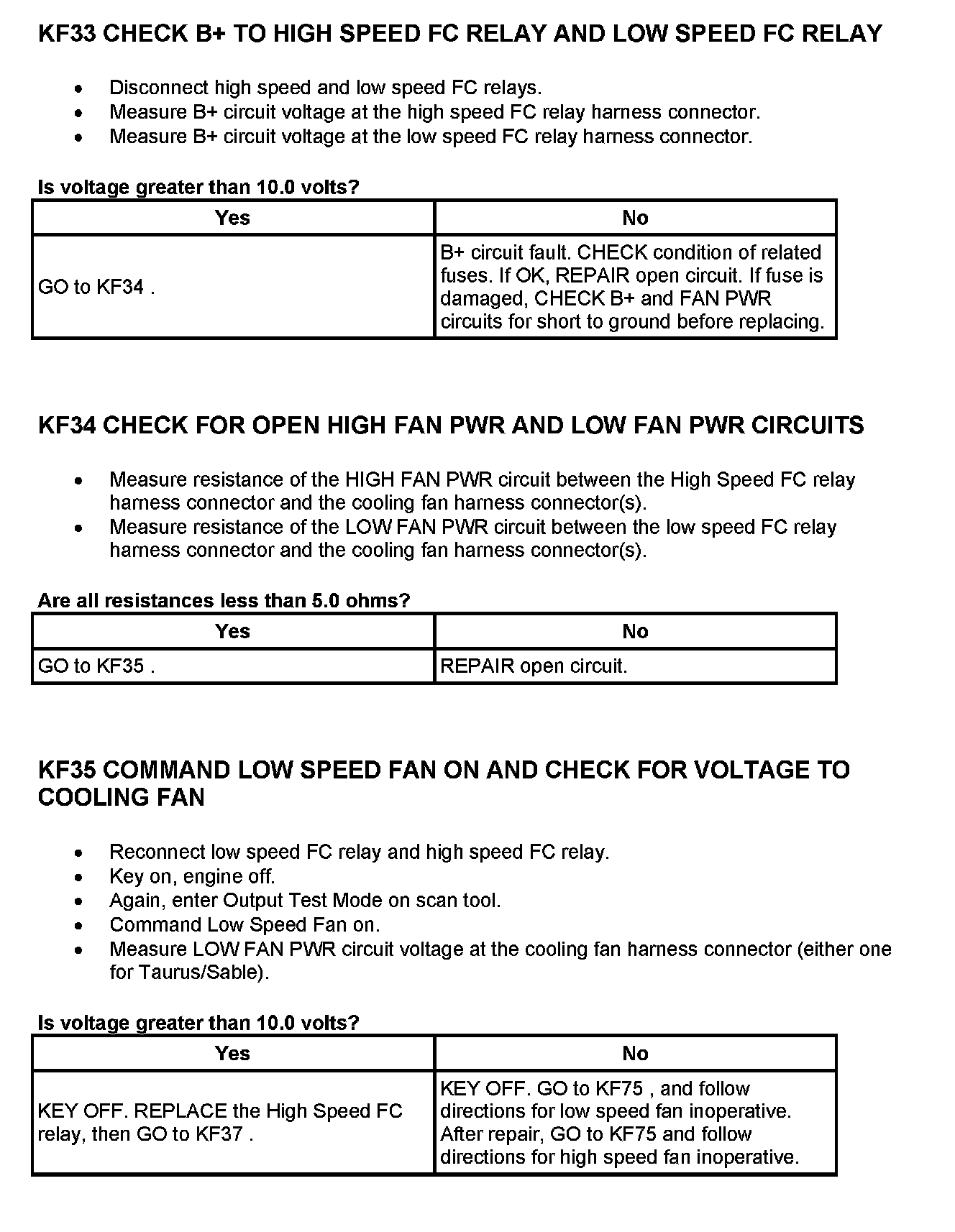

Pinpoint Tests
