Input Shell

Disassembly

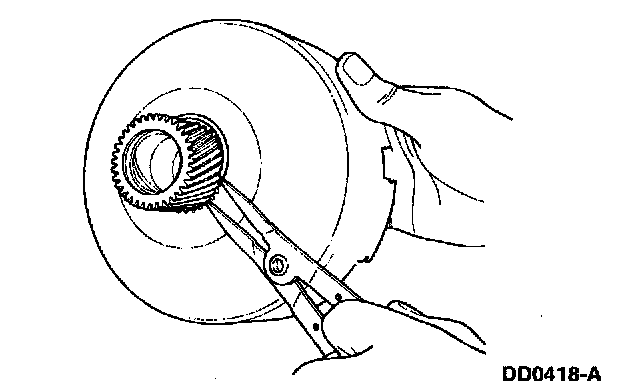

1. Remove and discard the forward/reverse sun gear retaining ring.

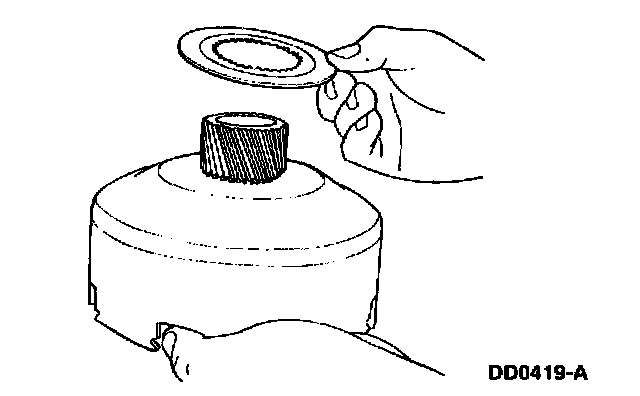

2. Remove the No. 14 input shell thrust washer.

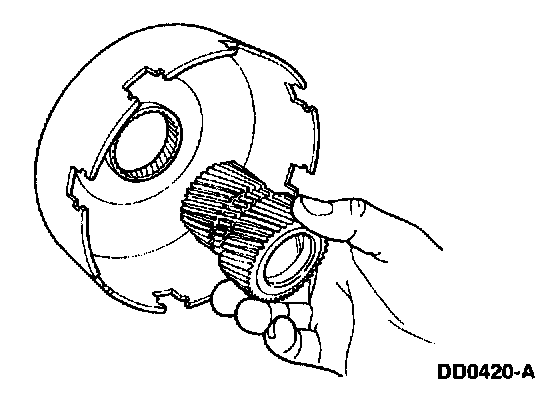

3. Remove the forward/reverse sun gear.

Assembly
1. Follow the removal procedure in reverse order.
- Install the sun gear with the lube hole between the stand-off pads on the input shell.
- Use care not to overextend the new retaining ring.
